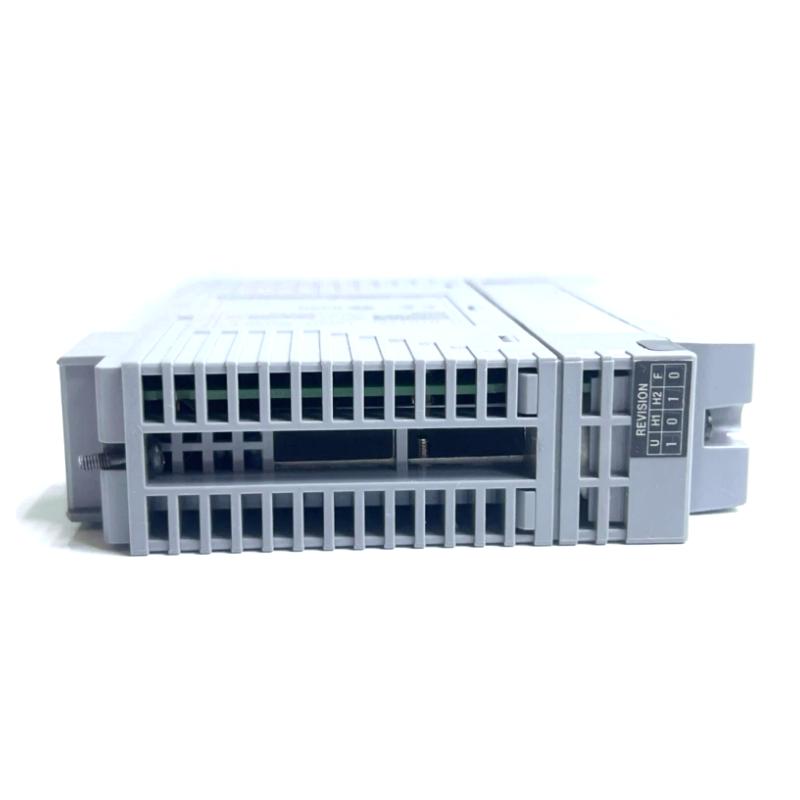

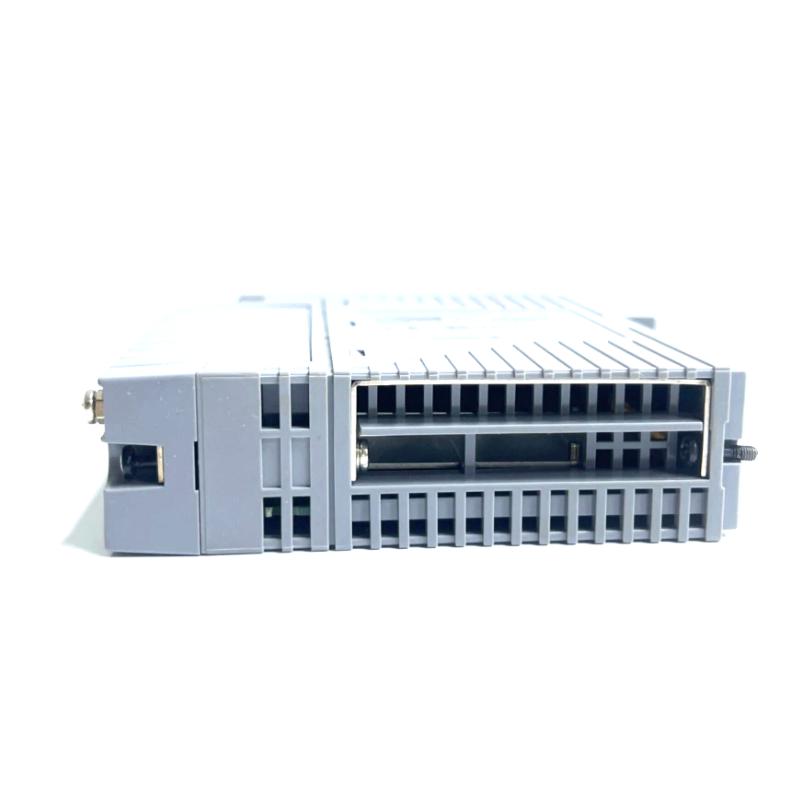

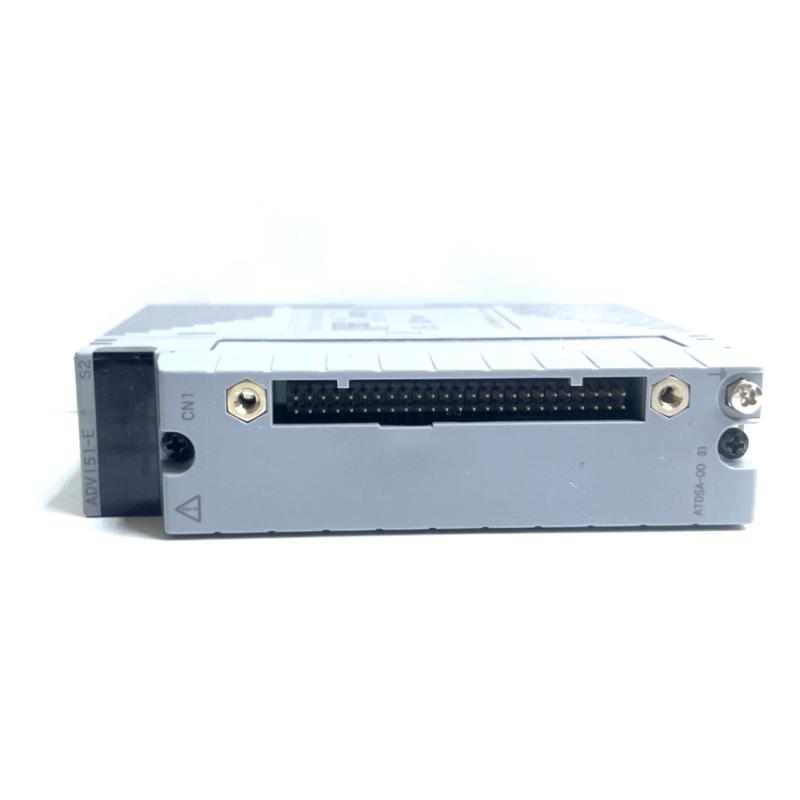

ADV151-E63 S2 4 ADV151-E63 S2 5 ADV151-E63 S2 2 ADV151-E63 S2 3

The Yokogawa ADV151-E63 S2 CPU Module is an advanced control system component designed for high-performance, industrial automation applications. Combining cutting-edge processing power with superior communication capabilities, this module provides exceptional performance in complex control systems. The ADV151-E63 S2 is engineered to meet the growing demands of industries like manufacturing, process control, and energy management, where reliability, scalability, and data security are essential.

Whether you're optimizing production lines, managing large-scale infrastructure, or monitoring sensitive processes, the ADV151-E63 S2 ensures seamless integration, faster processing speeds, and a highly secure operational environment. With a modular design, it offers both flexibility and scalability to grow with your system’s needs.

Technical Specifications

Model: ADV151-E63 S2
Module Type: CPU Module

Parameter	Details
Dimensions	130 mm (W) x 170 mm (H) x 80 mm (D)
Weight	1.3 kg
Power Supply	24V DC (±10%)
Communication Ports	Ethernet, USB, RS232, RS485, Modbus
Operating Temperature	-10°C to 80°C
Storage Temperature	-20°C to 85°C
Humidity	5% to 95% RH (non-condensing)
CPU Speed	2.2 GHz
Memory	12 GB RAM, 48 GB Flash
Redundancy Support	Yes (for continuous operation)

Recommended Related Models

Yokogawa ADV151-E63 S2 Power Supply Module
Ensures consistent and reliable power for high-performance operations, minimizing downtime.
Yokogawa ADV151-E63 S2 Communication Module
Enhances the communication capabilities of your system, enabling seamless data exchange across devices.
Yokogawa ADV151-E63 S2 I/O Module
Expands I/O capabilities, allowing for additional sensors, actuators, and more complex control functions.

Popular Allen Bradley Models

Allen Bradley 1756-L86ER
Known for its powerful processing and redundancy features, this CPU module is suitable for demanding applications in large-scale automation systems.
Allen Bradley 1756-L73
A compact but powerful controller, ideal for handling mid-sized to large applications with extensive I/O requirements.

Applications

Industrial Automation: Controls automated systems in manufacturing plants, including robotics and assembly lines.
Energy & Utilities: Manages power generation and distribution, optimizing energy consumption and maintaining system reliability.
Oil & Gas: Used in upstream and downstream processes, including refinery automation and pipeline monitoring.
Building Management Systems: Manages HVAC, lighting, and security systems in large commercial or industrial buildings.
Pharmaceutical Manufacturing: Ensures precision in the production of pharmaceuticals, maintaining quality control and regulatory compliance.

Advantages

High-Speed Processing: With a 2.2 GHz CPU, the ADV151-E63 S2 handles large-scale, data-intensive operations with ease.
Large Memory Capacity: 12 GB of RAM and 48 GB of flash memory ensure that the module can handle complex applications and store significant amounts of data.
Comprehensive Communication Options: Multiple ports, including Ethernet, USB, RS232, RS485, and Modbus, enable flexible integration with other systems and devices.
Built-In Redundancy: Ensures system uptime by offering redundant capabilities, crucial for mission-critical applications.
Wide Operating Temperature Range: Operates reliably from -10°C to 80°C, making it suitable for harsh environments.
Compact Design: Despite its high processing power, the module's compact size allows for efficient use of space in control cabinets.
Secure Communication: Equipped with advanced security protocols, the module ensures that your system remains safe from external threats.
Scalable Architecture: The modular design allows for easy integration of additional components, ensuring flexibility for growing systems.
Low Energy Consumption: Designed to be energy-efficient, the ADV151-E63 S2 helps lower operational costs.
Durability and Reliability: Built to endure harsh conditions, ensuring a long lifespan and reducing maintenance needs.

Technical FAQs

What is the operating temperature range of the ADV151-E63 S2?
The module operates in temperatures ranging from -10°C to 80°C, making it suitable for challenging industrial environments.
Can the ADV151-E63 S2 handle system redundancy?
Yes, the ADV151-E63 S2 supports redundancy to ensure high availability and continuous operation, minimizing downtime.
What communication ports are available on the ADV151-E63 S2?
The module includes Ethernet, USB, RS232, RS485, and Modbus ports, offering extensive connectivity options.
What are the power supply requirements for the ADV151-E63 S2?
It requires a 24V DC power supply with a tolerance of ±10%.
How much does the ADV151-E63 S2 weigh?
The module weighs approximately 1.3 kg.
Can the system be expanded with additional I/O modules?
Yes, the ADV151-E63 S2 is highly scalable and can integrate with various I/O modules to meet your system’s needs.
Is the ADV151-E63 S2 suitable for use in pharmaceutical applications?
Yes, the module is ideal for regulated environments like pharmaceutical manufacturing, ensuring precise control and compliance.
What memory does the ADV151-E63 S2 include?
It comes with 12 GB of RAM and 48 GB of flash memory for efficient data processing and storage.
Can the ADV151-E63 S2 be used in the oil and gas industry?
Yes, it is well-suited for demanding applications in the oil and gas sector, including automation and monitoring of critical processes.
How does the ADV151-E63 S2 ensure secure operations?
The module comes with advanced security features, such as encrypted communication and secure access controls, to safeguard against cyber threats.
