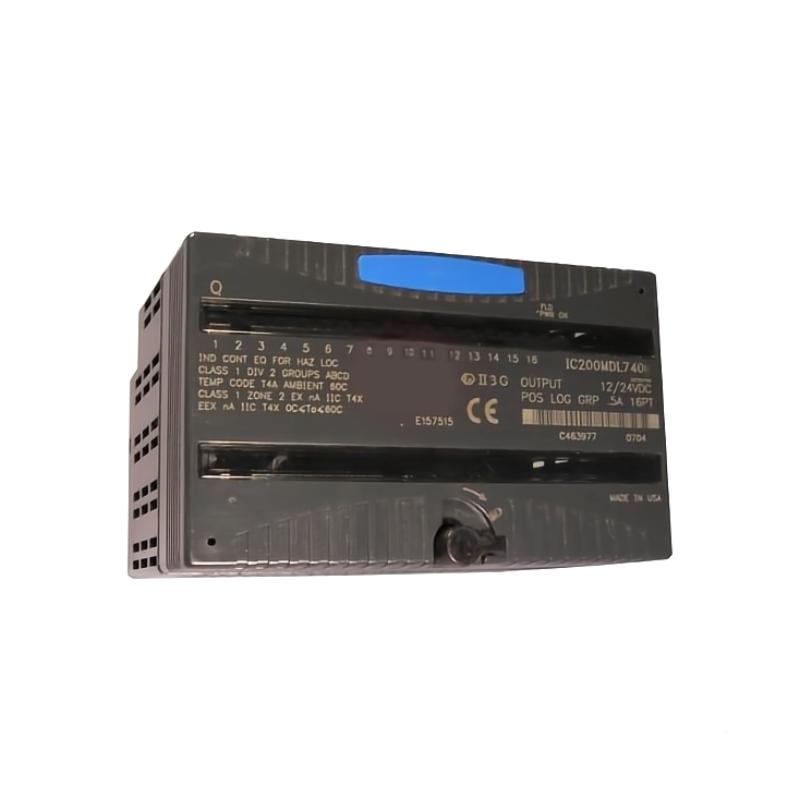

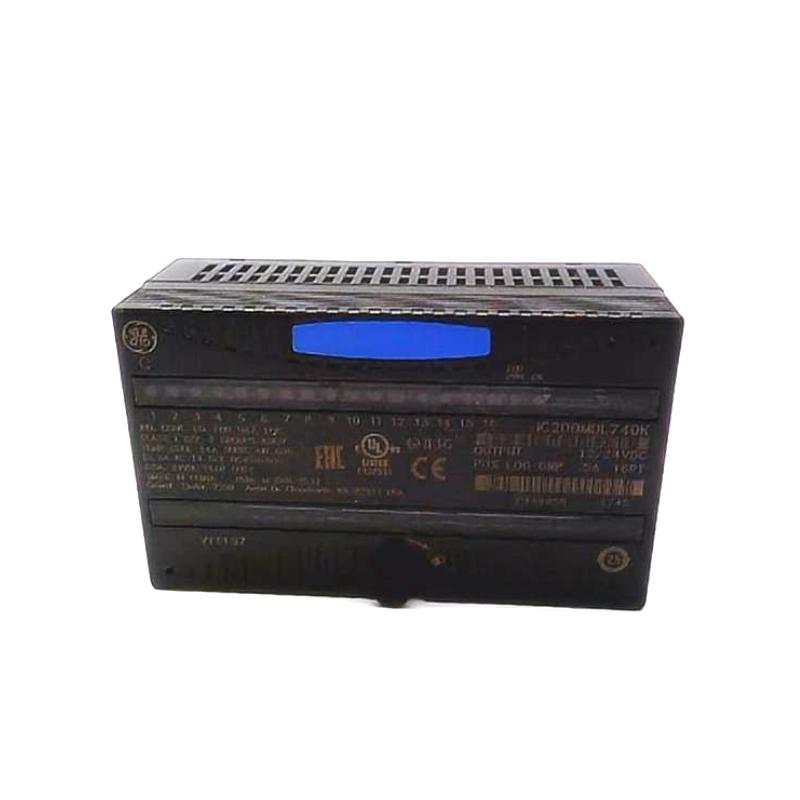

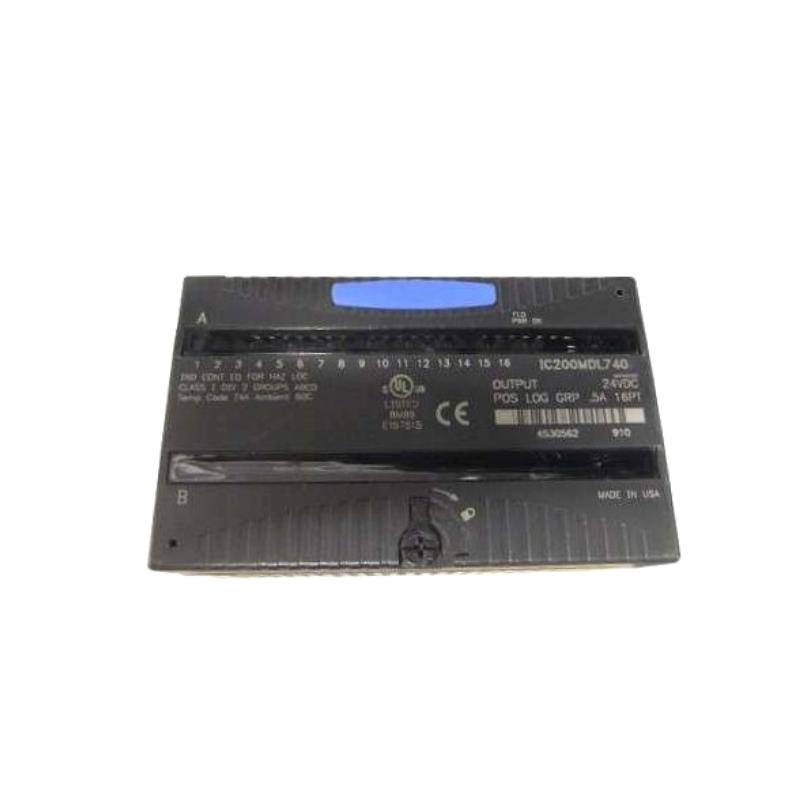

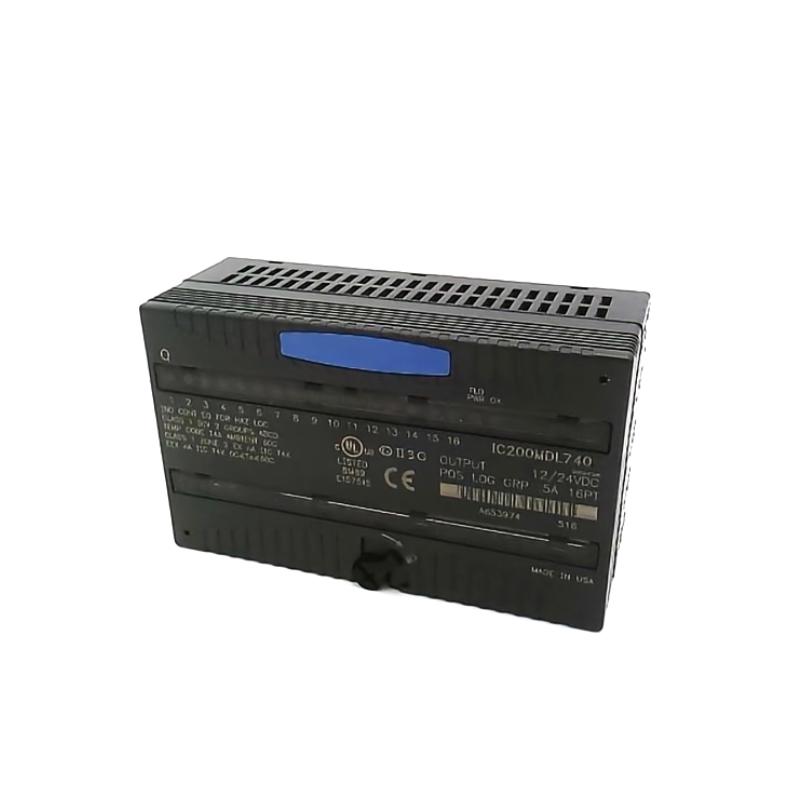

GE IC200MDL740E VersaMax 16-Point 12/24VDC Positive Logic Discrete Output Module
GE IC200MDL740E VersaMax 16-Point 12/24VDC Positive Logic Discrete Output Module
0.0
Points
Brand:GE Fanuc PLC Item No.:IC200MDL740E Product Origin:USA Product Dimensions:110 × 66.8 × 50 mm Product Weight:0.30 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The GE IC200MDL740E VersaMax 16-Point 12/24VDC Positive Logic Discrete Output Module is a compact and dependable digital output solution designed for GE VersaMax distributed I/O systems. It provides 16 sourcing output channels that allow PLC-controlled switching of industrial DC loads while maintaining the modular flexibility of the VersaMax platform.
Designed for machine automation and industrial control environments, the IC200MDL740E combines fast switching performance, straightforward diagnostics, and efficient cabinet integration. Its positive logic output architecture makes it suitable for a wide range of field devices including relays, actuators, valves, and status indicators.
With its compact design and proven VersaMax compatibility, this module remains a practical choice for system expansion, replacement projects, and long-term support of existing GE automation installations.
Supports 12 VDC and 24 VDC nominal field power systems
Handles up to 0.5 A per output point
Fast 0.2 ms ON response time
Supports external field power for load switching
Individual LED indicators for output status monitoring
FLD PWR and OK diagnostic indicators
Optical isolation between field side and logic circuits
Compact VersaMax modular I/O architecture
Compatible with IC200CHS series carrier bases
Technical FAQs
1. What is the primary function of the GE IC200MDL740E?
The IC200MDL740E is a VersaMax discrete output module designed to switch external DC loads through 16 positive logic output channels controlled by a VersaMax PLC CPU or network interface unit.
2. How many output points are available on the IC200MDL740E?
The module provides 16 discrete output points arranged as a single output group.
3. What type of outputs does this module provide?
The IC200MDL740E uses positive logic (sourcing) outputs, meaning the module supplies current from the positive side of the DC field supply to connected loads.
4. What voltage range does the module support?
The module operates with an external field supply range of 10.2–30 VDC, supporting common 12 VDC and 24 VDC industrial control systems.
5. What is the maximum current capacity per output point?
Each output channel supports up to 0.5 A per point, making it suitable for controlling relays, lamps, solenoids, and similar DC loads.
6. Does the IC200MDL740E require an external power supply?
Yes. An external DC field power source is required for switching connected loads, while the module receives logic power from the VersaMax backplane.
7. What diagnostic indicators are included?
The module provides individual output LEDs, an FLD PWR indicator showing field power availability, and an OK LED indicating backplane power status.
8. Is each output channel individually isolated?
No. The module provides user-side optical isolation from logic circuits, but individual point-to-point output isolation is not provided.
9. Which carriers are compatible with this module?
The IC200MDL740E is designed for installation on compatible GE VersaMax IC200CHS-series I/O carriers.
10. What applications commonly use this output module?
Typical applications include controlling contactors, indicator lights, interposing relays, solenoid valves, pneumatic actuators, and other 12/24 VDC industrial devices.
