Introduction

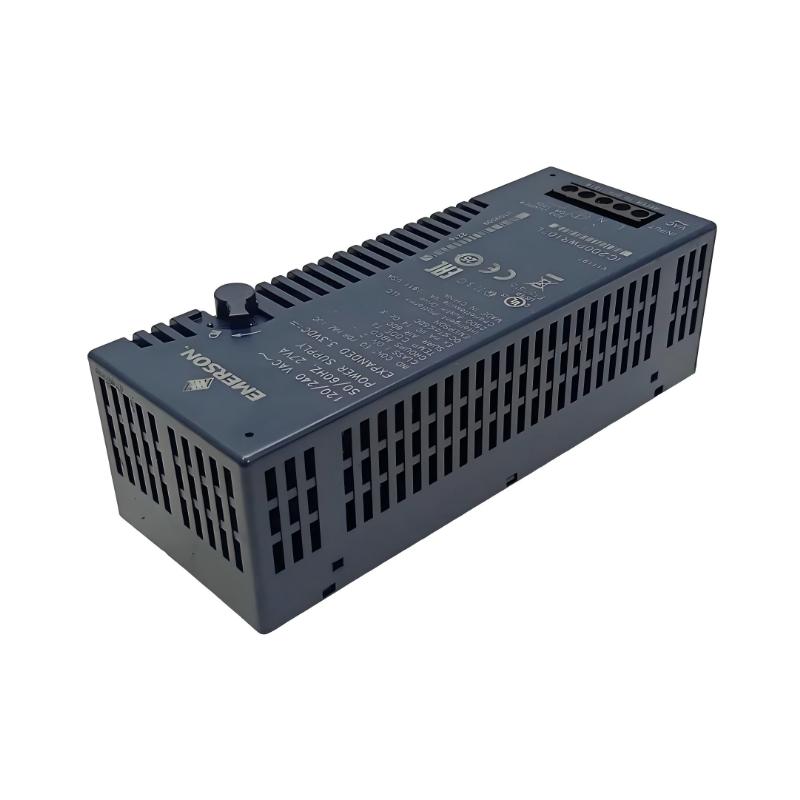

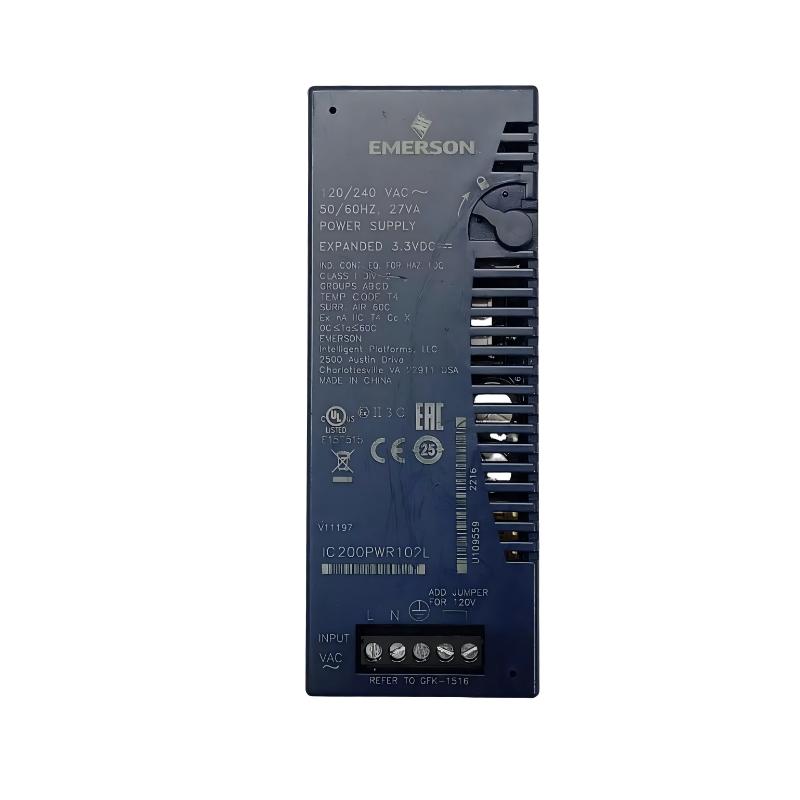

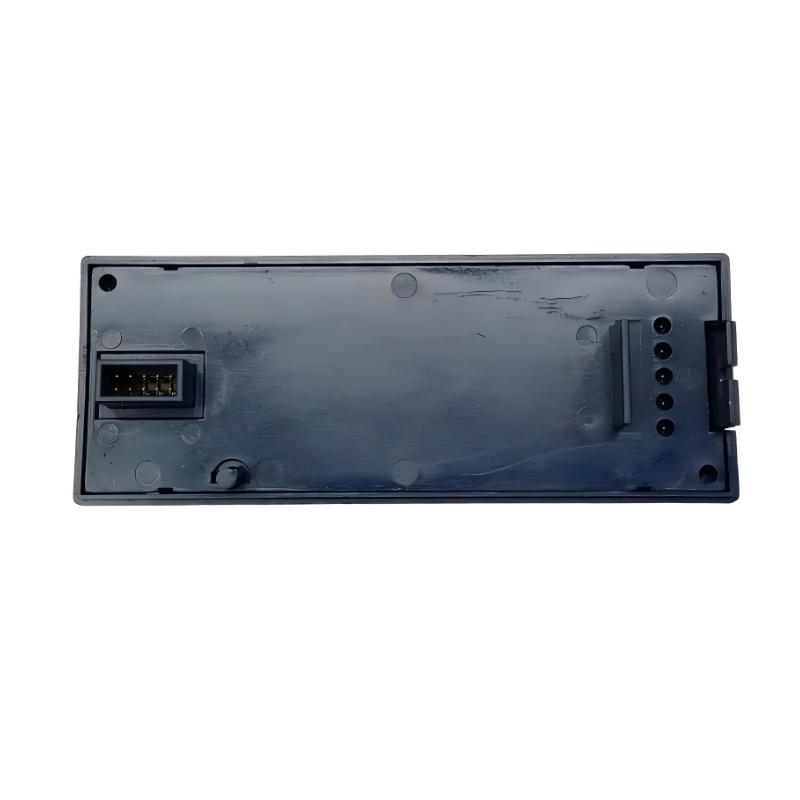

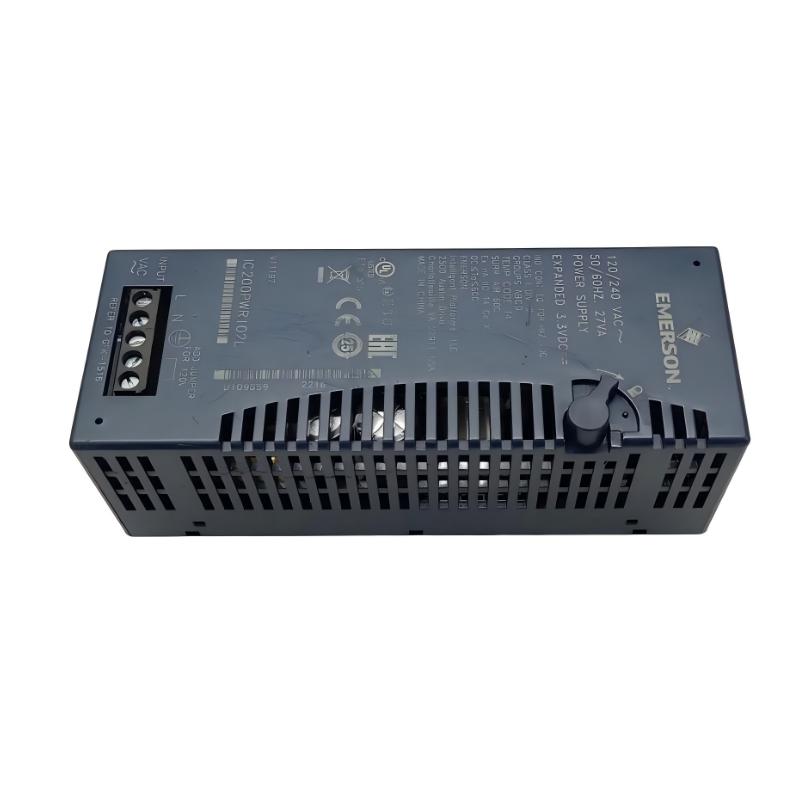

The GE IC200PWR102H VersaMax Expanded 120/240VAC 3.3VDC Power Supply Module is a high-capacity power solution designed to support GE VersaMax automation systems requiring additional backplane power capability. By providing regulated 5 VDC and 3.3 VDC outputs, the module ensures stable operation of CPUs, network interface units, and expanded I/O configurations.

Engineered for industrial environments, the IC200PWR102H combines flexible AC input capability, compact installation, and integrated protection features. Its expanded power design makes it especially suitable for larger VersaMax stations where standard power capacity may not be sufficient.

With dependable performance and compatibility across the VersaMax architecture, this module remains a valuable component for system expansion, replacement projects, and long-term support of existing industrial automation installations.

Technical Specifications

Specification	Description
Manufacturer	GE Fanuc / Emerson
Model	IC200PWR102H
Product Type	Expanded Power Supply Module
Product Family	VersaMax
Input Voltage	120/240 VAC Nominal
Input Range	85–132 VAC / 176–264 VAC
Input Frequency	47–63 Hz
Input Power	27 VA
Output Voltage	5 VDC and 3.3 VDC
Total Output Current	1.5 A Maximum
5 VDC Output Current	Up to 1.5 A (Shared Load)
3.3 VDC Output Current	1.0 A Maximum
Power Hold-Up Time	20 ms Minimum
Protection	Short Circuit Protection, Overload Protection
Application Mode	Primary or Supplemental Power Supply
Mounting Type	VersaMax Carrier / DIN Rail System
Operating Temperature	0°C to +60°C
Dimensions	Approx. 49 × 133.4 × 39 mm
Weight	Approx. 0.14 kg

Recommended Companion Models

Model	Product Name
IC200CPU005	VersaMax CPU Module
IC200CHS022L	VersaMax Compact Box-Style I/O Carrier Module
IC200ERM002F	VersaMax Expansion Receiver Module
IC200PWB001B	VersaMax Power Supply Booster Carrier

Frequently Selected Alternatives

Model	Product Name
IC200PWR102F	VersaMax Expanded 120/240VAC Power Supply Module
IC200PWR201	VersaMax 12VDC Power Supply Module
IC200PWR202	VersaMax Expanded 12VDC Power Supply Module
IC693PWR321Y	Series 90-30 Standard AC/DC Power Supply Module

Where It Excels in Industrial Use

GE VersaMax PLC distributed I/O power supply applications
Industrial automation cabinets requiring expanded backplane power
Manufacturing production lines with multiple I/O modules
Remote VersaMax CPU and Network Interface Unit stations
OEM machinery requiring compact DIN-rail power solutions
Process control systems with increased module power demands
Factory automation equipment requiring stable DC power conversion
Legacy GE Fanuc VersaMax system maintenance and upgrades
Distributed control panels with extended I/O configurations
Industrial applications requiring reliable 5 VDC and 3.3 VDC supply outputs

Key Strengths at a Glance

Expanded AC power supply designed for GE VersaMax systems
Supports 120 VAC and 240 VAC industrial input power
Provides regulated 5 VDC and 3.3 VDC backplane outputs
Delivers up to 1.5 A total output current capacity
Supports additional power requirements for larger I/O configurations
Can operate as a primary or supplemental power source
Built-in short-circuit and overload protection
20 ms minimum power hold-up capability
Compact DIN-rail mounting design
Provides reliable power distribution for CPU, NIU, and I/O modules

Technical FAQs

1. What is the primary function of the GE IC200PWR102H?

The IC200PWR102H is an expanded VersaMax power supply module that converts AC input power into regulated 5 VDC and 3.3 VDC outputs for powering VersaMax CPUs, network interface units, and I/O modules.

2. What input voltage does the IC200PWR102H support?

The module supports 120/240 VAC nominal input voltage, with selectable input ranges depending on jumper configuration.

3. What output voltages are provided?

The IC200PWR102H provides:

5 VDC output
3.3 VDC output

These outputs supply power to VersaMax system modules connected to the station.

4. How much output current can the module provide?

The module provides a maximum total output current of 1.5 A, with up to 1.0 A available on the 3.3 VDC output.

5. Can the IC200PWR102H be used as a supplemental power supply?

Yes. The module can function as either the main station power supply or as an additional power source when used with a VersaMax power supply booster carrier.

6. Which VersaMax components can be powered by this module?

The IC200PWR102H can provide power for VersaMax CPUs, Network Interface Units, and connected I/O modules within the supported power limits.

7. Does the module include protection functions?

Yes. The power supply includes short-circuit protection and overload protection to help protect the automation system during abnormal operating conditions.
