Introduction

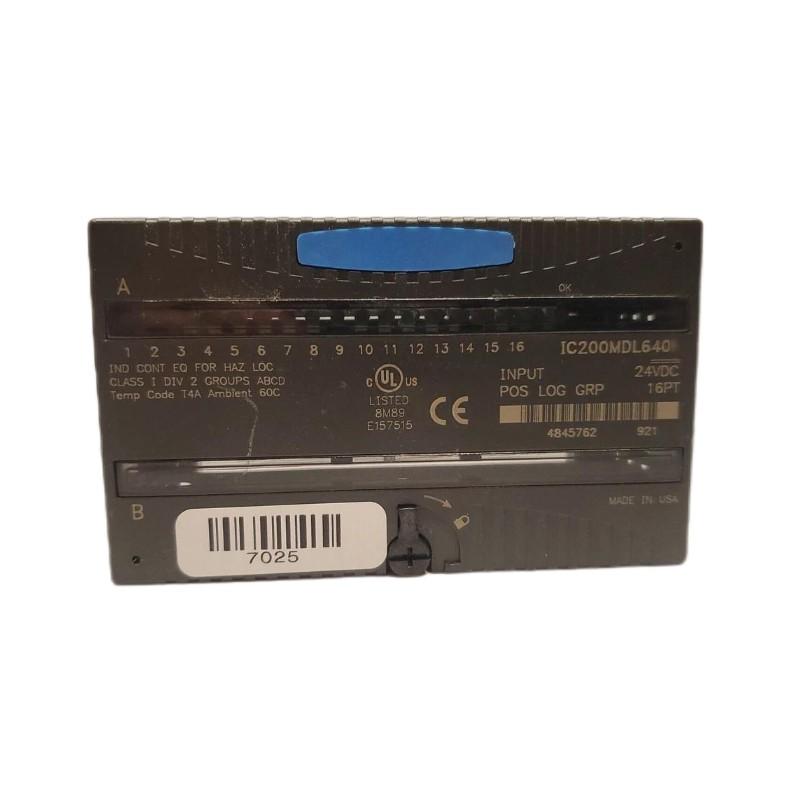

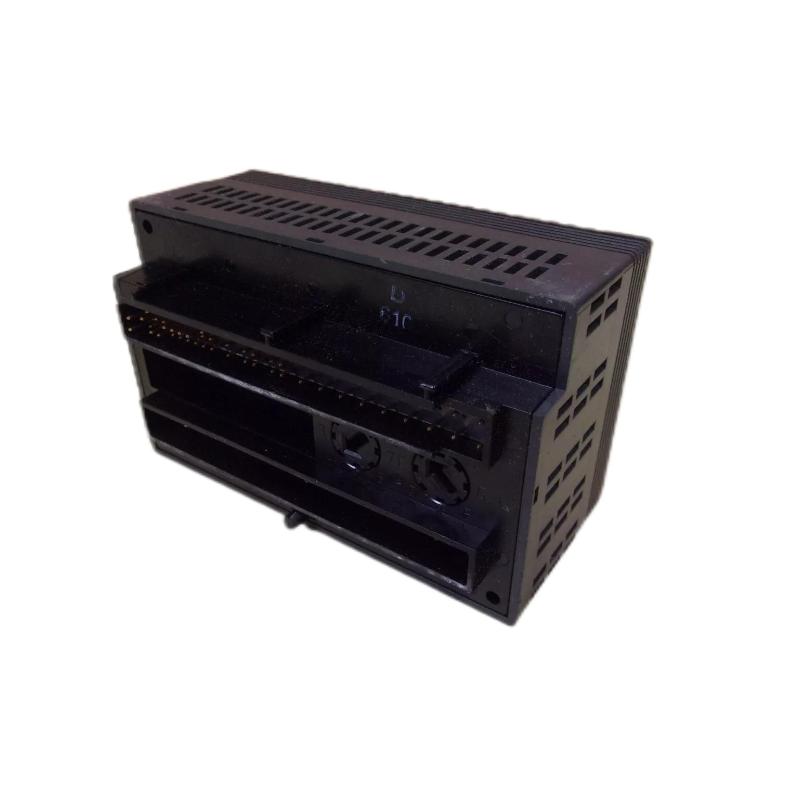

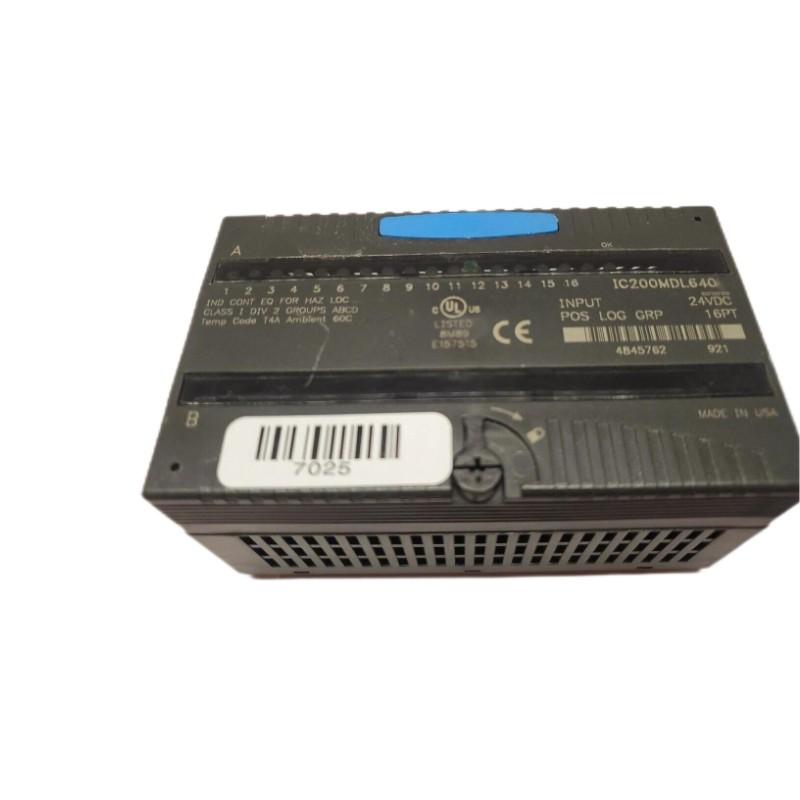

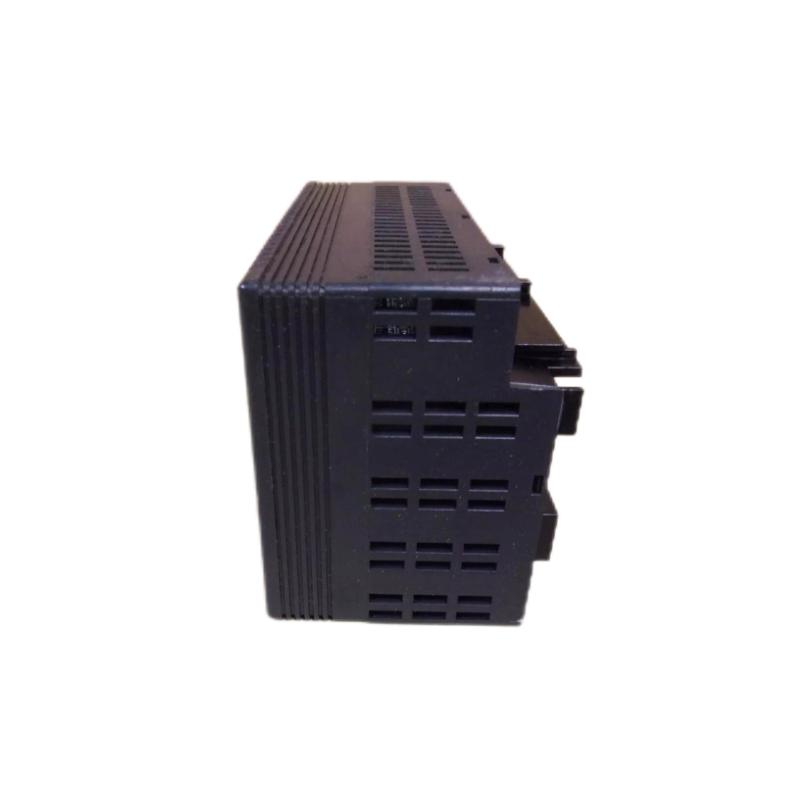

The GE IC200MDL640C VersaMax 24VDC 16-Point Positive/Negative Logic Discrete Input Module is a flexible digital input solution designed for GE VersaMax automation platforms. With 16 input channels divided into two groups of eight, the module provides reliable signal acquisition for a wide range of industrial control applications.

Designed with configurable input polarity, the IC200MDL640C offers engineers greater wiring flexibility by supporting both positive logic and negative logic field devices. This capability makes it suitable for diverse automation environments where different sensor and control device configurations are required.

Combining fast response performance, clear LED diagnostics, and compact VersaMax modular construction, the IC200MDL640C provides a practical solution for system expansion, equipment upgrades, and long-term maintenance of industrial control installations.

Technical Specifications

Specification	Description
Manufacturer	GE Fanuc / Emerson
Model	IC200MDL640C
Product Type	Discrete Input Module
Product Family	VersaMax
Input Type	24 VDC Positive/Negative Logic
Number of Inputs	16 Points
Input Groups	2 Groups of 8 Points
Input Voltage	24 VDC Nominal
Logic Type	Positive Logic / Negative Logic
Input Response Time	0.5 ms Basic
Input Filtering	0 ms, 1 ms, 7 ms Selectable
Isolation	Optical Isolation
Group Isolation	Supported
Backplane Current Consumption	25 mA Maximum @ 5 VDC
Indicators	16 Input LEDs + OK LED
Field Wiring	VersaMax Terminal Carrier
Mounting Type	DIN Rail Mounted VersaMax Carrier
Operating Temperature	0°C to +60°C
Dimensions	Approx. 110 × 66.8 × 50 mm
Weight	Approx. 0.20 kg

Recommended Companion Models

Model	Product Name
IC200CHS022L	VersaMax Compact Box-Style I/O Carrier Module
IC200PWR102H	VersaMax Expanded Power Supply Module
IC200CPU005	VersaMax CPU Module
IC200MDL740E	VersaMax 16-Point 12/24VDC Positive Logic Output Module

Frequently Selected Alternatives

Model	Product Name
IC200MDL650E	VersaMax 32-Point 24VDC Positive/Negative Logic Input Module
IC200MDL241B	VersaMax 16-Point 240VAC Discrete Input Module
IC200MDL643	VersaMax 16-Point 5/12VDC Positive/Negative Logic Input Module
IC693MDL645F	Series 90-30 24VDC Positive Logic Input Module

Where It Excels in Industrial Use

GE VersaMax PLC digital input monitoring applications
Industrial machine status detection and feedback collection
Sensor, switch, and proximity device signal acquisition
Factory automation and production line control systems
OEM equipment input monitoring solutions
Remote I/O stations requiring flexible DC input configuration
Process control systems with distributed field devices
Motor, actuator, and safety circuit status monitoring
Legacy VersaMax PLC expansion and replacement projects
Industrial applications requiring configurable input polarity support

Key Strengths at a Glance

16-point 24 VDC discrete input design
Supports both positive logic and negative logic input wiring
Two independent groups of 8 input points
Fast 0.5 ms basic input response time
Software-selectable input filtering options
Individual LED indicators for every input point
Optical isolation between field inputs and logic circuits
Powered directly from the VersaMax backplane
Compact modular I/O architecture
Compatible with VersaMax CPU and Network Interface Unit systems

Technical FAQs

1. What is the primary function of the GE IC200MDL640C?

The IC200MDL640C is a VersaMax discrete input module designed to collect 24 VDC on/off signals from field devices and transfer digital input data to the PLC CPU or Network Interface Unit.

2. How many input channels does the IC200MDL640C provide?

The module provides 16 discrete input points, arranged as two groups of eight inputs.

3. Does the IC200MDL640C support both sourcing and sinking input devices?

Yes. The IC200MDL640C supports both positive logic and negative logic input configurations, allowing connection with different types of field devices. Negative logic functionality was introduced with the C revision and later versions.

4. What input voltage does this module support?

The module is designed for 24 VDC discrete input signals, suitable for common industrial sensors, switches, and control devices.

5. What is the input response time?

The basic input ON/OFF response time is approximately 0.5 ms. Additional software-selectable filtering can adjust the total response time for applications requiring noise suppression.

6. Does the module require an external power supply?

The module receives operating power from the VersaMax backplane. Field input devices provide their own 24 VDC signals according to the wiring configuration.

7. How are input states displayed?

Each input point has an individual LED indicator showing the ON/OFF status of the connected field signal. An additional OK LED indicates module backplane power availability.

8. Is the input circuit electrically isolated?

Yes. The module provides optical isolation between user input circuits and PLC logic, improving protection against electrical noise and field disturbances.
