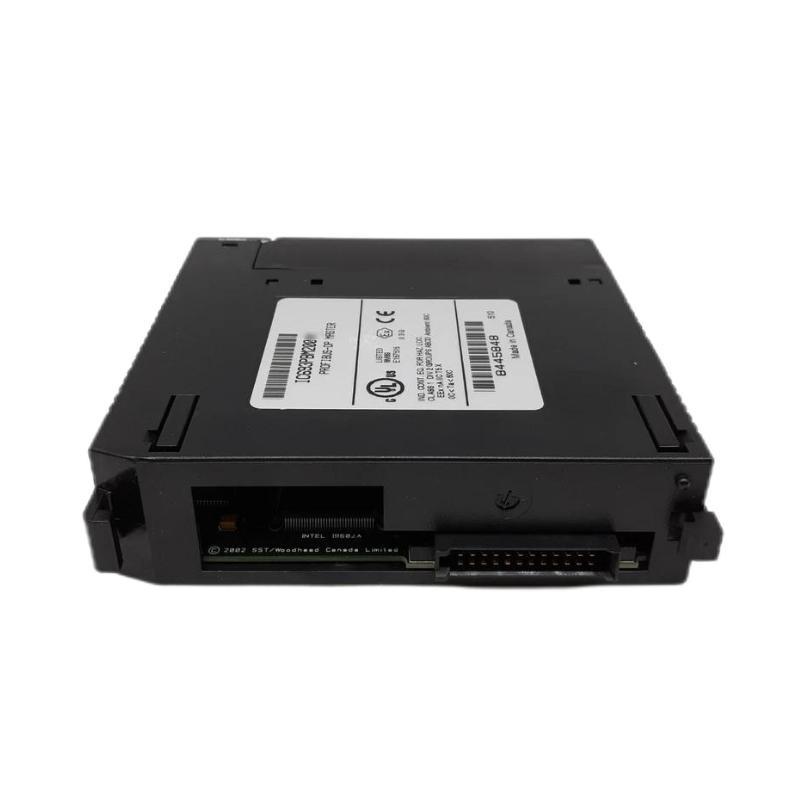

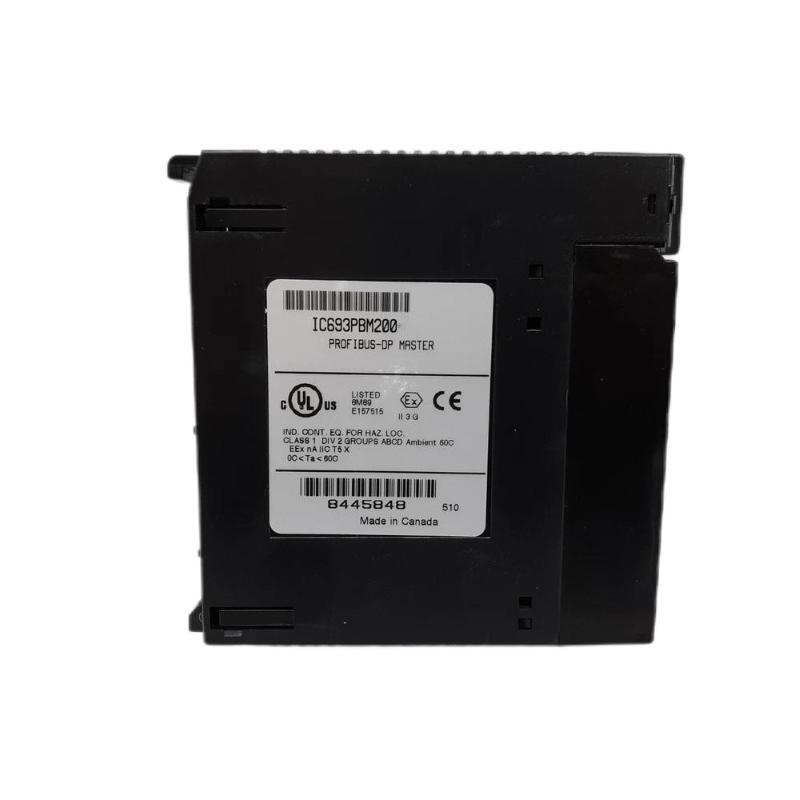

GE IC693PBM200-DE Series 90-30 PROFIBUS DP Master Communication Module
GE IC693PBM200-DE Series 90-30 PROFIBUS DP Master Communication Module
0.0
Points
Brand:GE Fanuc PLC Item No.:IC693PBM200-DE Product Origin:USA Product Dimensions:110 × 66.8 × 50 mm Product Weight:0.30 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The GE IC693PBM200-DE Series 90-30 PROFIBUS DP Master Communication Module is a specialized communication solution designed to connect GE Fanuc Series 90-30 PLC systems with PROFIBUS DP networks. It enables the PLC to control and exchange data with a wide range of decentralized field devices, providing a flexible approach for industrial automation system expansion.
Built for demanding industrial environments, the IC693PBM200-DE combines high-speed PROFIBUS communication, advanced diagnostic capabilities, and seamless Series 90-30 rack integration. Its ability to manage large PROFIBUS networks makes it suitable for complex automation systems requiring distributed control and efficient field-level communication.
With support for multiple baud rates, extensive slave connectivity, and proven GE automation compatibility, this communication module remains a valuable component for maintaining and upgrading existing Series 90-30 installations.
Drive control applications using PROFIBUS communication
Multi-vendor automation systems requiring open fieldbus communication
Factory automation and distributed control architectures
Process monitoring systems with decentralized field devices
Legacy GE PLC modernization projects
PLC-to-PLC communication over PROFIBUS networks
Machine automation systems requiring high-speed cyclic data exchange
Industrial installations requiring reliable RS-485 field communication
Key Strengths at a Glance
PROFIBUS DP Master functionality for Series 90-30 PLC platforms
Supports communication with up to 125 PROFIBUS DP slave devices
Compatible with standard PROFIBUS baud rates up to 12 Mbps
Supports cyclic I/O data exchange between PLC and field devices
Provides SYNC and FREEZE operating modes
Includes RS-232 service port for firmware updates
Provides PROFIBUS network diagnostics and status monitoring
Supports remote I/O, drives, PLCs, and intelligent field devices
Single-slot installation on Series 90-30 baseplates
Designed for reliable industrial fieldbus communication
Technical FAQs
1. What is the main function of the GE IC693PBM200-DE?
The IC693PBM200-DE is a Series 90-30 PROFIBUS DP Master Communication Module that enables a GE PLC system to communicate with PROFIBUS DP slave devices such as remote I/O stations, drives, and other controllers.
2. How many PROFIBUS slave devices can the module support?
The module can communicate with up to 125 PROFIBUS DP slave devices on a single PROFIBUS network.
3. Which PROFIBUS communication speeds are supported?
The IC693PBM200-DE supports standard PROFIBUS baud rates from 9.6 Kbps up to 12 Mbps, including intermediate rates such as 500 Kbps, 1.5 Mbps, and 6 Mbps.
4. What type of devices can connect to this module?
Typical PROFIBUS DP slave devices include remote I/O modules, variable frequency drives, motor controllers, distributed PLC systems, and industrial instrumentation devices.
5. Does the IC693PBM200-DE support PROFIBUS DP Master operation only?
Yes. The module operates as a PROFIBUS DP Master and manages cyclic communication with configured DP slave devices connected to the network.

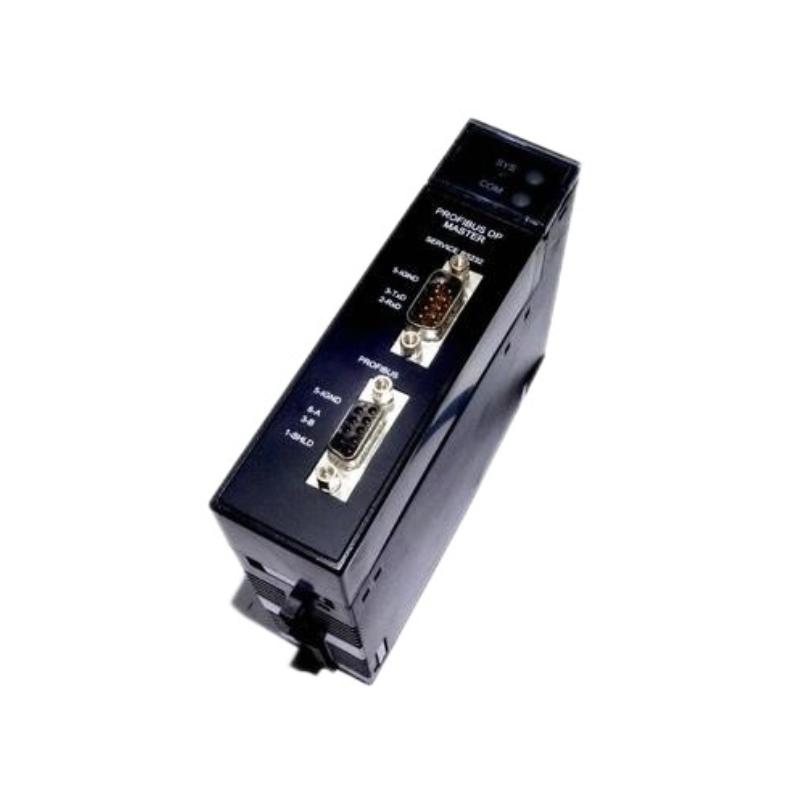

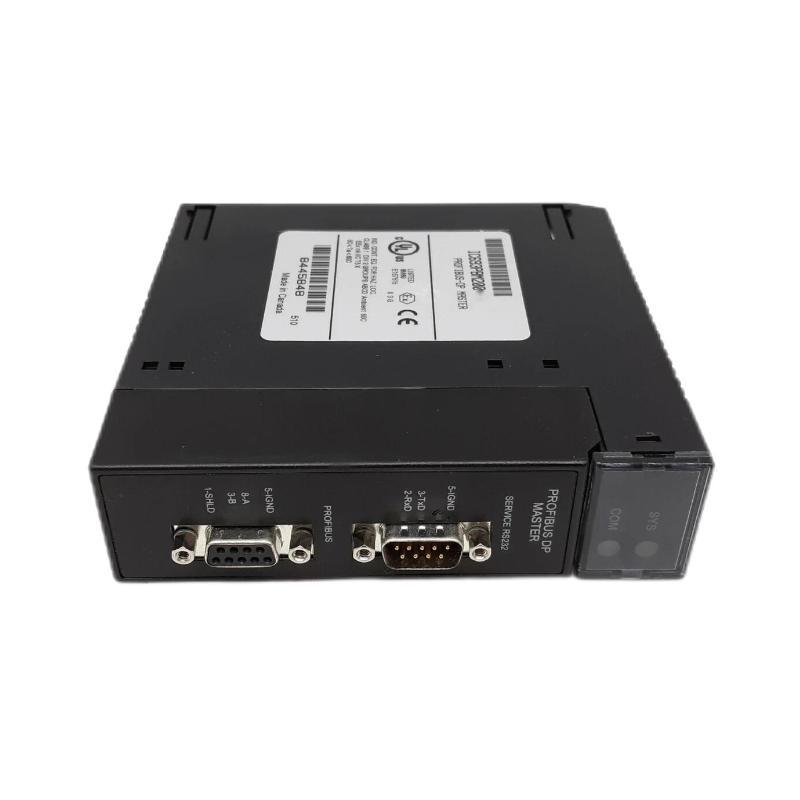

6. What communication interfaces are available?
The module provides:
One RS-485 PROFIBUS DP network port
One RS-232 service port for firmware updates and maintenance
7. What is the purpose of the SYNC and FREEZE functions?
SYNC and FREEZE modes allow coordinated control of PROFIBUS slave outputs and inputs, helping synchronize field devices in motion control and process automation applications.
8. What CPU requirements are needed for this module?
The IC693PBM200-DE requires compatible Series 90-30 CPUs with firmware version 8.00 or later for operation.
9. How is the module configured?
Configuration is performed using GE programming software such as Proficy Machine Edition Logic Developer PLC, where PROFIBUS network parameters and slave configurations are defined.
10. Does the IC693PBM200-DE provide diagnostic information?
Yes. The module provides slave status information, diagnostic counters, firmware revision data, and PROFIBUS master diagnostic information for troubleshooting network operation.
