Introduction

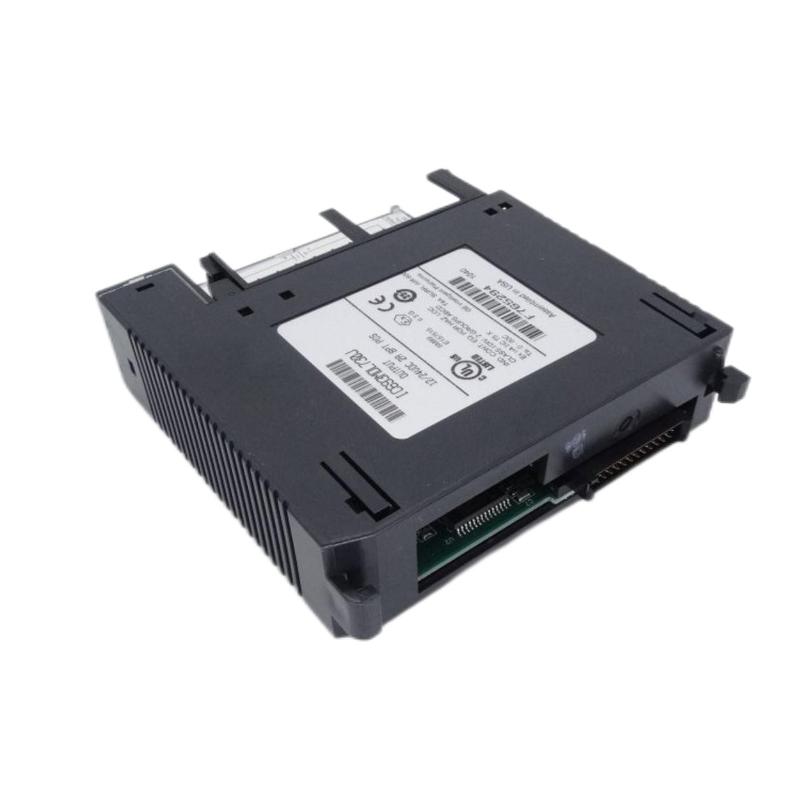

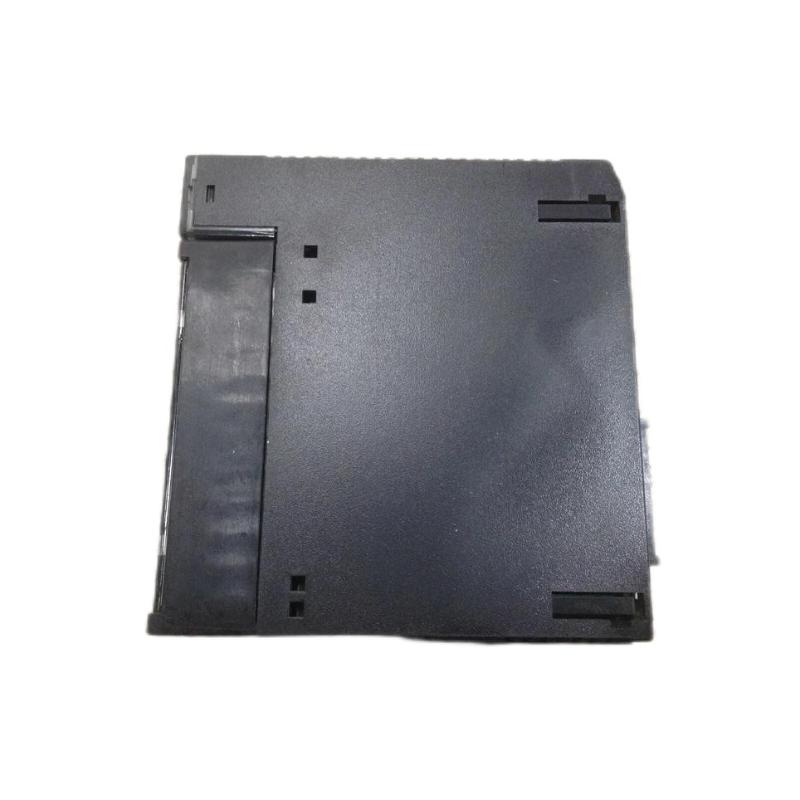

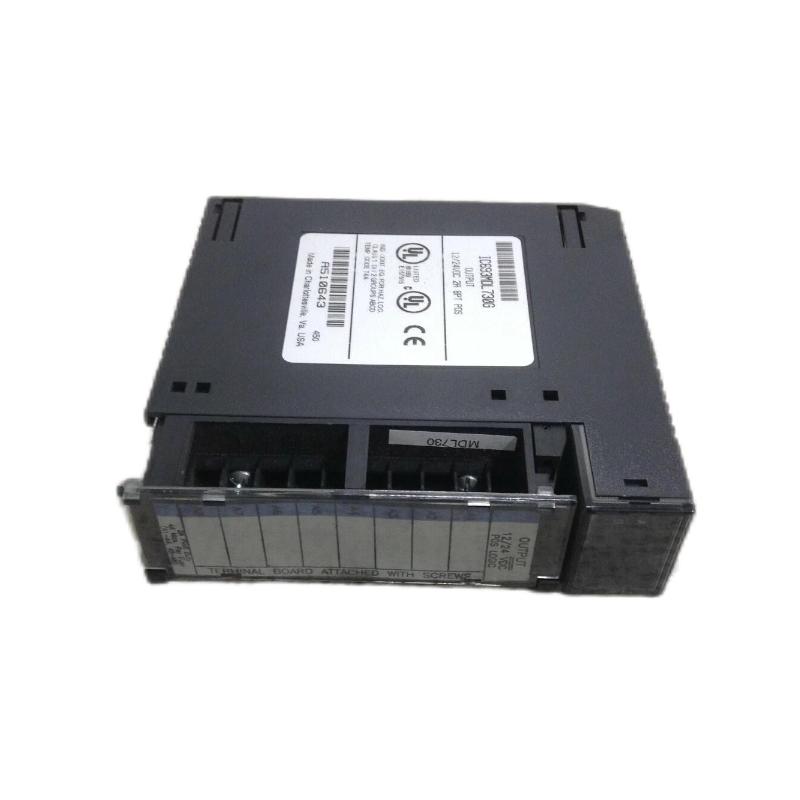

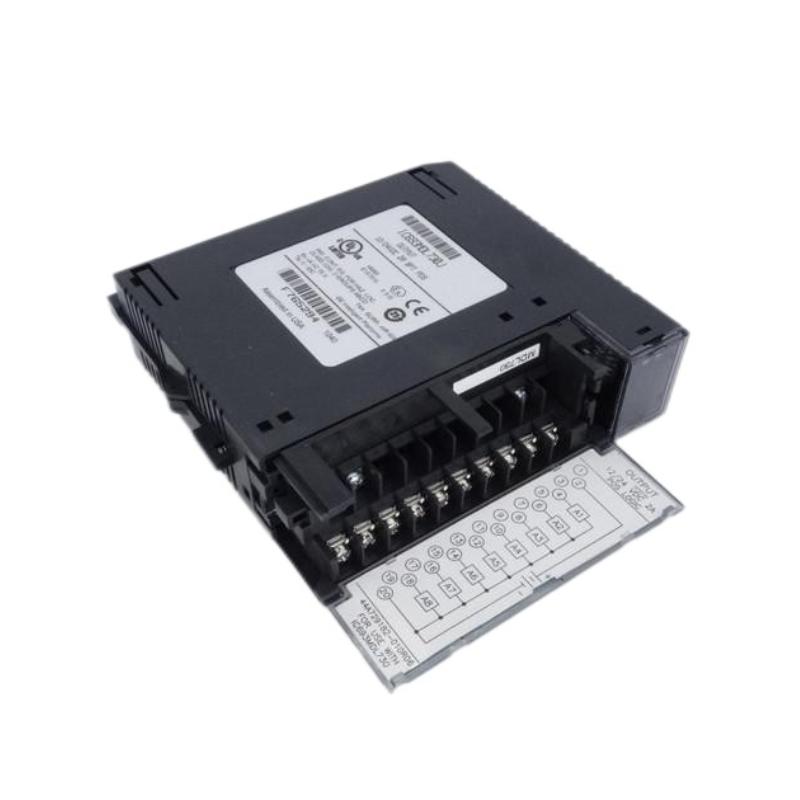

The GE IC693MDL730E Series 90-30 12/24VDC 8-Point Positive Logic Output Module is a high-performance discrete output solution designed for GE Series 90-30 programmable logic controller systems. It provides eight transistor-based sourcing outputs capable of controlling industrial DC loads with reliable switching performance.

Engineered for demanding automation environments, the IC693MDL730E delivers a practical balance of output capacity, response speed, and system protection. Its 2 A per point capability allows it to handle applications that require stronger output drive capability than standard digital output modules.

With straightforward installation, LED diagnostics, and proven Series 90-30 compatibility, this module remains a dependable choice for industrial equipment upgrades, replacement projects, and long-term PLC system support.

Technical Specifications

Specification	Description
Manufacturer	GE Fanuc / Emerson
Model	IC693MDL730E
Product Type	Discrete Output Module
Product Family	Series 90-30
Output Type	Transistor Output
Logic Type	Positive Logic / Sourcing
Number of Outputs	8 Points
Output Groups	1 Group of 8 Outputs
Nominal Output Voltage	12/24 VDC
Output Voltage Range	12–24 VDC (+20%, -15%)
Load Current per Point	2 A Maximum
Maximum Inrush Current	9.4 A for 10 ms
ON Response Time	2 ms Maximum
OFF Response Time	2 ms Maximum
Output Voltage Drop	1.2 V Maximum
Off-State Leakage Current	1 mA Maximum
Isolation	1500 VAC Field Side to Logic Side
Fuse Protection	Output Circuit Fuse Protection
Backplane Current Consumption	55 mA @ 5 VDC
Indicators	Output Status LEDs, Fuse Fault LED
Mounting Type	Series 90-30 Baseplate
Operating Temperature	0°C to +60°C
Dimensions	Approx. 130 × 125 × 35 mm
Weight	Approx. 0.34 kg

Recommended Companion Models

Model	Product Name
IC693PWR321Y	Series 90-30 Standard AC/DC Power Supply Module
IC693CPU374	Series 90-30 Ethernet CPU Module
IC693CHS391K	Series 90-30 10-Slot Baseplate Module
IC693CMM321-EE	Series 90-30 Ethernet Interface Communication Module

Frequently Selected Alternatives

Model	Product Name
IC693MDL730F	Series 90-30 12/24VDC 8-Point Positive Logic Output Module
IC693MDL740E	Series 90-30 12/24VDC 16-Point Positive Logic Output Module
IC693MDL753F	Series 90-30 24VDC 32-Point Positive Logic Output Module
IC200MDL740E	VersaMax 16-Point 12/24VDC Positive Logic Output Module

Where It Excels in Industrial Use

GE Series 90-30 PLC digital output control applications
Industrial machinery actuator and solenoid control
Conveyor and material handling automation systems
Motor starter and indicator control circuits
OEM equipment control panels
Factory production line switching applications
Legacy GE Fanuc Series 90-30 system maintenance
Distributed machine automation requiring transistor outputs
Industrial systems using 12/24VDC field devices
Applications requiring high-current discrete output switching

Key Strengths at a Glance

8-point 12/24VDC transistor output design
Positive logic sourcing output architecture
Supports up to 2 A load current per output point
Fast 2 ms ON/OFF response performance
Suitable for solenoids, relays, indicators, and motor starters
Provides optical isolation between field side and PLC logic
Includes output status LED indicators
Features fused output protection
Installs directly into Series 90-30 PLC I/O slots
Designed for reliable DC load switching in industrial environments

Technical FAQs

1. What is the primary function of the GE IC693MDL730E?

The IC693MDL730E is a Series 90-30 discrete output module designed to control external 12/24VDC field devices through eight positive logic transistor output channels.

2. How many output points does the IC693MDL730E provide?

The module provides 8 discrete transistor output points arranged as one output group with a shared common connection.

3. What type of output logic does this module use?

The IC693MDL730E uses positive logic (sourcing) outputs, meaning the module supplies current from the positive DC power source to connected loads.

4. What voltage range is supported?

The module supports 12 to 24 VDC output operation, making it suitable for common industrial DC control circuits.

5. What is the maximum output current per channel?

Each output point supports up to 2 A maximum load current, allowing direct control of higher-current DC devices compared with standard low-current output modules.

6. What types of devices can be connected to the outputs?

Typical loads include solenoid valves, contactors, motor starters, indicator lamps, relays, and other 12/24VDC industrial actuators.

7. Does the module include output protection?

Yes. The module includes fuse protection for output circuits and provides diagnostic indication when fuse-related issues occur.

8. What is the response time of the IC693MDL730E?

The module provides approximately 2 ms maximum ON response time and 2 ms maximum OFF response time.

9. Where can the IC693MDL730E be installed?

The module can be installed in any available I/O slot of compatible GE Series 90-30 5-slot or 10-slot baseplates.

10. Is the IC693MDL730E compatible with modern GE PLC systems?

The IC693MDL730E is primarily designed for GE Fanuc Series 90-30 PLC platforms and is commonly used in maintenance, replacement, and retrofit applications for existing systems.
