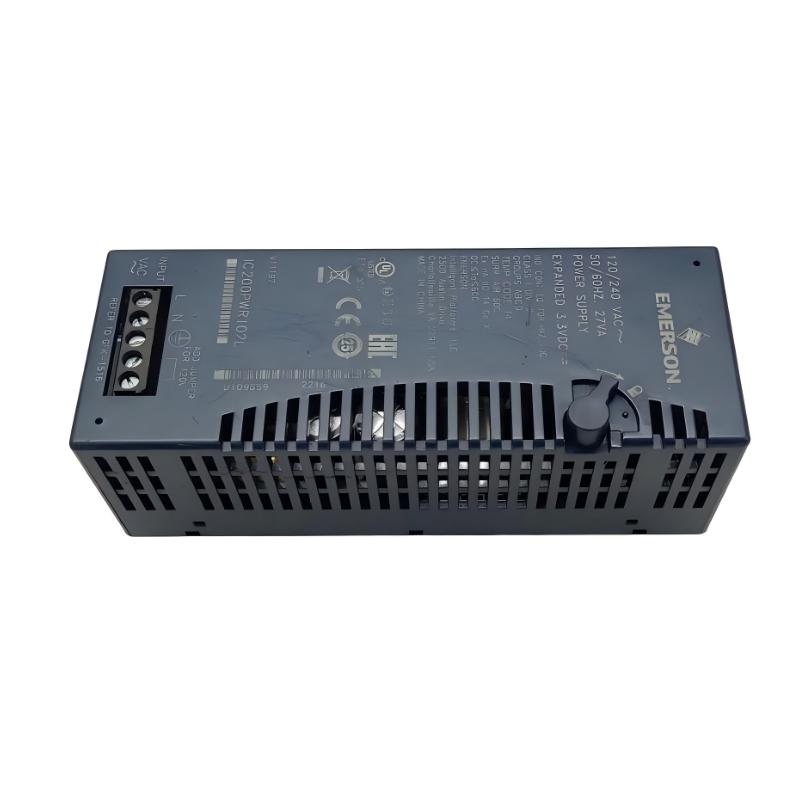

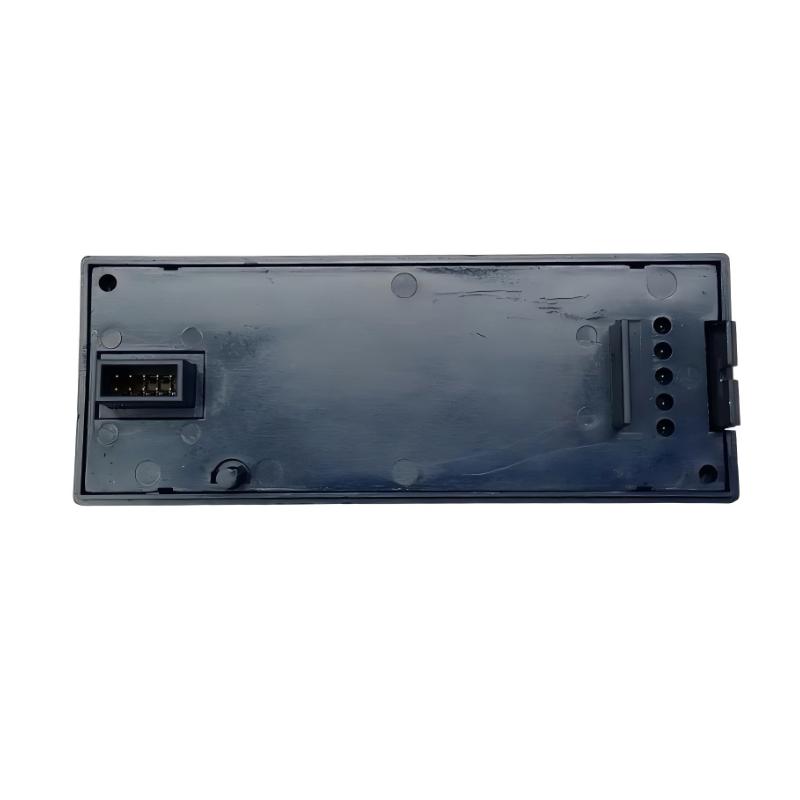

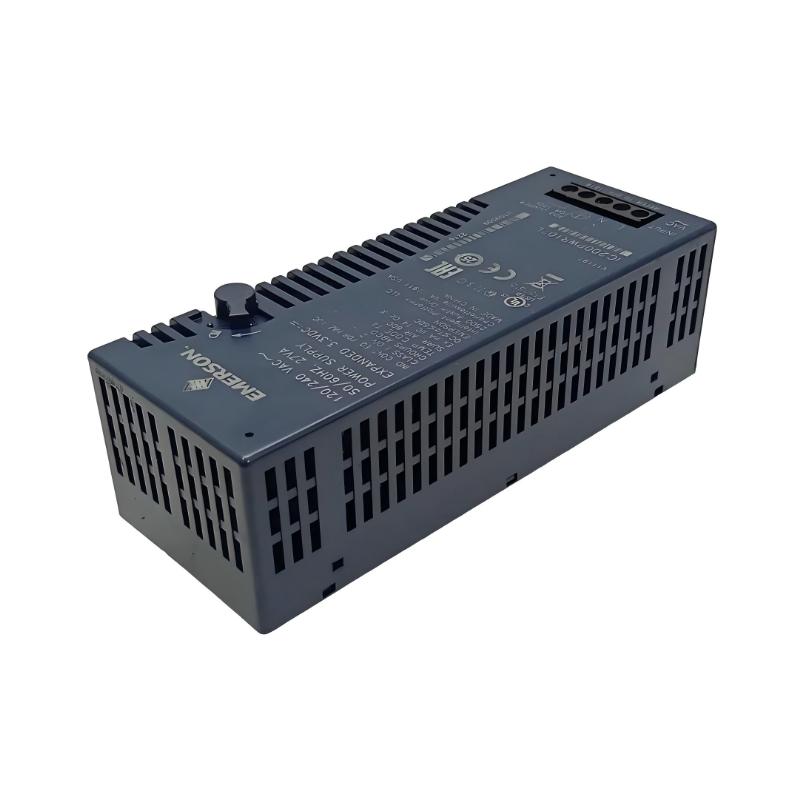

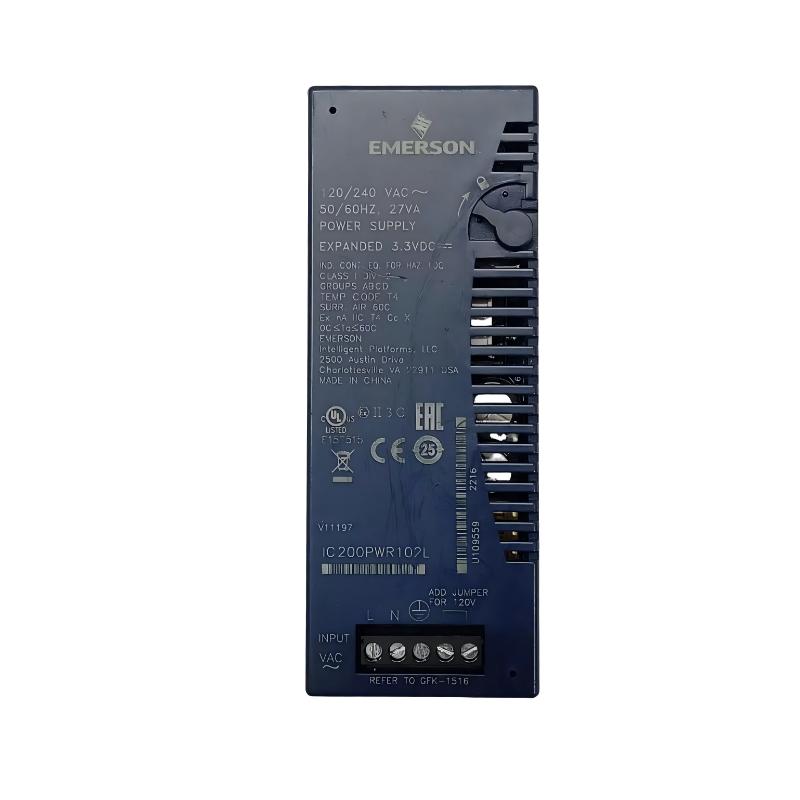

GE IC200PWR102E VersaMax Expanded 120/240VAC Power Supply Module
GE IC200PWR102E VersaMax Expanded 120/240VAC Power Supply Module
0.0
Points
Brand:GE Fanuc PLC Item No.: IC200PWR102E Product Origin:USA Product Dimensions:110 × 66.8 × 50 mm Product Weight:0.30 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The GE IC200PWR102E VersaMax Expanded 120/240VAC Power Supply Module is designed to provide dependable power distribution for GE VersaMax automation systems requiring increased electrical capacity. As an expanded power supply solution, it delivers regulated 5VDC and 3.3VDC outputs to support CPUs, Network Interface Units, and multiple I/O modules within a distributed control architecture.
Built for industrial automation environments, the IC200PWR102E combines flexible AC input capability with compact installation and integrated protection functions. Its expanded power capability makes it especially suitable for larger VersaMax configurations where standard power modules may not provide sufficient capacity.
With proven compatibility across the VersaMax platform, this module remains a practical choice for system upgrades, equipment refurbishment, and long-term support of existing GE automation installations.
Technical Specifications
Specification
Description
Manufacturer
GE Fanuc / Emerson
Model
IC200PWR102E
Product Type
Expanded Power Supply Module
Product Family
VersaMax
Input Voltage
120/240VAC Nominal
Input Voltage Range
85–132VAC / 176–264VAC
Input Frequency
47–63 Hz
Input Power
27 VA
Output Voltage
5VDC and 3.3VDC
Total Output Current
1.5A Maximum
3.3VDC Output Capability
Up to 1.0A
Hold-Up Time
20 ms Minimum
Protection Features
Short-Circuit Protection, Overload Protection
Application Mode
Main or Supplemental Power Supply
Compatible Platform
VersaMax PLC / Distributed I/O
Mounting Method
VersaMax Carrier / DIN Rail System
Operating Temperature
0°C to +60°C
Dimensions
Approx. 49 × 133.4 × 39 mm
Weight
Approx. 0.20–0.30 kg
Recommended Companion Models
Model
Product Name
IC200CPU005
VersaMax CPU Module
IC200CHS022L
VersaMax Compact Box-Style I/O Carrier Module
IC200ERM002F
VersaMax Expansion Receiver Module
IC200PWB001B
VersaMax Power Supply Booster Carrier
Frequently Selected Alternatives
Model
Product Name
IC200PWR102F
VersaMax Expanded 120/240VAC Power Supply Module
IC200PWR102H
VersaMax Expanded AC Power Supply Module
IC200PWR201
VersaMax 12VDC Power Supply Module
IC693PWR321Y
Series 90-30 Standard AC/DC Power Supply Module
Where It Excels in Industrial Use
GE VersaMax PLC distributed I/O station power applications
Industrial automation systems requiring expanded backplane power capacity
Manufacturing equipment with multiple I/O modules
Remote I/O panels and distributed control cabinets
Process automation systems with extended VersaMax configurations
Factory control systems requiring stable CPU and I/O module power
Legacy GE Fanuc VersaMax maintenance and replacement projects
Automation systems requiring additional 3.3VDC power support
Industrial environments where reliable module-level power distribution is essential
Key Strengths at a Glance
Expanded VersaMax power supply architecture
Supports 120VAC and 240VAC input operation
Provides regulated 5VDC and 3.3VDC system outputs
Delivers up to 1.5A total output current capacity
Supports CPU, NIU, and I/O module power requirements
Can operate as a main or supplemental power source
Built-in short-circuit and overload protection
Provides 20 ms minimum power hold-up capability
Compact DIN-rail compatible VersaMax design
Ideal for expanding larger VersaMax I/O stations
Technical FAQs
1. What is the main function of the GE IC200PWR102E?
The IC200PWR102E is an expanded VersaMax power supply module that converts AC input power into regulated DC power for VersaMax CPUs, Network Interface Units, and I/O modules.
2. What input voltage does the IC200PWR102E support?
The module supports 120VAC and 240VAC nominal input operation. The input range is approximately 85–132VAC with the jumper installed and 176–264VAC without the jumper.
3. What output voltages are provided?
The IC200PWR102E provides regulated 5VDC and 3.3VDC outputs for powering VersaMax system modules.
4. What is the maximum output current capability?
The module provides up to 1.5A total output current, including support for expanded 3.3VDC power requirements.
5. Can the IC200PWR102E be used as a supplemental power supply?
Yes. It can be used as the primary station power supply or installed on a power supply booster carrier to provide additional power for larger I/O configurations.
6. Which VersaMax components can receive power from this module?
The module supplies power to VersaMax CPUs, Network Interface Units, and connected input/output modules installed within the supported station configuration.
7. Does the IC200PWR102E include protection features?
Yes. The module includes short-circuit and overload protection to improve system reliability during abnormal operating conditions.
8. What is the power hold-up time of this module?
The IC200PWR102E provides approximately 20 ms minimum hold-up time, helping maintain system operation during brief input interruptions.
9. Where is the IC200PWR102E installed?
The module mounts directly onto compatible VersaMax CPUs, Network Interface Units, or power supply booster carriers within the VersaMax architecture.
10. What applications commonly use this power supply module?
Typical applications include machine automation, production equipment, distributed I/O stations, process control panels, and VersaMax system expansion projects.
