GE IC693MDL740F Series 90-30 12/24VDC 16-Point Positive Logic Output Module
GE IC693MDL740F Series 90-30 12/24VDC 16-Point Positive Logic Output Module
0.0
Points
Brand:GE Fanuc PLC Item No.:IC693MDL740F Product Origin:USA Product Dimensions:109 × 64 × 58 mm Product Weight:0.08 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

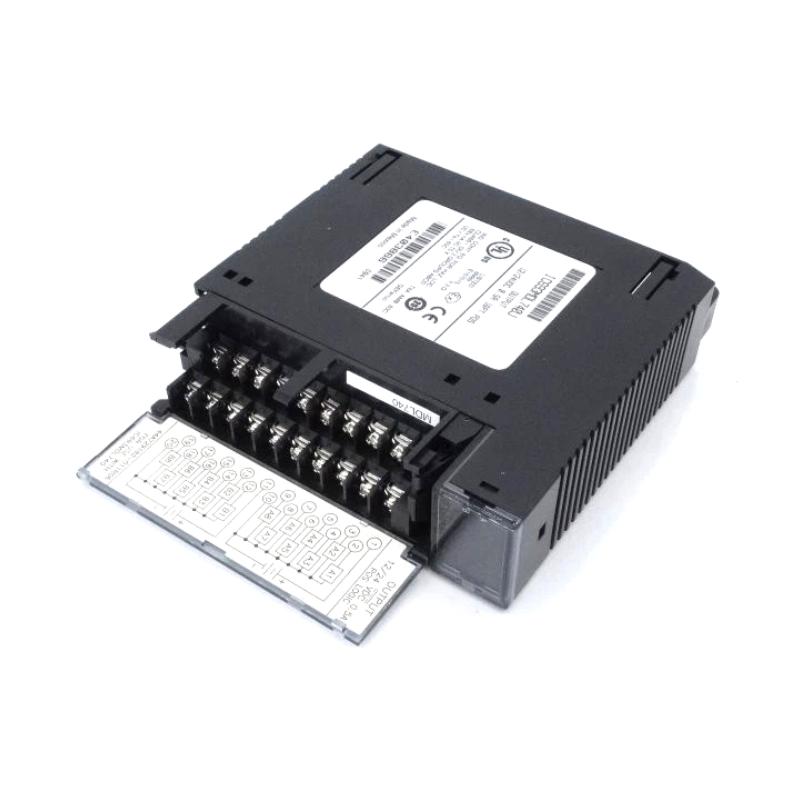

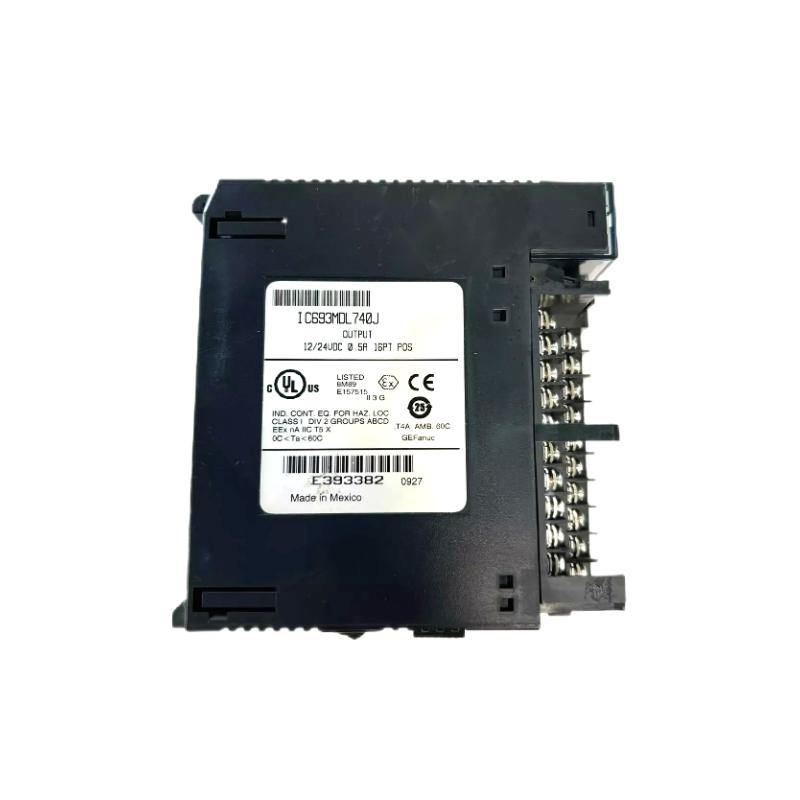

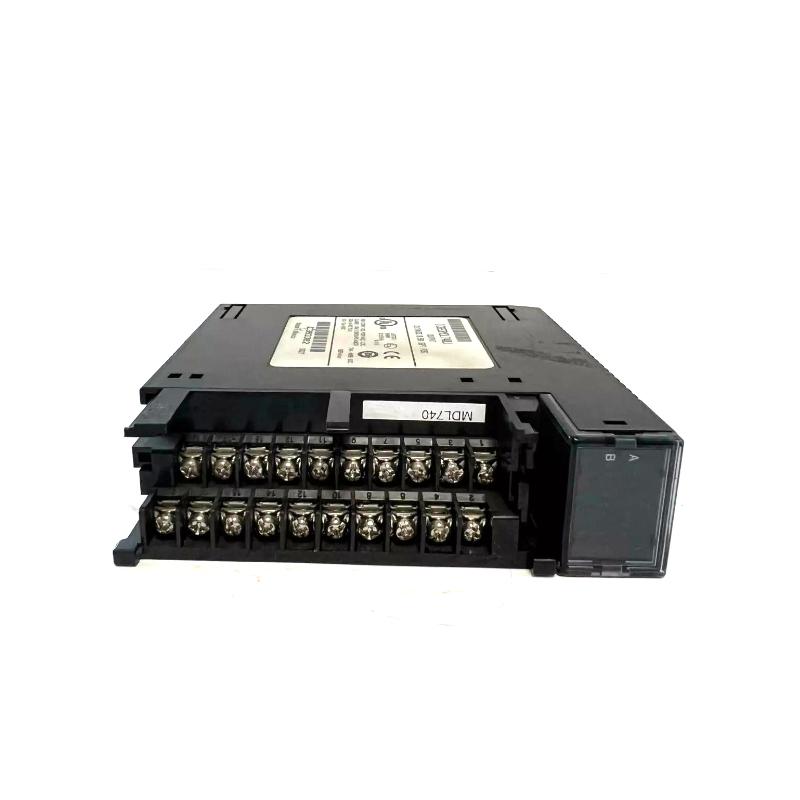

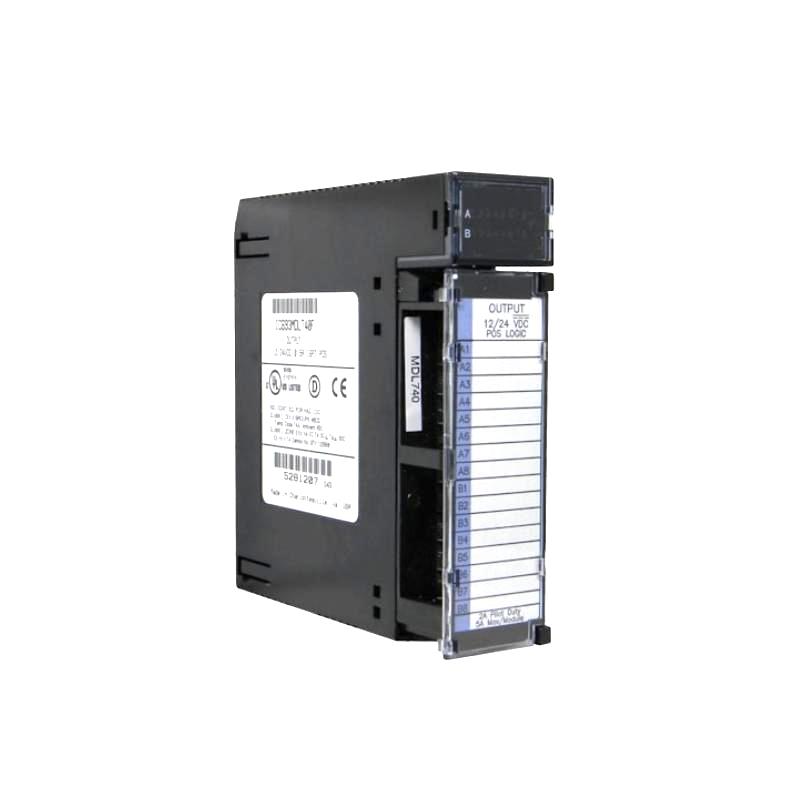

The GE IC693MDL740F Series 90-30 12/24VDC 16-Point Positive Logic Output Module is a dependable transistor output solution designed for GE Fanuc Series 90-30 PLC automation systems. It provides sixteen sourcing output channels for controlling a wide range of industrial DC devices, including solenoids, relays, indicators, and motor control components.
Designed for efficient machine automation, the IC693MDL740F combines compact PLC integration with reliable switching performance. Its two-group output structure provides flexible wiring options, while LED status indicators simplify system monitoring and maintenance.
With proven Series 90-30 compatibility, stable 12/24VDC operation, and robust industrial design, this module remains a practical choice for automation upgrades, replacement installations, and maintenance of existing GE control systems.
Technical Specifications
Specification
Description
Manufacturer
GE Fanuc / Emerson
Model
IC693MDL740F
Product Type
DC Output Module
Product Family
Series 90-30
Output Type
Transistor Output
Logic Type
Positive Logic / Sourcing
Number of Outputs
16 Points
Output Groups
2 Groups of 8 Outputs
Rated Voltage
12/24VDC
Output Voltage Range
12–24VDC (+20%, -15%)
Output Current per Point
0.5 A Maximum
Output Current per Common
2 A Maximum
Inrush Current
4.78 A for 10 ms
ON Response Time
2 ms Maximum
OFF Response Time
2 ms Maximum
Output Voltage Drop
1 V Maximum
Off-State Leakage Current
1 mA Maximum
Isolation Voltage
1500 VAC Field Side to Logic Side
Backplane Current Consumption
110 mA @ 5VDC
Indicators
Individual Output Status LEDs
Mounting Type
Series 90-30 Baseplate Slot
Operating Temperature
0°C to +60°C
Dimensions
Approx. 127 × 51 × 127 mm
Weight
Approx. 0.30 kg
Recommended Companion Models
Model
Product Name
IC693PWR321Y
Series 90-30 Standard AC/DC Power Supply Module
IC693CPU374
Series 90-30 Ethernet CPU Module
IC693CHS391K
Series 90-30 10-Slot Baseplate Module
IC693CMM321-EE
Series 90-30 Ethernet Interface Communication Module
Frequently Selected Alternatives
Model
Product Name
IC693MDL740E
Series 90-30 12/24VDC 16-Point Positive Logic Output Module
IC693MDL741F
Series 90-30 12/24VDC 16-Point Negative Logic Output Module
IC693MDL753F
Series 90-30 32-Point 12/24VDC Positive Logic Output Module
GE Series 90-30 PLC discrete output control applications
Industrial machinery actuator switching and control
Solenoid valve and relay operation systems
Conveyor, packaging, and assembly automation equipment
Motor starter and indicator control circuits
OEM machine control cabinets
Factory automation systems requiring reliable DC outputs
Legacy GE Fanuc Series 90-30 PLC replacement projects
Production equipment requiring compact transistor output modules
Industrial control systems using 12/24VDC field devices
Key Strengths at a Glance
16-point 12/24VDC positive logic output design
Sourcing transistor output architecture
0.5 A output capacity per channel
Two isolated output groups with eight points each
Compatible with solenoids, relays, indicators, and motor starters
Fast 2 ms maximum output response time
Individual LED indicators for output status monitoring
Optical isolation between field circuits and PLC logic
Single-slot Series 90-30 installation
Reliable performance for long-term industrial automation operation
Technical FAQs
1. What is the main function of the GE IC693MDL740F?
The IC693MDL740F is a Series 90-30 digital output module designed to control external 12/24VDC field devices by switching transistor-based sourcing outputs from PLC commands.
2. How many output channels does the IC693MDL740F provide?
The module provides 16 output points, arranged into two groups of eight outputs with a common terminal for each group.
3. What type of output logic does this module use?
The IC693MDL740F uses positive logic sourcing outputs, meaning the module supplies current to connected loads from the user power bus.
4. What voltage range is supported by the IC693MDL740F?
The module operates with 12/24VDC field power, supporting an output voltage range of approximately 12 to 24 VDC (+20%, -15%).
5. What is the maximum current rating per output point?
Each output channel supports up to 0.5 A maximum current, while each common group supports up to 2 A.
6. Which field devices can be controlled by this module?
Typical connected devices include DC solenoid valves, contactors, relays, indicator lamps, motor starters, and other industrial DC loads.
7. Does the IC693MDL740F provide output diagnostics?
Yes. The module includes LED indicators that display the ON/OFF status of individual output points for easier commissioning and troubleshooting.
8. What is the response time of the output module?
The module provides approximately 2 ms maximum ON response time and 2 ms maximum OFF response time.
9. Where can the IC693MDL740F be installed?
The module can be installed in any available I/O slot of compatible GE Series 90-30 5-slot or 10-slot baseplates.
10. Does the module require external field power?
Yes. The connected field devices require an external DC power supply because the module switches the field load circuits rather than internally powering the devices.
