GE IC200MDD841-AD VersaMax Mixed Discrete High-Speed Counter Module
GE IC200MDD841-AD VersaMax Mixed Discrete High-Speed Counter Module
0.0
Points
Brand:GE Fanuc PLC Item No.: IC200MDD841-AD Product Origin:USA Product Dimensions:202 × 21 × 261 mm Product Weight:0.30 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

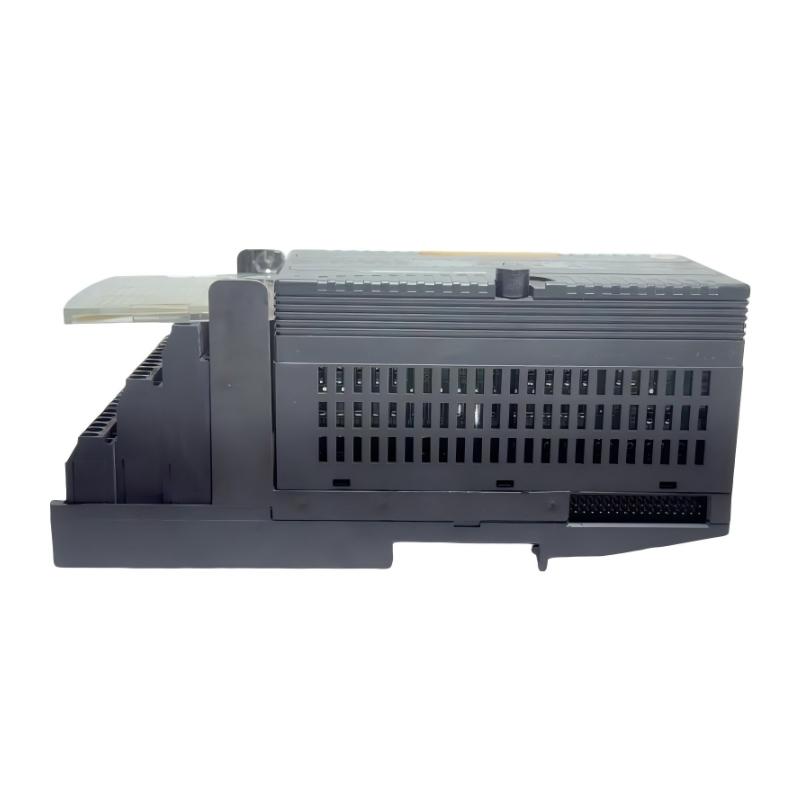

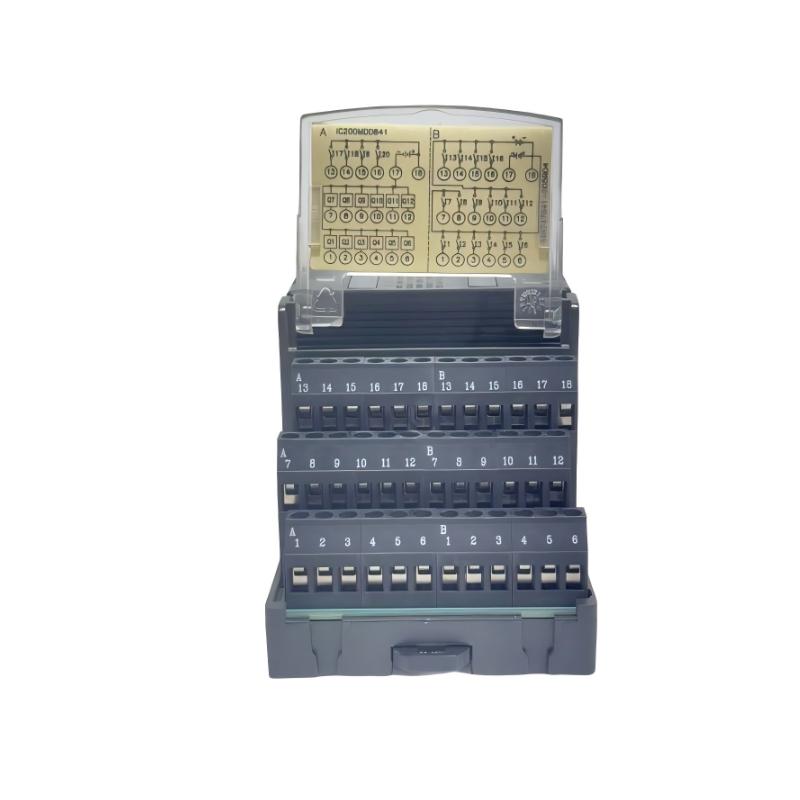

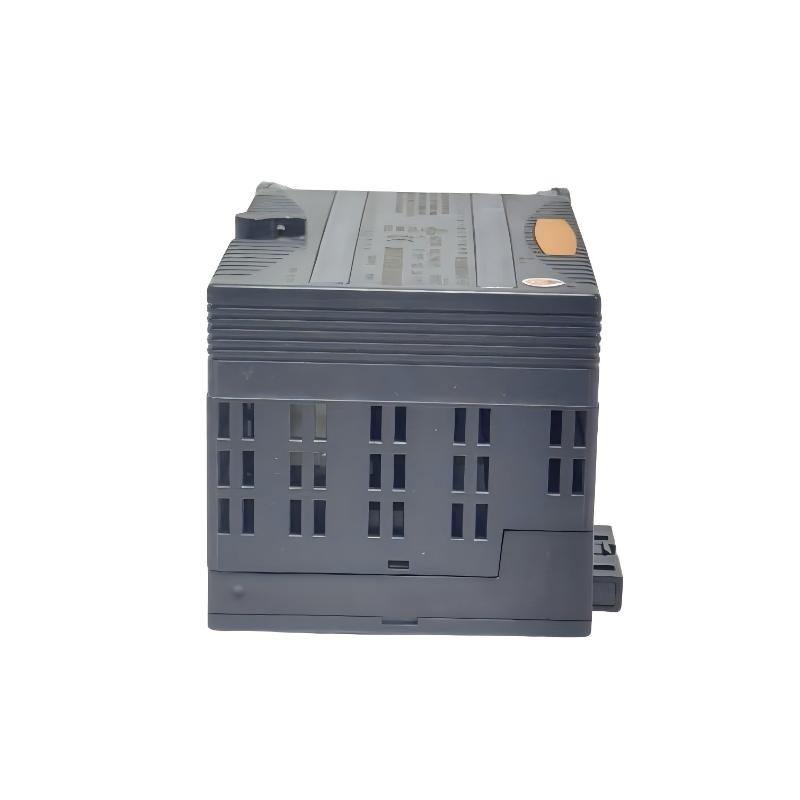

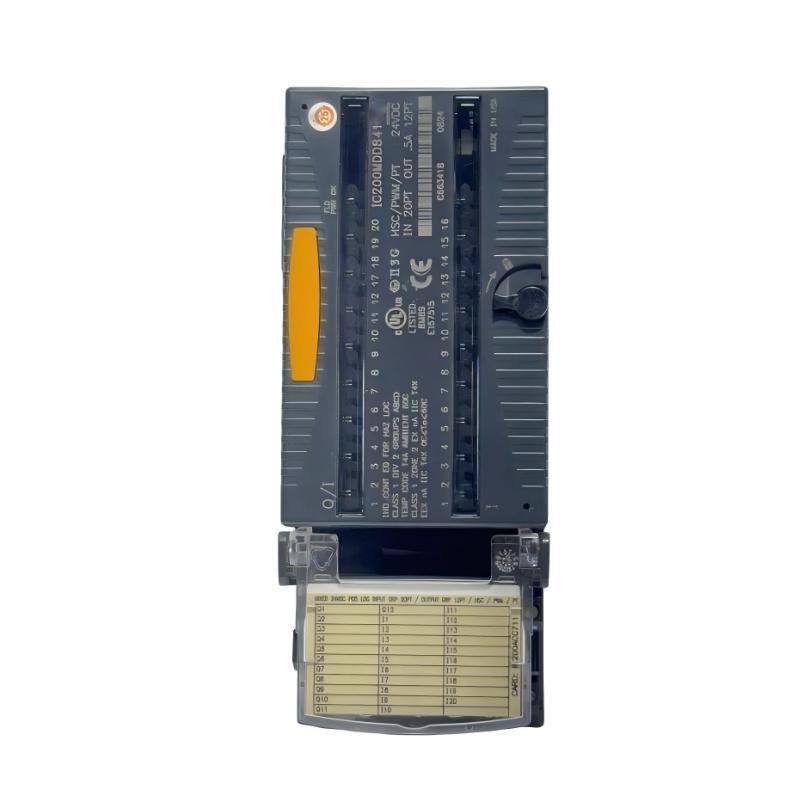

The GE IC200MDD841-AD VersaMax Mixed Discrete High-Speed Counter Module is a multifunctional I/O solution designed for automation systems requiring both standard digital control and advanced high-speed signal processing. By integrating 20 digital inputs, 12 transistor outputs, and configurable high-speed counter capabilities, it provides a compact approach for controlling and monitoring complex industrial equipment.
Designed for applications where speed and accuracy are essential, the IC200MDD841-AD can process rapid pulse signals directly through dedicated hardware functions. This makes it particularly valuable for encoder feedback, velocity monitoring, material handling, and machine positioning applications.
With flexible configuration options, integrated diagnostics, and VersaMax modular compatibility, this module delivers a practical solution for expanding automation capabilities while reducing cabinet space and system complexity.
Technical Specifications
Specification
Description
Manufacturer
GE Fanuc / Emerson
Model
IC200MDD841-AD
Product Type
Mixed Discrete High-Speed Counter Module
Product Family
VersaMax
Input Type
24VDC Positive Logic
Number of Inputs
20 Points
Output Type
24VDC Positive Logic Transistor Output
Number of Outputs
12 Points
Output Current
0.5A per Point
High-Speed Counter Channels
4 Channels
Maximum Counting Frequency
80 kHz
Supported Functions
HSC / PWM / Pulse Train
Default Configuration
4 HSC Inputs/Outputs + Standard I/O
Isolation
Optical Isolation
Input Voltage Range
18–30VDC
Output Voltage Range
18–30VDC
Diagnostics
LED Status Indicators and Diagnostic Data
Backplane Power Consumption
Approx. 100 mA @ 5VDC
Mounting Type
VersaMax DIN Rail Carrier
Operating Temperature
0°C to +60°C
Dimensions
Approx. 110 × 66.8 × 50 mm
Weight
Approx. 0.20 kg
Recommended Companion Models
Model
Product Name
IC200CHS022L
VersaMax Compact Box-Style I/O Carrier Module
IC200PWR102H
VersaMax Expanded Power Supply Module
IC200CPU005
VersaMax CPU Module
IC200ERM002F
VersaMax Expansion Receiver Module
Frequently Selected Alternatives
Model
Product Name
IC200MDD842
VersaMax Mixed 24VDC Output/Input Module
IC200MDD840
VersaMax Mixed 24VDC Input and Relay Output Module
Combines discrete I/O and high-speed counter functionality in one module
Provides 20 points of 24VDC positive logic inputs
Provides 12 points of 24VDC 0.5A positive logic outputs
Supports high-speed counting up to 80 kHz
Configurable HSC, PWM, and pulse train operating modes
Supports multiple counter configurations for flexible applications
Processes high-speed signals directly without continuous CPU scanning
Includes LED indicators for module and I/O status monitoring
Compact VersaMax modular design
Suitable for demanding automation and motion-related applications
Technical FAQs
1. What is the primary function of the GE IC200MDD841-AD?
The IC200MDD841-AD is a VersaMax mixed discrete and high-speed counter module that combines 24VDC digital inputs, transistor outputs, and configurable high-speed processing functions for industrial automation applications.
2. How many inputs and outputs does the IC200MDD841-AD provide?
The module provides 20 positive logic 24VDC inputs and 12 positive logic 24VDC outputs rated at 0.5A per output point.
3. What high-speed functions are supported?
The module supports:
High-speed counter operation
Pulse width modulation (PWM)
Pulse train output functions
These functions allow direct handling of fast field signals without relying only on normal PLC scan processing.
4. What is the maximum counting frequency?
Each high-speed counter channel can process pulse signals up to 80 kHz, making the module suitable for encoder feedback and high-speed production equipment.
5. How is the module configured by default?
The default configuration provides four Type A high-speed counter inputs and outputs, along with standard digital inputs and outputs. The I/O functions can be reconfigured according to application requirements.
6. What types of devices can connect to the high-speed inputs?
Typical devices include incremental encoders, proximity sensors, pulse generators, flow meters, and other devices producing high-frequency digital signals.
7. Does the module require external field power?
Yes. Field devices and output loads require an external 24VDC supply, while module logic power is provided through the VersaMax backplane.
8. What output devices can be controlled by the IC200MDD841-AD?
The 24VDC outputs can control devices such as solenoid valves, relays, indicators, actuators, and other industrial DC loads.
9. Does the module provide diagnostic information?
Yes. The module provides status information through LED indicators and diagnostic data registers to assist troubleshooting and system monitoring.
10. Which PLC platform is compatible with this module?
The IC200MDD841-AD is designed for the GE VersaMax PLC and distributed I/O platform, including VersaMax CPUs and Network Interface Units.
