Brand:Schneider PLC Item No.:STBAVI1400K Product Origin:France Product Dimensions:18.4 x 128.3 x 70 mm Product Weight:0.454 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

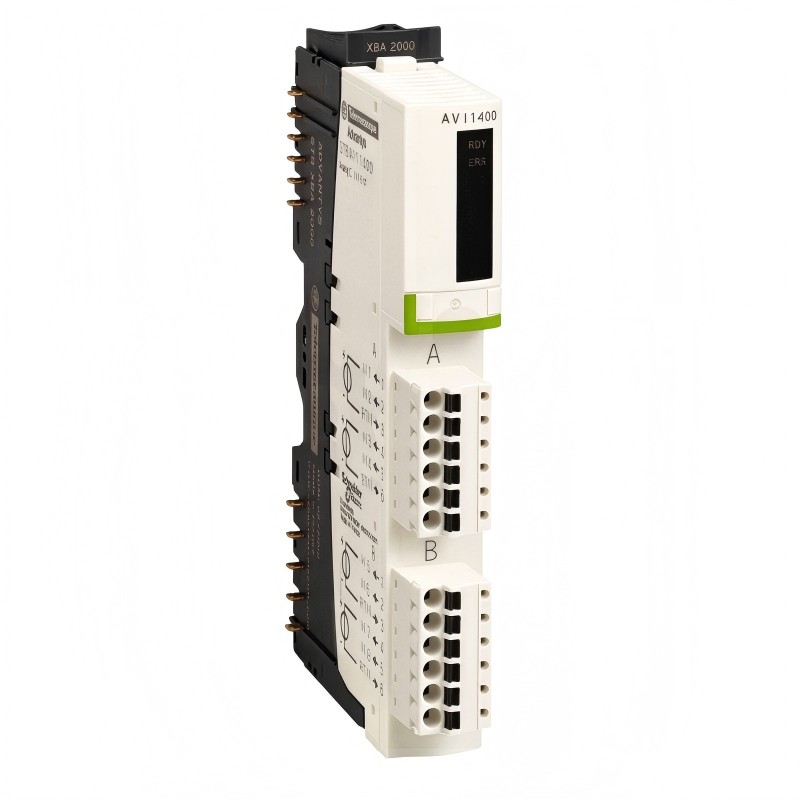

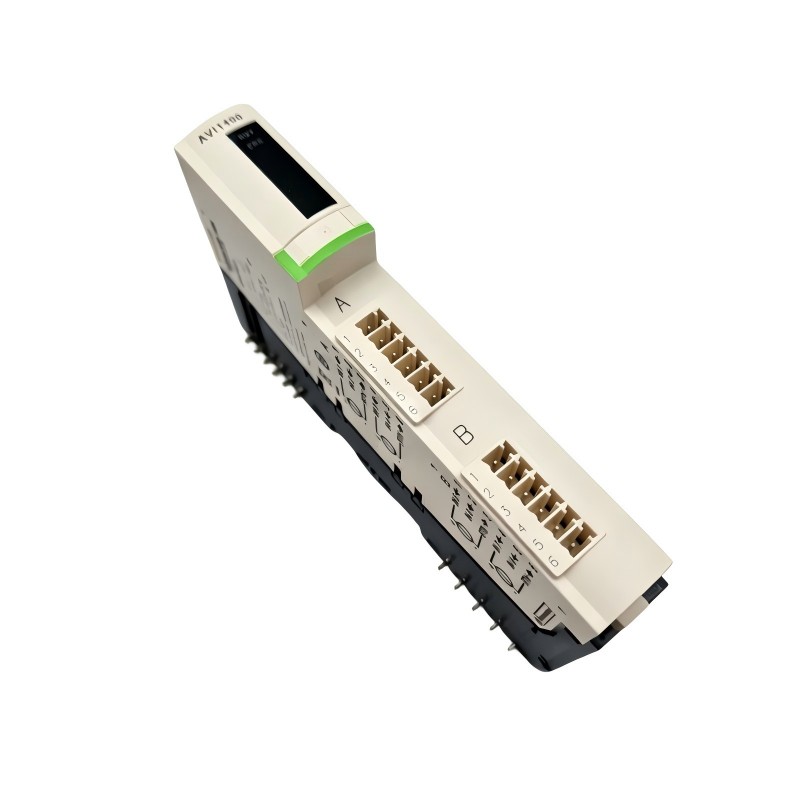

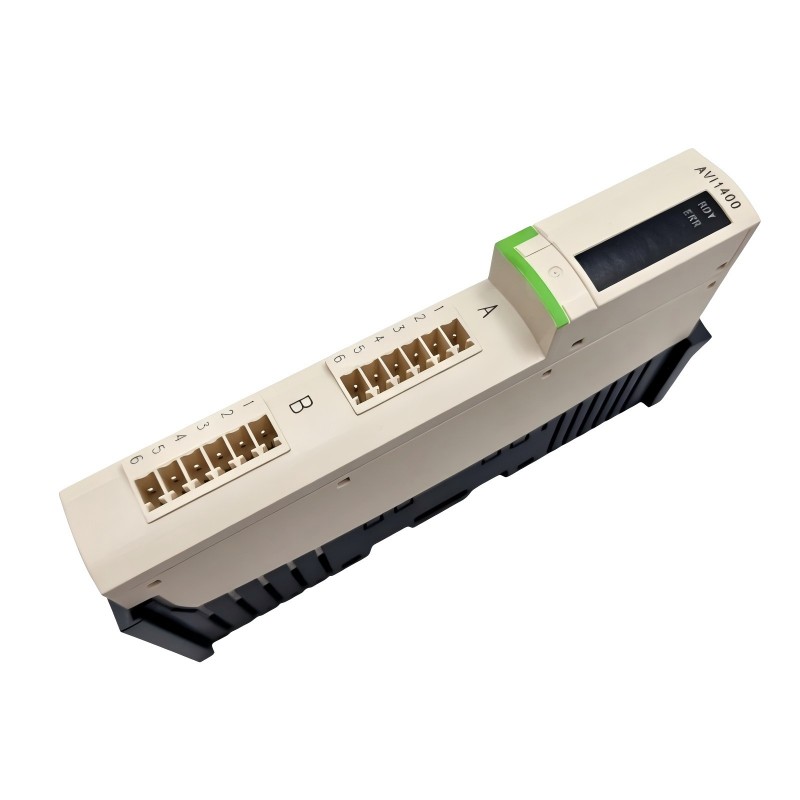

The Schneider STBAVI1400K Standard Analog Input Kit is a professional industrial automation component designed for accurate analog signal collection within distributed control systems. It provides a reliable connection between field measurement devices and automation controllers, supporting efficient data monitoring and process management.
In modern manufacturing and industrial environments, accurate analog information is essential for maintaining production efficiency and improving equipment performance. The STBAVI1400K helps automation systems capture real-time field signals, enabling more precise control strategies and better operational decisions.
With its modular design, flexible configuration capability, and stable signal processing performance, this analog input kit is suitable for a wide range of industrial applications, including machine automation, process control, and monitoring systems.
The Schneider STBAVI1400K Standard Analog Input Kit is a dependable choice for engineers seeking accurate analog input expansion and reliable automation system performance.
Technical Specifications
Parameter
Specification
Manufacturer
Schneider Electric
Model
STBAVI1400K
Product Type
Standard Analog Input Kit
Product Family
Modicon STB Distributed I/O
Analog Input Type
Voltage Input
Number of Analog Inputs
8 Channels
Input Range
±10 V, ±5 V, 0–10 V, 0–5 V, 1–5 V
Resolution
15 bits + Sign
Filter Type
Single Low Pass Input Filter 25 Hz
Update Time
22 ms
Rated Supply Voltage
24 V DC
Installation Type
Modular I/O Mounting
Application
Industrial Automation and Process Control
Dimensions
18.4 × 128.3 × 70 mm
Weight
0.454 kg (1.00 lb)
Recommended Related Models
Schneider STBAVI1270K Analog Input Kit
Schneider STBAVI1255K Basic Analog Input Kit
Schneider STBAVI0300K Standard Analog Input Kit
Schneider STBACI0320K Analog Input Kit
Schneider STBACO0220K Analog Output Kit
Popular Related Models
Schneider Modicon STB Distributed I/O Modules
Schneider Modicon M340 Analog Input Modules
Schneider Modicon Quantum I/O Modules
Schneider STB Network Interface Modules
Schneider Industrial Remote I/O Solutions
Applications
The Schneider STBAVI1400K Standard Analog Input Kit is a high-performance analog signal acquisition solution designed for Modicon STB distributed I/O systems. It provides accurate analog voltage measurement and reliable data conversion, allowing industrial automation systems to collect important field information for monitoring and control applications.
The STBAVI1400K is widely used in industrial automation environments:
Process Control Applications
The module is suitable for collecting analog signals from industrial sensors, transmitters, and measurement devices, helping control systems achieve accurate process monitoring.
Factory Automation Systems
It supports automated production equipment that requires multiple analog input channels for machine feedback, adjustment, and performance analysis.
Industrial Monitoring Solutions
The module enables continuous data acquisition from field devices used in temperature, pressure, flow, and other measurement applications.
Distributed Control Architectures
It provides an effective I/O expansion solution for automation networks requiring flexible field signal integration.
Machine Building Projects
The compact modular structure makes it suitable for OEM equipment and customized automation systems that require reliable analog input capability.
The Schneider STBAVI1400K Standard Analog Input Kit helps engineers improve system visibility, enhance process accuracy, and build reliable industrial automation solutions.
Technical Advantages and Product Benefits
High-Accuracy Analog Signal Processing
The Schneider STBAVI1400K provides precise analog input measurement, helping automation systems receive reliable field data.
Multi-Channel Signal Acquisition
The module supports multiple analog input channels, making it suitable for applications requiring several measurement points within one automation system.
Excellent Measurement Stability
Advanced signal processing technology helps maintain consistent performance during continuous industrial operation.
Flexible Modicon STB Integration
Designed for distributed I/O systems, it allows convenient connection with industrial controllers and automation networks.
Compact Modular Installation
The space-saving design supports efficient control cabinet layouts and simplifies system expansion.
Reliable Industrial Performance
The module is built for demanding automation environments where stable operation and accurate data collection are essential.
Simplified Maintenance and Diagnostics
The modular structure helps reduce maintenance time and improves troubleshooting efficiency.
Technical FAQs
1. What is the Schneider STBAVI1400K Standard Analog Input Kit used for?
It is used to collect and process analog voltage signals from industrial sensors and field devices.
2. How many analog input channels does the STBAVI1400K provide?
It provides eight analog input channels for industrial measurement applications.
3. What signal types can the STBAVI1400K process?
It supports analog voltage signals including multiple industrial voltage ranges.
4. Which automation platform is compatible with this module?
It is designed for Schneider Modicon STB distributed I/O systems.
5. Why are multi-channel analog input modules important?
They allow automation systems to monitor multiple field devices while reducing hardware requirements.
6. Can the STBAVI1400K be used for process monitoring?
Yes, it is suitable for applications requiring continuous analog measurement and process supervision.
7. What should be checked before installing this module?
The signal range, wiring configuration, controller compatibility, and system parameters should be verified.
8. How does this module improve industrial automation?
It provides accurate field data acquisition, helping controllers make better operational decisions.
9. What maintenance is recommended for the STBAVI1400K?
Regular inspection of wiring connections, signal quality, and module diagnostics is recommended.
10. What are the main benefits of Schneider analog input solutions?
They provide reliable measurement, flexible integration, and stable operation for industrial control systems.
