Brand:Schneider PLC Item No.:STBCPS2111K Product Origin:France Product Dimensions:18.4 x 120 x 125 mm Product Weight:0.499 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

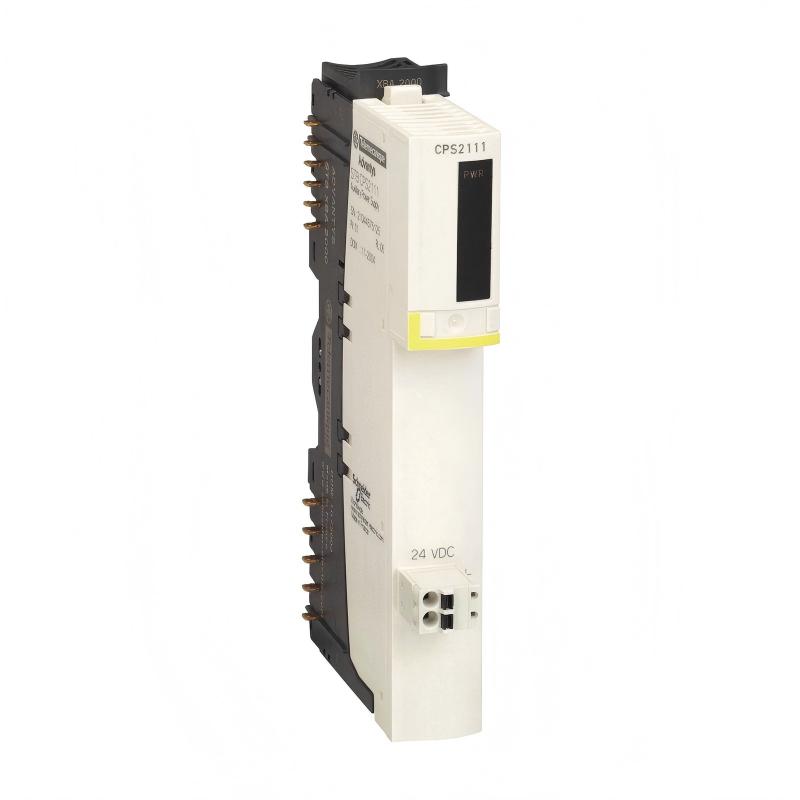

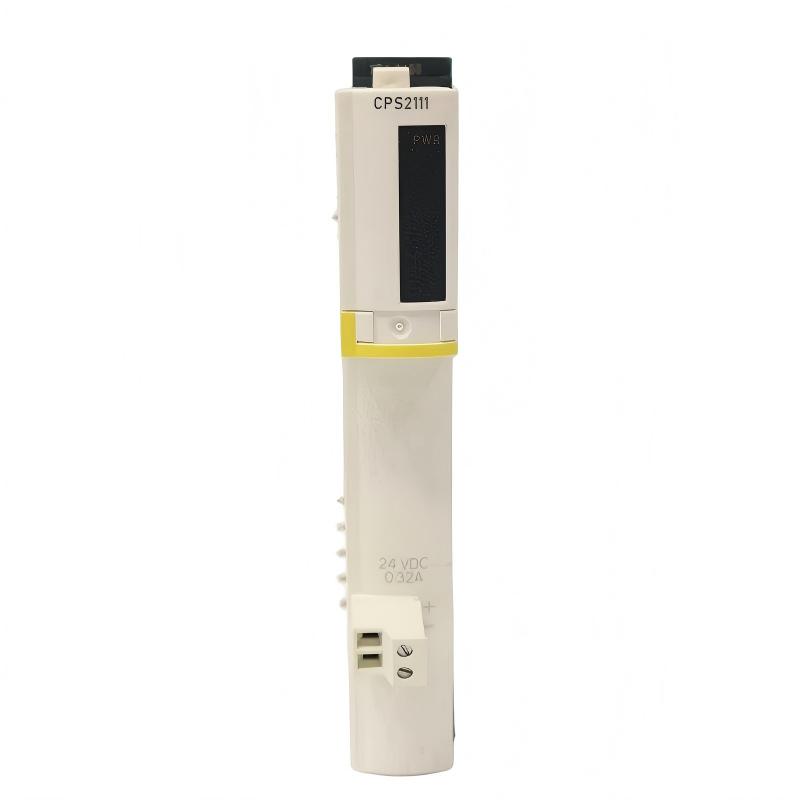

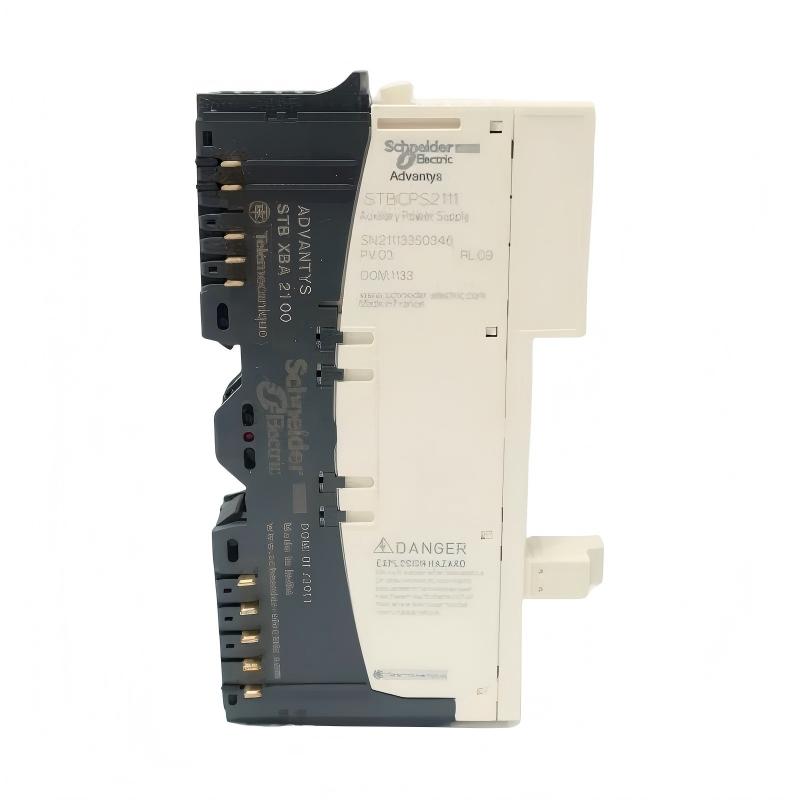

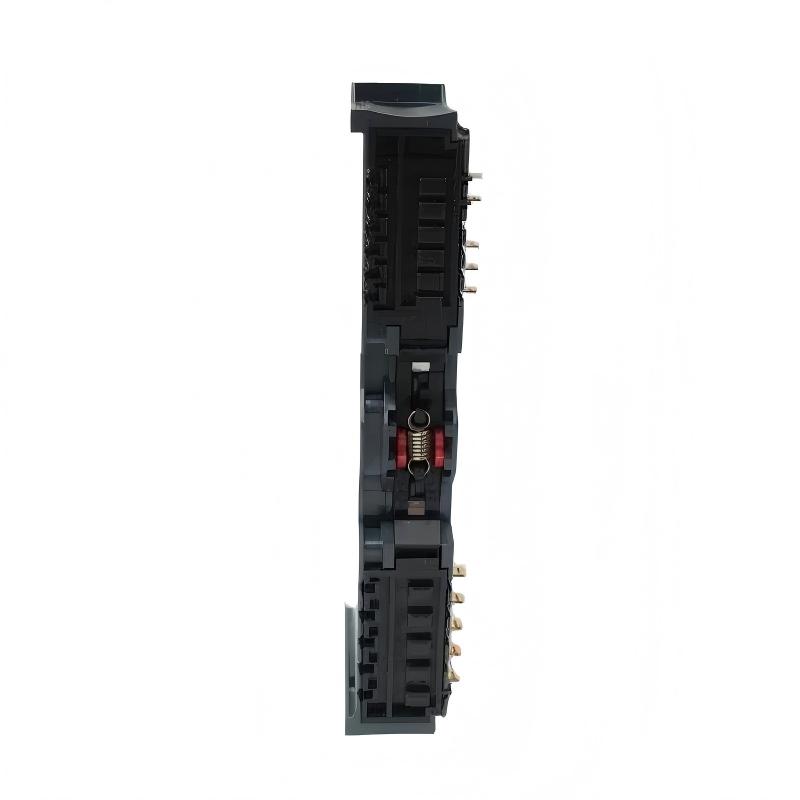

The Schneider STBCPS2111K Auxiliary Power Supply is a professional industrial automation power module designed to enhance the performance of Modicon STB distributed I/O systems. It provides additional logic power support for I/O modules installed within an automation segment, helping maintain stable operation in larger control architectures.
As industrial automation systems continue to expand, the number of connected I/O modules increases, creating higher power requirements. The STBCPS2111K provides an effective solution by adding extra power capacity where standard system power may not be sufficient.
With its modular design, reliable performance, and easy integration, this auxiliary power supply is suitable for manufacturing equipment, process automation systems, and industrial control applications.
The Schneider STBCPS2111K Auxiliary Power Supply is a practical choice for engineers who require dependable power management and flexible expansion capability in distributed automation systems.
Technical Specifications
Parameter
Specification
Manufacturer
Schneider Electric
Model
STBCPS2111K
Product Type
Auxiliary Power Supply
Product Family
Modicon STB Distributed I/O
Function
Logic Power Supply Extension
Input Voltage
24 V DC
Output Voltage
5.25 V DC Logic Bus Power
Output Current
1.2 A
Input Current
0.3 A
Protection Function
Overcurrent and Overvoltage Protection
Protection Level
IP20
Installation Type
Modular I/O Mounting
Application
Industrial Automation and Distributed Control Systems
Dimensions
18.4 × 120 × 125 mm
Weight
0.499 kg (1.10 lb)
Recommended Related Models
Schneider STBNIP2311 Network Interface Module
Schneider STBXBE1300K Bus Extension Module
Schneider STBPDT3100K Power Distribution Module
Schneider STBPDT3105K Power Distribution Module
Schneider STBACI0320K Analog Input Module
Popular Related Models
Schneider Modicon STB Distributed I/O Modules
Schneider Modicon M340 Power Supply Modules
Schneider Modicon Quantum I/O Solutions
Schneider STB Network Interface Modules
Schneider Industrial Remote I/O Systems
Applications
The Schneider STBCPS2111K Auxiliary Power Supply is a dedicated power expansion module designed for Modicon STB distributed I/O systems. It provides additional power support for logic modules within an automation segment, helping maintain stable operation when the power demand of connected I/O modules increases.
The STBCPS2111K is widely used in industrial automation environments:
Distributed I/O System Expansion
The module is used to extend the power capacity of Modicon STB segments, ensuring reliable operation of additional I/O modules in larger automation systems.
Factory Automation Equipment
It supports manufacturing machines that require multiple I/O modules and stable logic power distribution.
Process Control Applications
The auxiliary power supply helps maintain consistent operation of distributed control systems used in industrial processes.
Machine Building Projects
It provides an effective solution for OEM equipment requiring flexible I/O expansion and dependable power management.
Industrial Control Cabinets
The compact modular structure makes it suitable for integration into automation panels where efficient power distribution is required.
The Schneider STBCPS2111K Auxiliary Power Supply improves system stability by providing additional logic power capability, supporting reliable operation of distributed automation architectures.
Performance Advantages and Key Benefits
Reliable Auxiliary Power Support
The Schneider STBCPS2111K provides additional power capacity for Modicon STB I/O segments, helping maintain stable system operation.
Enhanced System Expansion Capability
It allows automation systems to add more I/O modules without exceeding the available power capacity of the existing segment.
Stable Logic Power Distribution
The module ensures consistent power delivery for connected automation components, reducing the risk of unstable operation.
Modular Automation Integration
Designed for Modicon STB architectures, it provides flexible installation and convenient system configuration.
Compact Industrial Design
The space-saving structure helps optimize control cabinet layouts while maintaining reliable power performance.
Improved System Reliability
By supporting additional I/O loads, the module helps improve automation system availability and operational efficiency.
Easy Maintenance and Replacement
The modular design simplifies installation, troubleshooting, and future system upgrades.
Technical FAQs
1. What is the Schneider STBCPS2111K Auxiliary Power Supply used for?
It is used to provide additional logic power for Modicon STB distributed I/O system segments.
2. Why is an auxiliary power supply required in an STB system?
It is required when the power consumption of connected I/O modules exceeds the available power capacity of the existing segment.
3. What type of automation systems use the STBCPS2111K?
It is mainly used in Schneider Modicon STB distributed I/O automation systems.
4. Can the STBCPS2111K support system expansion?
Yes, it allows additional I/O modules to be added by providing extra power capacity.
5. What is the main function of this module?
Its main function is to supply additional logic power to connected I/O modules within an automation segment.
6. What should be checked before installing this auxiliary power supply?
System power requirements, module arrangement, wiring configuration, and compatibility should be verified.
7. How does the STBCPS2111K improve automation reliability?
It helps prevent insufficient power conditions that may affect connected I/O module performance.
8. Can this module be used in industrial control cabinets?
Yes, it is designed for installation in industrial automation control panels.
9. What maintenance is recommended for the STBCPS2111K?
Regular inspection of power connections, module status indicators, and system diagnostics is recommended.
10. What are the advantages of using an auxiliary power module in distributed I/O systems?
It improves system flexibility, supports expansion, and helps maintain stable automation operation.
