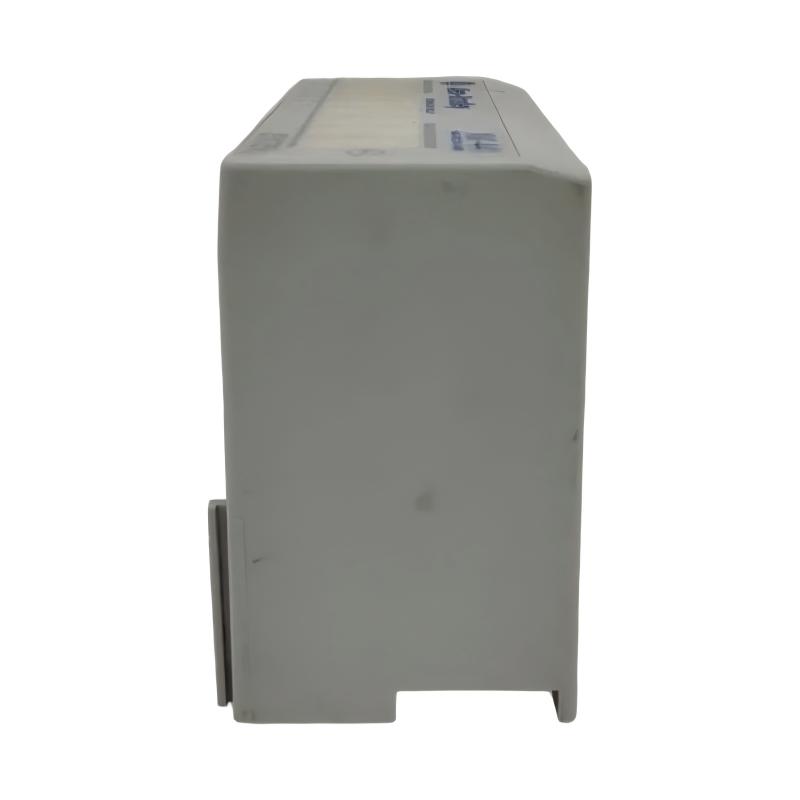

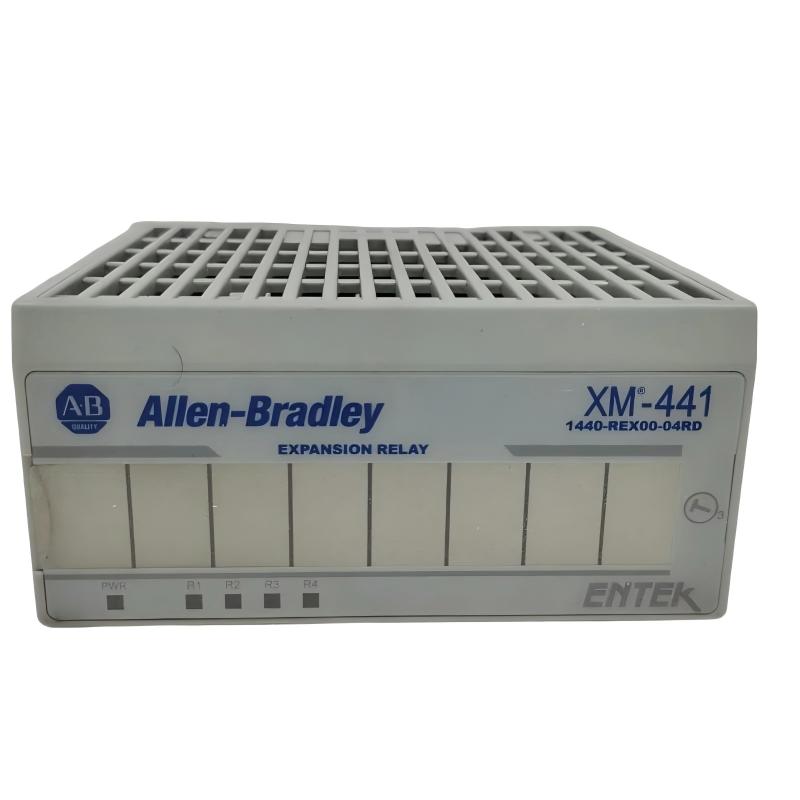

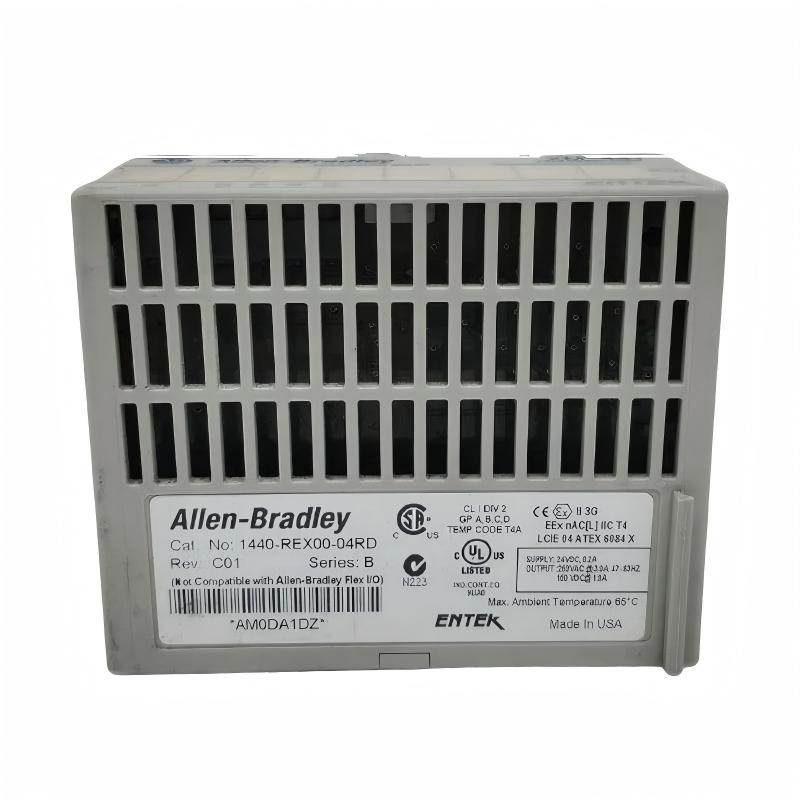

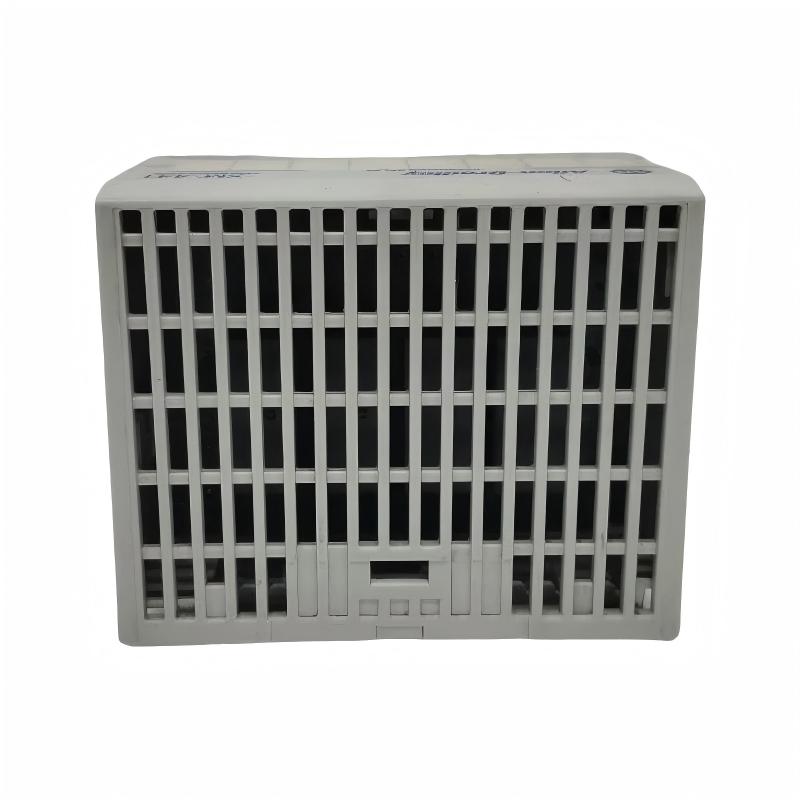

Allen Bradley XM-441 1440-REX00-04RD XM-441 Extended Relay Module

Applications

The Allen Bradley XM-441 1440-REX00-04RD XM-441 Extended Relay Module is a professional relay expansion component designed for XM condition monitoring systems. It provides additional relay output capability for industrial machinery protection and monitoring applications, allowing automation systems to perform alarm notification and control actions based on equipment operating conditions.

The XM-441 Extended Relay Module is widely used in industrial applications:

Machinery Protection Systems
The module is suitable for critical rotating equipment where additional relay outputs are required for alarm management and protective control functions.

Predictive Maintenance Applications
It supports condition monitoring systems by providing relay outputs that can trigger warnings or response actions when abnormal equipment conditions occur.

Industrial Equipment Monitoring
The module helps connect machine health monitoring information with external alarm devices, control circuits, and protection systems.

Power and Process Industries
It can be applied in facilities monitoring motors, pumps, compressors, turbines, and other critical industrial assets.

Automation Control Systems
The module provides flexible relay expansion for systems requiring additional output capability within existing XM monitoring architectures.

The Allen Bradley XM-441 1440-REX00-04RD XM-441 Extended Relay Module enhances equipment protection capability by providing reliable relay expansion, flexible alarm control, and improved system response performance.

Technical Advantages and Product Benefits

Extended Relay Output Capability
The Allen Bradley XM-441 provides additional relay channels, allowing users to expand alarm and control functions within XM monitoring systems.

Flexible Alarm Management
The module enables automation systems to respond to equipment conditions through configurable relay actions.

Reliable Switching Performance
Industrial-grade relay operation provides stable switching capability for alarm circuits and control applications.

Easy XM System Integration
The module is designed to work with compatible XM monitoring components, allowing convenient expansion of existing condition monitoring systems.

Enhanced Equipment Protection
Additional relay outputs help users create effective warning and shutdown strategies for critical machinery.

Compact Modular Construction
The space-efficient design allows easy installation in industrial control cabinets while maintaining reliable operation.

Improved Maintenance Efficiency
By providing clear alarm output capability, the module helps maintenance teams identify equipment conditions and respond faster.

Technical FAQs

1. What is the Allen Bradley XM-441 1440-REX00-04RD used for?
It is used to expand relay output capability in Allen Bradley XM condition monitoring systems.

2. How many relay outputs does the XM-441 provide?
It provides four additional relay outputs for industrial alarm and control applications.

3. Does the XM-441 measure vibration signals directly?
No. It provides relay expansion functions and works together with XM monitoring modules that collect condition data.

4. What types of applications use the XM-441?
It is commonly used in machinery protection, predictive maintenance, and industrial monitoring systems.

5. Which XM modules can connect with the XM-441?
It can be integrated with compatible XM measurement and relay control modules.

6. Can the XM-441 be used for alarm output functions?
Yes, it is designed to provide relay outputs for alarms and industrial control responses.

7. What should be checked before installation?
Module compatibility, relay wiring requirements, power supply conditions, and system configuration should be confirmed.

8. How does the XM-441 improve machine protection?
It allows additional alarm and control responses based on equipment monitoring conditions.

9. What maintenance is required for the XM-441?
Regular inspection of relay connections, module status indicators, and system operation is recommended.

10. What are the benefits of adding a relay expansion module?
It increases system flexibility, improves alarm management, and enhances industrial equipment protection capability.
