Introduction

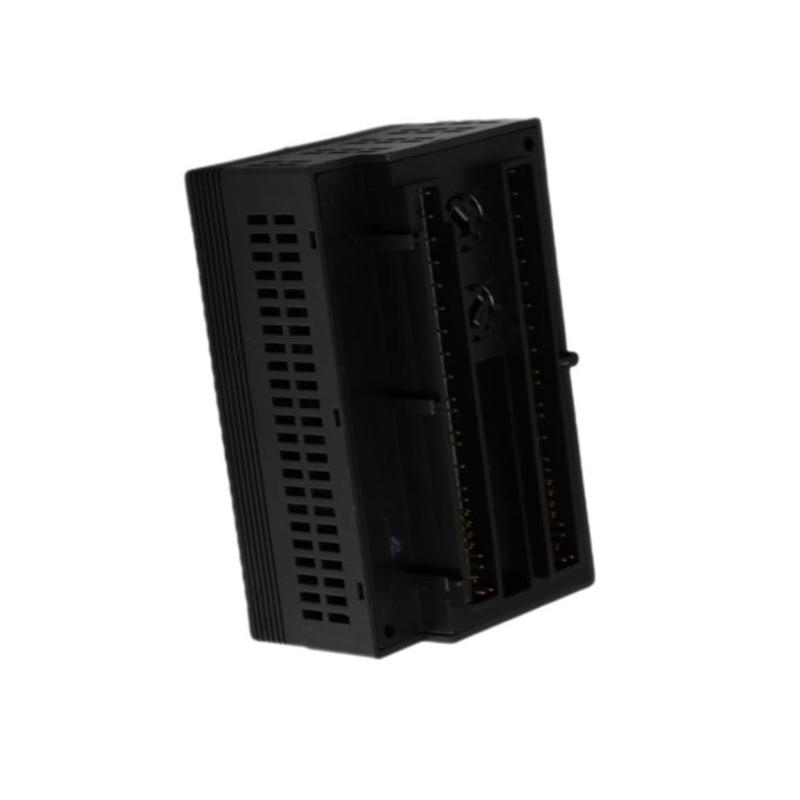

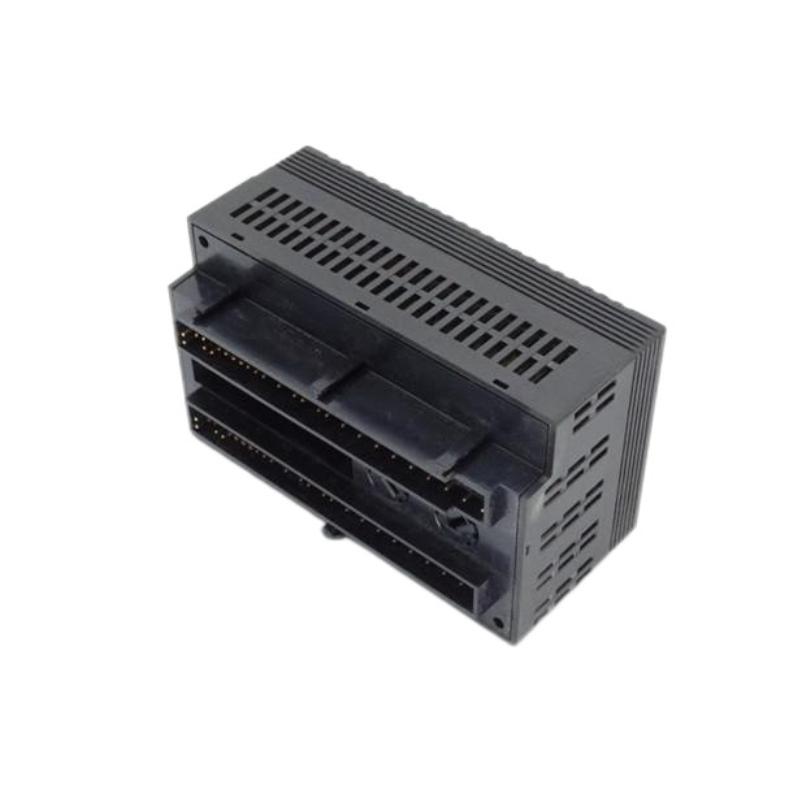

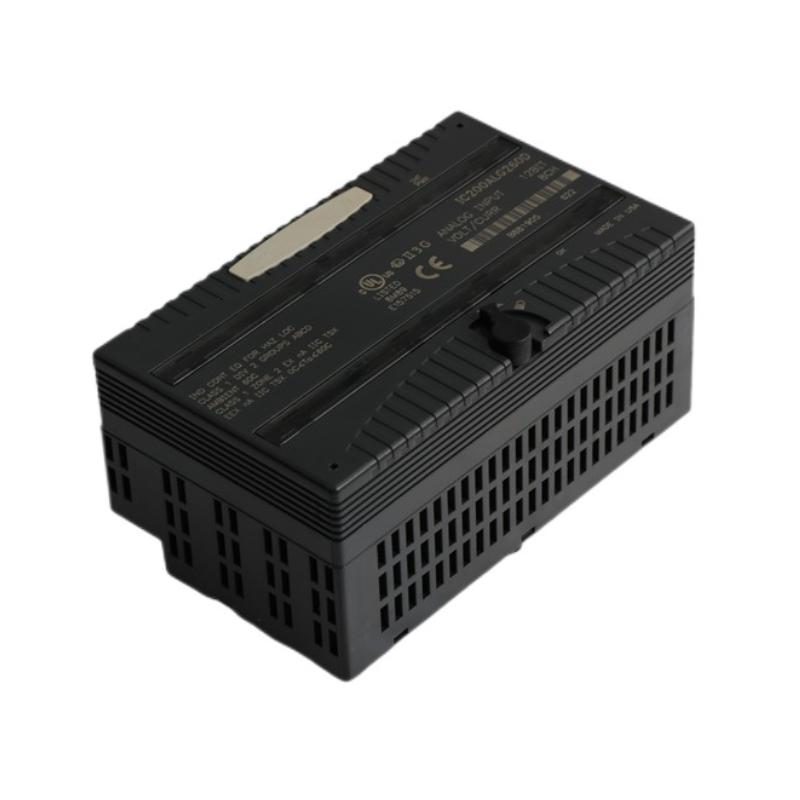

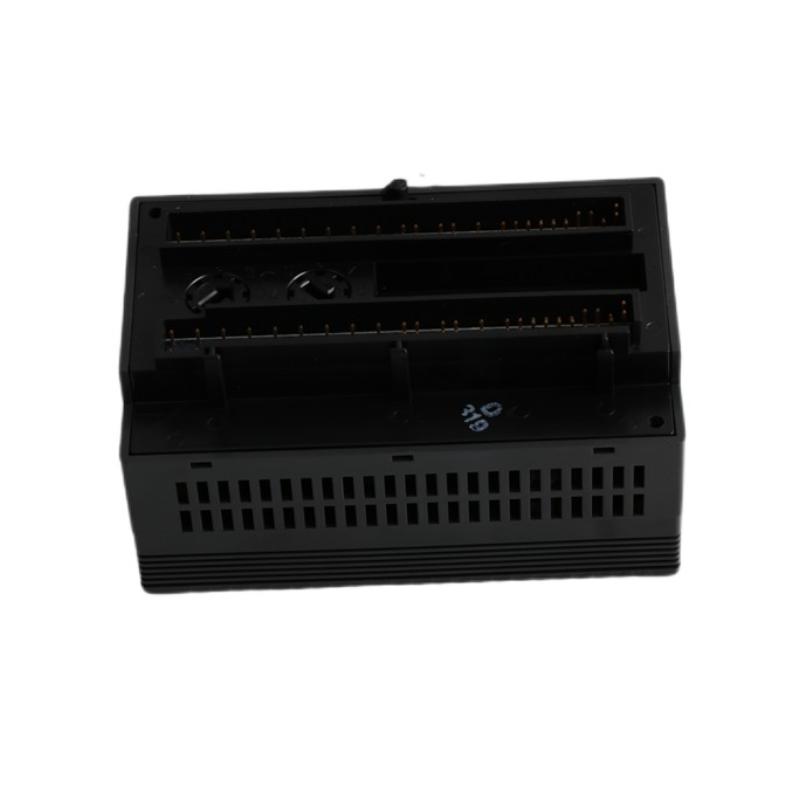

The GE IC200ALG260J VersaMax 12-Bit Voltage/Current 8-Channel Analog Input Module is a versatile analog acquisition module designed for GE VersaMax automation systems. It provides eight configurable analog input channels capable of handling common industrial voltage and current signals, including ±10VDC, 0–10VDC, and 4–20mA.

Designed for process-oriented automation applications, the IC200ALG260J enables accurate monitoring of field instrumentation while maintaining the compact modular structure of the VersaMax platform. Its flexible input configuration makes it suitable for a wide range of industries, including manufacturing, water treatment, energy, and machine automation.

With reliable signal conversion, integrated diagnostics, and efficient backplane operation, this analog input module provides a practical solution for expanding VersaMax systems and maintaining dependable industrial data acquisition performance.

Technical Specifications

Specification	Description
Manufacturer	GE Fanuc / Emerson
Model	IC200ALG260J
Product Type	Analog Input Module
Product Family	VersaMax
Input Type	Voltage / Current Analog Input
Number of Channels	8 Single-Ended Inputs
Input Configuration	One Common Group
Voltage Input Range	±10VDC / 0–10VDC
Current Input Range	4–20mA
Resolution	12-bit
Update Rate	0.4 ms
Input Filter Response	5 ms
Voltage Input Impedance	126 kΩ Maximum
Current Input Impedance	200 Ω Maximum
Accuracy at 25°C	±0.3% Typical, ±0.5% Maximum Full Scale
Isolation	Optical Isolation
External Power Supply	Not Required
Diagnostics	Internal Power Monitoring, Signal Diagnostics
LED Indicators	INT PWR, OK Status LEDs
Backplane Current Consumption	130 mA Maximum @ 5VDC
Mounting Type	VersaMax Carrier / DIN Rail System
Operating Temperature	0°C to +60°C
Dimensions	Approx. 110 × 66.8 × 50 mm
Weight	Approx. 0.20 kg

Recommended Companion Models

Model	Product Name
IC200CHS022L	VersaMax Compact Box-Style I/O Carrier Module
IC200PWR102H	VersaMax Expanded Power Supply Module
IC200CPU005	VersaMax CPU Module
IC200ALG326G	VersaMax Analog Current Output Module

Frequently Selected Alternatives

Model	Product Name
IC200ALG264H	VersaMax 8-Channel Analog Voltage/Current Input Module
IC200ALG266	VersaMax 15-Channel Analog Input Module
IC694ALG223	Series 90-70 8-Channel Analog Current Input Module
IC693ALG223C	Series 90-30 8-Channel Analog Current Input Module

Where It Excels in Industrial Use

GE VersaMax PLC analog signal acquisition applications
Process monitoring systems requiring voltage and current measurement
Industrial instrumentation and transmitter data collection
Pressure, temperature, flow, and level monitoring systems
Factory automation systems requiring flexible analog inputs
OEM equipment with multiple analog field devices
SCADA and process control data acquisition
Distributed I/O systems requiring compact analog expansion
Legacy GE Fanuc VersaMax system upgrades
Industrial applications using 0–10V and 4–20mA field signals

Key Strengths at a Glance

8-channel analog input capability
Supports both voltage and current signal measurement
Configurable input ranges for different process devices
12-bit analog-to-digital conversion resolution
Supports ±10VDC, 0–10VDC, and 4–20mA input signals
Fast analog update rate for responsive control applications
Optical isolation between field inputs and PLC logic
Built-in diagnostics for power and signal monitoring
No separate external power supply required for module operation
Compact VersaMax modular design for efficient cabinet installation

Technical FAQs

1. What is the primary function of the GE IC200ALG260J?

The IC200ALG260J is a VersaMax analog input module designed to convert external voltage and current signals into digital values that can be processed by a VersaMax PLC CPU or Network Interface Unit.

2. How many analog input channels does the IC200ALG260J provide?

The module provides 8 single-ended analog input channels arranged in one input group.

3. Which input signal types are supported?

The module supports:

±10VDC bipolar voltage input
0–10VDC unipolar voltage input
4–20mA current input

The input mode is selected through carrier configuration settings.

4. What is the resolution of the IC200ALG260J?

The module uses a 12-bit analog conversion resolution, providing precise measurement for industrial process signals.

5. Does the module require an external power supply?

The module receives operating power from the VersaMax backplane and does not require a dedicated external supply for module operation.

6. What types of field devices can be connected?

Typical connected devices include pressure transmitters, flow meters, temperature transmitters with analog outputs, level sensors, and other industrial instrumentation equipment.

7. What is the input update rate?

The module provides an analog update rate of approximately 0.4 ms, allowing fast acquisition of changing process signals.

8. Does the IC200ALG260J provide signal isolation?

Yes. The module provides optical isolation between user input circuits and PLC logic circuits, improving reliability in industrial environments.

9. What diagnostics are available on this analog input module?

The module provides status indication through LED diagnostics and supports monitoring functions such as internal power status and signal condition information.
