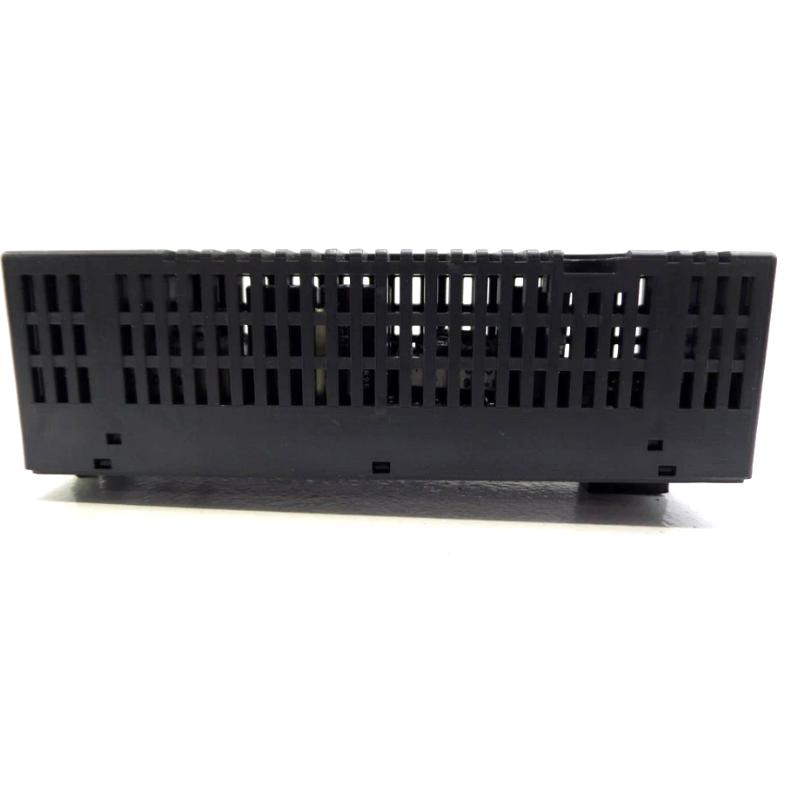

GE IC200PWR101E VersaMax 120/240VAC Power Supply Module
GE IC200PWR101E VersaMax 120/240VAC Power Supply Module
0.0
Points
Brand:GE Fanuc PLC Item No.:IC200PWR101E Product Origin:USA Product Dimensions:110 × 66.8 × 50 mm Product Weight:0.30 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The GE IC200PWR101E VersaMax 120/240VAC Power Supply Module is a reliable AC-powered supply solution designed for GE VersaMax PLC and distributed I/O systems. It converts industrial AC input power into regulated DC outputs required by CPUs, Network Interface Units, and I/O modules, ensuring stable operation throughout the automation station.
Engineered for flexible industrial applications, the IC200PWR101E supports both primary and supplemental power configurations. Its compatibility with VersaMax booster carriers makes it suitable for larger installations where additional backplane power capacity is required.
With compact modular construction, integrated protection features, and dependable power conversion performance, this module remains a practical choice for maintaining and expanding established GE VersaMax control systems.
Technical Specifications
Specification
Description
Manufacturer
GE Fanuc / Emerson
Model
IC200PWR101E
Product Type
Power Supply Module
Product Family
VersaMax
Input Voltage
120/240VAC Nominal
Input Voltage Range
85–132VAC / 176–264VAC
Input Frequency
47–63 Hz
Input Power
27 VA
Output Voltage
5VDC and 3.3VDC
Total Output Current
1.5A Maximum
3.3VDC Output Current
0.25A Maximum
5VDC Output Current
1.5A minus 3.3VDC load
Hold-Up Time
20 ms Minimum
Protection
Short Circuit Protection, Overload Protection
Application Mode
Primary or Supplemental Power Supply
Compatible System
GE VersaMax PLC / Distributed I/O
Mounting Method
VersaMax Carrier / Booster Carrier
Operating Temperature
0°C to +60°C
Storage Temperature
-40°C to +85°C
Dimensions
Approx. 110 × 66.8 × 50 mm
Weight
Approx. 0.20 kg
Recommended Companion Models
Model
Product Name
IC200CPU005
VersaMax CPU Module
IC200CHS022L
VersaMax Compact Box-Style I/O Carrier Module
IC200PWB001B
VersaMax Power Supply Booster Carrier
IC200ERM002F
VersaMax Expansion Receiver Module
Frequently Selected Alternatives
Model
Product Name
IC200PWR102E
VersaMax Expanded 120/240VAC Power Supply Module
IC200PWR102H
VersaMax Expanded AC Power Supply Module
IC200PWR201
VersaMax 12VDC Power Supply Module
IC200PWR202
VersaMax Expanded 12VDC Power Supply Module
Where It Excels in Industrial Use
GE VersaMax PLC control system power distribution
Industrial automation cabinets requiring stable backplane power
Remote I/O stations with CPU and network interface modules
Manufacturing equipment and OEM machine control systems
Distributed automation applications requiring supplemental power capability
Legacy GE Fanuc VersaMax system maintenance and upgrades
Factory production lines with multiple I/O modules
Process automation systems requiring reliable DC power conversion
Control panels operating with standard 120/240VAC input supplies
Industrial installations requiring compact DIN-rail power solutions
Key Strengths at a Glance
Designed for GE VersaMax PLC and distributed I/O platforms
Supports 120VAC and 240VAC industrial input power
Provides regulated 5VDC and 3.3VDC backplane outputs
Supplies up to 1.5A combined output current capacity
Supports CPU, Network Interface Unit, and I/O module power requirements
Can operate as both primary and supplemental power source
Compatible with VersaMax Power Supply Booster Carrier
Includes short-circuit and overload protection
Provides 20 ms minimum power hold-up time
Compact modular design for efficient control cabinet installation
Technical FAQs
1. What is the main function of the GE IC200PWR101E?
The IC200PWR101E is a VersaMax power supply module designed to provide backplane power for CPUs, Network Interface Units, and I/O modules installed within a VersaMax automation station.
2. What input voltage does the IC200PWR101E support?
The module supports 120VAC and 240VAC nominal input operation. The input range is approximately 85–132VAC when configured for 120VAC operation and 176–264VAC for 240VAC operation.
3. What output voltages are available from this power supply?
The IC200PWR101E provides regulated 5VDC and 3.3VDC outputs for VersaMax system modules connected through the backplane.
4. What is the maximum output current capability?
The module provides a maximum combined output current of 1.5A, shared between the 5VDC and 3.3VDC outputs. The 3.3VDC output supports up to 0.25A.
5. Can the IC200PWR101E be used as an additional power source?
Yes. When installed on a VersaMax Power Supply Booster Carrier, the module can function as a supplemental power source for larger I/O configurations.
6. Which VersaMax components can be powered by this module?
The module can provide power for VersaMax CPUs, Network Interface Units, and various VersaMax I/O modules installed in the automation station.
7. What protection functions are included?
The IC200PWR101E includes short-circuit protection and overload protection to help protect the automation system during abnormal operating conditions.
8. What is the power interruption tolerance of this module?
The power supply provides approximately 20 ms hold-up time, helping maintain system stability during brief AC input interruptions.
9. How is the module installed in a VersaMax system?
The IC200PWR101E snaps onto a VersaMax CPU module, Network Interface Unit, or Power Supply Booster Carrier as part of the modular VersaMax architecture.
10. Is the IC200PWR101E suitable for system expansion projects?
Yes. It is commonly used for VersaMax station expansion, replacement installations, and maintenance of existing GE automation systems requiring AC-powered backplane supply capability.
