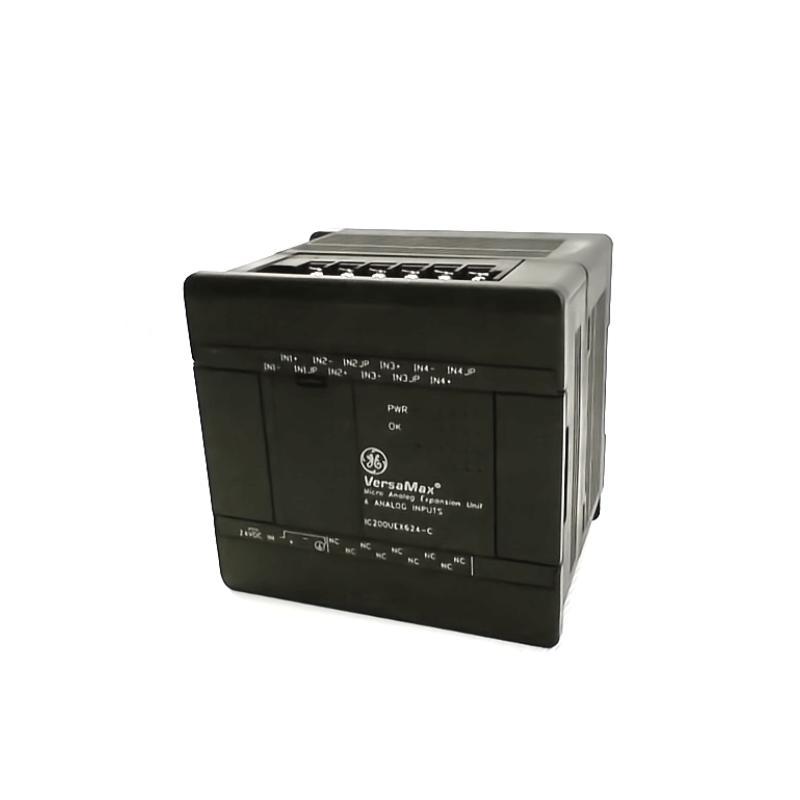

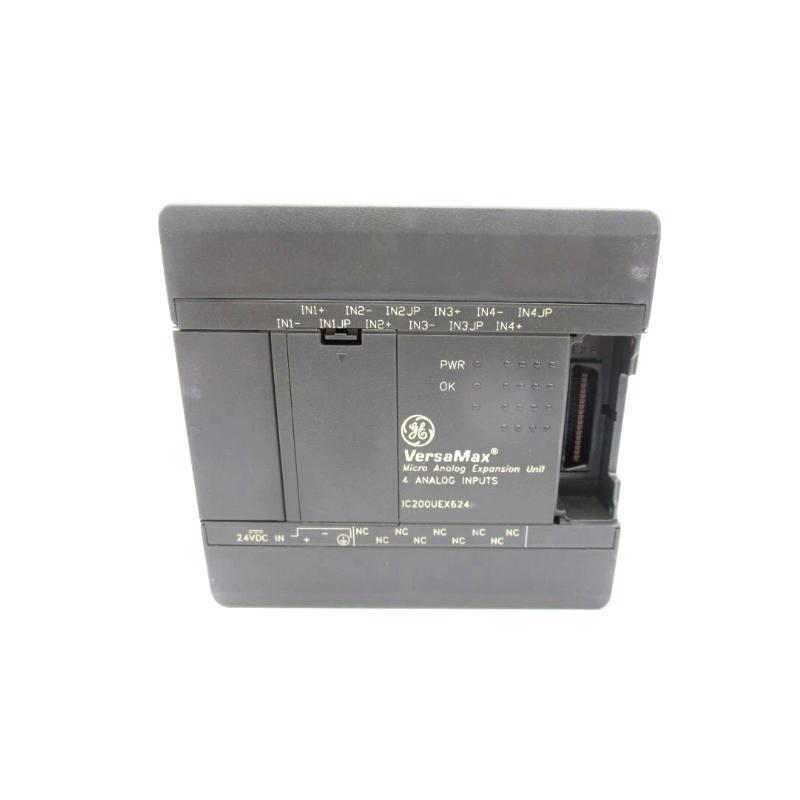

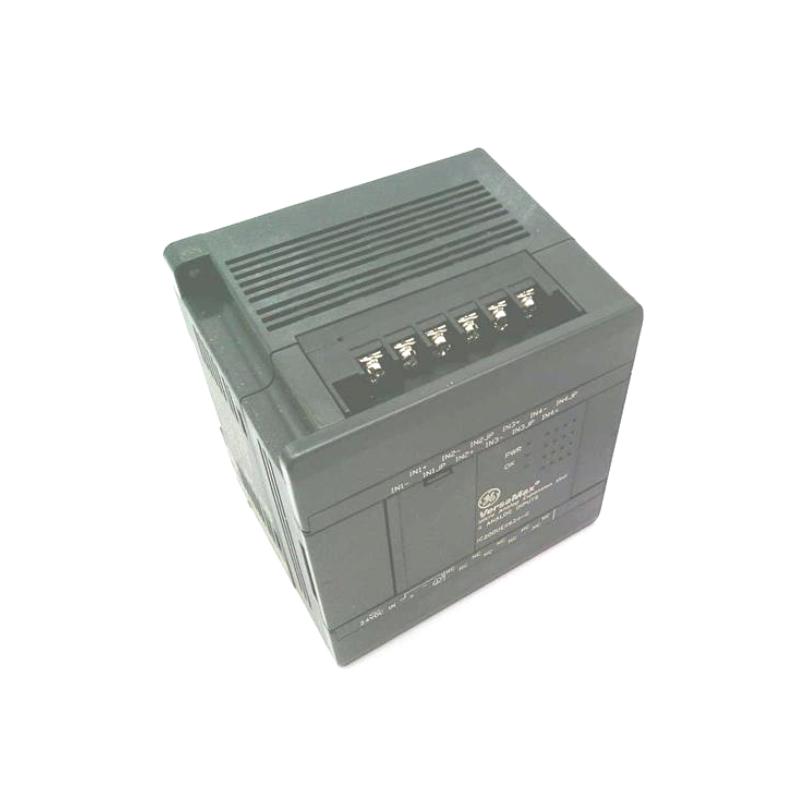

GE IC200UEX624 VersaMax Micro 4-Channel Analog Input Expansion Module
GE IC200UEX624 VersaMax Micro 4-Channel Analog Input Expansion Module
0.0
Points
Brand:GE Fanuc PLC Item No.: IC200UEX624 Product Origin:USA Product Dimensions:202 × 21 × 261 mm Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The GE IC200UEX624 VersaMax Micro 4-Channel Analog Input Expansion Module is a compact analog acquisition solution designed to extend the capabilities of GE VersaMax Micro PLC systems. It provides four additional analog input channels for connecting industrial sensors and transmitters, enabling accurate monitoring of real-world process conditions.
Designed for space-sensitive automation environments, the IC200UEX624 combines flexible signal compatibility with the simplicity of VersaMax Micro expansion architecture. Its support for common voltage and current input ranges makes it suitable for applications where reliable analog data collection is required without upgrading the main controller.
With compact installation, dependable signal conversion, and straightforward system integration, this module provides an efficient option for expanding existing VersaMax Micro automation solutions.
Technical Specifications
Specification
Description
Manufacturer
GE Fanuc / Emerson
Model
IC200UEX624
Product Type
Analog Input Expansion Module
Product Family
VersaMax Micro
Analog Input Channels
4 Channels
Input Type
Voltage / Current Analog Input
Voltage Input Range
0–10VDC, ±10VDC
Current Input Range
0–20mA, 4–20mA
Resolution
12-bit ADC
Input Power Supply
24VDC
Power Consumption
Approx. 3W
Input Voltage Range
19.2–30VDC
Hold-Up Time
Approx. 10 ms
Input Impedance (Voltage)
Approx. 200 kΩ
Input Impedance (Current)
Approx. 249Ω
Accuracy
Approx. ±0.1% Full Scale
Isolation
Non-isolated Input Design
Compatible Platform
VersaMax Micro PLC
Operating Temperature
0°C to +55°C
Dimensions
Approx. 95 × 90 × 76 mm
Weight
Approx. 0.91 kg
Recommended Companion Models
Model
Product Name
IC200UDR001-BD
VersaMax Micro PLC Controller Module
IC200PWR102H
VersaMax Expanded Power Supply Module
IC200CHS022L
VersaMax Compact I/O Carrier Module
IC200UEX616
VersaMax Micro 6-Channel Analog Expansion Module
Frequently Selected Alternatives
Model
Product Name
IC200UEX626
VersaMax Micro 6-Channel Analog I/O Expansion Module
IC200UEX636
VersaMax Micro 6-Channel Analog I/O Expansion Module with AC Power Supply
IC200ALG260J
VersaMax 8-Channel Analog Voltage/Current Input Module
IC200ALG264H
VersaMax 8-Channel Analog Input Module
Where It Excels in Industrial Use
GE VersaMax Micro PLC analog signal expansion applications
Compact machine automation systems requiring additional analog inputs
Process monitoring systems with voltage and current transmitters
Small-scale control panels and OEM automation equipment
Sensor data acquisition for pressure, flow, level, and temperature devices
Industrial equipment requiring flexible analog measurement capability
Distributed control applications using VersaMax Micro controllers
Legacy GE Fanuc VersaMax Micro system upgrades
Compact PLC installations with limited cabinet space
Applications requiring 0–10VDC and 4–20mA signal processing
Key Strengths at a Glance
Provides 4-channel analog input expansion capability
Designed specifically for VersaMax Micro PLC systems
Supports voltage and current analog signals
12-bit analog-to-digital conversion resolution
Supports 0–10VDC and 4–20mA industrial signal ranges
Operates from a 24VDC power supply
Expands VersaMax Micro analog capacity without replacing the controller
Compact design for space-saving installations
Supports connection of additional field transmitters and sensors
Reliable solution for small and medium industrial automation systems
Technical FAQs
1. What is the primary function of the GE IC200UEX624?
The IC200UEX624 is a VersaMax Micro analog expansion module that adds four analog input channels to VersaMax Micro PLC systems, allowing the controller to process external voltage and current signals.
2. How many analog input channels are available on the IC200UEX624?
The module provides 4 analog input channels for collecting data from industrial sensors and transmitters.
3. What signal types does the IC200UEX624 support?
The module supports common industrial analog input signals including:
0–10VDC voltage input
4–20mA current input
0–20mA current input
±10VDC voltage input (depending on configuration)
4. What is the resolution of the analog conversion?
The IC200UEX624 uses a 12-bit analog-to-digital converter, providing accurate conversion of field analog signals into PLC-readable data.
5. What power supply does the module require?
The module operates with a 24VDC power supply, making it suitable for standard industrial control panels and VersaMax Micro installations.
6. Can the IC200UEX624 be used with multiple expansion units?
Yes. VersaMax Micro controllers can support multiple analog expansion units, allowing additional analog input capacity for larger measurement applications.
7. What types of field devices can be connected?
Typical connected devices include pressure transmitters, temperature transmitters, flow meters, level sensors, and other industrial instruments providing analog output signals.
8. Does the module provide analog output channels?
No. The IC200UEX624 is an analog input expansion module and is designed for signal acquisition rather than analog output control.
9. What PLC family is compatible with this module?
The IC200UEX624 is designed for the GE VersaMax Micro PLC platform and related expansion configurations.
10. What applications commonly use this module?
Typical applications include machine monitoring, compact process control, environmental monitoring equipment, packaging machinery, and small automation systems requiring additional analog measurement channels.
