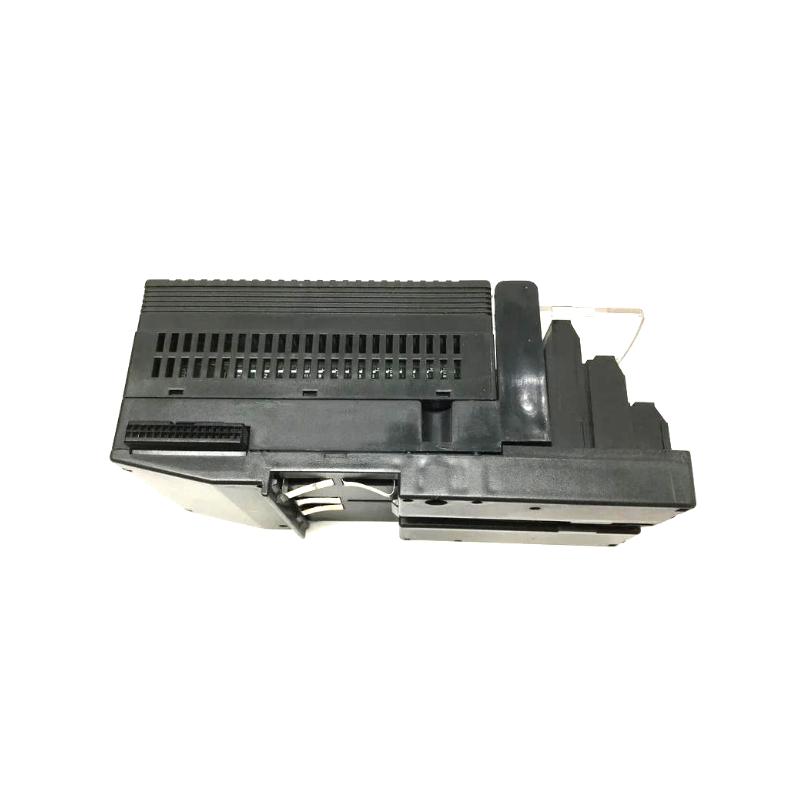

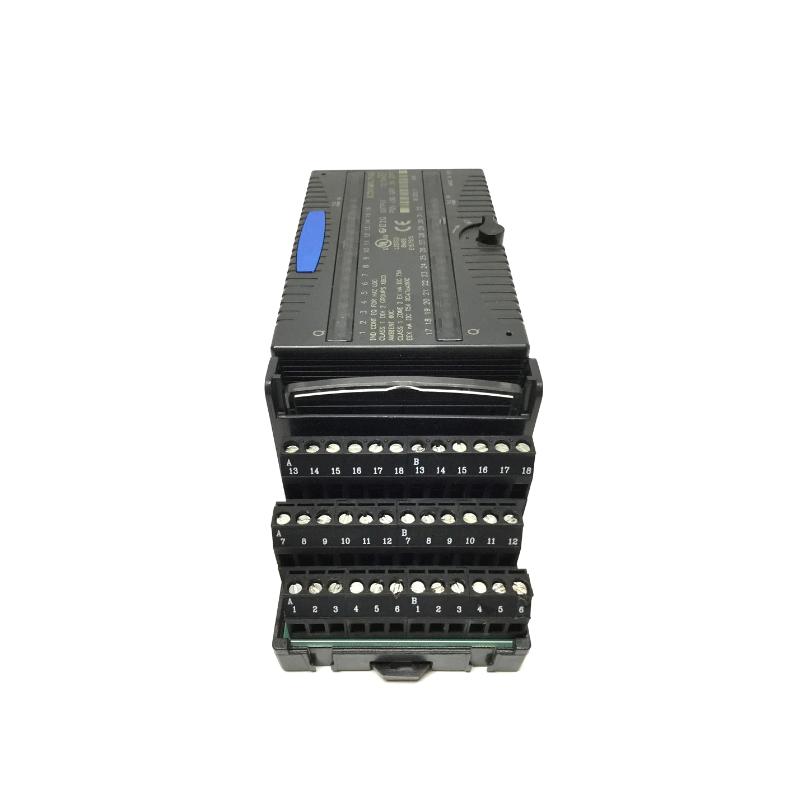

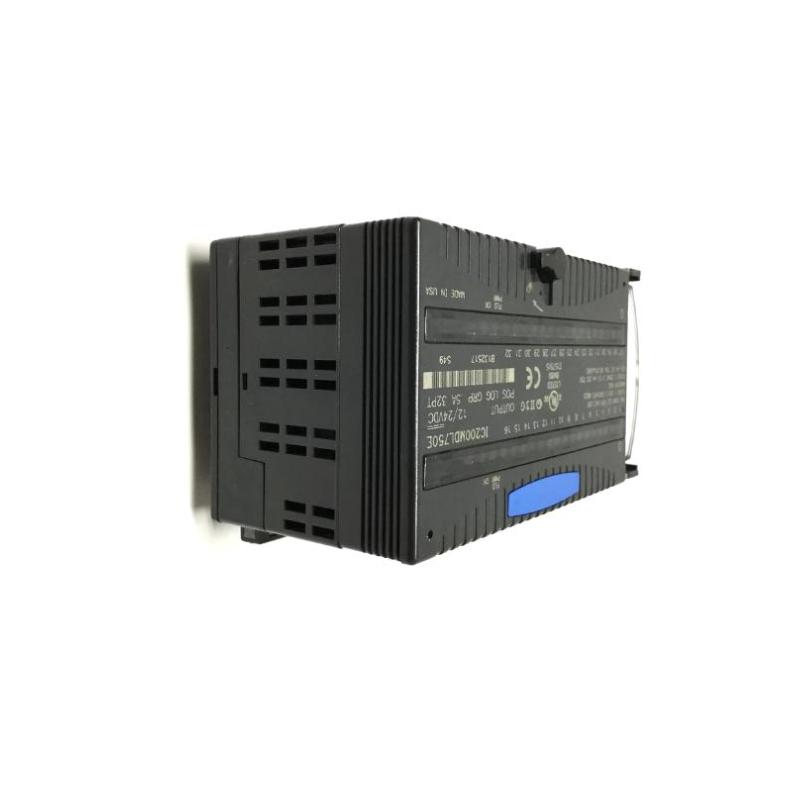

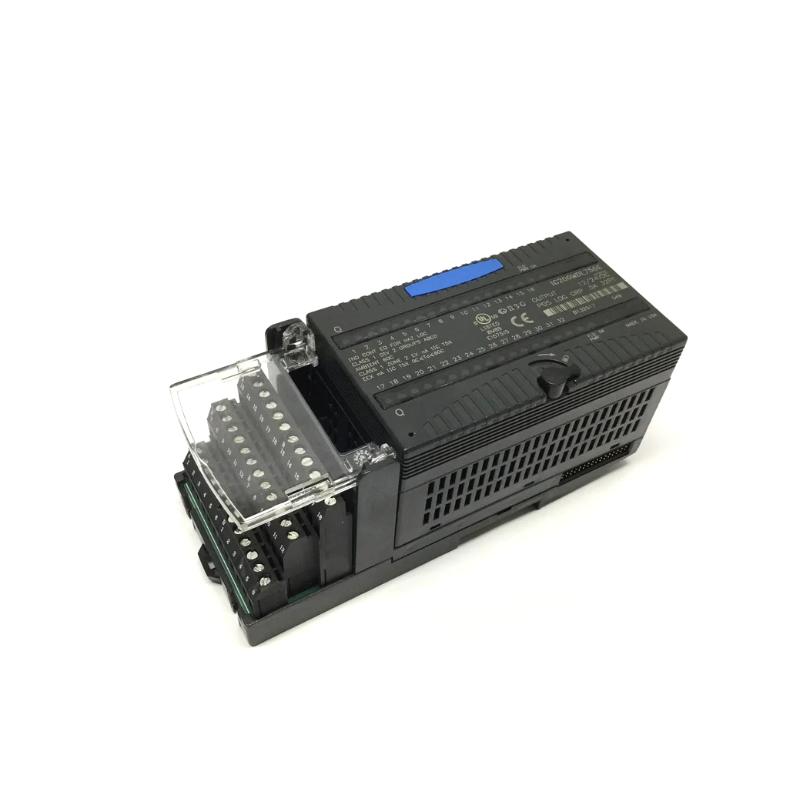

GE IC200MDL750G VersaMax 12/24VDC 32-Point Positive Logic Discrete Output Module
GE IC200MDL750G VersaMax 12/24VDC 32-Point Positive Logic Discrete Output Module
0.0
Points
Brand:GE Fanuc PLC Item No.:IC200MDL750G Product Origin:USA Product Dimensions:110 × 66.8 × 50 mm Product Weight:0.30 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The GE IC200MDL750G VersaMax 12/24VDC 32-Point Positive Logic Discrete Output Module is a high-density digital output solution designed for GE VersaMax automation systems. With 32 transistor-based sourcing outputs, this module enables efficient control of a wide range of industrial DC devices while maintaining the compact footprint of the VersaMax I/O architecture.
Built for demanding automation environments, the IC200MDL750G combines flexible voltage compatibility, fast switching response, and clear diagnostic visibility. Its dual-group output structure provides practical wiring flexibility for complex machine control applications.
The module is widely suited for equipment modernization, production line expansion, and long-term maintenance of existing GE VersaMax installations where dependable discrete output performance is required.
Distributed I/O architectures using VersaMax modules
Factory automation systems with large numbers of discrete devices
Legacy GE Fanuc VersaMax maintenance and replacement projects
Control panels requiring reliable 12/24VDC transistor output switching
Key Strengths at a Glance
32-point positive logic transistor output design
Supports 12/24VDC nominal field voltage operation
Provides two isolated groups of 16 output channels
0.5A current capability per output point
Fast switching response for industrial control applications
Individual LED indicators for channel status monitoring
Supports DIN rail mounted VersaMax carrier installation
Optical isolation between field wiring and PLC logic
Compact high-density I/O design for reduced cabinet space
Suitable for solenoids, relays, contactors, and DC indicators
Technical FAQs
1. What is the main function of the GE IC200MDL750G?
The IC200MDL750G is a VersaMax discrete output module designed to provide 32 positive logic DC output channels for controlling industrial field devices such as valves, relays, and indicators.
2. How many output points does the IC200MDL750G provide?
The module provides 32 discrete output points, arranged as two groups of 16 outputs.
3. What output voltage does this module support?
The IC200MDL750G supports 12/24VDC nominal output operation, with an operating voltage range of approximately 10.2 to 30VDC.
4. What type of output logic is used?
The module uses positive logic (sourcing) outputs, meaning the output channels supply current from the positive side of the DC power supply to connected loads.
5. What is the maximum current per output channel?
Each output point supports up to 0.5A maximum load current, making it suitable for common industrial DC control devices.
6. Does the module require an external field power supply?
Yes. The output loads require an external DC power supply, while the module itself receives logic power through the VersaMax backplane.
7. What devices can be controlled by the IC200MDL750G?
Typical applications include controlling solenoid valves, relay coils, contactors, pilot lamps, and other binary ON/OFF industrial devices.
8. What diagnostic indicators are available?
The module provides individual channel LEDs for output status, an OK LED for backplane power indication, and a field power LED for monitoring external supply presence.
9. What is the response time of the output channels?
The module provides fast switching performance with approximately 0.2 ms ON response time and 1.0 ms OFF response time.
10. Which platform is compatible with the IC200MDL750G?
The IC200MDL750G is designed for the GE VersaMax I/O platform and requires compatible VersaMax carriers for installation.
