Brand:GE Fanuc PLC Item No.: IC693ALG391G Product Origin:USA Product Dimensions:202 × 21 × 261 mm Product Weight:0.30 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

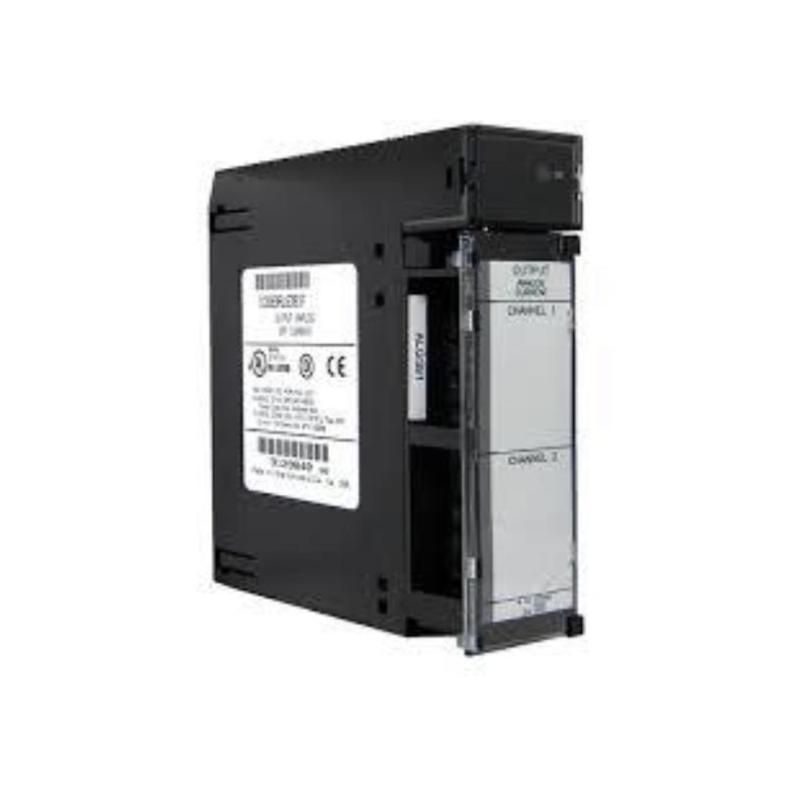

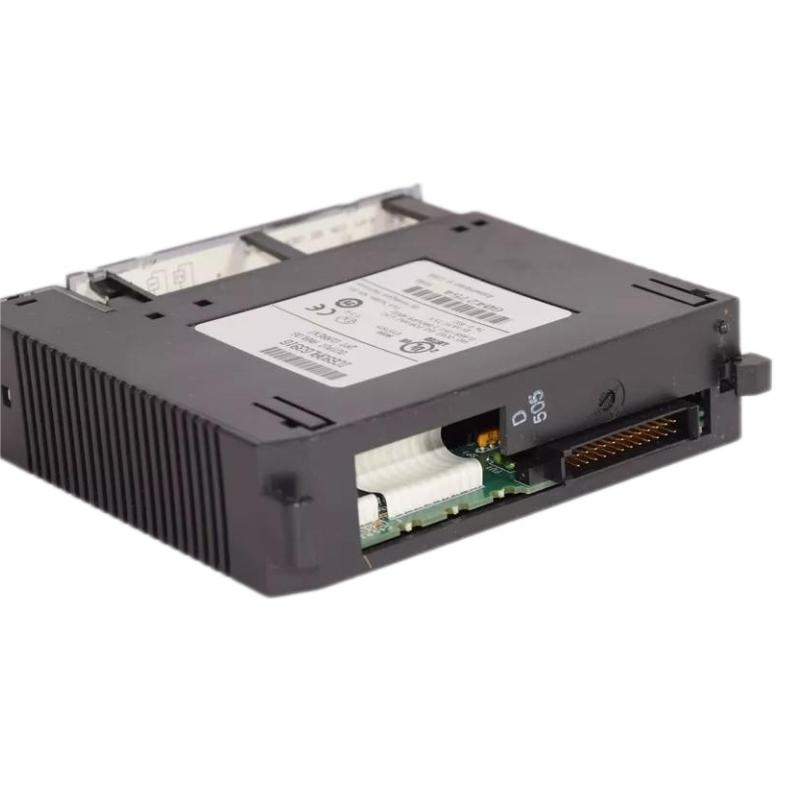

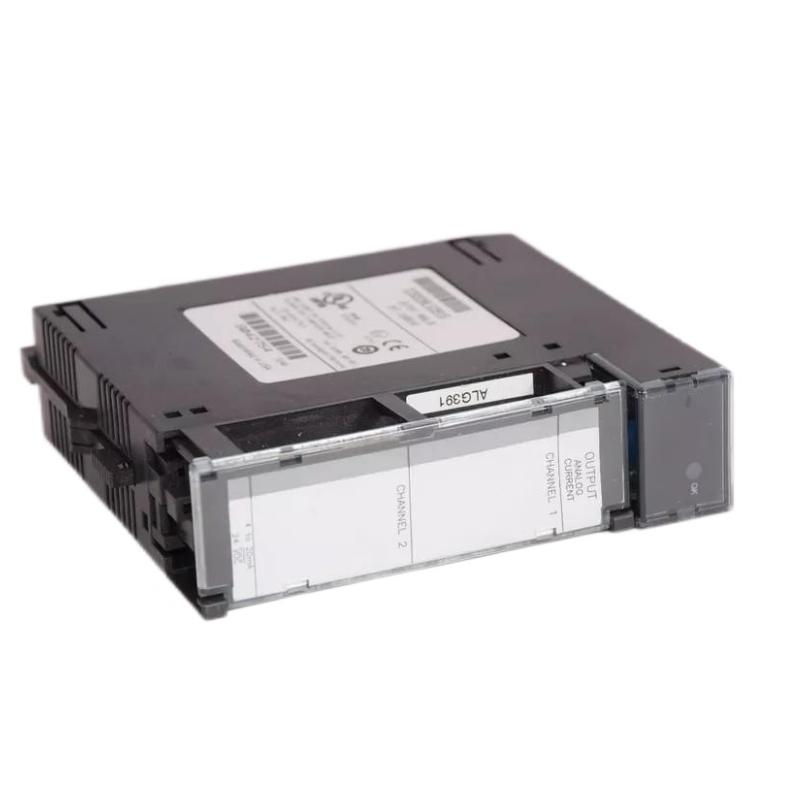

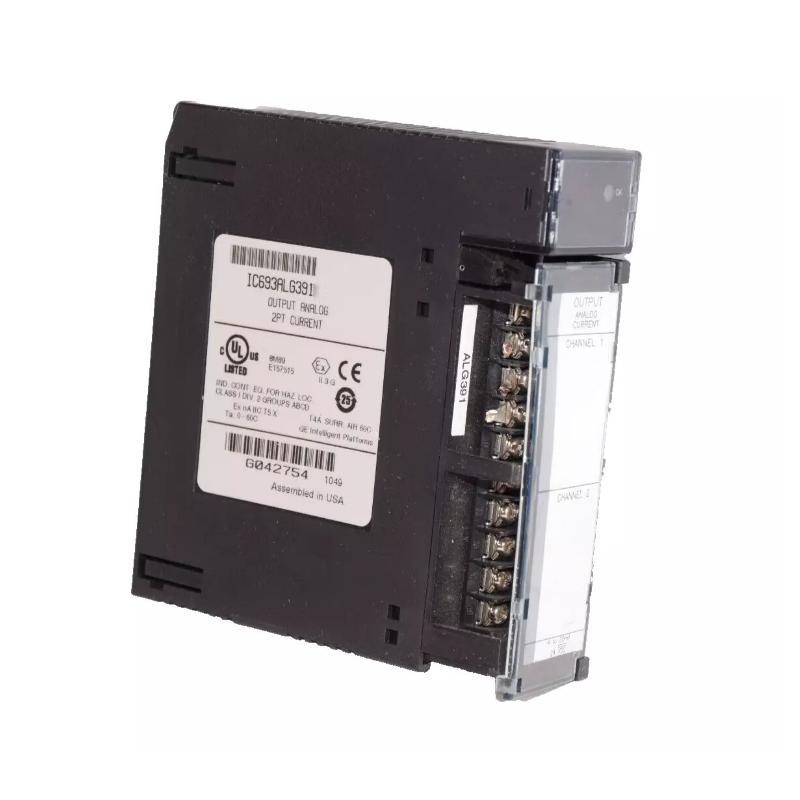

The GE IC693ALG391G Analog Output Module is a high-performance analog signal interface designed for GE Series 90-30 PLC platforms. It converts digital control values from the PLC into accurate analog current or voltage outputs, allowing industrial systems to regulate external devices with improved precision and flexibility.
Built for industrial automation applications, this module supports a wide range of control requirements including process regulation, actuator positioning, and equipment adjustment. Its dual-channel design and multiple output ranges make it a practical choice for engineers maintaining or expanding existing Series 90-30 automation systems.
With reliable signal conversion capability, stable operation, and proven compatibility, the IC693ALG391G continues to provide an effective solution for industrial applications requiring dependable analog control performance.
Technical Specifications
Parameter
Details
Model
IC693ALG391G
Product Type
Analog Output Module
Series
GE Series 90-30
Number of Channels
2 Analog Output Channels
Output Signal Range
0–20 mA, 4–20 mA, 0–5 VDC, 1–5 VDC
Resolution
12-bit Digital-to-Analog Conversion
Update Rate
Approx. 5 ms
Accuracy
±0.1% full scale at 25°C (typical)
Isolation
1500 VAC field-to-logic isolation
External Supply Voltage
20–30 VDC
Internal Power Consumption
30 mA at 5 VDC; 215 mA at 24 VDC
Output Load
Up to 850 Ω in current mode
Installation
Single PLC I/O Slot
Compatible Platform
GE Fanuc Series 90-30 PLC
Dimensions
Approx. 130 × 140 × 40 mm
Weight
Approx. 0.4 kg
Recommended Companion Models
Model
Product Name
IC693ALG390
Series 90-30 Analog Current Input Module
IC693ALG220
Series 90-30 Analog Voltage Input Module
IC693ALG223
Series 90-30 Analog Current Input Module
IC693CPU374
Series 90-30 Ethernet CPU Module
Frequently Selected Alternatives
Model
Product Name
IC693ALG392
Series 90-30 Analog Output Module
IC693ALG442
Series 90-30 Analog Current/Voltage Output Module
IC693ALG391
Series 90-30 Two-Channel Analog Output Module
IC694ALG392
Series 90-30 Enhanced Analog Output Module
Where It Excels in Industrial Use
• Designed for GE Series 90-30 PLC systems, the IC693ALG391G provides precise analog output control for industrial applications requiring accurate current and voltage signal conversion.
• Suitable for process automation, machine control, motion-related applications, and instrumentation systems where analog signals are required to regulate field devices such as valves, drives, and actuators.
• Ideal for legacy automation environments that require dependable analog output performance while maintaining compatibility with existing GE Fanuc Series 90-30 architectures.
• Commonly used in industrial control projects where stable signal transmission, flexible output ranges, and reliable PLC-based process adjustment are essential.
Key Strengths at a Glance
• Provides two independent analog output channels with support for 0–20 mA, 4–20 mA, 0–5 VDC, and 1–5 VDC signal ranges for flexible field device integration.
• Delivers 12-bit digital-to-analog conversion performance, enabling accurate signal control for industrial equipment and process systems.
• Features electrical isolation between field connections and PLC logic circuits, improving system protection and reducing interference risks in industrial environments.
• Supports fast channel update performance with factory calibration, helping engineers achieve consistent and repeatable analog control operation.
Technical FAQs
1. What type of module is the GE IC693ALG391G?
The GE IC693ALG391G is a two-channel analog output module designed for GE Series 90-30 PLC systems.
2. What output signals does the IC693ALG391G support?
The module supports selectable analog output ranges including 0–20 mA, 4–20 mA, 0–5 VDC, and 1–5 VDC signals.
3. How many analog output channels are available on this module?
The IC693ALG391G provides two analog output channels that can independently convert PLC digital values into analog control signals.
4. What is the resolution of the IC693ALG391G?
The module provides 12-bit digital-to-analog conversion resolution for accurate analog signal generation.
5. Can the IC693ALG391G control field devices directly?
Yes, the module can provide analog signals used for controlling compatible field devices such as actuators, valves, and variable speed equipment.
6. What PLC platform is compatible with the IC693ALG391G?
The IC693ALG391G is designed for installation in GE Fanuc Series 90-30 PLC systems with compatible baseplates and controllers.
7. Does the IC693ALG391G provide signal isolation?
Yes, the module provides isolation between field wiring and PLC logic circuits to improve signal reliability and system protection.
8. What type of applications typically use this analog output module?
The module is commonly used in process control, equipment regulation, industrial instrumentation, and automation systems requiring analog output signals.
9. How quickly does the IC693ALG391G update analog outputs?
The module provides an approximate 5 ms channel update rate, depending on PLC scan conditions and application configuration.
10. What should be checked before replacing an IC693ALG391G module?
Engineers should verify PLC compatibility, output signal requirements, wiring configuration, and application parameters before replacement.
