Brand:GE Fanuc PLC Item No.:IC693MDL645G Product Origin:USA Product Dimensions:110 × 66.8 × 50 mm Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

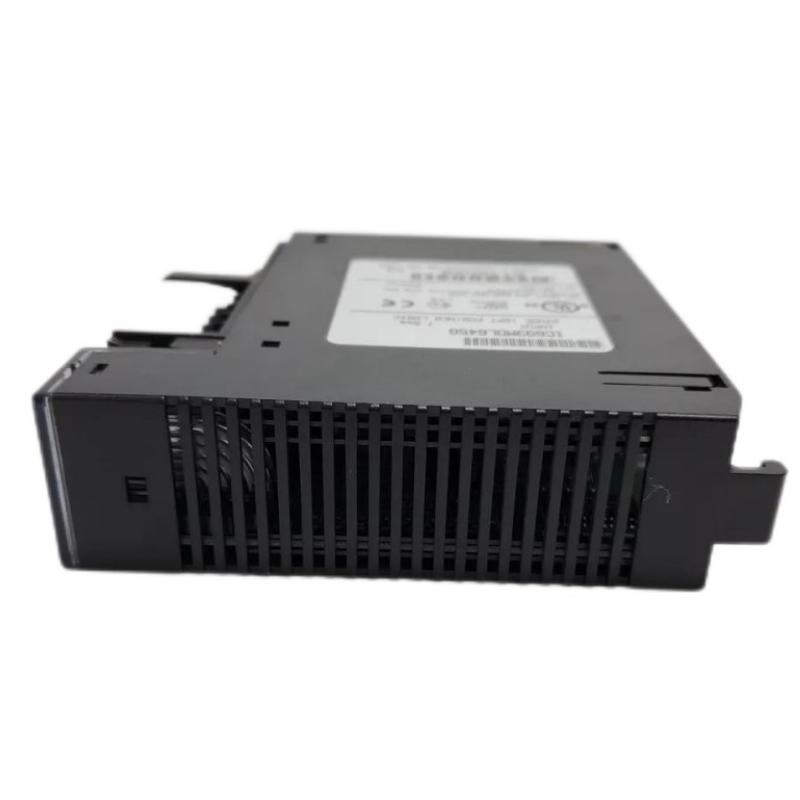

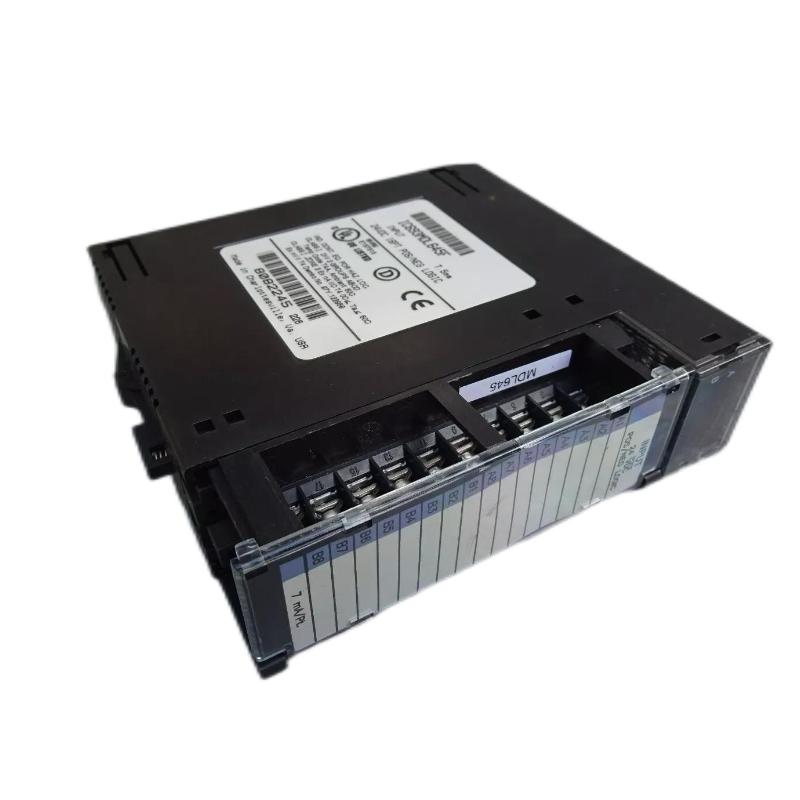

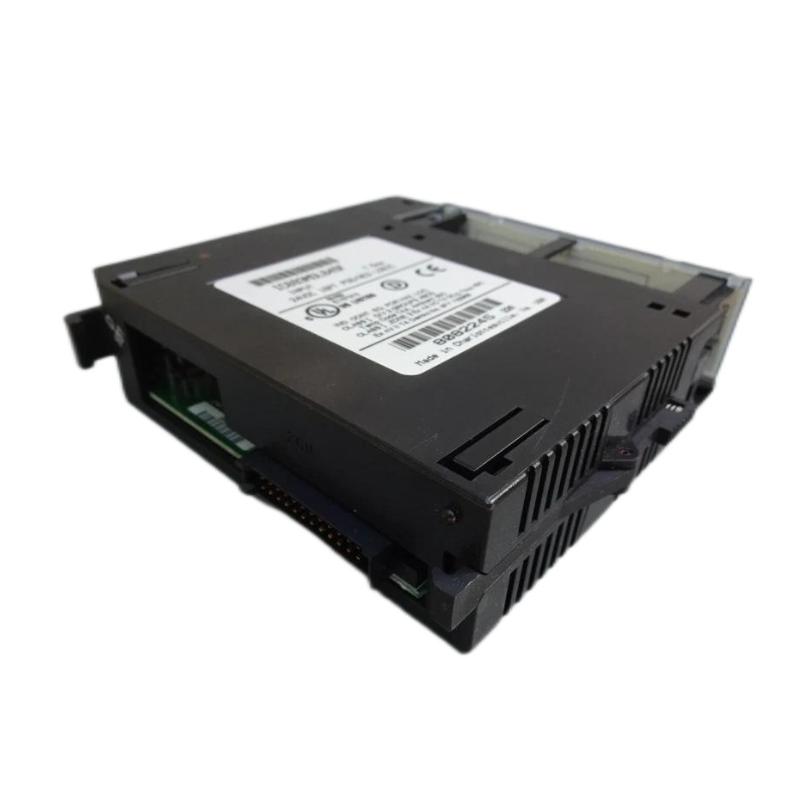

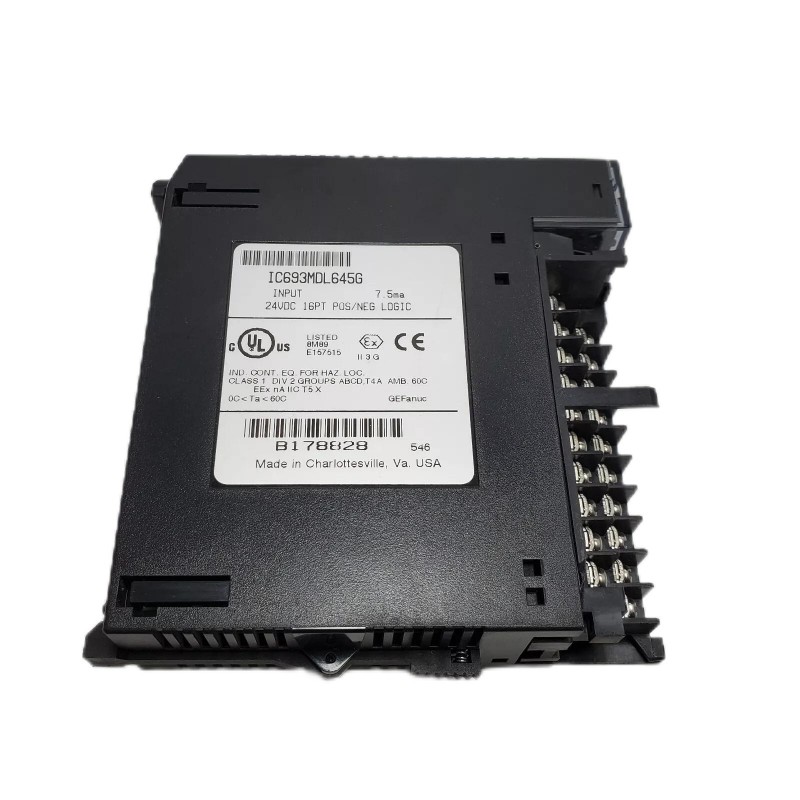

The GE IC693MDL645G Input Module is a digital input interface designed for GE Series 90-30 PLC automation systems. It provides 16 channels for collecting discrete signals from field devices and transferring input information to the PLC control program.
With support for both positive and negative logic operation, the module offers flexible integration for a wide range of industrial sensors and switching devices. Its reliable signal processing capability makes it suitable for manufacturing equipment, automated production lines, and industrial control applications.
The IC693MDL645G combines proven GE Series 90-30 compatibility with practical diagnostic features, helping engineers maintain efficient control systems while extending the service life of existing automation installations.
Technical Specifications
Parameter
Details
Model
IC693MDL645G
Product Type
Discrete Input Module
Series
GE Series 90-30
Input Type
24 VDC Positive/Negative Logic Input
Number of Inputs
16 Input Points
Input Voltage Range
0 to 30 VDC
Rated Voltage
24 VDC
Input Current
7 mA typical
Input Logic
Positive Logic / Negative Logic
ON-State Voltage
11.5 to 30 VDC
OFF-State Voltage
0 to 5 VDC
Response Time
7 ms ON / 7 ms OFF typical
Isolation
1500 VAC field side to logic side
Power Consumption
80 mA at 5 VDC; 125 mA at 24 VDC
Installation
Single PLC I/O Slot
Compatible Platform
GE Series 90-30 PLC
Dimensions
Approx. 130 × 35 × 130 mm
Weight
Approx. 0.26 kg
Recommended Companion Models
Model
Product Name
IC693PWR321
Series 90-30 Power Supply Module
IC693CPU374
Series 90-30 Ethernet CPU Module
IC693MDL632
Series 90-30 24 VDC Positive Logic Input Module
IC693MDL653
Series 90-30 24 VDC Input Module
Frequently Selected Alternatives
Model
Product Name
IC693MDL645
Series 90-30 24 VDC Positive/Negative Logic Input Module
IC693MDL640
Series 90-30 24 VDC Positive Logic Input Module
IC693MDL646
Series 90-30 24 VDC Negative Logic Input Module
IC694MDL645
PACSystems RX3i Compatible 24 VDC Input Module
Where It Excels in Industrial Use
• Designed for GE Series 90-30 PLC systems, the IC693MDL645G provides reliable digital input processing for industrial automation applications requiring accurate detection of field device signals.
• Suitable for machine automation, production equipment, material handling systems, and process control applications where dependable 24 VDC input monitoring is essential.
• Ideal for systems using pushbuttons, limit switches, proximity sensors, and other discrete field devices that require flexible positive or negative logic compatibility.
• Commonly applied in legacy GE Series 90-30 installations where stable signal acquisition, easy maintenance, and long-term PLC operation are important considerations.
Key Strengths at a Glance
• Provides 16 discrete input points with 24 VDC operation, allowing efficient connection of multiple field devices within a single PLC I/O module.
• Supports both positive logic and negative logic input characteristics, offering greater flexibility for different industrial wiring configurations.
• Delivers reliable electrical isolation between field circuits and PLC logic circuits, helping improve system stability in industrial environments.
• Includes individual LED status indicators for each input point, making commissioning, monitoring, and troubleshooting more convenient for engineers.
Technical FAQs
1. What type of module is the GE IC693MDL645G?
The GE IC693MDL645G is a 24 VDC positive/negative logic discrete input module designed for GE Series 90-30 PLC systems.
2. How many input channels does the IC693MDL645G provide?
The IC693MDL645G provides 16 digital input points arranged in one input group with a common power terminal.
3. What input voltage does the IC693MDL645G support?
The module supports a 24 VDC nominal input voltage with an operating input range from 0 to 30 VDC.
4. Does the IC693MDL645G support both positive and negative logic?
Yes, the module supports both positive logic and negative logic input characteristics, allowing connection to various field devices and wiring methods.
5. What devices can be connected to the IC693MDL645G?
The module can interface with devices such as pushbuttons, limit switches, electronic proximity switches, and other discrete signal sources.
6. What is the typical input current of the IC693MDL645G?
The module has a typical input current of approximately 7 mA at the rated input voltage.
7. What is the response time of the IC693MDL645G input channels?
The typical ON response time and OFF response time are approximately 7 ms each.
8. Is the IC693MDL645G compatible with all Series 90-30 racks?
The module can be installed in compatible GE Series 90-30 PLC systems using supported 5-slot or 10-slot baseplates.
9. Does the IC693MDL645G provide input status monitoring?
Yes, the module includes LED indicators that display the ON/OFF status of each input channel for easier system diagnostics.
10. What should be checked before replacing an IC693MDL645G module?
Engineers should confirm PLC rack compatibility, input voltage requirements, field wiring configuration, and application settings before replacement.
