Introduction

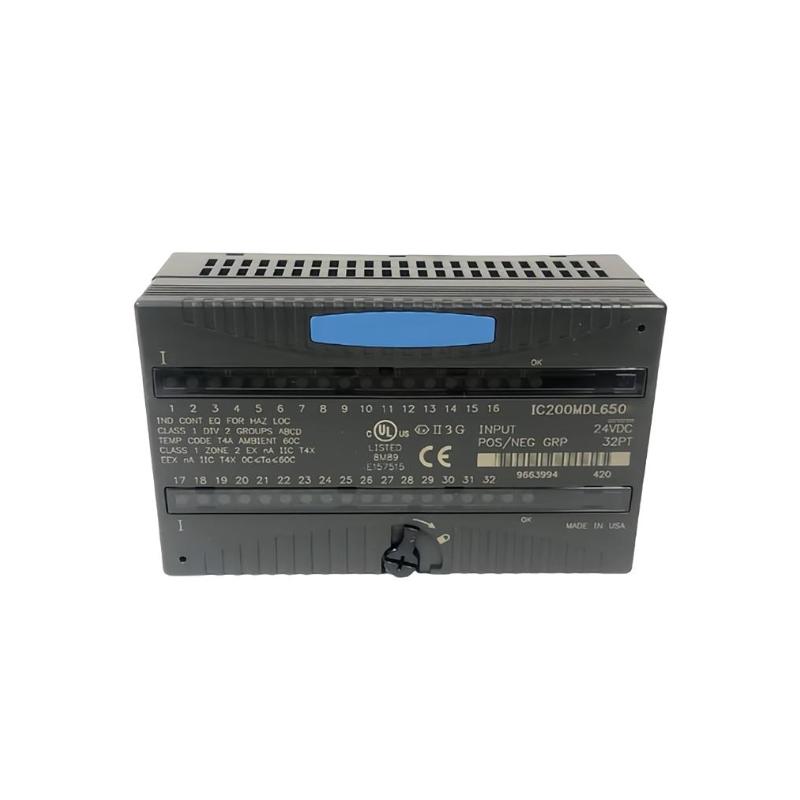

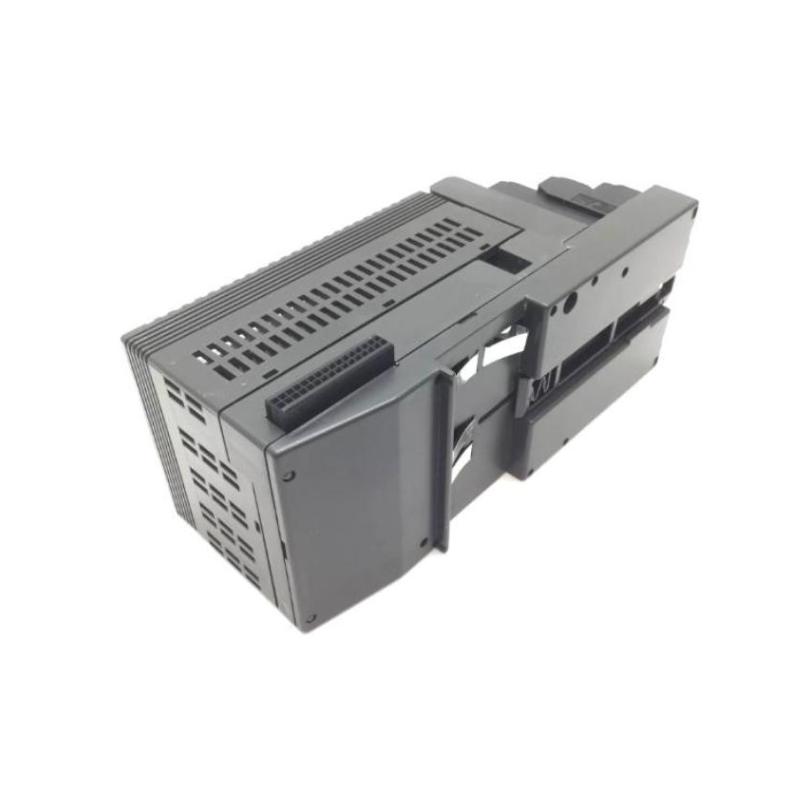

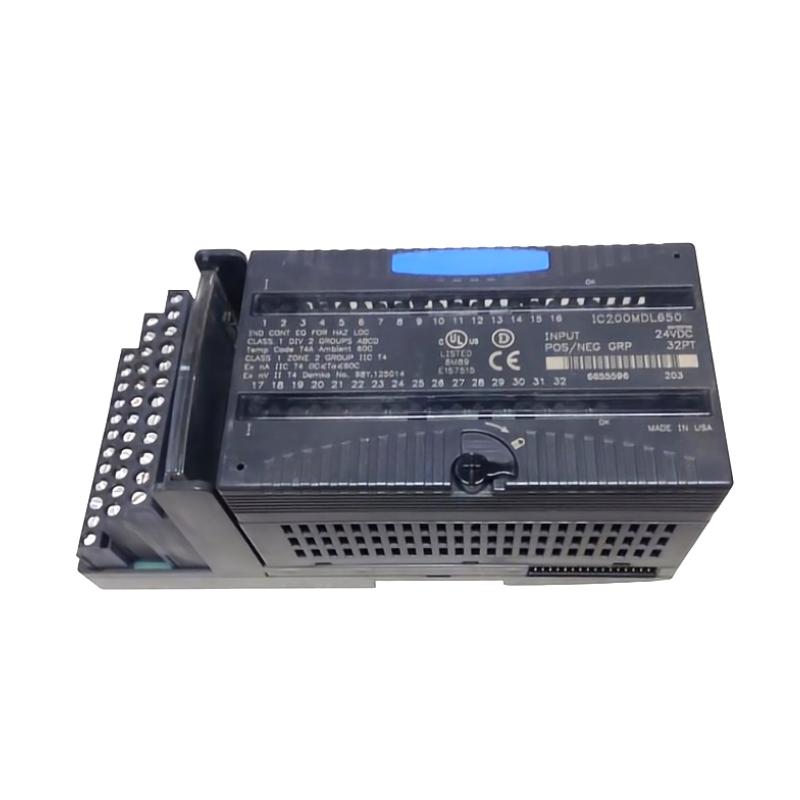

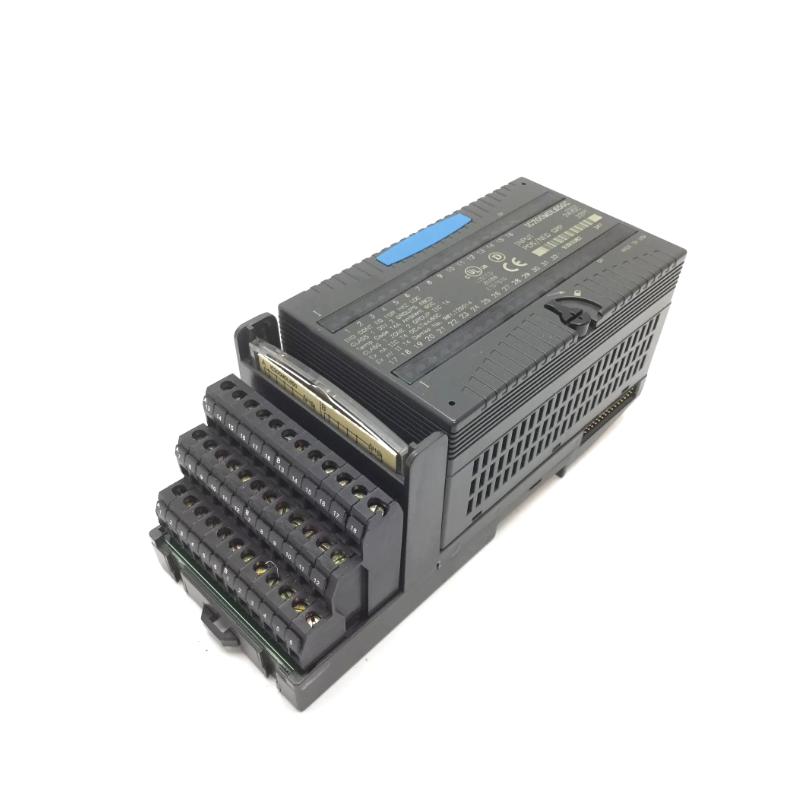

The GE IC200MDL650J Input Module is a VersaMax discrete input solution designed to provide reliable signal monitoring for industrial automation systems. With 32 digital input channels and 24 VDC operating capability, the module enables PLC systems to collect information from field devices and process real-time equipment status signals efficiently.

Built for flexible industrial integration, the IC200MDL650J supports positive and negative logic input configurations, allowing engineers to adapt the module to various sensor arrangements and control architectures. Its compact design and practical diagnostic features make it suitable for machine builders, system integrators, and maintenance teams working with VersaMax platforms.

Combining dependable signal acquisition, fast response performance, and proven GE automation compatibility, the IC200MDL650J provides an effective solution for expanding and maintaining industrial control systems.

Technical Specifications

Parameter	Details
Model	IC200MDL650J
Product Type	Discrete Input Module
Series	GE VersaMax
Input Type	24 VDC Positive/Negative Logic Input
Number of Inputs	32 Discrete Input Points
Input Groups	4 Groups of 8 Inputs
Input Voltage Range	0 to 30 VDC
Rated Input Voltage	24 VDC
Input Logic	Positive Logic / Negative Logic
Input Current	2.0 to 5.5 mA ON State
OFF State Current	0 to 0.5 mA
Input Response Time	0.5 ms maximum
Filter Configuration	0 ms, 1 ms, or 7 ms selectable
Isolation	250 VAC continuous, 1500 VAC for 1 minute
Backplane Current Consumption	50 mA maximum at 5 VDC
External Power Supply	Not Required
LED Indicators	Individual Input Status LEDs and OK LED
Installation Type	VersaMax Carrier Mounted Module
Dimensions	Approx. 110 × 66.8 × 50 mm
Weight	Approx. 0.25 kg

Recommended Companion Models

Model	Product Name
IC200PWR002	VersaMax Power Supply Module
IC200CHS022	VersaMax Compact I/O Carrier
IC200MDL750	VersaMax 24 VDC Discrete Output Module
IC200ALG240	VersaMax Analog Input Module

Frequently Selected Alternatives

Model	Product Name
IC200MDL650	VersaMax 24 VDC Positive/Negative Logic Input Module
IC200MDL632	VersaMax 24 VDC Discrete Input Module
IC200MDL640	VersaMax 16-Point Discrete Input Module
IC200MDL635	VersaMax 24 VDC Input Module

Where It Excels in Industrial Use

• Designed for GE VersaMax PLC and distributed I/O systems, the IC200MDL650J provides reliable 24 VDC discrete signal acquisition for industrial automation applications requiring accurate field input monitoring.

• Suitable for machine automation, production equipment, material handling systems, and process monitoring applications where stable digital input collection is essential for efficient control operation.

• Ideal for compact automation architectures that require flexible positive or negative logic input configuration and easy integration with existing VersaMax control platforms.

• Commonly applied in industrial environments where dependable sensor feedback, switch monitoring, and equipment status detection are required for continuous system operation.

Key Strengths at a Glance

• Provides 32 discrete 24 VDC input points arranged in four groups, enabling efficient connection of multiple field devices within a compact I/O solution.

• Supports positive and negative logic input configurations, offering greater flexibility when integrating different types of industrial sensors and switching devices.

• Delivers fast signal response with configurable input filtering options, helping improve performance in applications affected by electrical noise or switch bounce.

• Includes individual LED indicators for input status monitoring, simplifying commissioning, troubleshooting, and routine maintenance activities.

Technical FAQs

1. What type of module is the GE IC200MDL650J?

The GE IC200MDL650J is a VersaMax 24 VDC discrete input module designed for industrial digital signal acquisition applications.

2. How many input points does the IC200MDL650J provide?

The IC200MDL650J provides 32 discrete input points divided into four groups of eight inputs.

3. What input voltage range does the IC200MDL650J support?

The module supports a 0 to 30 VDC input range with 24 VDC as the nominal operating voltage.

4. Does the IC200MDL650J support positive and negative logic inputs?

Yes, the module supports positive and negative logic input configurations depending on the module revision and system configuration.

5. What types of field devices can be connected to the IC200MDL650J?

The module can interface with discrete devices such as proximity sensors, limit switches, pushbuttons, and other 24 VDC signal sources.

6. What is the input response time of the IC200MDL650J?

The module provides a typical input response time of approximately 0.5 ms, with configurable filtering options for application requirements.

7. Does the IC200MDL650J require an external power supply?

No, the module receives operating power through the VersaMax backplane connection.

8. How is input status monitored on the IC200MDL650J?

Each input point has an individual LED indicator that displays the ON/OFF status of the corresponding field signal.

9. What isolation protection does the IC200MDL650J provide?

The module provides optical isolation between user input circuits and logic circuits to improve system protection and signal reliability.

10. What should be checked before replacing an IC200MDL650J module?

Engineers should verify VersaMax system compatibility, input wiring configuration, logic type requirements, and application parameters before replacement.
