Brand:GE Fanuc PLC Item No.: IC693PWR321W Product Origin:USA Product Dimensions:202 × 21 × 261 mm Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

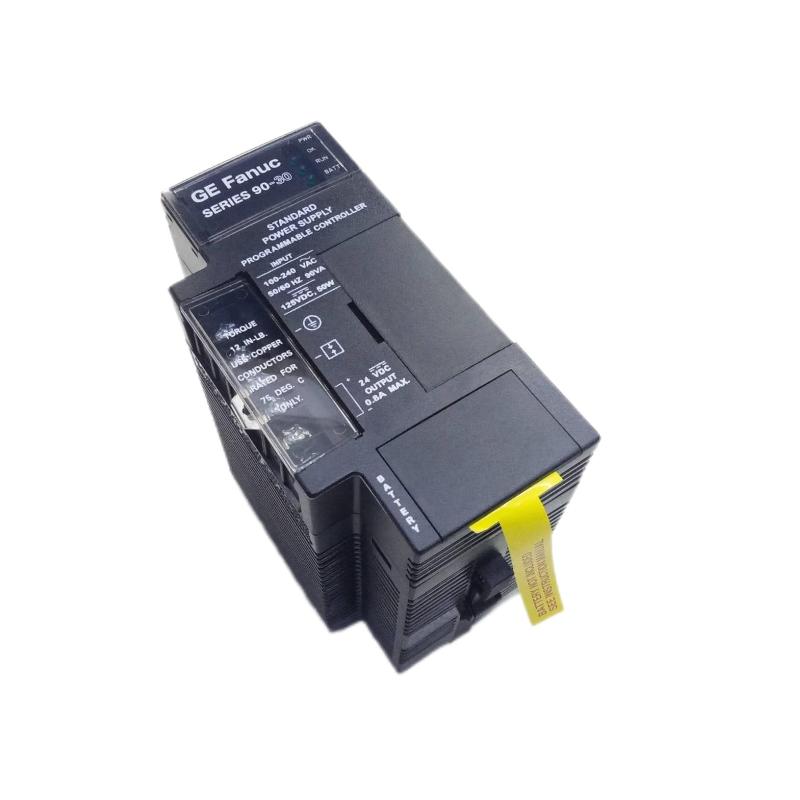

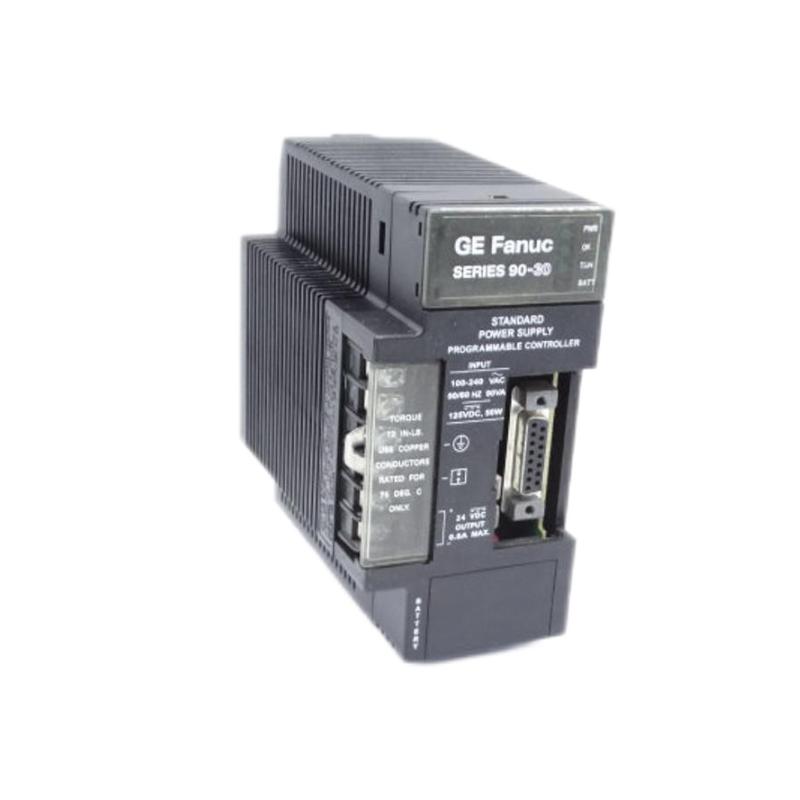

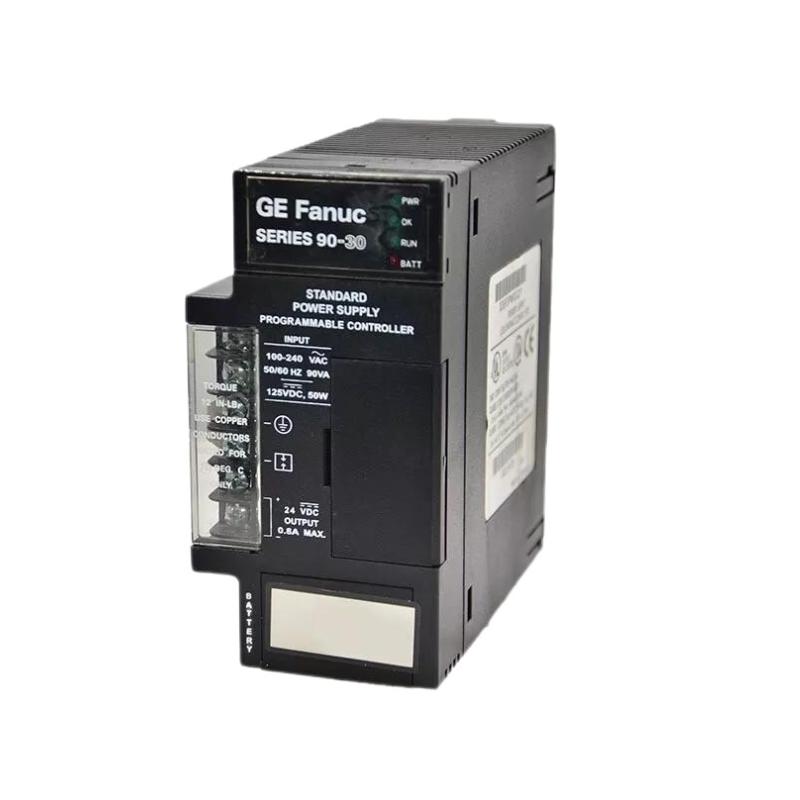

The GE IC693PWR321W Power Supply Module is a standard power solution designed for GE Series 90-30 PLC automation systems. It converts incoming AC or DC power into regulated DC outputs required by CPUs, I/O modules, communication modules, and other control components.
Built for industrial automation environments, the IC693PWR321W supports flexible input sources and provides multiple output channels, including +5 VDC, isolated +24 VDC, and relay power output. This architecture allows engineers to create reliable control systems while maintaining efficient power distribution throughout the PLC rack.
With proven Series 90-30 compatibility, stable electrical performance, and practical diagnostic capability, the IC693PWR321W remains a dependable choice for maintaining and expanding existing industrial automation installations.
Technical Specifications
Parameter
Details
Model
IC693PWR321W
Product Type
Standard Power Supply Module
Series
GE Series 90-30
Input Voltage
120/240 VAC or 125 VDC
AC Input Range
85–264 VAC
DC Input Range
100–300 VDC
Input Frequency
50/60 Hz
Maximum Input Power
90 VA (AC Input) / 50 W (DC Input)
Total Output Power
30 W Maximum
+5 VDC Output
15 W Maximum
Isolated +24 VDC Output
20 W Maximum
Relay +24 VDC Output
15 W Maximum
Inrush Current
4 A Peak, 250 ms Maximum
Installation Position
Leftmost Baseplate Slot
Compatible Platform
GE Series 90-30 PLC
Diagnostic Indicators
OK / Status / Battery LEDs
Communication Port
RS-485 Serial Port
Dimensions
Approx. 130 × 40 × 125 mm
Weight
Approx. 0.50 kg
Recommended Companion Models
Model
Product Name
IC693CPU374
Series 90-30 Ethernet CPU Module
IC693CHS391L
Series 90-30 10-Slot CPU Baseplate
IC693CMM321
Series 90-30 Ethernet Interface Communication Module
IC693MDL940
Series 90-30 Relay Output Module
Frequently Selected Alternatives
Model
Product Name
IC693PWR322
Series 90-30 High Capacity Power Supply Module
IC693PWR321R
Series 90-30 Standard Power Supply Module
IC693PWR330
Series 90-30 Enhanced Power Supply Module
IC694PWR321
PACSystems RX3i Compatible AC/DC Power Supply Module
Where It Excels in Industrial Use
• Designed for GE Series 90-30 PLC systems, the IC693PWR321W provides stable AC/DC power conversion for CPU racks, I/O modules, and automation components requiring dependable industrial power management.
• Suitable for factory automation, machine control, process monitoring, and production equipment where continuous PLC operation depends on reliable power distribution.
• Ideal for legacy GE Series 90-30 installations requiring a standard power supply solution with flexible AC and DC input capability and multiple DC output options.
• Commonly applied in industrial control panels where compact rack-mounted power conversion, easy maintenance, and long-term system stability are important.
Key Strengths at a Glance
• Supports 100–240 VAC or 125 VDC input operation, allowing flexible integration into different industrial electrical environments.
• Provides three output power sources including +5 VDC, isolated +24 VDC, and +24 VDC relay power for Series 90-30 system components.
• Delivers up to 30 watts of total output capacity, supporting a wide range of CPU, communication, and I/O module configurations.
• Includes diagnostic monitoring and protective functions to improve system reliability and simplify troubleshooting during industrial operation.
Technical FAQs
1. What type of module is the GE IC693PWR321W?
The GE IC693PWR321W is a standard AC/DC power supply module designed for GE Series 90-30 PLC systems.
2. What input voltage does the IC693PWR321W support?
The module supports 120/240 VAC or 125 VDC nominal input voltage, with operating ranges suitable for industrial AC and DC power sources.
3. What output voltages are provided by the IC693PWR321W?
The module provides +5 VDC output, isolated +24 VDC output, and +24 VDC relay power output for compatible Series 90-30 applications.
4. What is the maximum output power of the IC693PWR321W?
The module provides a maximum combined output capacity of 30 watts across all available output circuits.
5. Where is the IC693PWR321W installed in a Series 90-30 rack?
The module is installed in the leftmost slot of the Series 90-30 baseplate to provide system power distribution.
6. Can the IC693PWR321W power relay output modules?
Yes, the dedicated +24 VDC relay output supply is designed to provide power for circuits on Series 90-30 relay output modules.
7. Does the IC693PWR321W provide isolated 24 VDC power?
Yes, the module includes an isolated +24 VDC output that can support compatible modules requiring external 24 VDC power.
8. What protection features are included in the IC693PWR321W?
The module includes protective functions such as overcurrent protection and short-circuit protection to improve system safety.
9. Is the IC693PWR321W compatible with all Series 90-30 CPUs?
The module is compatible with GE Series 90-30 CPU-based systems when installed within supported rack configurations.
10. What should be checked before replacing an IC693PWR321W module?
Engineers should verify input voltage requirements, rack compatibility, output load capacity, and existing Series 90-30 system configuration before replacement.
