Brand:GE Fanuc PLC Item No.:IC693MDL760A Product Origin:USA Product Dimensions:202 × 21 × 261 mm Product Weight:0.30 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

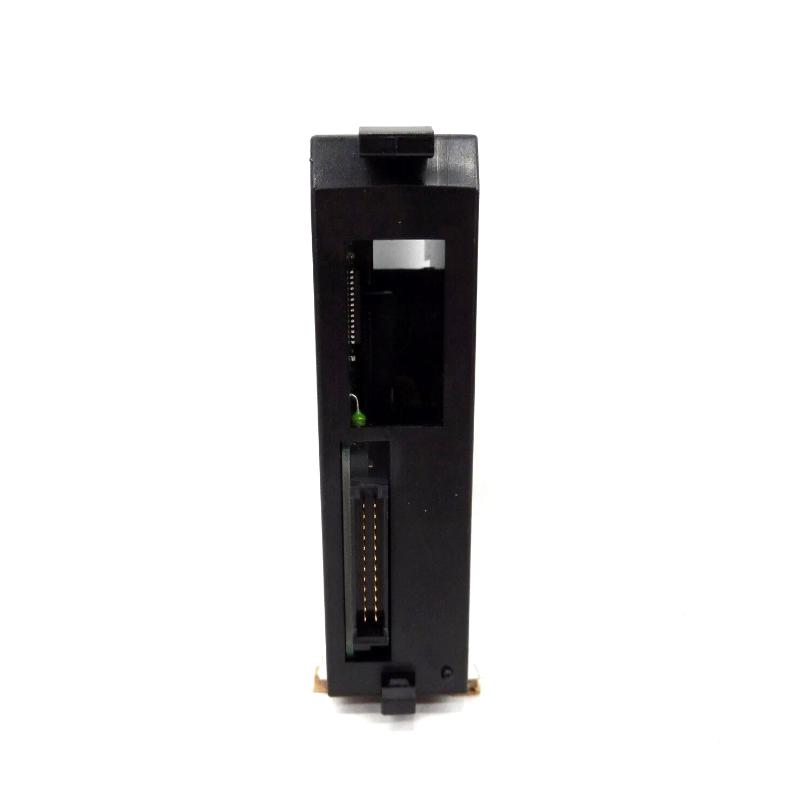

The GE IC693MDL760A Output Module is a specialized pneumatic control solution designed for GE Series 90-30 PLC automation systems. Unlike conventional digital output modules, it integrates internal solenoid valve control functions, enabling direct management of pneumatic devices used in industrial machinery and automated production equipment.
With 11 pneumatic outputs and 5 additional 24 VDC sourcing outputs, the IC693MDL760A provides engineers with a flexible method for controlling actuators, valves, and other field devices from a single PLC rack position. This integrated design helps simplify wiring, reduce component count, and improve overall machine control efficiency.
Built for demanding industrial applications, the IC693MDL760A combines reliable pneumatic switching performance with proven Series 90-30 compatibility, making it a practical choice for automation upgrades, machine maintenance, and specialized control systems.
Technical Specifications
Parameter
Details
Model
IC693MDL760A
Product Type
Solenoid Valve Output Module
Series
GE Series 90-30
Pneumatic Outputs
11 Points
DC Outputs
5 Points
Output Type
Pneumatic Solenoid + 24 VDC Sourcing Output
Rated Voltage
24 VDC
DC Output Voltage Range
18–30 VDC
DC Output Current
0.5 A per point
Maximum Total DC Output Current
2.0 A
Pneumatic Supply Pressure
100 PSI Maximum
Solenoid Power Supply
External 24 VDC
Solenoid Inrush Current
Approx. 33 mA per Valve
Solenoid Holding Current
Approx. 13 mA per Valve
Output Response Time
Approx. 12 ms ON/OFF
Isolation
1500 VAC Field Side to Logic Side
Backplane Current Consumption
75 mA from 5 VDC Bus
LED Indicators
Output Status / Power Status
Installation Type
Series 90-30 Baseplate Mounted
Dimensions
Approx. 130 × 40 × 125 mm
Weight
Approx. 0.17 kg
Recommended Companion Models
Model
Product Name
IC693PWR321
Series 90-30 Power Supply Module
IC693CPU374
Series 90-30 Ethernet CPU Module
IC693CHS391L
Series 90-30 10-Slot CPU Baseplate
IC693MDL645
Series 90-30 24 VDC Input Module
Frequently Selected Alternatives
Model
Product Name
IC693MDL760
Series 90-30 Solenoid Valve Output Module
IC693MDL753
Series 90-30 12/24 VDC Output Module
IC693MDL754
Series 90-30 32-Point DC Output Module
IC693MDL940
Series 90-30 16-Point Relay Output Module
Where It Excels in Industrial Use
• Designed for GE Series 90-30 PLC systems, the IC693MDL760A provides integrated pneumatic solenoid valve control and 24 VDC output capability for industrial automation applications requiring direct actuator management.
• Suitable for pneumatic automation systems, assembly machines, packaging equipment, and manufacturing processes where compact control of air-operated devices is required.
• Ideal for applications using solenoid valves, pneumatic cylinders, and air control components, reducing the need for additional external valve manifolds and simplifying system integration.
• Commonly applied in GE Series 90-30 control architectures where reliable pneumatic sequencing, fast actuator response, and efficient machine automation are essential.
Key Strengths at a Glance
• Integrates 11 pneumatic outputs and 5 positive logic 24 VDC sourcing outputs in a single PLC module, providing flexible actuator control capability.
• Includes internal three-way solenoid-operated valves for pneumatic outputs, allowing direct connection between PLC control logic and pneumatic field devices.
• Supports external 24 VDC solenoid power with individual output monitoring indicators, improving system diagnostics and maintenance efficiency.
• Provides compact pneumatic control integration with Series 90-30 PLC platforms, helping reduce cabinet space requirements and simplify automation design.
Technical FAQs
1. What type of module is the GE IC693MDL760A?
The GE IC693MDL760A is a solenoid valve output module designed for GE Series 90-30 PLC systems, combining pneumatic outputs with 24 VDC electrical outputs.
2. How many output points does the IC693MDL760A provide?
The module provides 11 pneumatic outputs and 5 24 VDC sourcing outputs for controlling pneumatic and electrical field devices.
3. What type of pneumatic devices can be controlled by this module?
The module can control pneumatic actuators, solenoid valves, and other air-operated devices used in industrial automation equipment.
4. What is the maximum pressure supported by the pneumatic outputs?
The pneumatic outputs support a user-supplied air pressure source up to 100 PSI maximum.
5. Does the IC693MDL760A require an external power supply?
Yes, an external 24 VDC power source is required to provide solenoid power for the pneumatic output functions.
6. What is the maximum current capacity of the 24 VDC outputs?
Each 24 VDC output supports up to 0.5 A, with a combined maximum current of 2.0 A for all five outputs.
7. Are the pneumatic outputs individually isolated?
The outputs are isolated from the PLC backplane, but the five 24 VDC outputs are not individually isolated from each other.
8. What communication system is required for the IC693MDL760A?
The module operates as a standard I/O module within GE Series 90-30 PLC backplane architectures.
9. What diagnostic features are available on the IC693MDL760A?
The module provides LED indicators for output status monitoring and solenoid power indication to assist troubleshooting.
10. What should be checked before replacing an IC693MDL760A module?
Engineers should verify Series 90-30 compatibility, pneumatic pressure requirements, external 24 VDC wiring, and output configuration before replacement.
