Brand:GE Fanuc PLC Item No.:IC693CHS391M Product Origin:USA Product Dimensions:202 × 21 × 261 mm Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

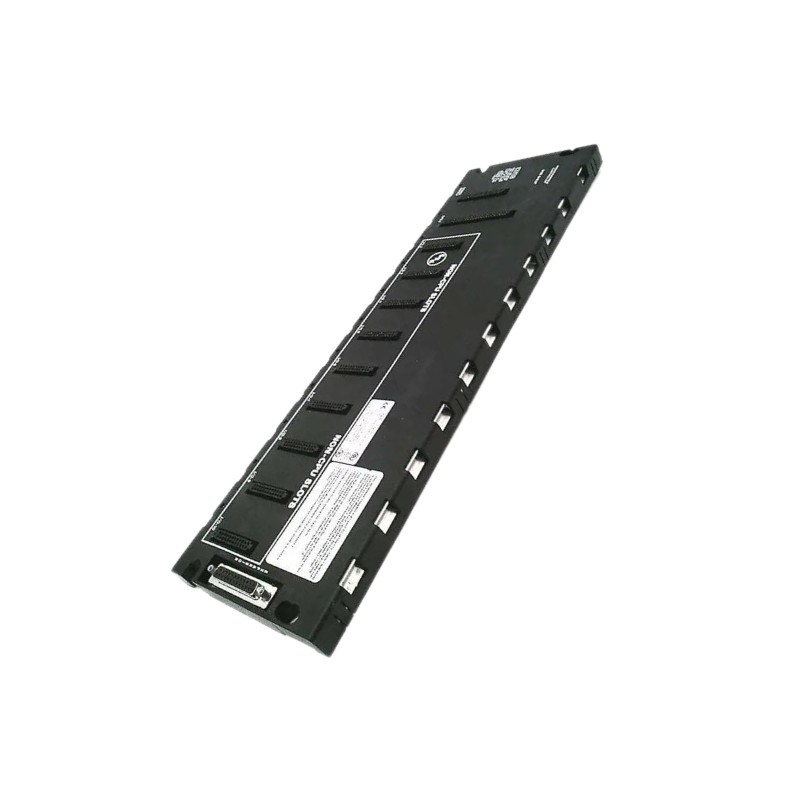

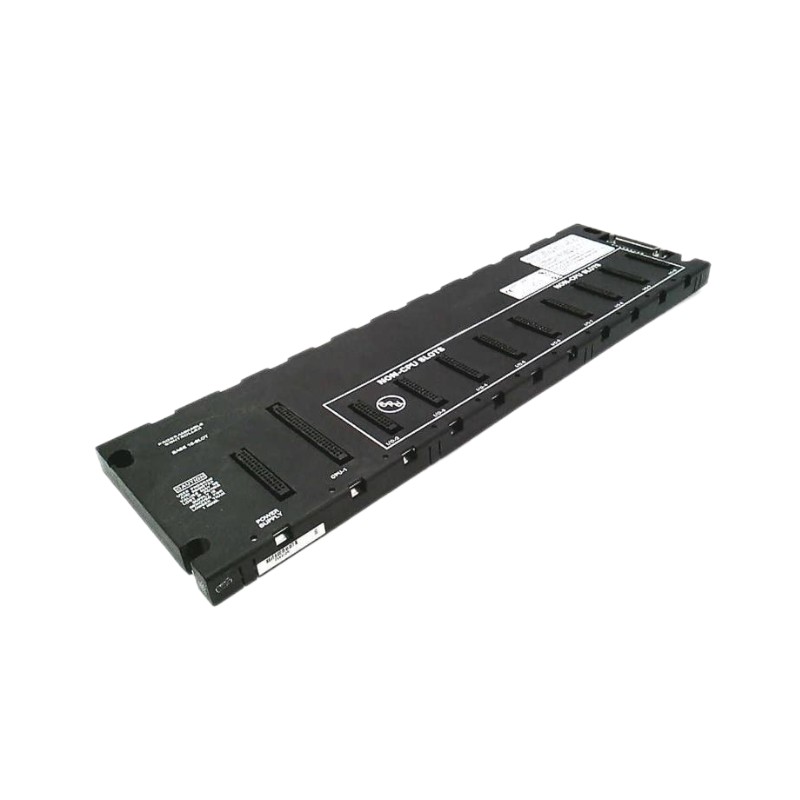

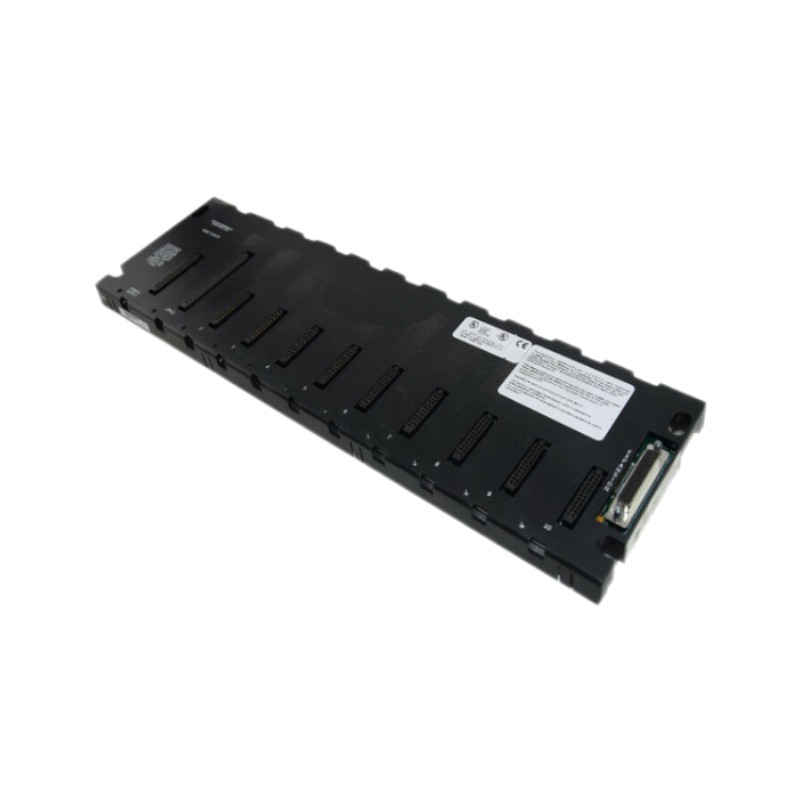

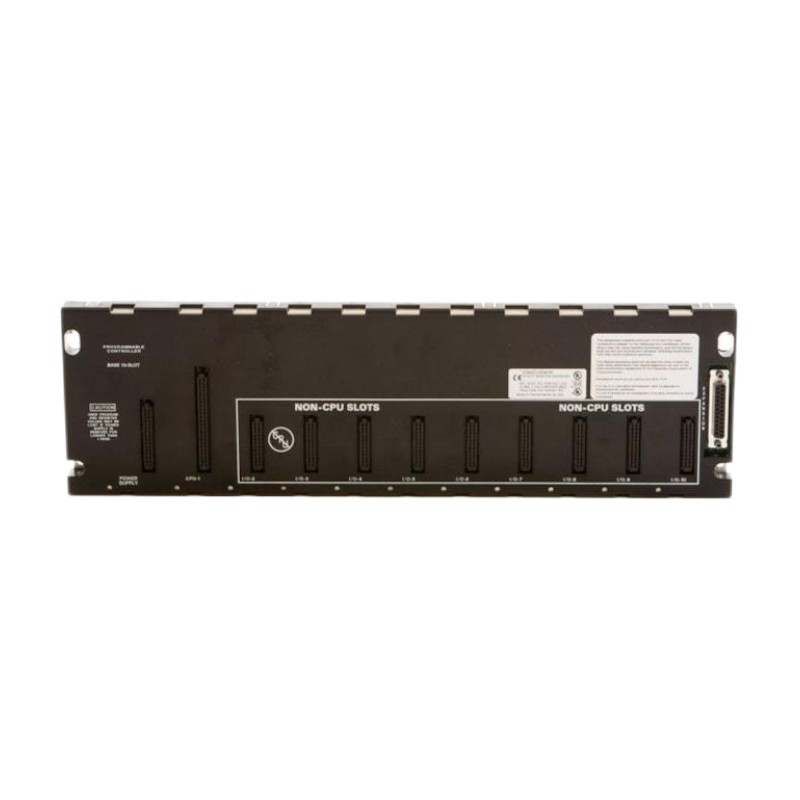

The GE IC693CHS391M Baseplate Module is a 10-slot modular CPU baseplate designed for GE Series 90-30 PLC automation systems. It provides the mechanical structure and electrical backplane required for installing CPUs, power supplies, I/O modules, and communication components within a complete industrial control system.
Built for scalable automation architectures, the IC693CHS391M allows engineers to create organized PLC configurations with room for additional I/O and specialty modules. Its modular rack design supports efficient maintenance and simplifies future system expansion.
With proven Series 90-30 compatibility and dependable backplane performance, the IC693CHS391M remains a practical solution for industrial automation upgrades, replacement projects, and long-term PLC system support.
Technical Specifications
Parameter
Details
Model
IC693CHS391M
Product Type
Modular CPU Baseplate
Series
GE Series 90-30
Baseplate Type
CPU Main Baseplate
Number of Slots
10 Slots
CPU Slots
1 Dedicated CPU Slot
I/O / Option Slots
9 Slots
Power Supply Position
Dedicated Left-Side Slot
Backplane Voltage
5 VDC
Backplane Current Consumption
420 mA
Expansion Connector
25-Pin Female Connector
Expansion Support
Compatible Expansion / Remote Baseplates
Mounting Type
Panel Mount
Compatible Platform
GE Series 90-30 PLC
Dimensions
Approx. 450 × 130 × 20 mm
Weight
Approx. 0.94 kg
Recommended Companion Models
Model
Product Name
IC693CPU374
Series 90-30 Ethernet CPU Module
IC693PWR321W
Series 90-30 AC/DC Power Supply Module
IC693CMM321
Series 90-30 Ethernet Communication Module
IC693MDL940
Series 90-30 Relay Output Module
Frequently Selected Alternatives
Model
Product Name
IC693CHS391L
Series 90-30 10-Slot Modular CPU Baseplate
IC693CHS397M
Series 90-30 5-Slot Modular CPU Baseplate
IC693CHS392
Series 90-30 10-Slot Expansion Baseplate
IC693CHS398
Series 90-30 5-Slot Expansion Baseplate
Where It Excels in Industrial Use
• Designed for GE Series 90-30 PLC systems, the IC693CHS391M provides a reliable modular CPU baseplate platform for building flexible and expandable industrial automation control architectures.
• Suitable for factory automation, machine control, process applications, and production systems requiring a stable rack structure for CPU, power supply, communication, and I/O modules.
• Ideal for medium-scale PLC configurations where multiple I/O and specialty modules must be integrated into a single control rack while maintaining efficient system organization.
• Commonly applied in GE Series 90-30 maintenance projects, system expansions, and automation upgrades where dependable backplane communication and long-term hardware compatibility are required.
Key Strengths at a Glance
• Provides 10 module slots with a dedicated CPU position, allowing engineers to build comprehensive Series 90-30 PLC systems with multiple control and I/O modules.
• Features an integrated backplane for module communication and power distribution, supporting stable operation of installed PLC components.
• Supports expansion rack connectivity through a 25-pin female expansion connector, enabling flexible system layouts for larger automation projects.
• Offers a durable modular rack design that simplifies installation, replacement, and future system upgrades in demanding industrial environments.
Technical FAQs
1. What type of module is the GE IC693CHS391M?
The GE IC693CHS391M is a 10-slot modular CPU baseplate designed for GE Series 90-30 PLC systems.
2. How many slots are available on the IC693CHS391M?
The IC693CHS391M provides 10 slots for installing a CPU module, I/O modules, and compatible option modules.
3. Does the IC693CHS391M include a power supply?
No. The power supply module is installed separately in the dedicated power supply position on the baseplate.
4. What CPU modules are compatible with the IC693CHS391M?
The IC693CHS391M supports compatible GE Series 90-30 CPU modules installed in the dedicated CPU slot.
5. Can the IC693CHS391M be expanded with additional racks?
Yes. The baseplate supports connection to compatible expansion or remote baseplates depending on the installed CPU capability.
6. What type of modules can be installed on the IC693CHS391M?
The baseplate supports Series 90-30 I/O modules, communication modules, specialty modules, and CPU modules.
7. What is the function of the backplane in the IC693CHS391M?
The backplane provides electrical communication and power distribution between modules installed on the rack.
8. What connector is used for rack expansion?
The IC693CHS391M uses a 25-pin female connector for expansion rack communication.
9. Is the IC693CHS391M suitable for replacing older Series 90-30 racks?
Yes. It is commonly used in existing Series 90-30 systems requiring compatible rack replacement or expansion.
10. What should be checked before installing an IC693CHS391M?
Engineers should verify CPU compatibility, module arrangement, power supply selection, rack configuration, and expansion requirements before installation.
