Brand:GE Fanuc PLC Item No.: IC693ALG223D Product Origin:USA Product Dimensions:202 × 21 × 261 mm Product Weight:0.30 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

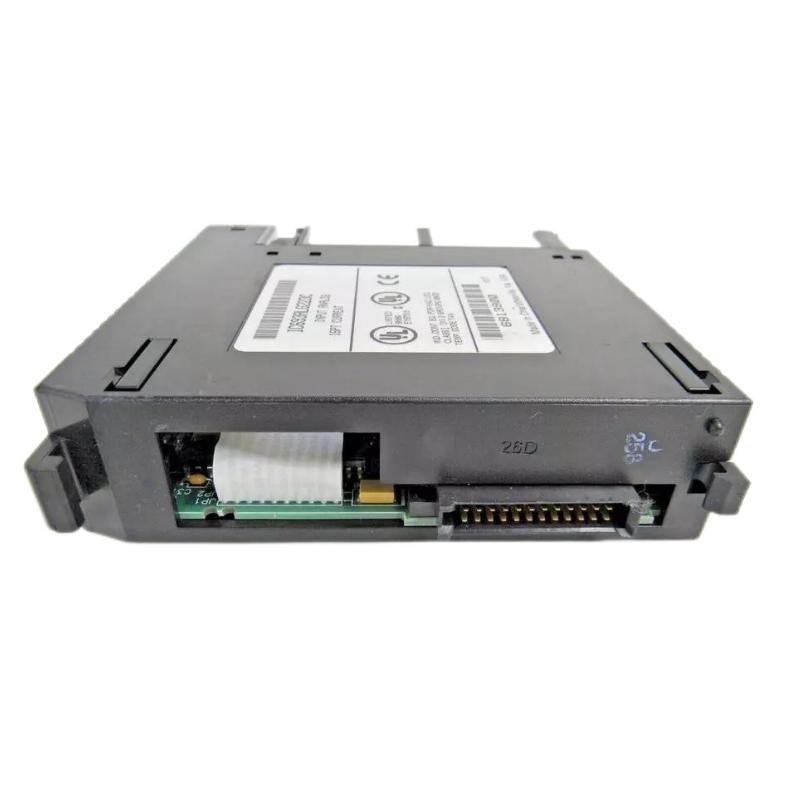

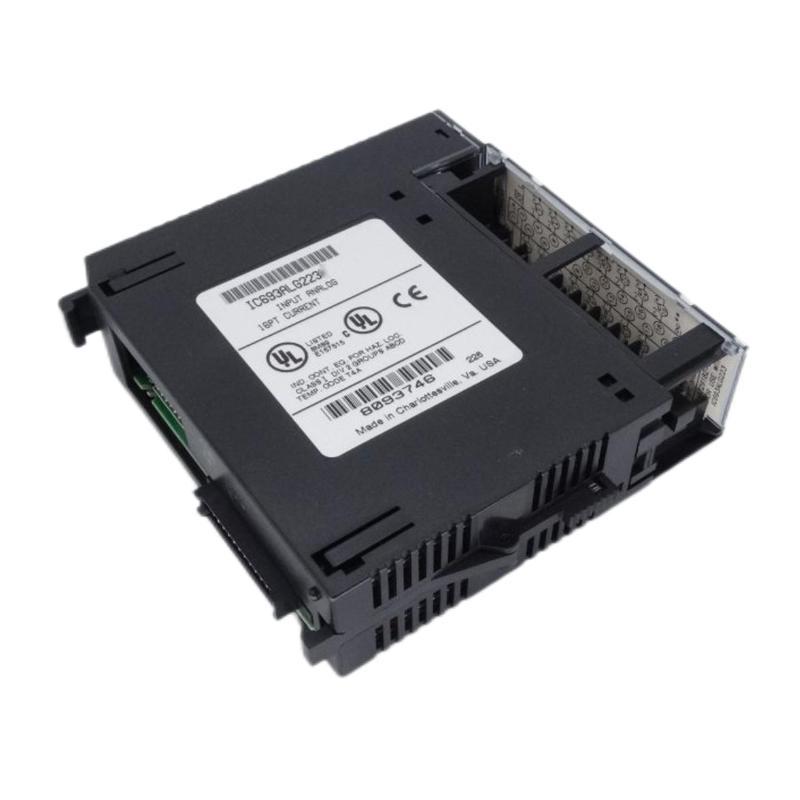

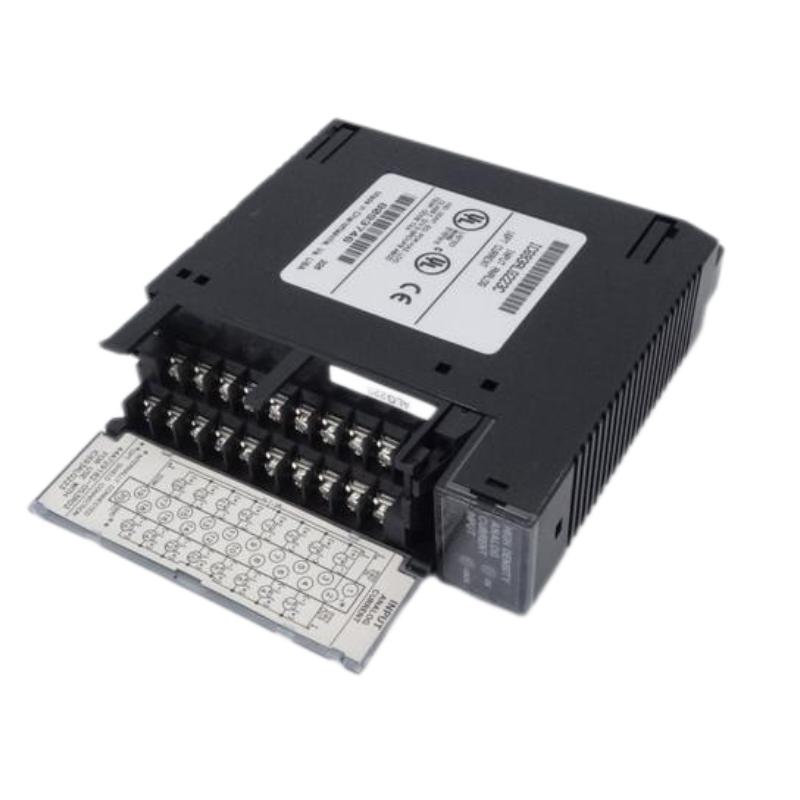

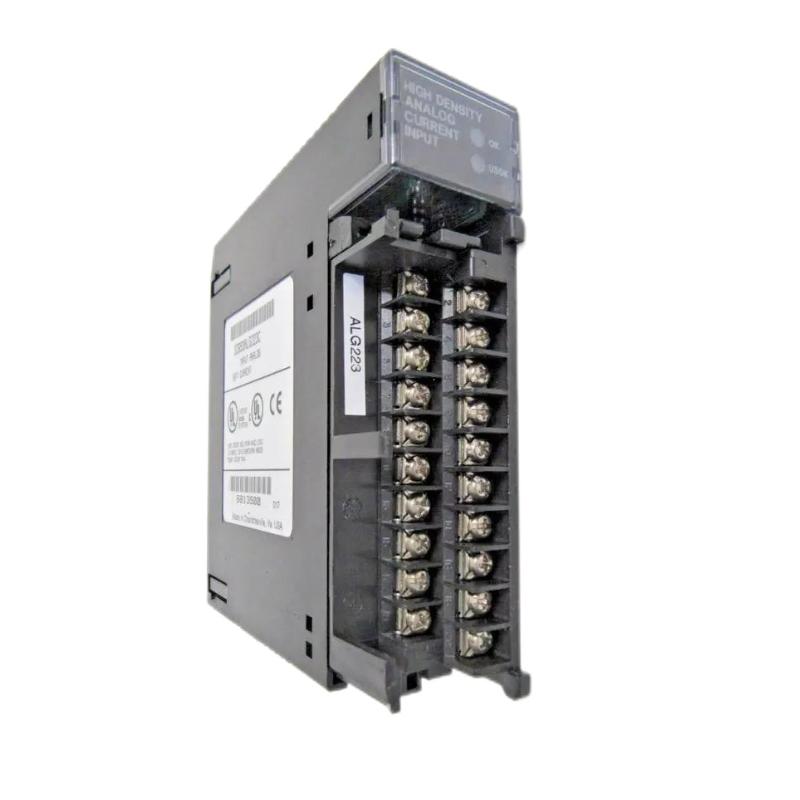

The GE IC693ALG223D Analog Input Module is a high-performance signal acquisition module designed for GE Series 90-30 PLC automation systems. It enables PLC controllers to monitor multiple analog current signals from industrial instruments, providing accurate data collection for process control and machine automation applications.
With 16 configurable single-ended input channels and support for common industrial current ranges, the IC693ALG223D offers a practical solution for integrating sensors, transmitters, and measurement devices into existing automation architectures. Its compact single-slot design helps maximize PLC rack efficiency while maintaining reliable analog performance.
Built for demanding industrial environments, the IC693ALG223D combines flexible signal compatibility, dependable conversion accuracy, and proven Series 90-30 integration, making it a valuable choice for system expansion, maintenance, and modernization projects.
Technical Specifications
Parameter
Details
Model
IC693ALG223D
Product Type
Analog Current Input Module
Series
GE Series 90-30
Input Channels
16 Single-Ended Channels
Signal Type
Analog Current Input
Input Ranges
0–20 mA / 4–20 mA / Enhanced 4–20 mA
Resolution
12-bit
Accuracy
±0.25% Full Scale at 25°C
Temperature Accuracy
±0.5% Full Scale Over Operating Range
Input Impedance
250 Ω
Update Rate
Approx. 13 ms All Channels
Isolation Voltage
1500 VAC Field Side to Logic Side
External Supply Voltage
20–30 VDC
Backplane Current Consumption
120 mA at 5 VDC
External Current Consumption
65 mA at 24 VDC
Filtering Response
19 Hz Low Pass Filter
Cross-Channel Rejection
>80 dB
LED Indicators
Module OK / User Supply OK
Installation Type
Series 90-30 Rack Mounted
Dimensions
Approx. 110 × 64 × 30 mm
Weight
Approx. 0.27 kg
Recommended Companion Models
Model
Product Name
IC693PWR321W
Series 90-30 AC/DC Power Supply Module
IC693CPU374
Series 90-30 Ethernet CPU Module
IC693CHS391M
Series 90-30 10-Slot CPU Baseplate
IC693CMM321
Series 90-30 Ethernet Communication Module
Frequently Selected Alternatives
Model
Product Name
IC693ALG221
Series 90-30 Analog Current Input Module
IC693ALG220
Series 90-30 Analog Voltage Input Module
IC693ALG222
Series 90-30 16-Channel Analog Voltage Input Module
IC693ALG392
Series 90-30 Analog Current Input Module
Where It Excels in Industrial Use
• Designed for GE Series 90-30 PLC systems, the IC693ALG223D provides high-density analog current signal acquisition for industrial automation applications requiring accurate process monitoring and measurement.
• Suitable for process industries, machine automation, water treatment, energy systems, and manufacturing equipment where reliable analog feedback from field instruments is essential.
• Ideal for applications involving transmitters, variable frequency drives, flow meters, pressure sensors, and other devices that provide standard 4–20 mA or 0–20 mA signals.
• Commonly deployed in Series 90-30 control architectures where engineers need flexible multi-channel analog monitoring with stable conversion performance and efficient rack utilization.
Key Strengths at a Glance
• Provides 16 single-ended analog current input channels, allowing multiple field instruments to be connected through one compact PLC module.
• Supports selectable 0–20 mA, 4–20 mA, and enhanced 4–20 mA input ranges for compatibility with a wide variety of industrial measurement devices.
• Delivers 12-bit analog-to-digital conversion resolution with strong accuracy performance for dependable process monitoring and control applications.
• Includes field-to-logic isolation and diagnostic indicators to improve system reliability, troubleshooting efficiency, and operational visibility.
Technical FAQs
1. What type of module is the GE IC693ALG223D?
The GE IC693ALG223D is a 16-channel analog current input module designed for GE Series 90-30 PLC systems.
2. How many analog input channels does the IC693ALG223D provide?
The module provides 16 single-ended analog input channels that can be configured individually for supported current input ranges.
3. What input signals are supported by the IC693ALG223D?
The module supports 0–20 mA, 4–20 mA, and enhanced 4–20 mA current input signals from compatible field devices.
4. What type of field devices can connect to the IC693ALG223D?
The module can interface with industrial transmitters, sensors, meters, and other instruments that provide standard analog current outputs.
5. What resolution does the IC693ALG223D use for analog conversion?
The module uses 12-bit analog-to-digital conversion to transform field current signals into PLC-readable digital values.
6. Does the IC693ALG223D provide channel isolation?
The module provides isolation between field-side circuits and PLC logic circuits to improve protection against electrical interference.
7. What PLC platform is compatible with the IC693ALG223D?
The IC693ALG223D is designed for installation in GE Series 90-30 PLC systems.
8. What is the update rate of the IC693ALG223D?
The module provides an update rate of approximately 13 ms for all 16 channels.
9. Does the IC693ALG223D require external power?
Yes, the module requires an external 24 VDC user supply in addition to backplane power for analog signal operation.
10. What should be checked before replacing an IC693ALG223D module?
Engineers should verify Series 90-30 compatibility, analog signal range configuration, field wiring, and PLC hardware configuration before replacement.
