Brand:GE Fanuc PLC Item No.:IC200MDL650F Product Origin:USA Product Dimensions:110 × 66.8 × 50 mm Product Weight:0.30 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

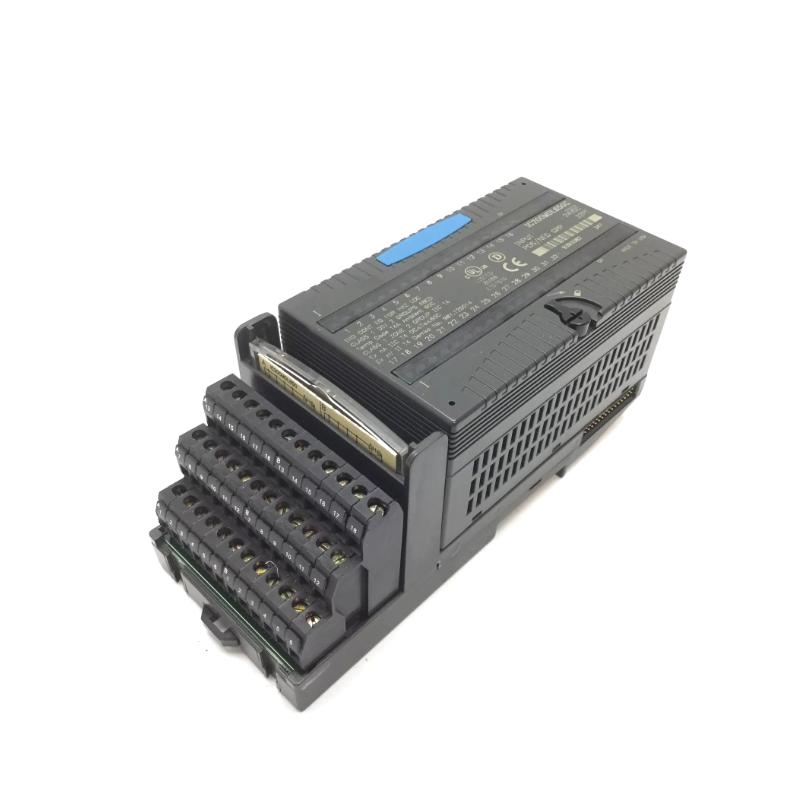

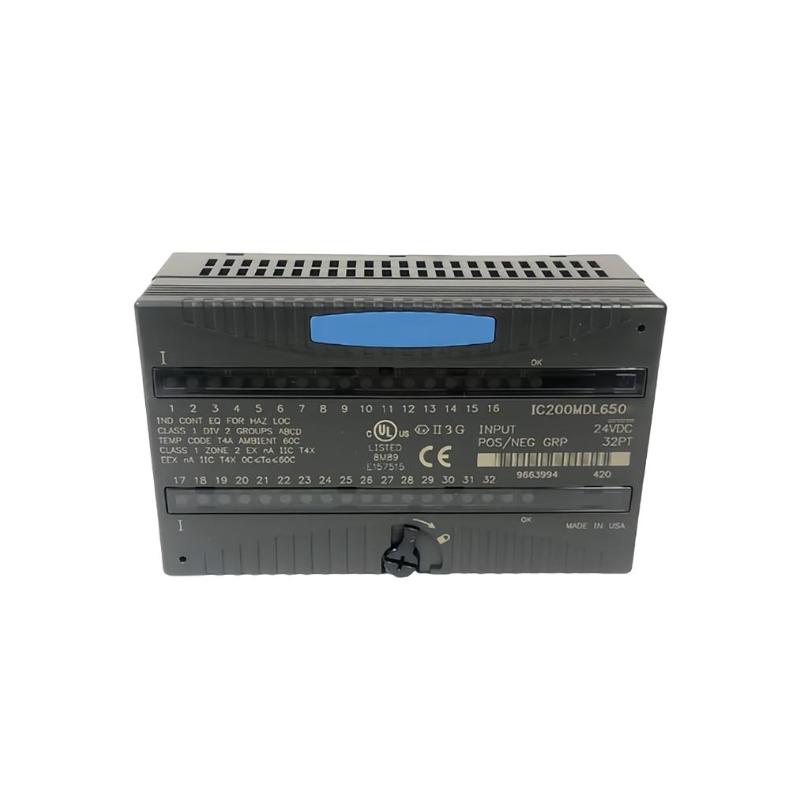

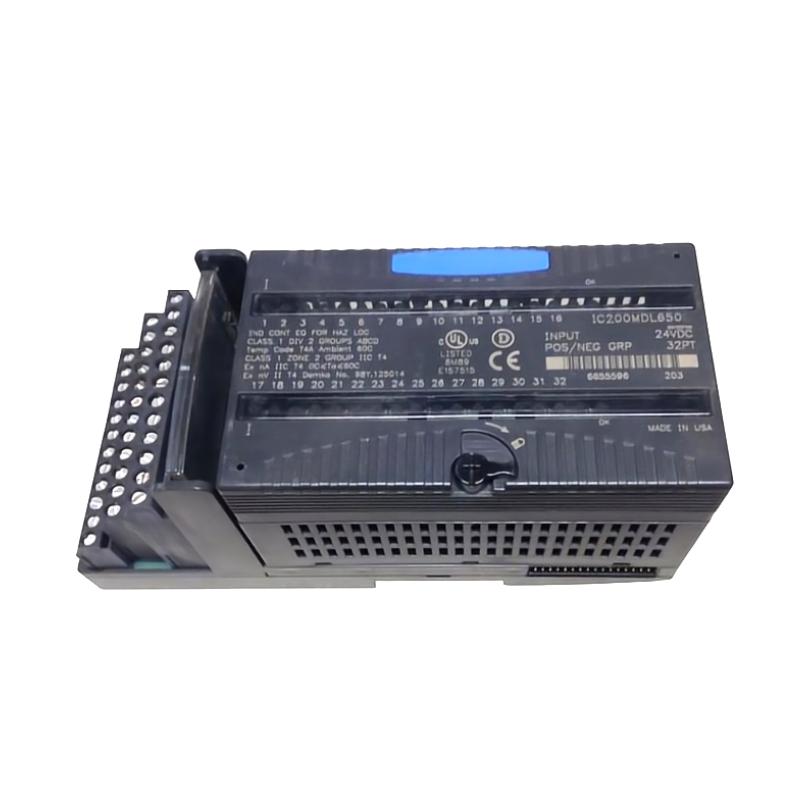

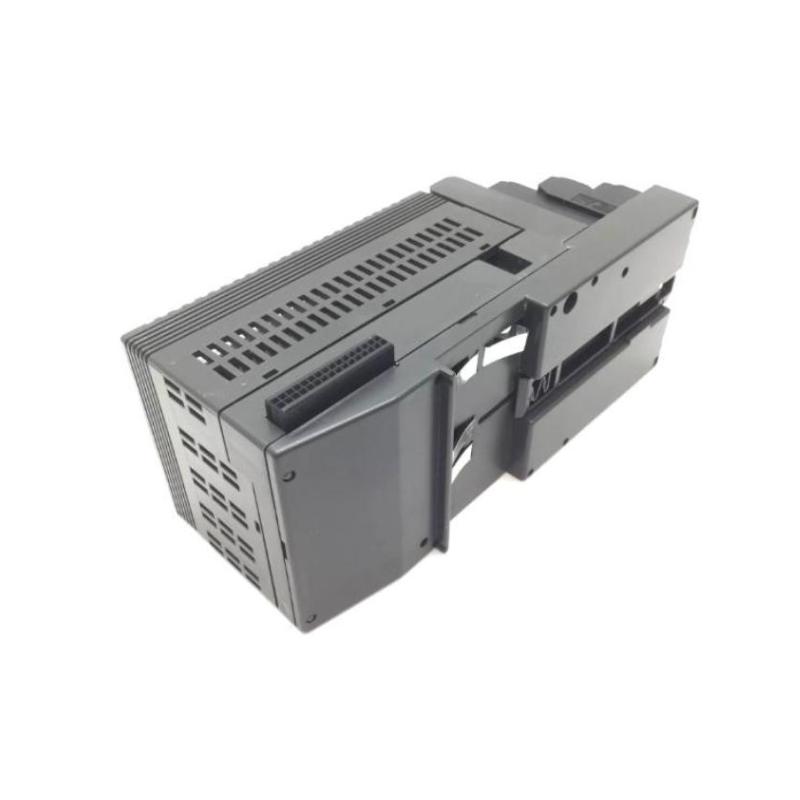

The GE IC200MDL650F Discrete Input Module is a high-density digital input solution designed for GE VersaMax automation platforms. It enables PLC systems to collect signals from a wide range of industrial devices, providing reliable communication between field equipment and the control program.
With 32 input channels supporting 24 VDC signals and flexible positive or negative logic operation, the IC200MDL650F helps simplify machine control designs while maximizing available I/O capacity. Its compact VersaMax format makes it suitable for applications where cabinet space, wiring efficiency, and dependable signal processing are important.
Built for industrial reliability, the IC200MDL650F delivers fast response performance, clear diagnostic visibility, and flexible integration with VersaMax distributed I/O systems, making it a practical choice for automation upgrades and system expansions.
Technical Specifications
Parameter
Details
Model
IC200MDL650F
Product Type
Discrete Input Module
Series
GE VersaMax
Input Points
32 Points
Input Type
Digital DC Input
Rated Input Voltage
24 VDC
Input Voltage Range
0–30 VDC
Logic Type
Positive Logic / Negative Logic
Input Groups
4 Groups
Channels per Group
8 Channels
On-State Voltage
15–30 VDC
Off-State Voltage
0–5 VDC
On-State Current
2.0–5.5 mA
Off-State Current
0–0.5 mA
Input Impedance
10 kΩ Maximum
Response Time
0.5 ms Maximum
Configurable Filter Time
0 ms / 1 ms / 7 ms
Isolation
250 VAC Continuous, 1500 VAC for 1 Minute
Backplane Current Consumption
50 mA at 5 VDC
LED Indicators
Individual Input LEDs + OK LED
Mounting Type
VersaMax Carrier Mounted
Dimensions
Approx. 110 × 66.8 × 50 mm
Weight
Approx. 0.30 kg
Recommended Companion Models
Model
Product Name
IC200CHS003C
VersaMax Connector-Style I/O Carrier Module
IC200PWR002G
VersaMax Expanded Power Supply Module
IC200CPU005
VersaMax PLC CPU Controller Module
IC200MDL940
VersaMax Relay Output Module
Frequently Selected Alternatives
Model
Product Name
IC200MDL640
VersaMax 16-Point 24 VDC Discrete Input Module
IC200MDL643
VersaMax 16-Point 5/12 VDC TTL Input Module
IC200MDL644
VersaMax 32-Point 5/12 VDC TTL Input Module
IC200MDL750
VersaMax 32-Point Discrete Output Module
Where It Excels in Industrial Use
• Designed for GE VersaMax PLC systems, the IC200MDL650F provides high-density digital signal acquisition for industrial automation applications requiring reliable monitoring of field devices and machine sensors.
• Suitable for manufacturing lines, packaging equipment, material handling systems, and process control applications where multiple 24 VDC input signals must be collected within a compact PLC architecture.
• Ideal for connecting pushbuttons, proximity sensors, limit switches, selector switches, and auxiliary contacts, allowing efficient integration of field-level binary signals into VersaMax control systems.
• Commonly applied in distributed I/O installations where fast input response, flexible wiring logic, and stable signal processing are required for dependable machine operation.
Key Strengths at a Glance
• Provides 32 discrete input points with 24 VDC signal compatibility, supporting high-density field device connection within a single VersaMax I/O module.
• Supports both positive and negative logic wiring configurations, giving engineers greater flexibility when integrating different sensor and control circuit designs.
• Features four isolated input groups with eight channels per group, improving wiring organization and helping reduce interference between field circuits.
• Includes individual LED indicators for input status monitoring, simplifying troubleshooting and improving maintenance efficiency during system operation.
Technical FAQs
1. What type of module is the GE IC200MDL650F?
The GE IC200MDL650F is a VersaMax 32-point discrete input module designed for 24 VDC digital signal acquisition.
2. How many input channels does the IC200MDL650F provide?
The module provides 32 digital input channels arranged in four groups of eight inputs.
3. What input voltage does the IC200MDL650F support?
The module supports 0 to 30 VDC input signals with 24 VDC as the nominal operating voltage.
4. Can the IC200MDL650F work with both positive and negative logic devices?
Yes. The module supports both positive logic and negative logic input configurations for flexible field integration.
5. What types of field devices can be connected to the IC200MDL650F?
The module can connect to digital devices such as sensors, switches, pushbuttons, limit switches, and relay contacts.
6. Does the IC200MDL650F require an external power supply?
No. The module operates using VersaMax backplane power and does not require a separate external field power supply.
7. What is the input response time of the IC200MDL650F?
The basic input response time is approximately 0.5 ms, with configurable filtering options available for different application requirements.
8. How is signal isolation handled on the IC200MDL650F?
The module provides input-to-logic and group-to-group isolation to improve protection against electrical noise and field-side disturbances.
9. What diagnostic indicators are available on the IC200MDL650F?
The module provides individual point LEDs showing input ON/OFF status and an OK LED indicating backplane power availability.
10. What should be checked before replacing an IC200MDL650F module?
Engineers should verify VersaMax compatibility, input voltage requirements, wiring configuration, carrier type, and PLC hardware settings before replacement.
