Brand:GE Fanuc PLC Item No.: IC200ALG430F Product Origin:USA Product Dimensions:110 × 66.8 × 50 mm Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

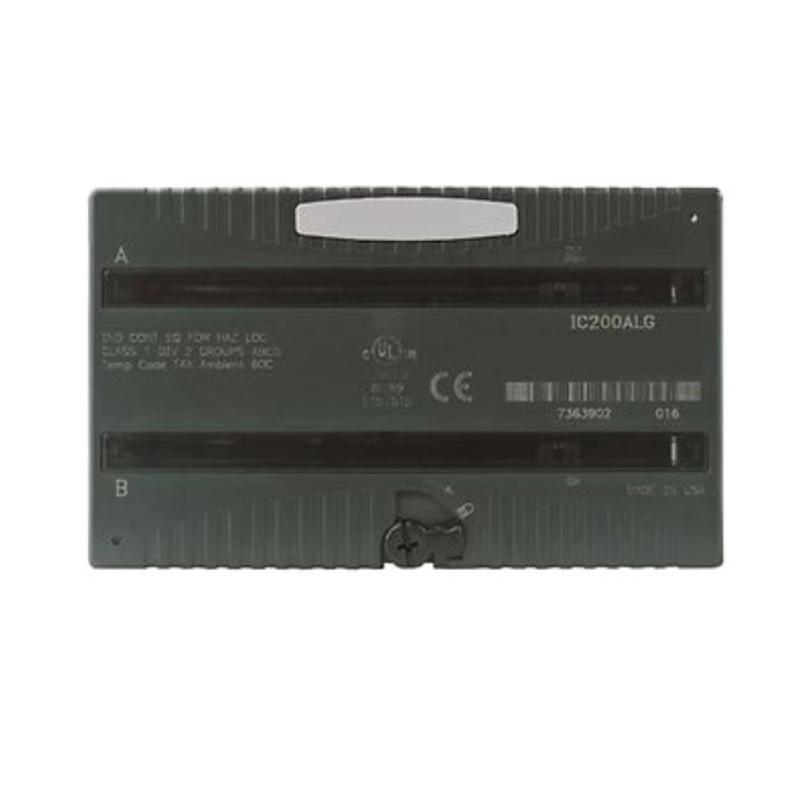

The GE IC200ALG430F Analog Mixed Module is a versatile VersaMax PLC component designed to combine analog signal acquisition and output control within a single compact I/O solution. With four analog current inputs and two analog current outputs, it enables automation systems to monitor industrial processes while directly controlling analog field devices.
Designed for applications requiring efficient panel utilization, the IC200ALG430F helps reduce hardware requirements by integrating measurement and control functions into one module. Its 12-bit conversion performance and support for standard 4–20 mA loops make it suitable for process equipment, manufacturing systems, and automated machinery.
With reliable VersaMax integration, flexible analog connectivity, and practical diagnostic features, the IC200ALG430F provides an effective solution for engineers expanding or maintaining industrial control systems.
Technical Specifications
Parameter
Details
Model
IC200ALG430F
Product Type
Analog Mixed Module
Series
GE VersaMax
Input Channels
4 Differential Analog Current Inputs
Output Channels
2 Analog Current Outputs
Input Signal Range
4–20 mA
Output Signal Range
4–20 mA
Resolution
12-bit
Input Accuracy
±0.3% Typical / ±0.5% Maximum at 25°C
Operating Accuracy
±1% Maximum over 0–60°C
Input Impedance
200 Ω Maximum
Update Rate
Approx. 0.4 ms
Filter Response
5 ms
Output Power Supply
External 24 VDC Required
Field Power Range
18–30 VDC Recommended
Isolation Voltage
250 VAC Continuous / 1500 VAC for 1 Minute
Diagnostics
OK LED / FLD PWR LED
Mounting Type
VersaMax Carrier Mounted
Compatible Carriers
VersaMax I/O Carrier Series
Dimensions
Approx. 110 × 66.8 × 50 mm
Weight
Approx. 0.15 kg
Recommended Companion Models
Model
Product Name
IC200CHS003C
VersaMax Connector-Style I/O Carrier Module
IC200PWR002G
VersaMax Expanded Power Supply Module
IC200CPU001
VersaMax CPU Controller Module
IC200MDL650F
VersaMax 32-Point Discrete Input Module
Frequently Selected Alternatives
Model
Product Name
IC200ALG431F
VersaMax 6-Point Analog Voltage Mixed Module
IC200ALG432
VersaMax ±10 VDC Analog Mixed Module
IC200ALG230
VersaMax 12-Bit Analog Input Module
IC200ALG320
VersaMax 12-Bit Analog Output Module
Where It Excels in Industrial Use
• Designed for GE VersaMax PLC systems, the IC200ALG430F provides combined analog input and output capability for industrial applications requiring both signal monitoring and precise analog control within a single compact module.
• Suitable for process automation, machine control, motion systems, and equipment monitoring applications where 4–20 mA signal acquisition and output regulation are required.
• Ideal for connecting industrial transmitters, controllers, valves, actuators, and variable-speed devices while reducing the number of separate analog modules required in a VersaMax configuration.
• Commonly applied in compact control cabinets where efficient I/O density, reliable analog conversion, and flexible field integration are important for maintaining stable automation performance.
Key Strengths at a Glance
• Provides four differential analog current inputs and two analog current outputs, allowing one module to handle both process measurement and control functions.
• Supports 4–20 mA current signals with 12-bit analog conversion resolution for accurate industrial data acquisition and output regulation.
• Delivers fast signal processing with a module update rate of approximately 0.4 ms, supporting applications that require responsive analog control.
• Includes field power monitoring and diagnostic indication features, helping engineers improve troubleshooting efficiency and system reliability.
Technical FAQs
1. What type of module is the GE IC200ALG430F?
The GE IC200ALG430F is a VersaMax analog mixed module combining analog current inputs and outputs in one PLC I/O device.
2. How many analog channels does the IC200ALG430F provide?
The module provides four analog current input channels and two analog current output channels.
3. What signal range does the IC200ALG430F support?
The module supports 4–20 mA current input signals and 4–20 mA current output signals for industrial instrumentation applications.
4. What type of field devices can connect to the IC200ALG430F?
The module can interface with industrial transmitters, sensors, actuators, control valves, and other devices using standard current loop signals.
5. What resolution does the IC200ALG430F use for analog conversion?
The module uses 12-bit analog-to-digital and digital-to-analog conversion for input measurement and output control.
6. Does the IC200ALG430F require external power?
Yes. The output circuits require an external 24 VDC field power supply for analog current output operation.
7. What is the update rate of the IC200ALG430F?
The module provides an update rate of approximately 0.4 ms per module.
8. How is signal isolation handled on the IC200ALG430F?
The module provides field-side isolation to improve protection between analog circuits and the PLC control system.
9. What diagnostics are available on the IC200ALG430F?
The module includes OK and FLD PWR LED indicators to show module status and field-side power availability.
10. What should be checked before replacing an IC200ALG430F?
Engineers should verify VersaMax compatibility, current loop wiring, field power availability, carrier type, and PLC hardware configuration before replacement.
