Brand:GE Fanuc PLC Item No.:IC200MDL640E Product Origin:USA Product Dimensions:110 × 66.8 × 50 mm Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

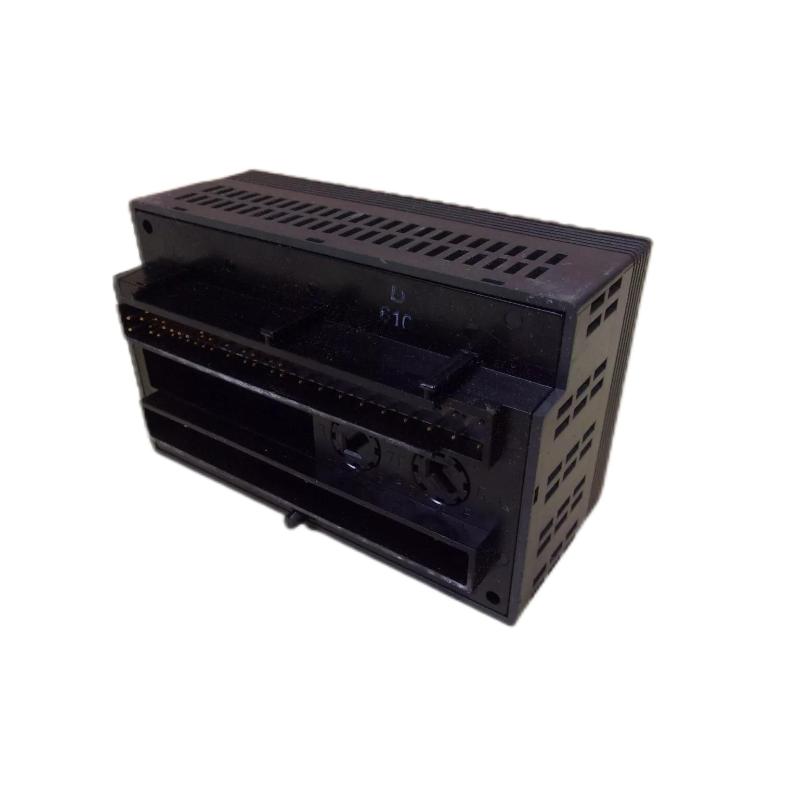

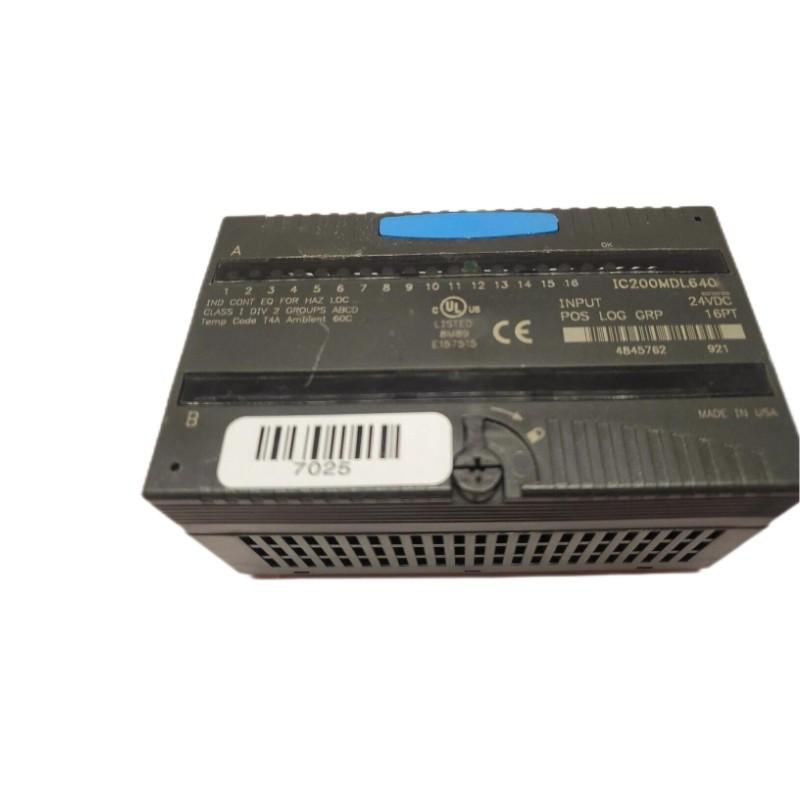

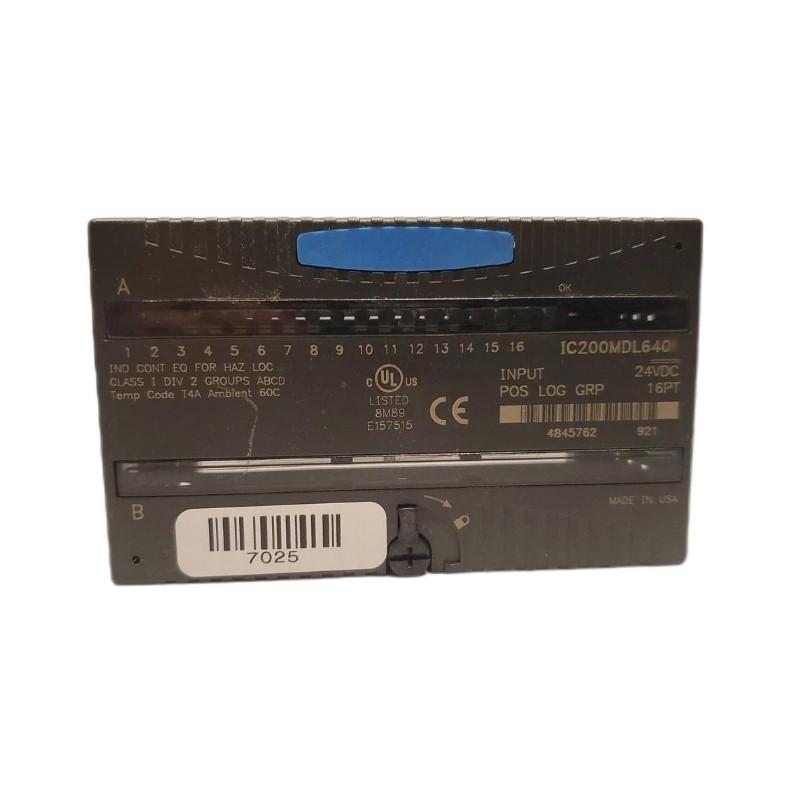

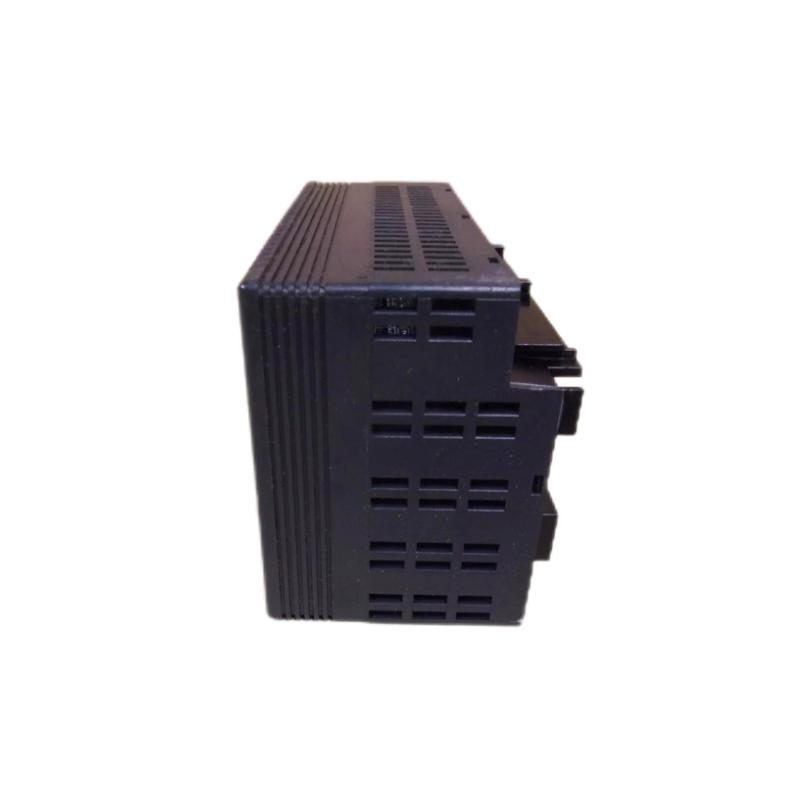

The GE IC200MDL640E Discrete Input Module is a compact VersaMax I/O solution designed to collect and process 24 VDC digital signals from industrial field devices. With 16 input channels and flexible wiring support, it enables efficient integration of sensors and switches into automation control systems.
The module is engineered for applications requiring reliable signal acquisition without increasing cabinet complexity. Its compact VersaMax format, configurable input filtering, and clear status indication help simplify system design, troubleshooting, and long-term maintenance.
With proven performance in industrial environments, the IC200MDL640E provides a practical solution for machine automation upgrades, distributed I/O expansion, and replacement of existing VersaMax input modules.
Technical Specifications
Parameter
Details
Model
IC200MDL640E
Product Type
Discrete Input Module
Series
GE VersaMax
Input Type
Digital DC Input
Number of Inputs
16 Points
Input Configuration
2 Groups of 8 Inputs
Rated Input Voltage
24 VDC
Input Voltage Range
0–30 VDC
Logic Type
Positive Logic / Negative Logic
Input Impedance
10 kΩ Maximum
On-State Voltage
15–30 VDC
Off-State Voltage
0–5 VDC
On-State Current
2.0–5.5 mA
Off-State Current
0–0.5 mA
Input Response Time
0.5 ms Basic
Configurable Filter Time
0 ms / 1 ms / 7 ms
Isolation
Optical Field Input Isolation
Group Isolation
250 VAC Continuous / 1500 VAC for 1 Minute
Backplane Current Consumption
25 mA Maximum at 5 VDC
External Power Supply
Not Required
LED Indicators
16 Input LEDs + OK LED
Mounting Type
VersaMax Carrier Mounted
Operating Temperature
0°C to 60°C
Dimensions
Approx. 110 × 66.8 × 50 mm
Weight
Approx. 0.20 kg
Recommended Companion Models
Model
Product Name
IC200CHS003C
VersaMax Connector-Style I/O Carrier Module
IC200PWR002G
VersaMax Expanded Power Supply Module
IC200CPU001
VersaMax CPU Controller Module
IC200MDL650F
VersaMax 32-Point 24 VDC Discrete Input Module
Frequently Selected Alternatives
Model
Product Name
IC200MDL640D
VersaMax 16-Point 24 VDC Discrete Input Module
IC200MDL650E
VersaMax 32-Point 24 VDC Discrete Input Module
IC200MDL643E
VersaMax 16-Point 5/12 VDC TTL Input Module
IC200MDL644E
VersaMax 32-Point 5/12 VDC TTL Input Module
Where It Excels in Industrial Use
• Designed for GE VersaMax PLC systems, the IC200MDL640E provides dependable 24 VDC digital input processing for industrial automation applications requiring stable field signal monitoring and efficient I/O expansion.
• Suitable for manufacturing equipment, conveyor systems, packaging machinery, assembly lines, and automated production cells where sensors, switches, and operator devices must be integrated into PLC control systems.
• Ideal for connecting proximity sensors, limit switches, pushbuttons, selector switches, and relay contacts through flexible positive and negative logic input configurations.
• Commonly applied in distributed I/O installations where compact design, fast signal response, and straightforward troubleshooting are required to maintain reliable machine operation.
Key Strengths at a Glance
• Provides 16 discrete 24 VDC input points arranged in two groups of eight channels, allowing efficient connection of multiple field devices within a VersaMax architecture.
• Supports positive logic and negative logic input wiring, giving engineers flexibility when integrating different industrial control circuit designs.
• Features configurable input filtering with selectable response times, helping reduce signal interference and improve stability in electrically noisy environments.
• Includes individual channel LED indicators and an OK status LED, providing clear visual diagnostics for commissioning and maintenance activities.
Technical FAQs
1. What type of module is the GE IC200MDL640E?
The GE IC200MDL640E is a VersaMax 24 VDC discrete input module designed for collecting digital field signals in PLC automation systems.
2. How many input points does the IC200MDL640E provide?
The module provides 16 discrete input points divided into two groups of eight inputs.
3. What input voltage does the IC200MDL640E support?
The module supports 0–30 VDC input signals with 24 VDC as the nominal operating voltage.
4. Can the IC200MDL640E operate with positive and negative logic devices?
Yes. The module supports both positive logic and negative logic input configurations for flexible field wiring.
5. What field devices can be connected to the IC200MDL640E?
The module can connect digital devices including proximity sensors, pushbuttons, selector switches, limit switches, and relay contacts.
6. Does the IC200MDL640E require an external power supply?
No. Module operation power is supplied through the VersaMax backplane connection.
7. What is the input response time of the IC200MDL640E?
The basic input ON/OFF response time is approximately 0.5 ms, with configurable filtering options available for additional signal conditioning.
8. How does the IC200MDL640E handle electrical isolation?
The module provides optical isolation between user inputs and logic circuits, with group-to-group isolation for improved protection.
9. What diagnostic indicators are available on the IC200MDL640E?
The module provides one LED indicator per input point to display individual signal status and an OK LED for backplane power indication.
10. What should be checked before replacing an IC200MDL640E module?
Engineers should verify VersaMax carrier compatibility, field voltage requirements, input wiring configuration, and PLC hardware settings before installation.
