Brand:GE Fanuc PLC Item No.: IC200ALG326F Product Origin:USA Product Dimensions:202 × 21 × 261 mm Product Weight:0.08 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

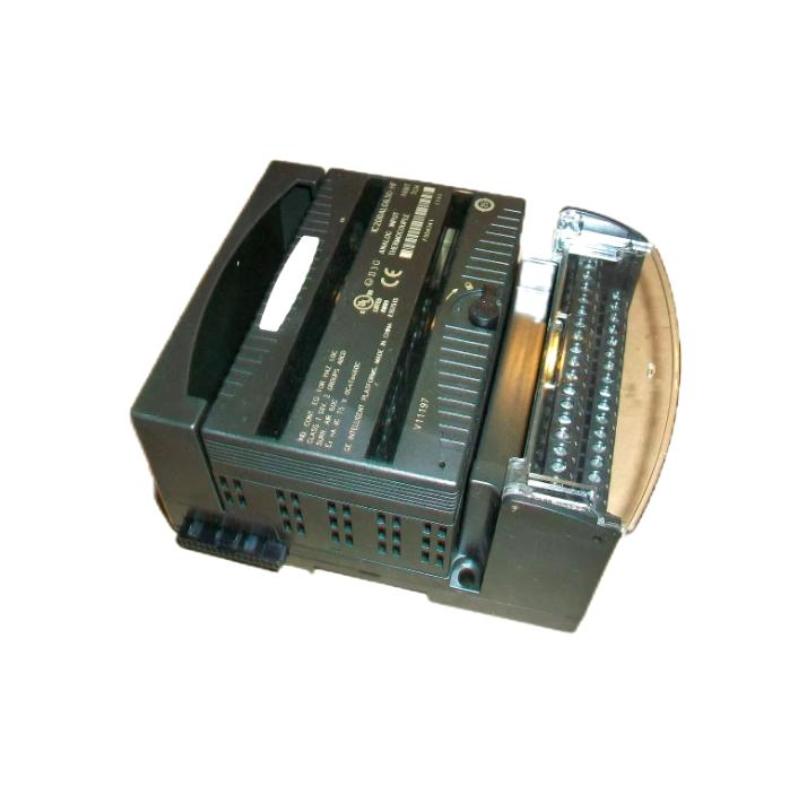

The GE IC200ALG326F Analog Output Module is a high-performance VersaMax I/O component designed to deliver accurate current signals for industrial automation and process control applications. Featuring eight analog current output channels, the module enables PLC systems to directly regulate field devices that require standard 4–20 mA control signals.
Built for flexible industrial integration, the IC200ALG326F helps simplify control cabinet design by combining multiple analog output functions into a compact VersaMax module. Its configurable current range and reliable signal conversion make it suitable for applications requiring consistent analog adjustment and precise equipment control.
With dependable performance, efficient channel density, and VersaMax system compatibility, the IC200ALG326F is a practical solution for automation upgrades, machine control expansion, and replacement of existing analog output modules.
Technical Specifications
Parameter
Details
Model
IC200ALG326F
Product Type
Analog Output Module
Series
GE VersaMax
Output Type
Analog Current Output
Number of Channels
8 Single-Ended Outputs
Output Range
4–20 mA Default / 0–20 mA Configurable
Resolution
13 Bit
Output Signal Type
Current Sourcing
Update Rate
15 ms Maximum
Accuracy at 25°C
±0.3% Typical, ±0.5% Maximum Full Scale
External Power Supply
18–30 VDC
Backplane Current Consumption
50 mA Maximum at 5 VDC
Isolation Voltage
250 VAC Continuous / 1500 VAC for 1 Minute
Output Protection
Current Limiting and Fault Protection
LED Indicators
OK LED / Field Power LED
Mounting Type
VersaMax Carrier Mounted
Compatible Carrier
IC200CHS Series
Dimensions
Approx. 110 × 66.8 × 50 mm
Weight
Approx. 0.15 kg
Recommended Companion Models
Model
Product Name
IC200CHS003C
VersaMax Connector-Style I/O Carrier Module
IC200PWR002G
VersaMax Expanded Power Supply Module
IC200CPU001
VersaMax CPU Controller Module
IC200ALG430F
VersaMax Analog Mixed Module
Frequently Selected Alternatives
Model
Product Name
IC200ALG328F
VersaMax 12-Channel Analog Current Output Module
IC200ALG325F
VersaMax 8-Channel Analog Voltage Output Module
IC200ALG327F
VersaMax 12-Channel Analog Voltage Output Module
IC200ALG331F
VersaMax 4-Channel Isolated Analog Output Module
Where It Excels in Industrial Use
• Designed for GE VersaMax PLC systems, the IC200ALG326F provides precise analog current output control for industrial automation applications requiring reliable communication between PLC systems and field control devices.
• Suitable for process control, machine automation, packaging systems, temperature regulation equipment, valve positioning, and speed control applications where stable 4–20 mA signals are essential.
• Ideal for driving analog field devices such as control valves, actuators, variable frequency drives, and industrial regulators through standard current-loop interfaces.
• Commonly applied in VersaMax distributed I/O architectures where compact installation, accurate analog output performance, and flexible system expansion are required.
Key Strengths at a Glance
• Provides eight single-ended analog current output channels with 13-bit resolution, enabling accurate control of multiple analog devices from one compact module.
• Supports standard 4–20 mA current output operation, with configurable 0–20 mA capability through jumper selection for broader application flexibility.
• Delivers stable analog signal conversion with a maximum update rate of approximately 15 ms, supporting dependable industrial control processes.
• Includes field power monitoring and module status indicators, helping engineers quickly identify operating conditions during commissioning and maintenance.
Technical FAQs
1. What type of module is the GE IC200ALG326F?
The GE IC200ALG326F is a VersaMax analog current output module designed to provide controlled current signals for industrial field devices.
2. How many analog output channels does the IC200ALG326F provide?
The module provides eight single-ended analog current output channels.
3. What output signals are supported by the IC200ALG326F?
The module supports 4–20 mA current output as the default range and can be configured for 0–20 mA operation.
4. What type of devices can be connected to the IC200ALG326F?
The module can connect to analog control devices such as valves, actuators, drives, and process controllers using current-loop inputs.
5. What resolution does the IC200ALG326F provide?
The module provides 13-bit analog output resolution for accurate current signal generation.
6. Does the IC200ALG326F require external field power?
Yes. The module requires an external 18–30 VDC field power supply for analog output operation.
7. How is the output range configured on the IC200ALG326F?
The output range can be selected using configuration jumpers, allowing either default 4–20 mA operation or 0–20 mA operation.
8. What is the update rate of the IC200ALG326F?
The module provides an analog output update rate of approximately 15 ms maximum.
9. Does the IC200ALG326F provide electrical isolation?
Yes. The module provides isolation between field circuits and the PLC system to improve operational stability.
10. What should be checked before replacing an IC200ALG326F?
Engineers should verify VersaMax carrier compatibility, field power availability, output wiring configuration, current range settings, and PLC hardware configuration before replacement.
