Brand:GE Fanuc PLC Item No.:IC693CMM321-BA Product Origin:USA Product Dimensions:109 × 64 × 58 mm Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

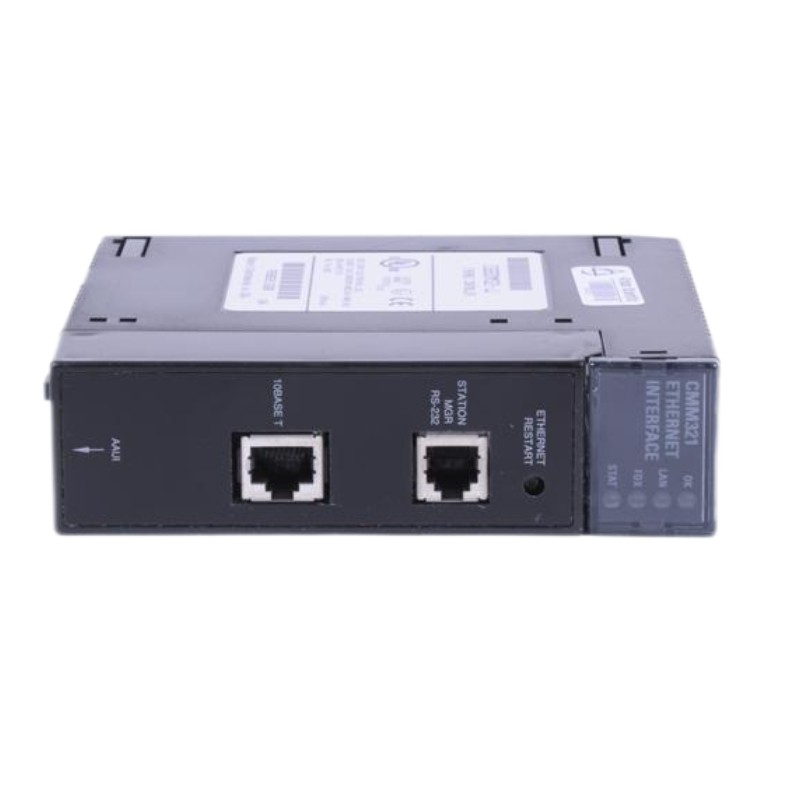

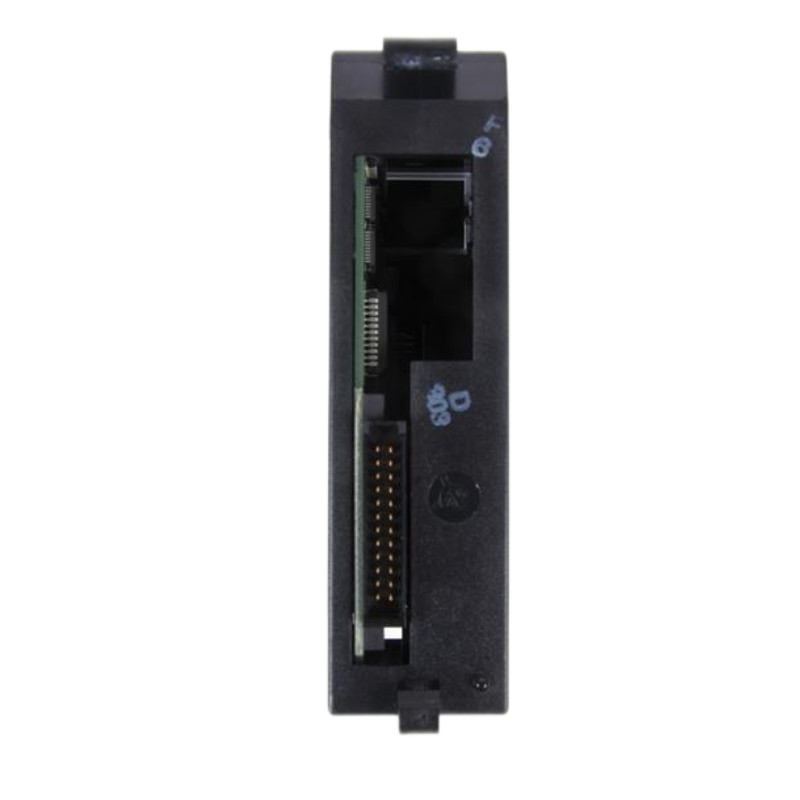

The GE IC693CMM321-BA Communication Module is a dedicated Ethernet Interface Module developed for GE Series 90-30 PLC systems. It enables industrial controllers to connect with Ethernet networks, allowing efficient data exchange between PLCs, HMIs, SCADA systems, engineering computers, and other automation equipment.
Designed for industrial communication environments, the IC693CMM321-BA helps extend the capabilities of legacy Series 90-30 systems by providing network access and remote monitoring functions. Its combination of Ethernet communication, serial maintenance interfaces, and diagnostic indicators makes it a valuable component for automation upgrades and system integration projects.
With reliable networking performance and proven GE PLC compatibility, the IC693CMM321-BA remains a practical communication solution for maintaining and expanding established industrial control architectures.
Technical Specifications
Parameter
Details
Model
IC693CMM321-BA
Product Type
Ethernet Communication Module
Series
GE Series 90-30
Communication Interface
Ethernet Interface
Network Type
Industrial Ethernet
Communication Protocol
TCP/IP, SRTP
Maximum Server Connections
16
Ethernet Port
AAUI Network Interface
Serial Port 1
RS-232 Station Manager Port
Serial Port 2
RS-485 Software Loader Port
LED Indicators
OK / LAN / SER / STAT
Client Function
Supported
Server Function
Supported
Mounting Type
Series 90-30 Rack Mounted
Backplane Power Supply
5 VDC from PLC Rack
Typical Current Consumption
Approx. 100 mA at 5 VDC
Operating Temperature
0°C to 60°C
Storage Temperature
-40°C to 85°C
Dimensions
Approx. 127 × 101.6 × 27.9 mm
Weight
Approx. 0.23 kg
Recommended Companion Models
Model
Product Name
IC693CPU374
Series 90-30 Ethernet CPU Module
IC693PWR321W
Series 90-30 AC/DC Power Supply Module
IC693CHS391L
Series 90-30 10-Slot Baseplate Module
IC693ALG392B
Series 90-30 Analog Current/Voltage Output Module
Frequently Selected Alternatives
Model
Product Name
IC693CMM321-KL
Series 90-30 Ethernet Interface Communication Module
IC693CMM321-JK
Series 90-30 Ethernet TCP/IP Interface Module
IC693CMM311
Series 90-30 Genius Communication Module
IC693PCM301
Series 90-30 Programmable Coprocessor Module
Where It Excels in Industrial Use
• Designed for GE Series 90-30 PLC systems, the IC693CMM321-BA Ethernet Interface Module provides reliable industrial network connectivity, enabling PLC systems to communicate with supervisory computers, HMIs, SCADA platforms, and other control devices.
• Suitable for factory automation networks, production monitoring systems, distributed control architectures, and legacy PLC installations requiring Ethernet-based data exchange and remote system access.
• Ideal for applications that require PLC-to-PC communication, controller networking, diagnostics access, and integration with industrial information systems through TCP/IP-based communication.
• Commonly applied in Series 90-30 automation environments where dependable communication performance, easy system expansion, and compatibility with existing industrial networks are essential.
Key Strengths at a Glance
• Provides Ethernet communication capability for GE Series 90-30 PLC platforms, allowing seamless connection between PLC controllers and industrial Ethernet networks.
• Supports client and server communication functions, enabling data exchange with PLCs, computers, HMIs, SCADA systems, and other compatible automation devices.
• Supports multiple communication interfaces, including RS-232 Station Manager access, RS-485 loader communication, and Ethernet networking through the network port interface.
• Provides diagnostic indicators including OK, LAN, SER, and STAT LEDs, helping engineers monitor module operation and quickly identify communication conditions.
Technical FAQs
1. What type of module is the GE IC693CMM321-BA?
The GE IC693CMM321-BA is an Ethernet Interface Module designed for GE Series 90-30 PLC systems.
2. What communication function does the IC693CMM321-BA provide?
The module provides Ethernet connectivity for PLC communication with industrial networks, computers, HMIs, and supervisory control systems.
3. Which PLC platform is compatible with the IC693CMM321-BA?
The module is designed for GE Series 90-30 PLC platforms and integrates into compatible Series 90-30 racks.
4. What communication protocols are supported by the IC693CMM321-BA?
The module supports industrial Ethernet communication protocols including TCP/IP-based communication and GE-specific communication services such as SRTP.
5. Can the IC693CMM321-BA communicate with SCADA systems?
Yes. The module can provide PLC data access for SCADA systems, operator interfaces, and industrial monitoring applications.
6. How many server connections can the IC693CMM321-BA support?
The module supports up to 16 simultaneous server connections when used with compatible CPU configurations.
7. What serial interfaces are available on the IC693CMM321-BA?
The module provides serial communication access through RS-232 and RS-485 interfaces for station management and maintenance functions.
8. What diagnostic features are available on the IC693CMM321-BA?
The module provides LED indicators for module status, Ethernet activity, serial communication activity, and exception status monitoring.
9. Does the IC693CMM321-BA require separate software configuration?
Yes. Network parameters and communication settings must be configured according to the PLC application and industrial network requirements.
10. What should be checked before replacing an IC693CMM321-BA?
Engineers should verify Series 90-30 compatibility, network settings, communication protocols, CPU compatibility, and existing wiring connections before replacement.
