Brand:GE Fanuc PLC Item No.:IC693PWR321S Product Origin:USA Product Dimensions:202 × 21 × 261 mm Product Weight:0.30 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

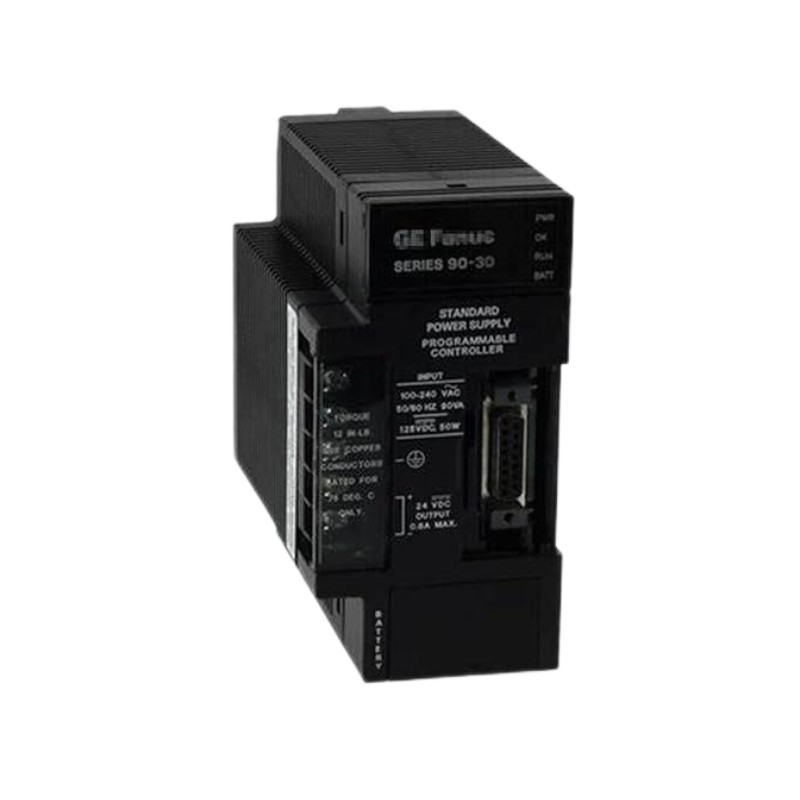

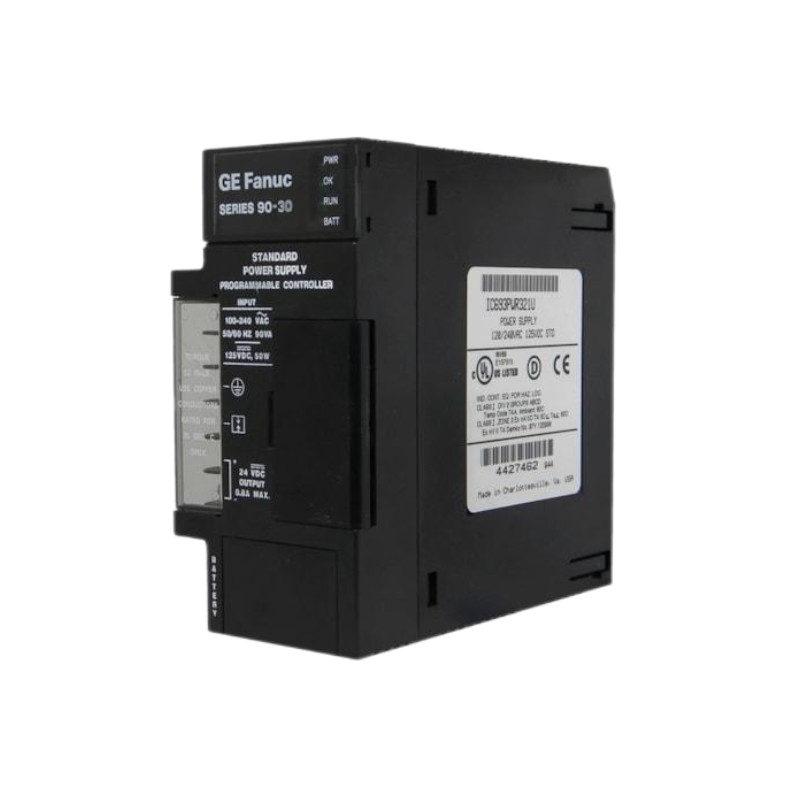

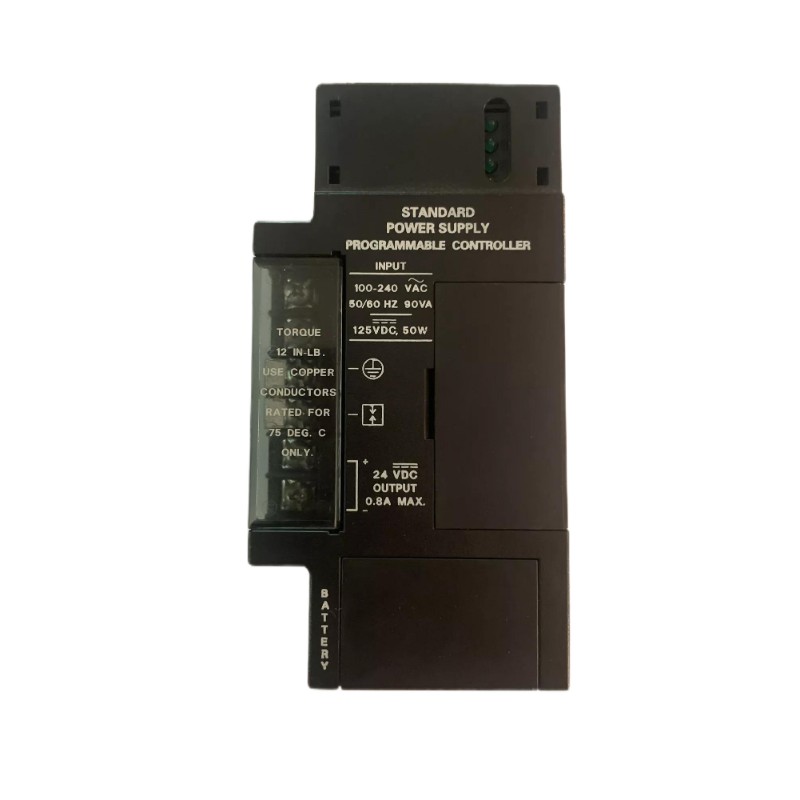

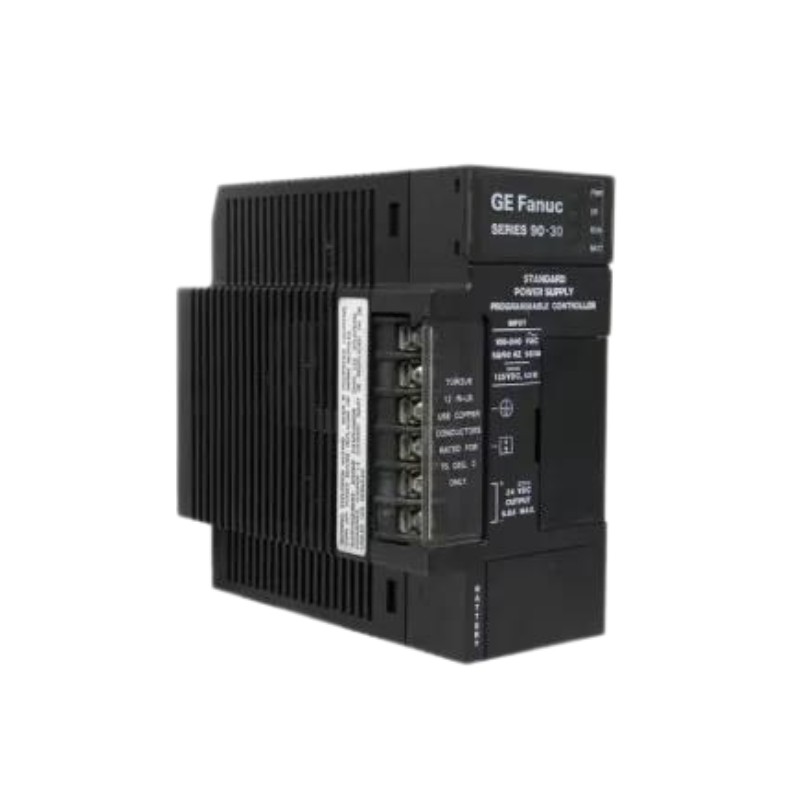

The GE IC693PWR321S Power Supply Module is a core power management component designed for GE Series 90-30 PLC systems. It provides reliable AC/DC conversion and distributes regulated power to PLC CPUs, I/O modules, and compatible field devices, helping maintain stable automation system operation.
With a 30-watt output capability and multiple DC output channels, the IC693PWR321S supports the diverse power requirements of industrial control applications. Its combination of flexible input compatibility, integrated diagnostics, and proven Series 90-30 design makes it a practical choice for maintaining established automation systems.
Engineered for long-term industrial service, the IC693PWR321S remains a dependable power solution for PLC replacement projects, system upgrades, and continuous operation of legacy GE control platforms.
Technical Specifications
Parameter
Details
Model
IC693PWR321S
Product Type
Power Supply Module
Series
GE Series 90-30
Input Voltage
120/240 VAC or 125 VDC
AC Input Range
85–264 VAC
DC Input Range
100–300 VDC
Input Frequency
50/60 Hz
Rated Power Capacity
30 W
+5 VDC Output Power
15 W Maximum
+24 VDC Relay Output Power
15 W Maximum
Isolated +24 VDC Output Power
20 W Maximum
Total Output Limit
30 W Maximum Combined
Inrush Current
4 A Peak for 250 ms Maximum
Protection Features
Overvoltage / Overcurrent Protection
Communication Interface
RS-485 Serial Port
Installation Position
Leftmost Baseplate Slot
Status Indicators
OK / SYSTEM / RUN / BATT
Mounting Type
Series 90-30 Rack Mounted
Dimensions
Approx. 70 × 130 × 120 mm
Weight
Approx. 1.0 kg
Recommended Companion Models
Model
Product Name
IC693CPU374
Series 90-30 Ethernet CPU Module
IC693CMM321-BA
Series 90-30 Ethernet Communication Module
IC693CHS391L
Series 90-30 10-Slot Baseplate Module
IC693ALG392B
Series 90-30 Analog Current/Voltage Output Module
Frequently Selected Alternatives
Model
Product Name
IC693PWR321W
Series 90-30 Standard AC/DC Power Supply Module
IC693PWR330
Series 90-30 30 Watt High Capacity Power Supply Module
IC693PWR322
Series 90-30 Enhanced Power Supply Module
IC693PWR328
Series 90-30 Expansion Power Supply Module
Where It Excels in Industrial Use
• Designed for GE Series 90-30 PLC systems, the IC693PWR321S provides stable and reliable power conversion for industrial control applications requiring dependable PLC rack operation and continuous system availability.
• Suitable for manufacturing equipment, process automation systems, machine control panels, and legacy PLC installations where consistent DC power distribution is essential for controller and I/O module operation.
• Ideal for supplying the required 5 VDC logic power and 24 VDC auxiliary power for Series 90-30 PLC components, including relay modules and compatible 24 VDC input devices.
• Commonly applied in industrial environments where replacement of aging power components, system restoration, and PLC modernization projects require a dependable original-series power solution.
Key Strengths at a Glance
• Provides a 30-watt power capacity with support for 120/240 VAC or 125 VDC input sources, allowing flexible installation across different industrial power infrastructures.
• Delivers three output supplies, including +5 VDC, isolated +24 VDC, and +24 VDC relay power, supporting multiple Series 90-30 system requirements.
• Features built-in protection functions and diagnostic indicators, helping maintenance personnel quickly identify system status and improve troubleshooting efficiency.
• Includes an RS-485 compatible serial connection interface, providing additional communication capability within supported Series 90-30 PLC configurations.
Technical FAQs
1. What type of module is the GE IC693PWR321S?
The GE IC693PWR321S is a standard AC/DC power supply module designed for GE Series 90-30 PLC systems.
2. What input voltage does the IC693PWR321S support?
The module supports 120/240 VAC or 125 VDC nominal input power sources.
3. What is the maximum power rating of the IC693PWR321S?
The module provides a maximum total output capacity of 30 watts.
4. What output voltages are available from the IC693PWR321S?
The module provides +5 VDC output, isolated +24 VDC output, and +24 VDC relay power output.
5. Where is the IC693PWR321S installed in a Series 90-30 rack?
The module is installed in the leftmost slot of the Series 90-30 baseplate.
6. Can the IC693PWR321S provide power for external 24 VDC devices?
Yes. The isolated +24 VDC output can be used to supply compatible external 24 VDC input devices.
7. Does the IC693PWR321S include diagnostic indicators?
Yes. The module includes status indicators for monitoring operating conditions.
8. What communication interface is available on the IC693PWR321S?
The module includes an RS-485 compatible serial port connection.
9. Is the IC693PWR321S compatible with Series 90-30 PLC systems?
Yes. The module is specifically designed for GE Series 90-30 PLC architectures.
10. What should be checked before replacing an IC693PWR321S?
Engineers should verify input voltage requirements, rack compatibility, output load capacity, wiring connections, and PLC system configuration before replacement.
