Brand:GE Fanuc PLC Item No.:IC693MDL742E Product Origin:USA Product Dimensions:202 × 21 × 261 mm Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

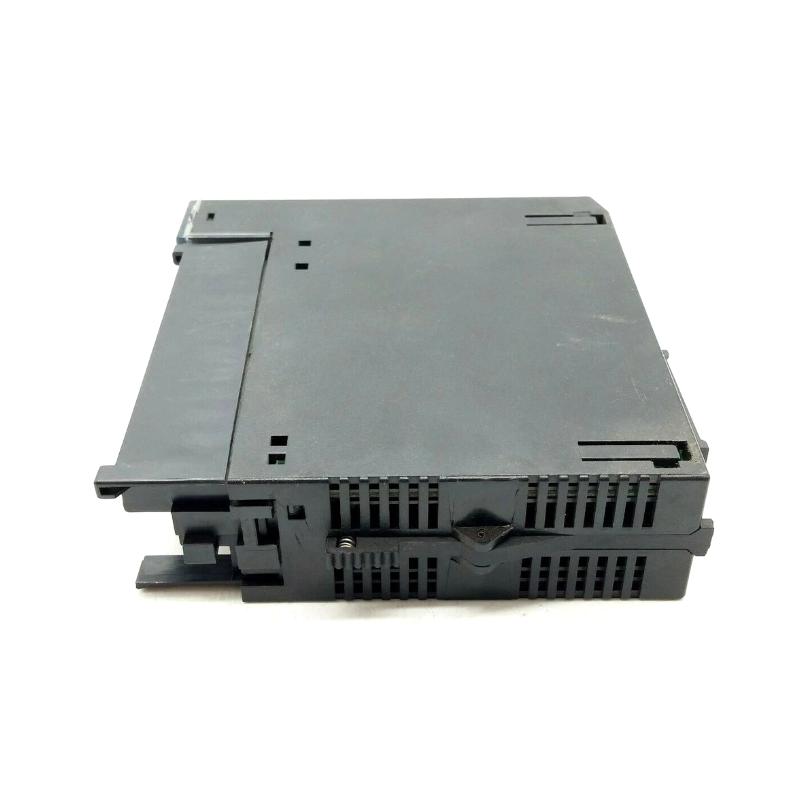

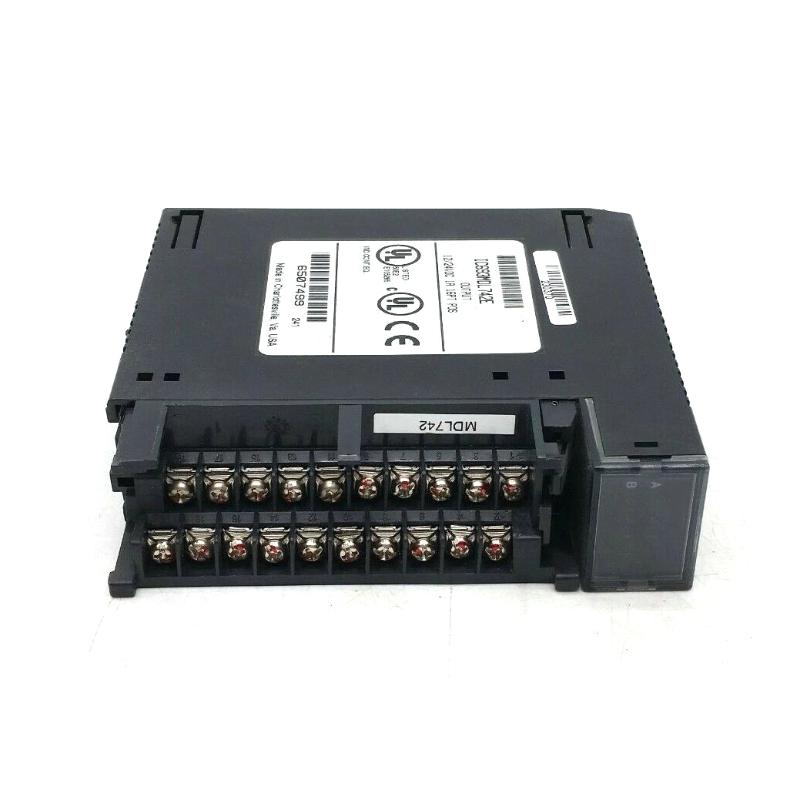

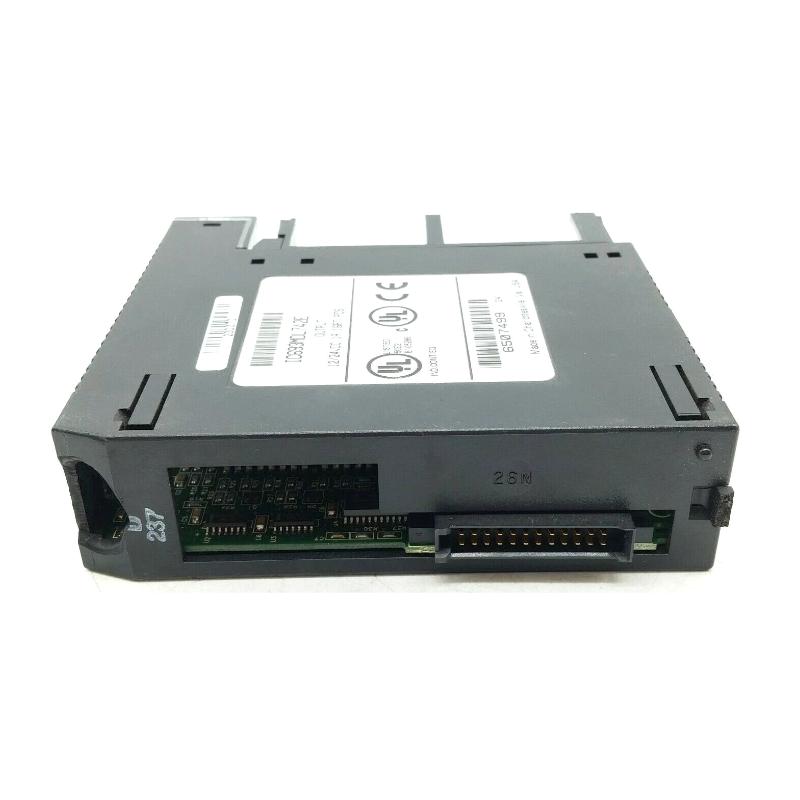

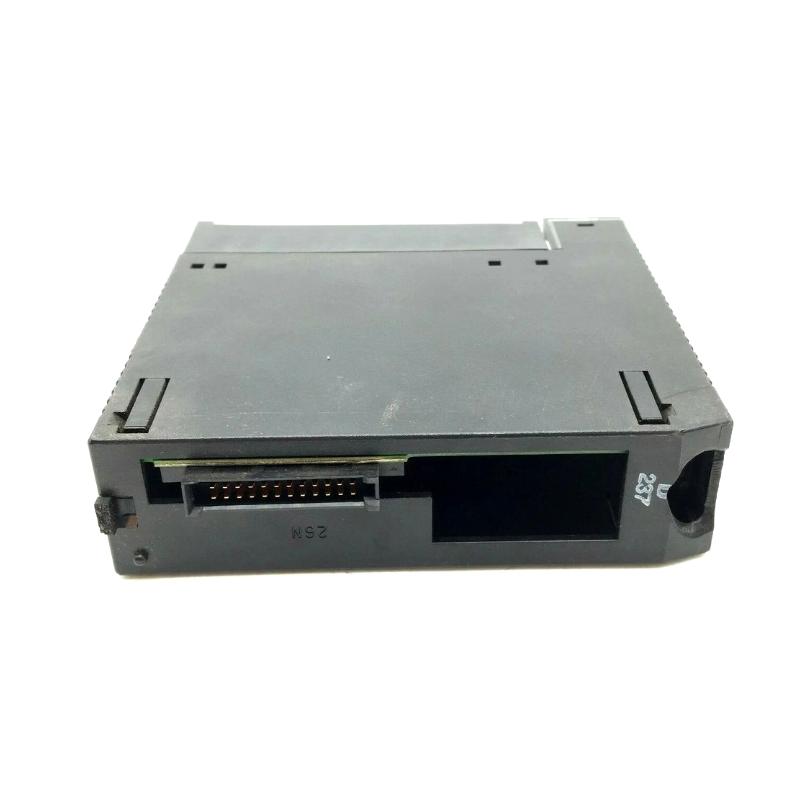

The GE IC693MDL742E Discrete Output Module is a robust Series 90-30 PLC component designed for industrial applications requiring reliable DC output control. Featuring 16 positive logic output channels, the module enables PLC systems to manage multiple actuators and control devices with consistent switching performance.
Built with integrated Electronic Short Circuit Protection, the IC693MDL742E offers enhanced protection for demanding automation environments where equipment reliability and reduced downtime are critical. Its higher current capability makes it particularly suitable for applications that require stronger output drive performance than conventional discrete modules.
With proven GE Series 90-30 compatibility, efficient output handling, and dependable protection features, the IC693MDL742E remains a practical solution for system maintenance, automation upgrades, and replacement projects involving established PLC installations.
Technical Specifications
Parameter
Details
Model
IC693MDL742E
Product Type
Discrete Output Module
Series
GE Series 90-30
Output Type
DC Voltage Output
Logic Type
Positive Logic
Number of Outputs
16 Points
Output Configuration
2 Groups × 8 Points
Rated Output Voltage
12/24 VDC
Output Voltage Range
12–24 VDC (+20%, -15%)
Output Current per Point
1 A Maximum
Maximum Group Current
4 A at 50°C / 3 A at 60°C
Output Protection
Electronic Short Circuit Protection (ESCP)
Output Voltage Drop
1.2 V Maximum
Off-State Leakage Current
1 mA Maximum
ON Response Time
2 ms Maximum
OFF Response Time
2 ms Maximum
Isolation
Field Side to Logic Isolation
Isolation Voltage
1500 VAC Field-to-Logic
Backplane Current Consumption
Approx. 130 mA
Mounting Type
Series 90-30 Rack Mounted
Dimensions
Approx. 38 × 135 × 127 mm
Weight
Approx. 0.3 kg
Recommended Companion Models
Model
Product Name
IC693PWR321S
Series 90-30 AC/DC Power Supply Module
IC693CPU374
Series 90-30 Ethernet CPU Module
IC693CMM321-BA
Series 90-30 Ethernet Communication Module
IC693MDL645G
Series 90-30 24 VDC Discrete Input Module
Frequently Selected Alternatives
Model
Product Name
IC693MDL754
Series 90-30 32-Point 12/24 VDC Positive Logic Output Module
IC693MDL753
Series 90-30 32-Point 12/24 VDC Output Module
IC693MDL752
Series 90-30 Relay Output Module
IC693MDL930
Series 90-30 8-Point Relay Output Module
Where It Excels in Industrial Use
• Designed for GE Series 90-30 PLC systems, the IC693MDL742E provides reliable 12/24 VDC positive logic output control for industrial automation applications requiring stable actuator switching and efficient machine control.
• Suitable for manufacturing machinery, packaging equipment, conveyor systems, material handling applications, and process automation environments where multiple DC loads must be controlled through a PLC platform.
• Ideal for driving industrial devices such as solenoid valves, relays, contactors, indicator lamps, and other DC-powered actuators that require dependable discrete output signals.
• Commonly applied in legacy GE Series 90-30 installations where high-current output capability, electronic short circuit protection, and long-term system stability are required.
Key Strengths at a Glance
• Provides 16 discrete DC output points with 12/24 VDC positive logic operation, allowing efficient control of multiple field devices from a single PLC module.
• Supports up to 1 A output current per point, making it suitable for applications involving higher-current DC loads compared with standard low-current output modules.
• Features integrated Electronic Short Circuit Protection (ESCP), helping protect individual output channels against short-circuit conditions and improving system durability.
• Provides fast switching performance with approximately 2 ms maximum ON and OFF response times, supporting responsive industrial control operations.
Technical FAQs
1. What type of module is the GE IC693MDL742E?
The GE IC693MDL742E is a 16-point 12/24 VDC positive logic discrete output module designed for GE Series 90-30 PLC systems.
2. How many output channels does the IC693MDL742E provide?
The module provides 16 discrete output points arranged in two groups of eight channels.
3. What output voltage does the IC693MDL742E support?
The module supports 12 VDC and 24 VDC output operation with a positive logic configuration.
4. What type of loads can be controlled by the IC693MDL742E?
The module can control DC devices such as solenoid valves, relays, contactors, lamps, and industrial actuators.
5. What is the maximum output current of the IC693MDL742E?
Each output point supports up to 1 A maximum current, with group current limitations based on operating conditions.
6. Does the IC693MDL742E include output protection?
Yes. The module includes Electronic Short Circuit Protection (ESCP) to improve output channel protection.
7. What is the response time of the IC693MDL742E?
The module provides a maximum ON response time of approximately 2 ms and a maximum OFF response time of approximately 2 ms.
8. How many output groups are available on the IC693MDL742E?
The module contains two output groups, with eight output points assigned to each group.
9. Which PLC platform is compatible with the IC693MDL742E?
The IC693MDL742E is designed for GE Series 90-30 PLC platforms.
10. What should be checked before replacing an IC693MDL742E?
Engineers should verify PLC rack compatibility, output voltage requirements, load current ratings, field wiring, and application configuration before installation.
