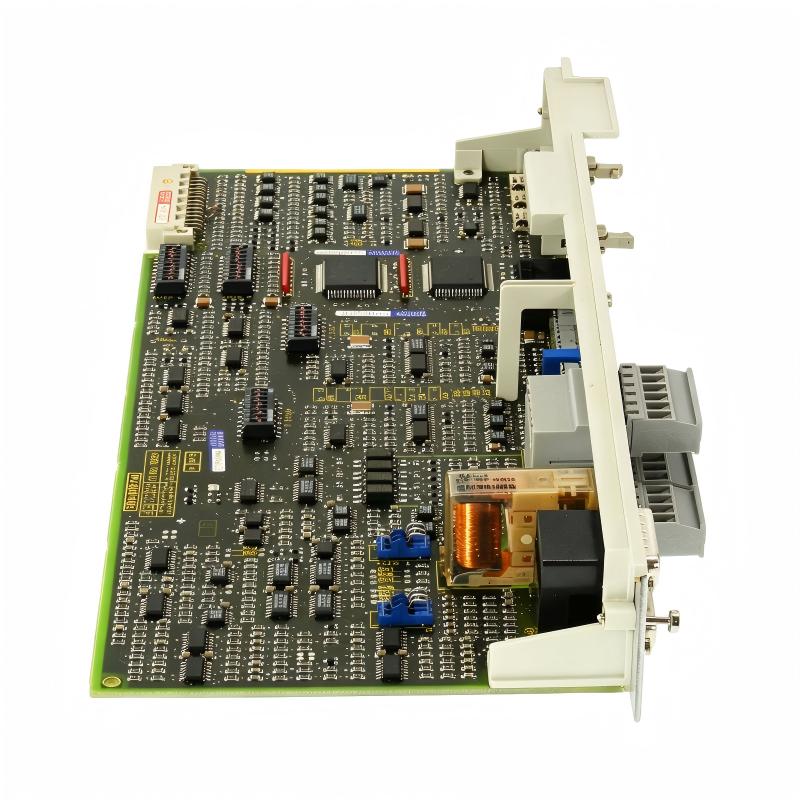

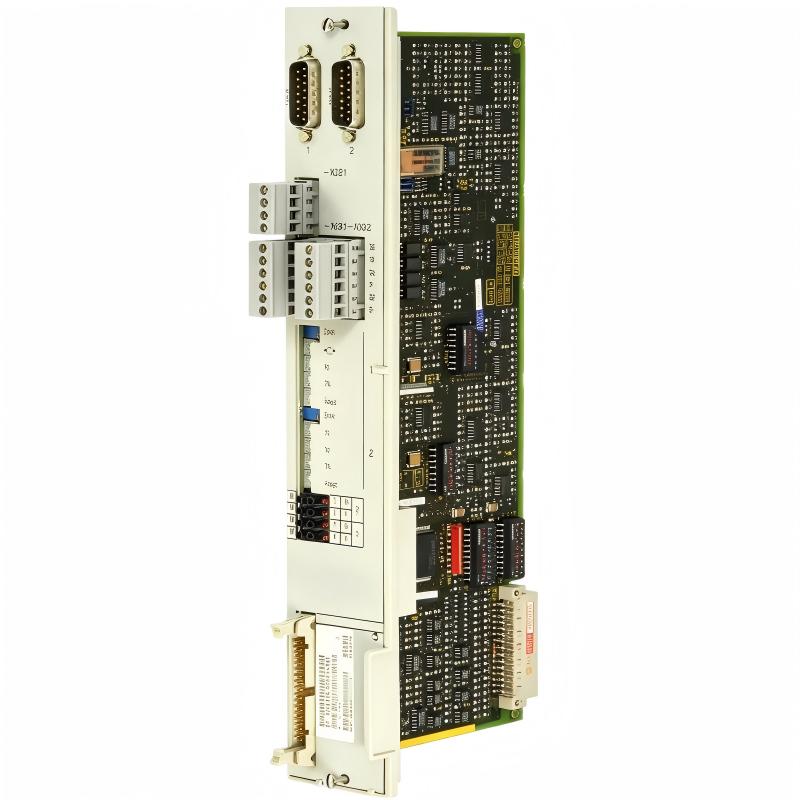

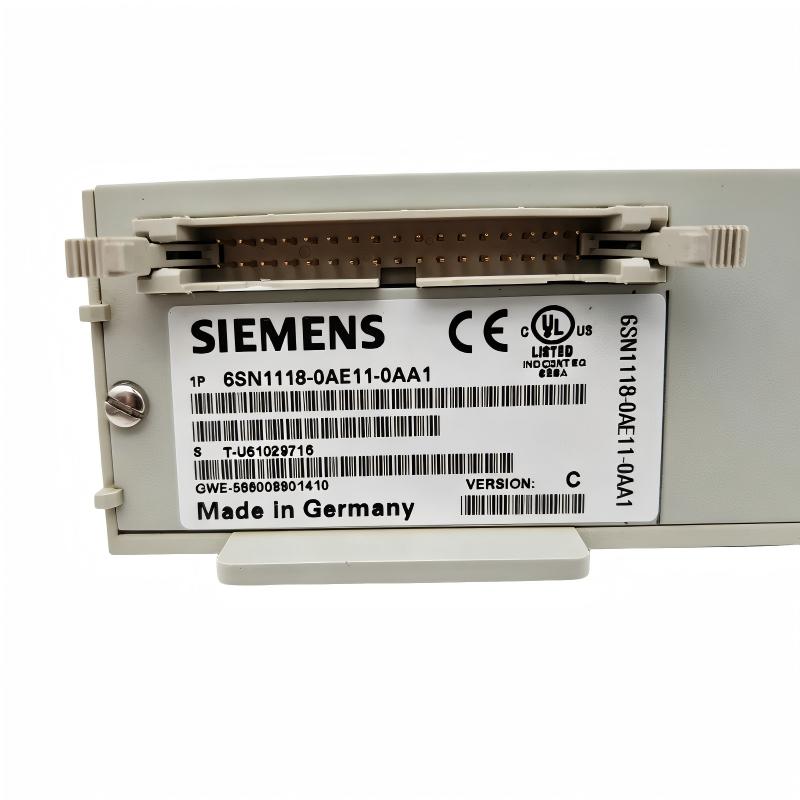

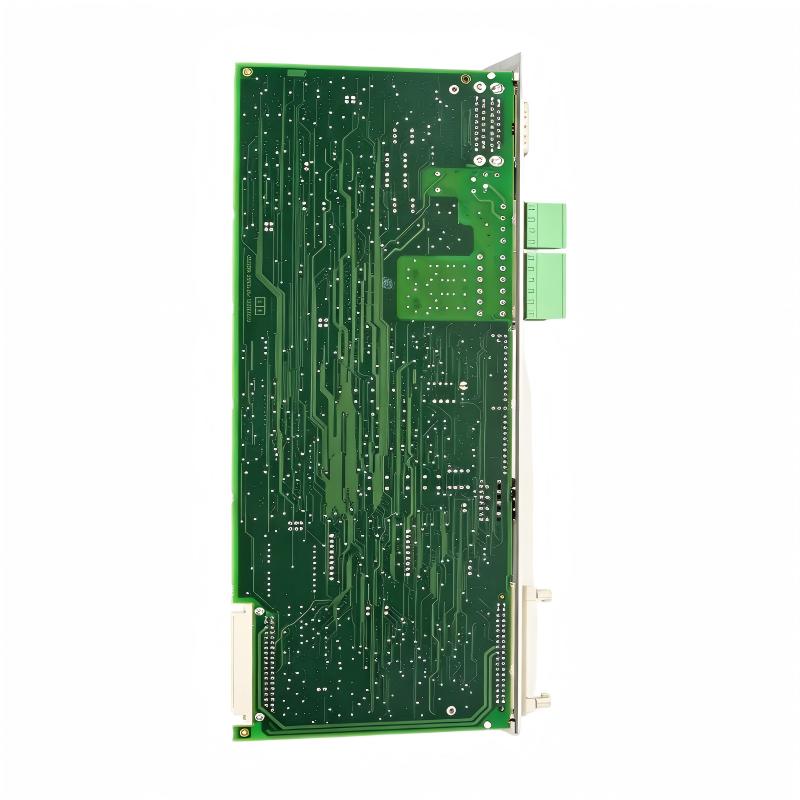

Siemens 6SN1118-0AE11-0AA1 Dual-Axis Closed-Loop Plug-In Control Unit
Siemens 6SN1118-0AE11-0AA1 Dual-Axis Closed-Loop Plug-In Control Unit
0.0
Points
Brand:Siemens Item No.:6SN1118-0AE11-0AA1 Product Origin:Germany Product Dimensions:320 x 130 x 50 mm Product Weight:0.57 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Siemens 6SN1118-0AE11-0AA1 Dual-Axis Closed-Loop Plug-In Control Unit is a professional motion control component designed for high-precision industrial automation applications. It provides accurate two-axis servo control and supports reliable operation in CNC equipment and advanced manufacturing systems.
Motion control accuracy is essential for modern industrial production. This Siemens control unit helps machines achieve stable movement, precise positioning, and consistent processing quality through effective closed-loop control technology.
The plug-in module design allows convenient integration into existing Siemens SIMODRIVE systems, making it a practical solution for machine maintenance, system upgrades, and automation equipment improvement.
With dependable performance, compact installation characteristics, and reliable control capability, the Siemens 6SN1118-0AE11-0AA1 Dual-Axis Closed-Loop Plug-In Control Unit is an ideal choice for industrial users requiring accurate and efficient motion control.
Technical Specifications
Parameter
Specification
Manufacturer
Siemens
Model
6SN1118-0AE11-0AA1
Product Type
Dual-Axis Closed-Loop Plug-In Control Unit
Series
SIMODRIVE 611
Control Function
Closed-Loop Servo Control
Axis Control
2 Axes
Application
CNC Machine Tools and Industrial Motion Systems
Dimensions
320 x 130 x 50 mm
Installation Type
Plug-In Control Module
Weight
0.57 kg (1.26 lb)
Recommended Related Models
Siemens 6SN1118-0AE11-0AA0 Dual-Axis Control Unit
Siemens 6SN1118-0AE11-0AA1 Closed-Loop Control Unit
Siemens 6SN1118 Series Motion Control Modules
Siemens SIMODRIVE 611 Drive Modules
Siemens SIMODRIVE Servo Control Components
Popular Related Models
Siemens SIMODRIVE 611 Series Modules
Siemens CNC Control Units
Siemens Servo Drive Control Components
Siemens Industrial Motion Control Modules
Siemens Automation System Components
Industrial Applications
The Siemens 6SN1118-0AE11-0AA1 Dual-Axis Closed-Loop Plug-In Control Unit is a precision motion control module designed for Siemens SIMODRIVE 611-A drive systems. It provides two-axis closed-loop control for feed drives and is engineered for industrial equipment requiring accurate positioning, stable servo performance, and reliable axis coordination.
This control unit is widely used in advanced automation applications:
CNC Machine Tool Applications
The module provides accurate control for CNC machining centers, milling machines, and precision processing equipment where stable axis movement is essential.
Servo Motion Control Systems
It supports two-axis servo control applications that require high positioning accuracy and consistent dynamic response.
Industrial Manufacturing Equipment
The unit helps automated production machinery achieve smooth movement control and improved operational efficiency.
Machine Upgrade and Maintenance Projects
It is suitable for replacing existing SIMODRIVE 611-A control components in legacy CNC and automation systems.
Precision Mechanical Processing Systems
The module helps maintain reliable feed drive operation for applications requiring repeatable and accurate movement.
The Siemens 6SN1118-0AE11-0AA1 Dual-Axis Closed-Loop Plug-In Control Unit is a dependable choice for maintaining high-performance motion control systems in industrial environments.
Key Advantages and Performance Benefits
Two-Axis Closed-Loop Control
The Siemens 6SN1118-0AE11-0AA1 provides independent control of two axes, enabling coordinated movement and improved machine accuracy.
High Motion Control Accuracy
The closed-loop design allows continuous feedback adjustment, helping maintain precise positioning and stable operation during machining processes.
Reliable SIMODRIVE Integration
Designed for SIMODRIVE 611-A systems, this control unit provides reliable compatibility with Siemens servo drive architectures.
Stable Feed Drive Performance
The module supports smooth servo operation, reducing positioning errors and improving overall machine performance.
Compact Plug-In Structure
The plug-in design allows convenient installation inside industrial drive systems and simplifies maintenance procedures.
Industrial Durability
Built for demanding automation environments, the control unit provides stable performance during long-term operation.
Improved Equipment Efficiency
Accurate axis management helps increase production quality, reduce downtime, and optimize automated manufacturing processes.
Technical FAQs
1. What is the Siemens 6SN1118-0AE11-0AA1 used for?
It is used as a two-axis closed-loop control unit for Siemens SIMODRIVE 611-A feed drive systems in CNC and industrial automation applications.
2. What is the main function of a closed-loop control unit?
A closed-loop control unit uses feedback signals to continuously adjust motor operation and improve positioning accuracy.
3. How many axes can this control unit manage?
The Siemens 6SN1118-0AE11-0AA1 is designed for two-axis motion control applications.
4. Which drive system is compatible with this module?
It is designed for Siemens SIMODRIVE 611-A drive systems.
5. What types of machines commonly use this control unit?
It is commonly used in CNC machines, machining centers, industrial processing equipment, and automated production systems.
6. What are common causes of control unit failures?
Typical causes include incorrect parameter settings, wiring faults, unstable power supply, feedback errors, and communication problems.
7. How can motion control accuracy be improved?
Correct parameter configuration, proper feedback connections, and regular system maintenance help improve motion accuracy.
8. What should be checked before replacing this control unit?
The drive system model, axis configuration, interface type, wiring, and machine parameters should be verified.
9. Why is feedback control important in CNC applications?
Feedback control allows the system to detect position deviations and make corrections automatically for better machining accuracy.
10. What maintenance is recommended for Siemens SIMODRIVE control units?
Regular inspection of electrical connections, cooling conditions, system parameters, and diagnostic information is recommended.
