Brand:Schneider PLC Item No.:STBXTS6510 Product Origin:France Product Dimensions:128 × 58 × 12 mm Product Weight:0.454 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

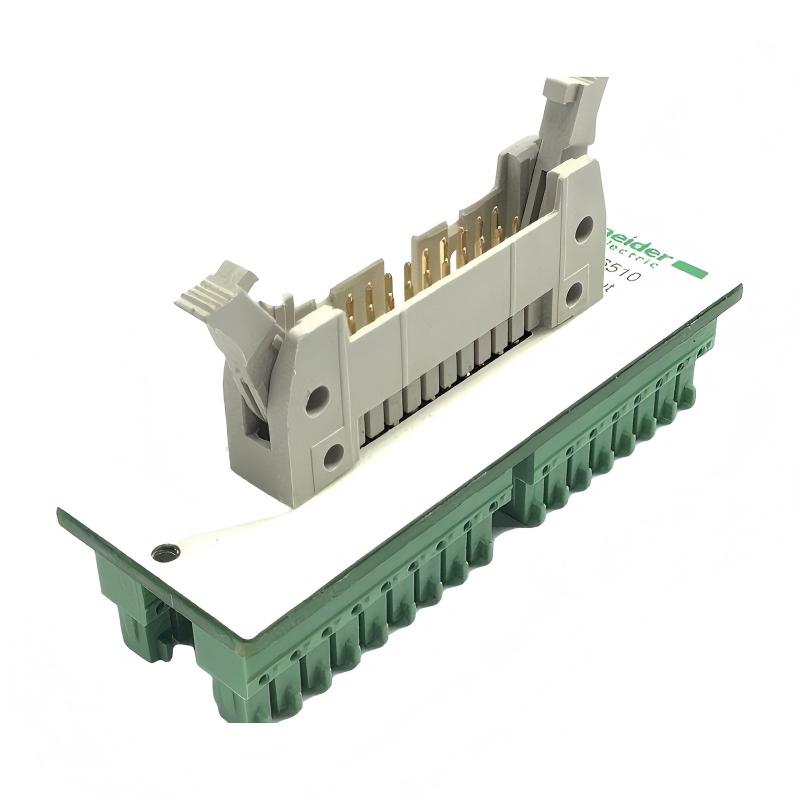

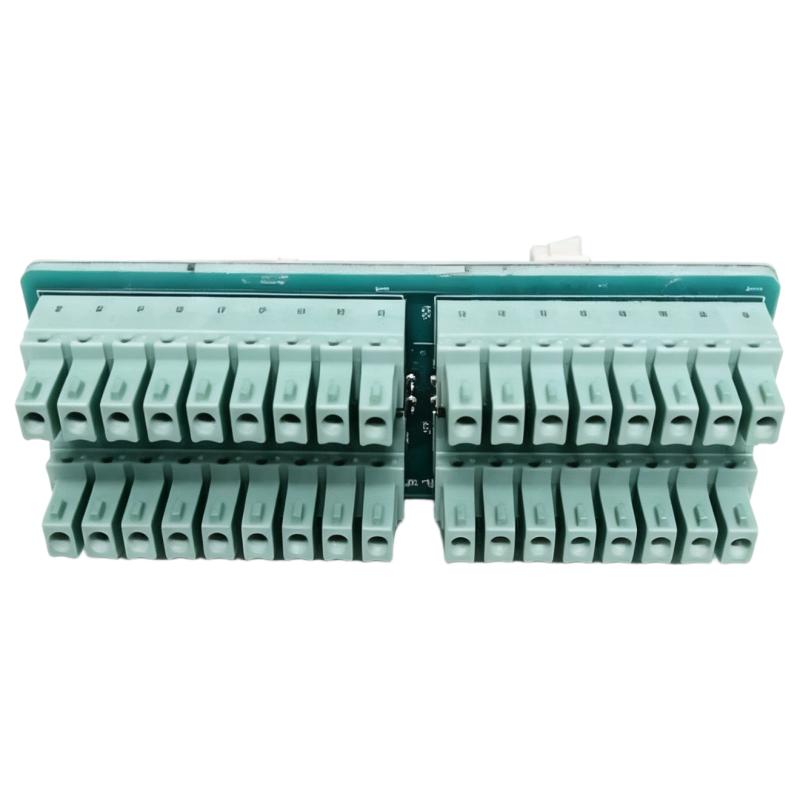

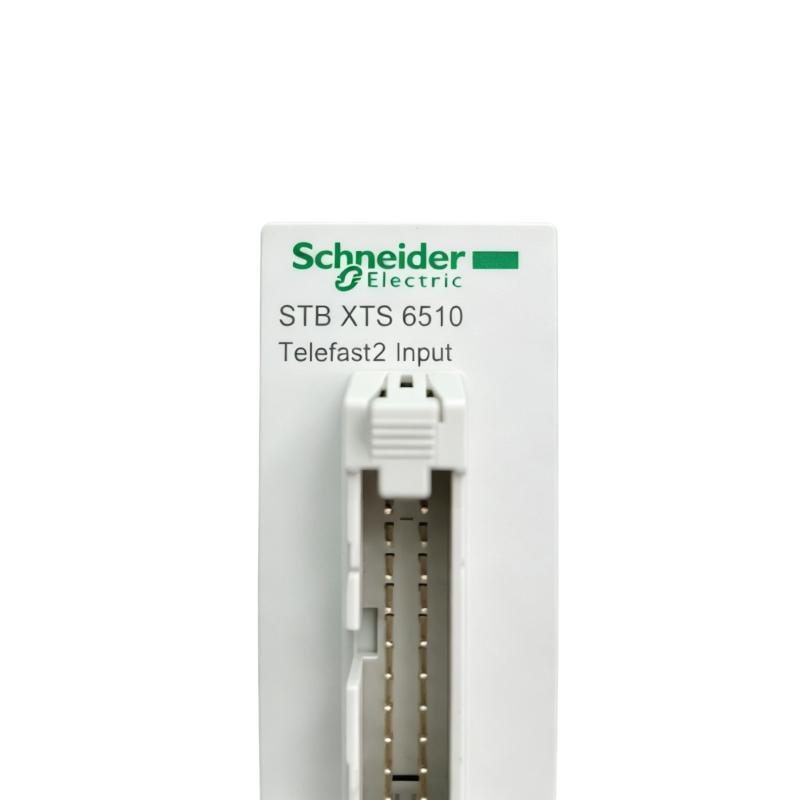

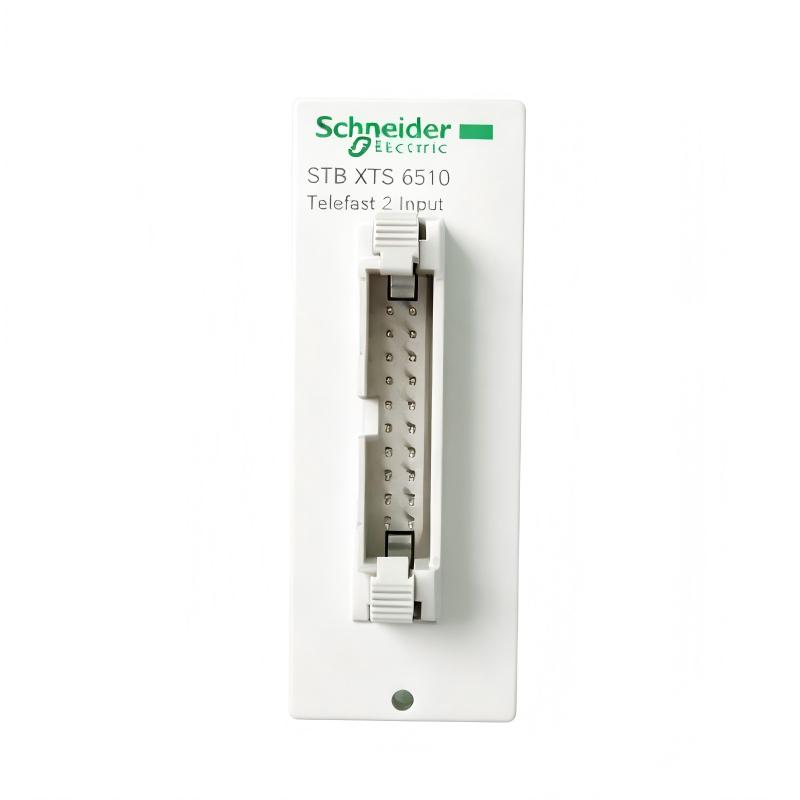

Schneider STBXTS6510 Connector is an important connection accessory for Modicon STB distributed I/O systems. It provides a reliable interface solution for connecting automation modules with external wiring structures, helping engineers build efficient and maintainable industrial control systems.
In modern manufacturing environments, reliable field signal connections are essential for maintaining stable automation performance. Poor wiring structures can increase installation time and make troubleshooting more difficult. The STBXTS6510 helps overcome these challenges by providing a standardized connection method for Modicon STB applications.
The connector is suitable for industrial automation projects where compact design, reliable signal transmission, and easy maintenance are required. It supports modular system architectures and helps simplify electrical installation processes for machine builders and automation professionals.
Schneider STBXTS6510 features dimensions of 128 × 58 × 12 mm and a weight of 0.454 kg (1.00 lb). Its compact structure allows convenient installation in automation cabinets while maintaining reliable connection performance.
With stable electrical connection capability, practical installation advantages, and strong compatibility with Modicon STB systems, Schneider STBXTS6510 Connector is an effective choice for industrial automation wiring solutions, distributed I/O applications, and control system integration.
Technical Specifications
Parameter
Specification
Brand
Schneider Electric
Model Number
STBXTS6510
Product Type
Connector
Product Series
Modicon STB
Accessory Type
I/O Connection Accessory
Connection Function
Signal Interface Connection
Compatible System
Modicon STB Distributed I/O System
Connector Design
Plug-In Connection
Application
Industrial Automation Wiring
Installation Method
Direct Module Connection
Protection Rating
IP20
Dimensions
128 × 58 × 12 mm
Weight
0.454 kg (1.00 lb)
Recommended Related Models
Model
Product Type
Description
Schneider STBDDI3725
Digital Input Module
16-channel digital input module for STB systems
Schneider STBXTS6610
Connector
STB I/O connection accessory
Schneider STBXBE1300K
Internal Bus Expansion Kit
STB internal bus extension component
Schneider STBNIP2311
Network Interface Module
Ethernet Modbus TCP/IP communication module
Schneider STBNFP2212
Network Interface Module
FIPIO communication interface module
Popular Related Models
Model
Module Type
Application
Schneider Modicon STB Series
Distributed I/O System
Modular remote I/O automation
Schneider Modicon M340
PLC Controller
Medium-scale industrial control
Schneider Modicon M580
PLC Controller
Advanced automation systems
Schneider Premium Series
PLC Controller
Industrial automation applications
Schneider Advantys STB Series
Distributed I/O Platform
Flexible machine automation solutions
Applications
Schneider STBXTS6510 Connector is a dedicated connection accessory designed for Modicon STB distributed I/O systems. It provides a reliable interface between compatible I/O modules and external wiring systems, helping automation engineers achieve efficient signal connection and organized control cabinet layouts.
Typical application areas include:
Industrial automation systems
Machine manufacturing equipment
Packaging and assembly machines
Factory production lines
Sensor signal connection applications
Electrical control cabinets
Distributed I/O solutions
Automation system integration projects
The Schneider STBXTS6510 Connector is mainly used to simplify the connection between Modicon STB digital input modules and external field wiring systems. It helps reduce complicated wiring operations, improve installation efficiency, and create cleaner automation system structures.
For machine builders and system integrators, this connector provides a practical connection solution that improves reliability while supporting modular automation designs.
Advantages
Schneider STBXTS6510 Connector combines reliable electrical connection performance, flexible installation capability, and industrial durability for Modicon STB automation systems.
Reliable Signal Transmission
The STBXTS6510 provides a stable connection interface, helping ensure accurate signal transmission between field devices and I/O modules.
Optimized Wiring Integration
The connector simplifies the connection process between control modules and external wiring systems, reducing installation complexity.
Designed for Modicon STB Applications
The STBXTS6510 is developed for use with compatible Modicon STB components, providing excellent system compatibility.
Easy Installation and Maintenance
The plug-in connection design allows quick installation, replacement, and inspection during system maintenance.
Improved Cabinet Organization
By providing a structured connection method, the connector helps create cleaner and more efficient control panel layouts.
Long-Term Industrial Reliability
The robust design supports stable operation in demanding industrial automation environments.
Technical FAQs
Q1: What is the main function of Schneider STBXTS6510?
A: STBXTS6510 provides a connection interface between compatible Modicon STB I/O modules and external wiring systems.
Q2: Which type of application uses STBXTS6510?
A: It is mainly used in Modicon STB distributed I/O systems requiring simplified field wiring connections.
Q3: Why does the connected I/O signal fail after installing STBXTS6510?
A: Possible causes include incorrect wiring, poor connector contact, improper installation, or problems with the connected I/O module.
Q4: What should be checked when signal transmission becomes unstable?
A: Check connector seating, cable connections, field wiring conditions, and I/O module operating status.
Q5: Does STBXTS6510 require software configuration?
A: No, the connector itself does not require software configuration, but the complete automation system must be correctly configured.
Q6: What causes connector contact failure?
A: Common causes include loose installation, damaged contacts, contamination, mechanical stress, or incorrect wiring.
Q7: Can STBXTS6510 be reused after removal?
A: Reuse depends on the physical condition of the connector and the requirements of the specific application.
Q8: How can connection reliability be improved?
A: Use correct installation procedures, ensure proper cable connection, avoid mechanical stress, and perform regular inspections.
Q9: Can STBXTS6510 be used with non-compatible modules?
A: It should only be used with compatible Modicon STB components to ensure correct electrical connection and system operation.
Q10: What should be confirmed before installing STBXTS6510?
A: Confirm module compatibility, wiring requirements, installation environment, and system connection design.
