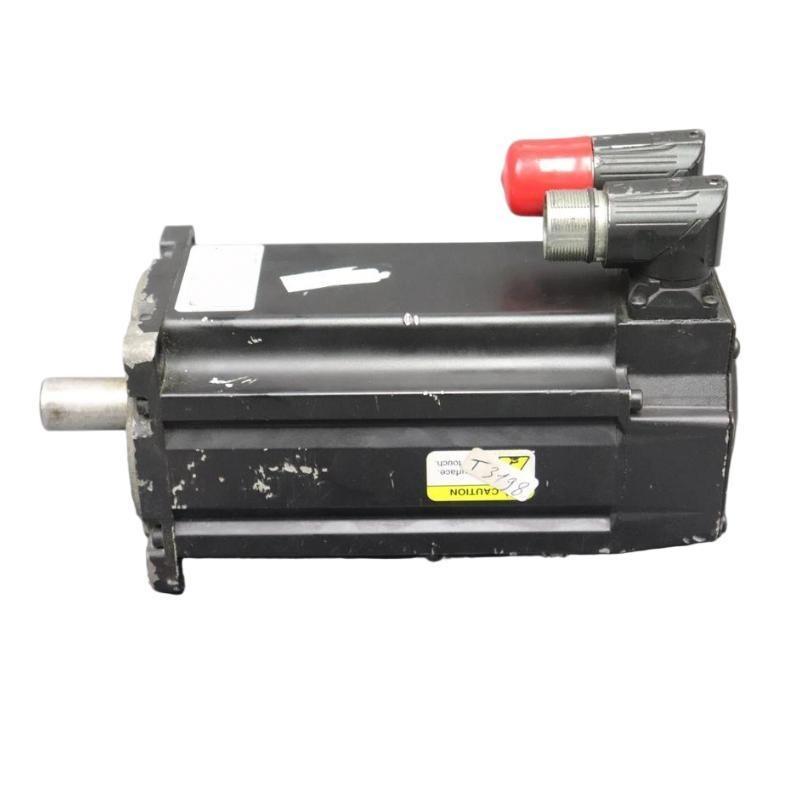

Allen Bradley MPL-A420P-HK74AA Servo Motor

Applications

The Allen-Bradley MPL-A420P-HK74AA is a high-performance Allen-Bradley MP-Series low-inertia servo motor designed for motion-control applications where fast response, repeatable positioning, and controlled acceleration are important. Its compact 115 mm frame makes it suitable for machinery where installation space is limited without sacrificing the dynamic performance expected from an industrial servo system.

This servo motor can be used in packaging machinery, material handling, printing equipment, converting machinery, assembly systems, machine tools, pick-and-place equipment, and other automated production equipment requiring coordinated motion.

Low-inertia servo motors are particularly valuable in applications involving frequent starts, stops, direction changes, and rapid positioning. The reduced rotor inertia allows the motor and servo drive to respond quickly to changing commands, helping machine builders achieve shorter motion cycles and improved productivity.

The MPL-A420P-HK74AA is also a practical option for existing Allen-Bradley motion-control installations. When replacing a worn or failed MP-Series motor, retaining the appropriate motor family can simplify mechanical integration and help preserve the established motion-control architecture.

For OEMs and automation integrators, the motor is well suited to systems where precise electronic motion control is preferred over conventional induction-motor arrangements. Correct motor-drive matching remains essential, particularly for feedback, voltage, current, shaft configuration, and mechanical mounting.

Advantages

Low-inertia servo design

The MP-Series low-inertia architecture is well suited to dynamic applications where rapid acceleration and deceleration are required. Lower rotor inertia allows the motion system to respond quickly to changes in commanded speed and position.

115 mm frame size

The 115 mm frame provides a useful balance between motor capacity and machine integration. It can be installed in equipment where available mounting space is an important design consideration.

Designed for precision motion

Servo control provides closed-loop control of motor position, velocity, and torque when the motor is paired with a compatible servo drive and feedback system. This makes the motor suitable for automated machinery requiring repeatable movement.

Fast dynamic response

The motor's low-inertia characteristics can help reduce settling time in applications involving frequent positioning cycles. This can be especially beneficial for pick-and-place and indexing machinery.

Allen-Bradley motion-system compatibility

The MPL-A420P-HK74AA belongs to the Allen-Bradley MP-Series servo family, making it a natural choice for compatible Allen-Bradley motion-control installations.

Suitable for demanding machine cycles

Repeated acceleration, deceleration, and reversing are common in automated machinery. A properly matched servo motor can handle these dynamic cycles more effectively than many conventional motor-control solutions.

Compact machine integration

The relatively compact motor format helps OEMs optimize machine layouts while retaining the advantages of servo-based motion control.

Useful for replacement and refurbishment

For plants maintaining existing MP-Series motion systems, sourcing the exact motor catalog number can provide a straightforward path to restoring machine performance without redesigning the complete mechanical and control system.

Technical FAQs

1. What type of motor is the MPL-A420P-HK74AA?

The MPL-A420P-HK74AA is an Allen-Bradley MP-Series low-inertia servo motor designed for closed-loop industrial motion-control applications.

2. Why is low rotor inertia important in servo applications?

Lower rotor inertia allows the motor to accelerate and decelerate more rapidly when controlled by a suitable servo drive. This can improve positioning response and reduce the time required for repetitive motion cycles.

3. Can this motor operate without a servo drive?

A servo motor should be operated with a compatible servo drive and appropriate feedback interface. The drive supplies controlled power and uses feedback information to regulate motor operation.

4. What type of feedback is used by the motor?

The exact feedback arrangement should be confirmed from the complete motor configuration and the associated drive system. Feedback compatibility is essential because the servo drive relies on feedback signals for accurate closed-loop control.

5. What should be checked when replacing an MPL-Series servo motor?

The complete catalog number, frame size, winding characteristics, feedback configuration, shaft and mounting arrangement, connector configuration, brake requirements, and compatible servo drive should all be checked before replacement.

6. Can the motor be used for frequent start-stop operation?

Yes. Servo motors are specifically intended for dynamic motion applications involving frequent acceleration and deceleration. The actual duty cycle should remain within the motor's thermal and mechanical limits.

7. How should the motor be matched with a servo drive?

The motor's voltage, current, feedback, speed, torque, and thermal characteristics should be matched with the drive. The drive must also support the specific feedback technology and motor family.

8. What can cause servo motor position errors?

Potential causes include incorrect feedback wiring, encoder or feedback-device problems, mechanical backlash, excessive load, incorrect tuning, improper scaling, or communication problems between the motion controller and servo drive.

9. What should be checked if the motor vibrates during operation?

Check motor tuning, feedback signals, mechanical coupling, load inertia, acceleration settings, bearing condition, and the mechanical alignment between the motor and driven equipment. Servo-loop instability can also produce vibration and should be investigated through the drive's diagnostic parameters.

10. Why is the exact servo motor model important for replacement?

Servo motors with similar frame sizes can have different winding characteristics, feedback devices, shaft dimensions, connectors, brakes, and performance ratings. Matching the complete catalog number helps ensure that the replacement motor works correctly with the existing motion-control system.
