Brand:Honeywell DCS Item No.:05704-A-0145 Product Origin:USA Product Dimensions:150 x 25 x 100 mm Product Weight:0.141 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Product Introduction and Industrial Safety Monitoring Overview

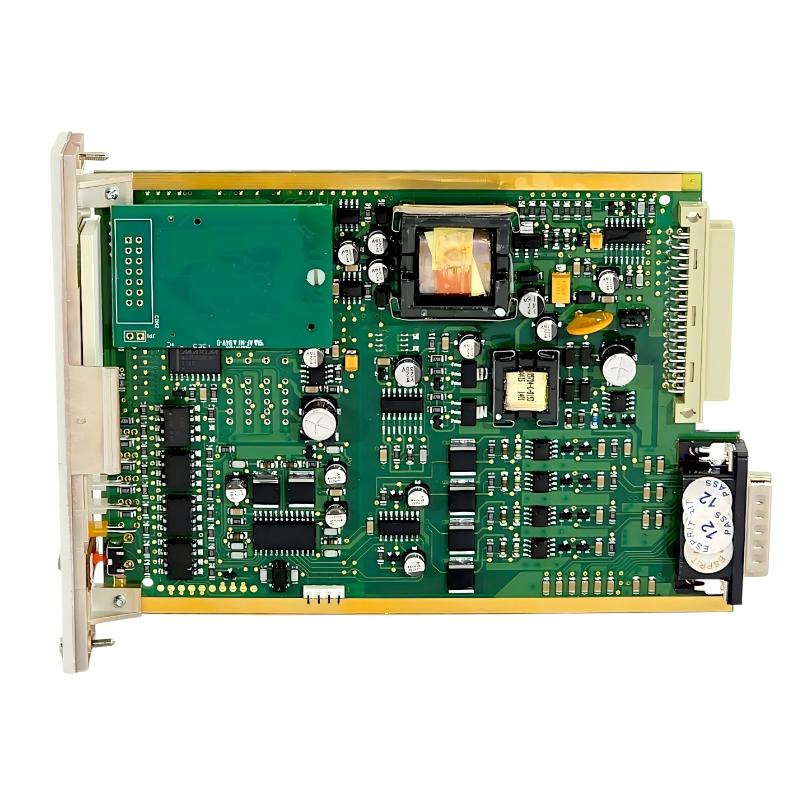

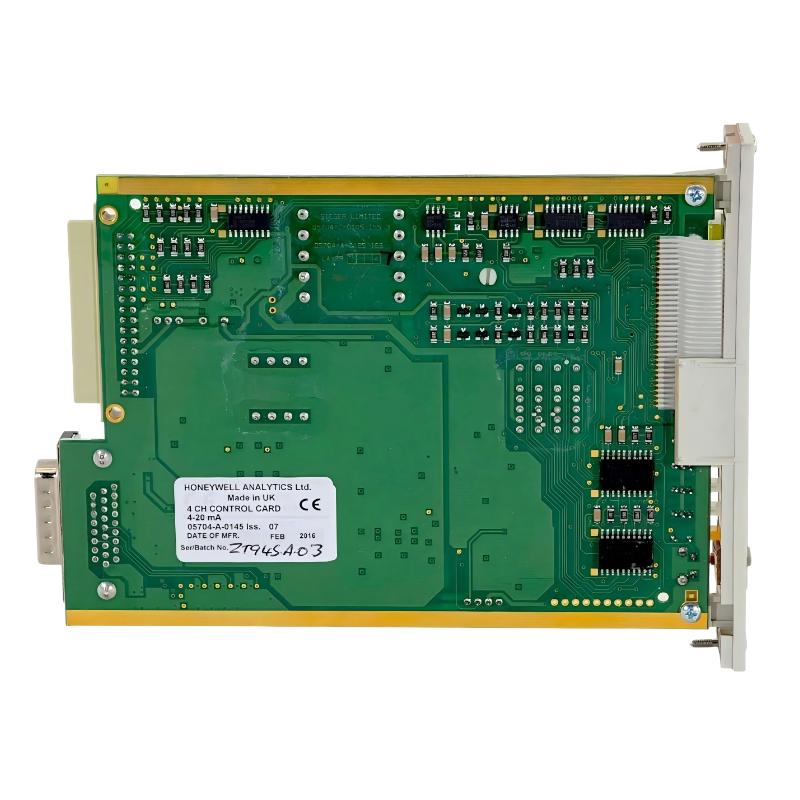

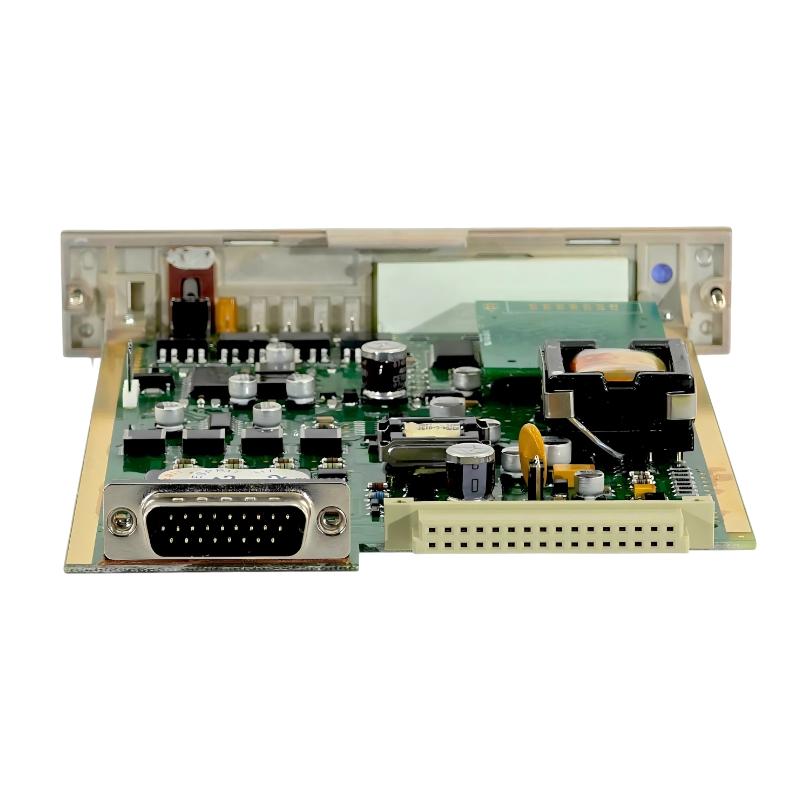

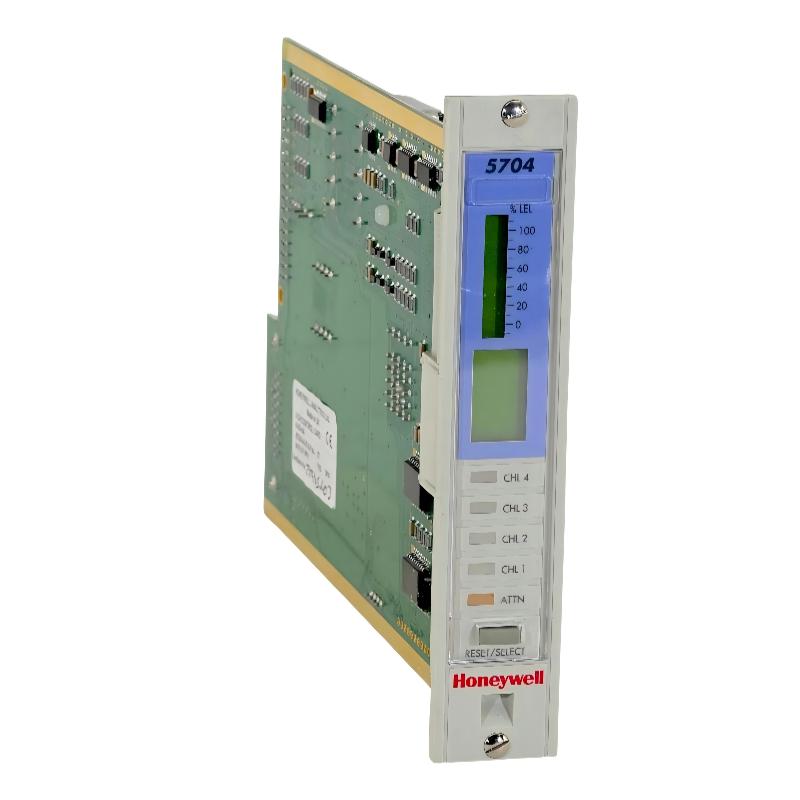

The Honeywell 05704-A-0145 Four Channel Control Card is an advanced industrial safety component designed to support reliable gas detection and monitoring operations. It acts as an important interface between field gas detectors and the safety control system, ensuring accurate signal collection and alarm processing.
In industrial environments where gas leaks can create serious safety risks, continuous monitoring is essential for protecting personnel, equipment, and production facilities. A reliable control card helps transform detector signals into meaningful safety information, allowing operators to respond quickly to abnormal conditions.
The 05704-A-0145 is designed with a compact structure and stable electronic performance, making it suitable for integration into industrial safety systems. It supports efficient monitoring of multiple detection points and helps maintain dependable operation in demanding environments.
For industries such as oil and gas, chemical processing, and manufacturing, maintaining reliable gas detection equipment is a key part of safety management. The Honeywell 05704-A-0145 provides a practical replacement and maintenance solution for facilities seeking stable performance and long-term system reliability.
Technical Specifications
Parameter
Description
Manufacturer
Honeywell
Model Number
05704-A-0145
Product Type
Four Channel Control Card
System Application
Industrial Gas Detection System
Channel Quantity
4 Channels
Input Signal
Analog Gas Detector Signal Input
Function
Signal Processing, Alarm Monitoring, Safety Control
Installation Method
Control Rack / Card Mount Installation
Design Type
Industrial Electronic Control Module
Application
Gas Detection and Safety Monitoring
Dimensions
150 × 25 × 100 mm
Weight
0.141 kg (0.31 lb)
Application Environment
Industrial Safety and Process Monitoring Systems
Recommended Related Models
Model
Product Type
Honeywell 05704-A-0145
Four Channel Control Card
Honeywell 05704-A-0144
Four Channel Control Card
Honeywell 05701-A-0301
Engineering Card
Honeywell 05701-A-0501
Relay Output Module
Honeywell System 57
Gas Detection Control System
Popular Related Models
Model
Product Type
Honeywell 900CR15-00
HC900 Control Station
Honeywell 900C30-0460
HC900 Controller
Honeywell 900H01-0101
Power Supply Module
Honeywell 900A16-0001
Analog Input Module
Honeywell 900B01-0001
Digital Input Module
Honeywell 8C-PAIH51
Analog Input Module
Honeywell 8C-PDODA1
Digital Output Module
Honeywell 8C-TAIX51
Universal Input Module
The Honeywell 05704-A-0145 Four Channel Control Card is a reliable industrial safety monitoring solution designed for gas detection applications. With multi-channel monitoring capability, stable signal processing, and efficient alarm management, it helps industrial facilities improve safety performance and maintain reliable operation in critical environments.
Applications
The Honeywell 05704-A-0145 Four Channel Control Card is a professional industrial safety control module designed for gas detection and monitoring systems. It provides multi-channel signal processing, alarm management, and control functions for connected gas detection devices, helping industrial facilities achieve continuous monitoring and rapid response to hazardous conditions.
Designed for Honeywell System 57 gas monitoring applications, the 05704-A-0145 supports reliable operation in environments where combustible gas, toxic gas, and process safety monitoring are critical. Its compact card structure allows integration into industrial safety cabinets while maintaining efficient monitoring performance.
Typical application areas include:
Industry
Application
Oil & Gas
Gas leak detection, refinery safety monitoring, and emergency alarm systems
Petrochemical
Hazardous gas monitoring and process safety protection
Chemical Industry
Toxic gas detection and industrial safety management
Power Generation
Equipment area monitoring and plant safety systems
Manufacturing
Production area gas monitoring and worker protection systems
The Honeywell 05704-A-0145 Four Channel Control Card provides a dependable solution for industries requiring accurate gas signal processing, reliable alarm response, and continuous safety system operation.
Safety Control Advantages and Industrial Benefits
Four-Channel Monitoring Capability
The Honeywell 05704-A-0145 supports multiple detection channels, allowing industrial facilities to monitor several gas detection points through one control module and improve system efficiency.
Reliable Signal Processing Performance
The control card processes detector signals accurately, helping operators identify gas concentration changes and abnormal conditions quickly.
Enhanced Alarm Management
The module supports alarm monitoring functions that help improve emergency response efficiency and provide operators with important safety information.
Compact Industrial Design
The compact card structure allows easy integration into existing safety monitoring systems while reducing installation space requirements.
Improved Safety System Reliability
Continuous monitoring capability helps industrial plants detect potential hazards early and reduce operational risks.
Easy System Maintenance
The modular design simplifies replacement, inspection, and troubleshooting activities, helping reduce maintenance time and improve system availability.
Technical FAQs
Q1: What is the main function of the Honeywell 05704-A-0145?
A: The 05704-A-0145 is a four-channel control card used for processing gas detector signals and managing safety monitoring functions.
Q2: What type of applications use this control card?
A: It is mainly used in industrial gas detection systems for monitoring combustible gases and toxic gases.
Q3: Why are multi-channel control cards important in safety systems?
A: Multi-channel capability allows multiple detection points to be monitored efficiently while reducing system complexity.
Q4: What problems can occur if the control card fails?
A: Possible issues include loss of gas monitoring signals, incorrect alarm information, or reduced safety system availability.
Q5: How can technicians troubleshoot channel signal problems?
A: Check detector wiring, input signals, power supply status, module indicators, and system configuration settings.
Q6: What causes inaccurate gas monitoring results?
A: Possible causes include detector faults, wiring issues, incorrect calibration, environmental interference, or module problems.
Q7: How often should a gas monitoring control module be inspected?
A: Inspection frequency depends on operating conditions, safety requirements, and facility maintenance procedures.
Q8: Can the 05704-A-0145 improve industrial safety?
A: Yes, reliable signal processing and alarm handling help operators identify hazardous conditions earlier.
Q9: What should be checked before replacing this control card?
A: Confirm the model number, system compatibility, wiring configuration, and application requirements.
Q10: Why is reliable signal processing important in gas detection systems?
A: Accurate signal processing ensures that alarm decisions are based on correct field detection information.
