Brand:GE Fanuc PLC Item No.:IC693MDL330F Product Origin:USA Product Dimensions:142 x 30 x 130 mm Product Weight:0.35 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Product Introduction and Industrial Output Control Overview

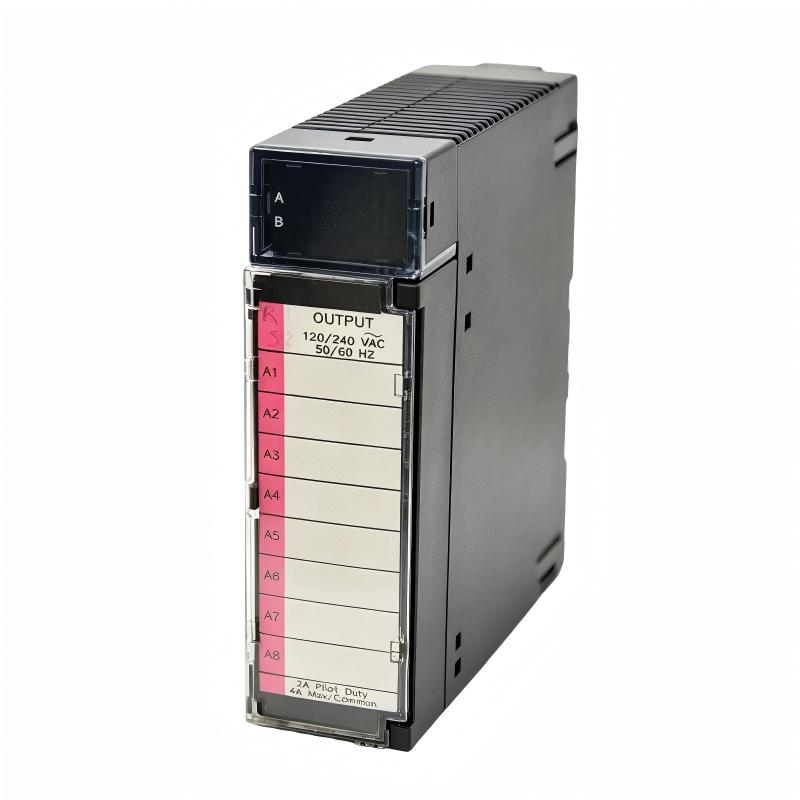

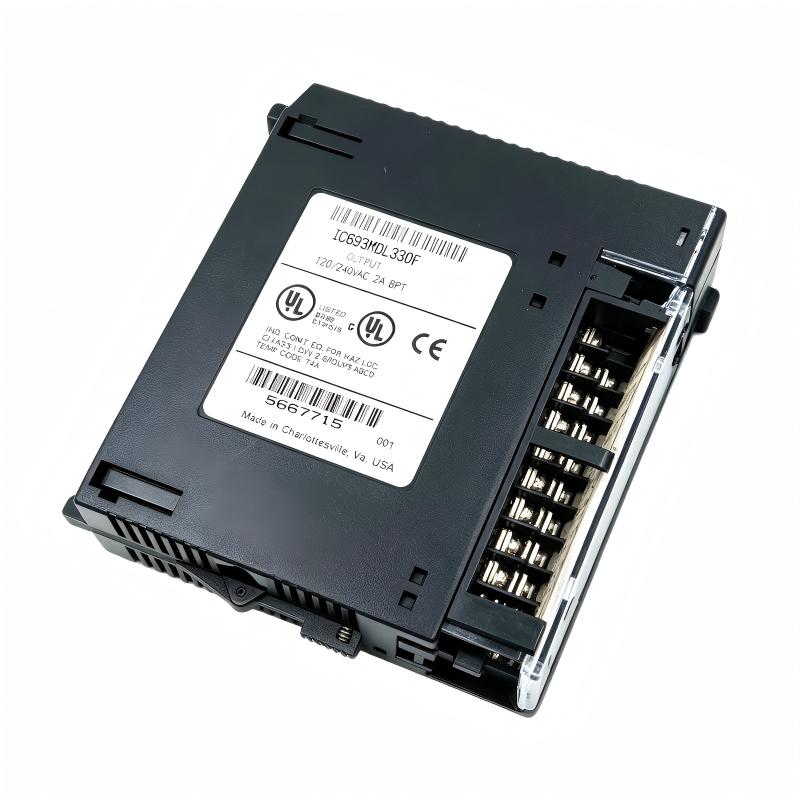

The GE IC693MDL330F Output Module is an industrial automation component designed to provide dependable output control for GE Series 90-30 PLC systems. It acts as the interface between PLC processing logic and external field equipment, converting digital commands into physical machine actions.
In modern industrial automation, output modules play an essential role in controlling equipment movement, process operations, and production sequences. A reliable output module ensures that commands from the PLC are executed accurately, helping maintain stable and efficient operation.
The IC693MDL330F features a compact modular structure, 8-point AC output capability, and efficient rack installation design. It is suitable for applications where reliable switching, easy maintenance, and long-term system stability are required.
For companies maintaining GE Series 90-30 PLC platforms, the IC693MDL330F provides a practical replacement and expansion solution. It helps improve equipment reliability, simplify maintenance operations, and support continuous industrial production.
Technical Specifications
Parameter
Description
Manufacturer
GE
Model Number
IC693MDL330F
Product Type
Output Module
PLC Platform
GE Series 90-30
Output Type
Discrete AC Output
Number of Outputs
8 Points
Output Voltage
120/240 VAC
Output Configuration
Two Output Groups
Function
PLC Digital Output Control
Status Indication
LED Output Indicators
Installation Method
Series 90-30 Rack Installation
Dimensions
142 × 30 × 130 mm
Weight
0.35 kg (0.77 lb)
Application Environment
Industrial PLC Automation Systems
Recommended Related Models
Model
Product Type
GE IC693MDL330F
Output Module
GE IC693MDL340
Relay Output Module
GE IC693MDL750
Discrete Output Module
GE IC693MDL645
Discrete Input Module
GE IC693PWR321
Power Supply Module
Popular Related Models
Model
Product Type
GE IC693CPU331
Series 90-30 CPU Module
GE IC693CPU374
Ethernet CPU Module
GE IC693MDL640
Discrete Input Module
GE IC693MDL653
Discrete Input Module
GE IC693ALG223
Analog Input Module
GE IC693ALG392
Analog Output Module
GE IC693CMM311
Communication Module
GE IC693CHS397
Baseplate Module
The GE IC693MDL330F Output Module is a dependable PLC output solution designed for industrial automation systems requiring accurate equipment control and stable operation. With 8 AC output channels, flexible system integration, and reliable switching performance, it supports efficient automation applications across manufacturing, process control, and industrial machinery environments.
Applications
The GE IC693MDL330F Output Module is a reliable industrial PLC output component designed for GE Series 90-30 automation systems. It provides stable control signals from the PLC to external field devices, allowing automated equipment such as motors, contactors, solenoids, valves, and actuators to operate according to programmed logic.
Designed for industrial environments requiring dependable switching performance, the IC693MDL330F helps bridge the connection between PLC control programs and physical equipment. Its modular design allows convenient integration into existing Series 90-30 PLC systems, making it suitable for machine automation, process control, and production equipment applications.
Typical application areas include:
Industry
Application
Manufacturing
Machine operation control, actuator switching, and production automation
Automotive
Assembly equipment control and automated process management
Packaging Industry
Conveyor systems, motor control, and equipment sequencing
Process Automation
Valve, pump, and auxiliary equipment control
Energy Industry
Electrical equipment switching and industrial control applications
The GE IC693MDL330F Output Module provides an effective solution for automation systems requiring accurate output control, reliable switching operation, and long-term industrial performance.
Output Control Advantages and Industrial Benefits
8-Point AC Output Capability
The GE IC693MDL330F provides 8 discrete AC output channels, enabling multiple industrial devices to be controlled from a single PLC module and improving system flexibility.
Reliable Electrical Load Control
The module is designed for controlling AC-powered field devices, providing stable switching performance for industrial equipment and automation processes.
Flexible Output Group Configuration
The output structure supports practical wiring arrangements, allowing engineers to design efficient electrical connections according to application requirements.
Stable PLC Communication
The module works seamlessly with GE Series 90-30 PLC systems, ensuring reliable communication between control logic and field equipment.
Clear LED Status Indication
Built-in LED indicators allow maintenance personnel to quickly identify output conditions during installation, commissioning, and troubleshooting.
Compact Modular Installation
The compact design helps reduce control cabinet space requirements while maintaining reliable industrial output performance.
