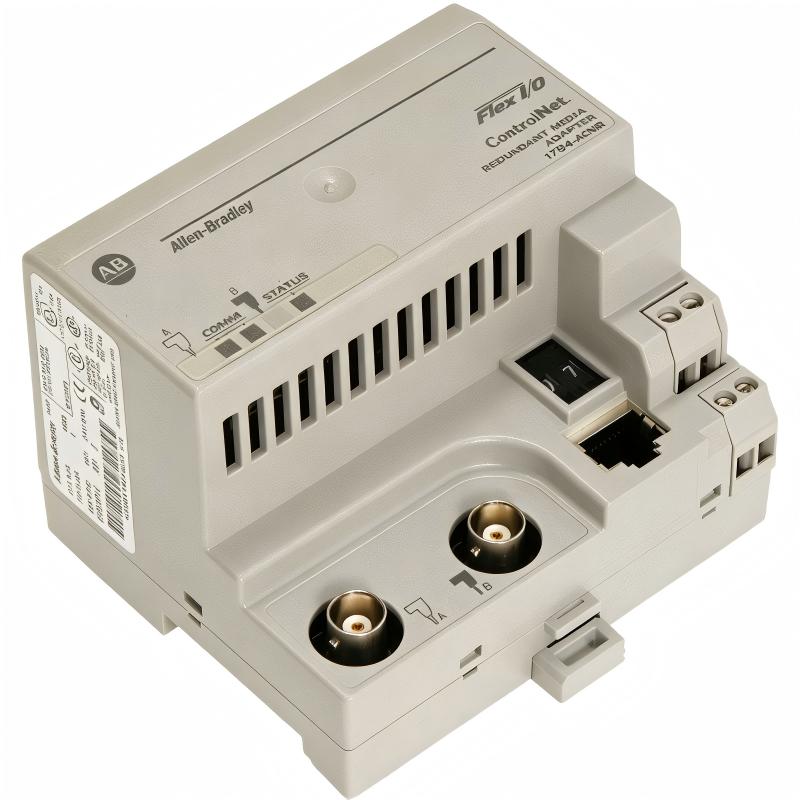

Allen Bradley 1794-ACNR Flex I/O ControlNet Redundant Adapter Module
Allen Bradley 1794-ACNR Flex I/O ControlNet Redundant Adapter Module
0.0
Points
Brand:Allen Bradley PLC Item No.:1794-ACNR Product Origin:USA Product Dimensions:87 x 94 x 69 mm Product Weight:0.358 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Product Introduction and Distributed I/O Communication Solution
The Allen Bradley 1794-ACNR Flex I/O ControlNet Redundant Adapter Module is an advanced communication module designed for reliable distributed I/O applications. It acts as the communication bridge between FLEX I/O modules and ControlNet networks, enabling efficient data exchange between field devices and automation controllers.
Modern industrial systems often require remote I/O stations installed close to production equipment. Reliable communication between these remote stations and central control systems is essential for maintaining accurate process monitoring and control. The 1794-ACNR provides a robust solution by supporting redundant ControlNet communication, helping improve system stability in demanding environments.
The module is designed for applications where downtime must be minimized and communication reliability is a priority. Its modular architecture allows engineers to build flexible automation systems while maintaining efficient network management.
For industries operating Allen Bradley ControlLogix and FLEX I/O platforms, the 1794-ACNR offers an effective solution for system expansion, modernization projects, and replacement requirements. It supports reliable distributed control performance and helps maintain continuous industrial operation.
Technical Specifications
Parameter
Description
Manufacturer
Allen Bradley
Model Number
1794-ACNR
Product Type
Flex I/O ControlNet Redundant Adapter Module
Product Family
FLEX I/O
Communication Protocol
ControlNet
Network Type
Redundant ControlNet Communication
Function
Remote I/O Network Adapter
I/O Platform
Allen Bradley FLEX I/O
Installation Method
FLEX I/O Terminal Base Mounting
Dimensions
87 × 94 × 69 mm
Weight
0.358 kg (0.79 lb)
Application Environment
Industrial Automation and Distributed Control Systems
Recommended Related Models
Model
Product Type
Allen Bradley 1794-ACNR
FLEX I/O ControlNet Redundant Adapter Module
Allen Bradley 1794-ACN15
FLEX I/O ControlNet Adapter Module
Allen Bradley 1794-ASB
FLEX I/O Remote I/O Adapter Module
Allen Bradley 1794-AENT
FLEX I/O EtherNet/IP Adapter Module
Allen Bradley 1794-APB
FLEX I/O PROFIBUS Adapter Module
Popular Related Models
Model
Product Type
Allen Bradley 1794-IB16
FLEX I/O Digital Input Module
Allen Bradley 1794-OB16
FLEX I/O Digital Output Module
Allen Bradley 1794-IE8
FLEX I/O Analog Input Module
Allen Bradley 1794-OE4
FLEX I/O Analog Output Module
Allen Bradley 1756-CNB/E
ControlLogix ControlNet Bridge Module
Allen Bradley 1747-SCNR
SLC500 ControlNet Scanner Module
Allen Bradley 1786-RPA
ControlNet Repeater Adapter
Allen Bradley 1786-XT
ControlNet 75 Ohm Network Terminal Plug
The Allen Bradley 1794-ACNR Flex I/O ControlNet Redundant Adapter Module is a reliable communication solution for distributed industrial automation systems. With redundant ControlNet connectivity, flexible FLEX I/O integration, and compact modular design, it provides stable network performance for manufacturing, process control, energy, and other critical industrial applications.
Applications
The Allen Bradley 1794-ACNR Flex I/O ControlNet Redundant Adapter Module is a high-reliability communication interface designed for FLEX I/O distributed automation systems. It provides a connection between FLEX I/O modules and ControlNet networks, supporting redundant communication architectures for applications where system availability and network reliability are critical.
The 1794-ACNR is widely used in industrial control environments that require continuous data communication between remote I/O stations and central controllers. With dual ControlNet network capability, the adapter module helps maintain communication continuity and improves system resilience against network interruptions.
Typical application areas include:
Industry
Application
Manufacturing
Remote I/O control, machine automation, and production line communication
Power Generation
Distributed control systems and equipment monitoring
Oil & Gas
Remote field I/O communication and process control
Chemical Industry
Reliable automation networks and process monitoring
Water Treatment
Remote control stations and distributed equipment management
The Allen Bradley 1794-ACNR Flex I/O ControlNet Redundant Adapter Module provides a dependable communication solution for industrial facilities requiring flexible I/O expansion, redundant network operation, and stable automation performance.
Redundant Communication Advantages and Industrial Benefits
Dual ControlNet Network Support
The Allen Bradley 1794-ACNR supports redundant ControlNet communication, allowing automation systems to maintain connectivity even if one communication path experiences a failure.
Enhanced System Availability
Redundant network capability improves operational reliability in critical applications where unexpected communication loss can affect production efficiency.
Flexible FLEX I/O Integration
The adapter module provides seamless connection between FLEX I/O modules and ControlNet networks, enabling distributed I/O installation closer to field equipment.
Reduced Wiring Complexity
Remote I/O architecture helps minimize long-distance wiring requirements and simplifies control system design.
Reliable Industrial Communication
The 1794-ACNR provides stable data exchange between controllers and remote I/O devices, supporting accurate monitoring and control operations.
Compact Modular Structure
Its compact design allows efficient installation in industrial control cabinets while maintaining reliable communication performance.
Technical FAQs
Q1: What is the main function of the Allen Bradley 1794-ACNR?
A: The 1794-ACNR is a FLEX I/O ControlNet redundant adapter module used to connect FLEX I/O systems with ControlNet networks.
Q2: What communication protocol does the 1794-ACNR support?
A: The module supports ControlNet industrial communication protocol.
Q3: Why is redundant ControlNet communication important?
A: Redundant communication improves system availability by providing an alternative communication path if one network connection fails.
Q4: What problems can occur if the 1794-ACNR communication fails?
A: Possible issues include loss of remote I/O data, communication alarms, controller connection faults, and field device control interruptions.
Q5: How can technicians troubleshoot a 1794-ACNR communication fault?
A: Check ControlNet connections, network status indicators, module configuration, controller settings, and connected FLEX I/O modules.
Q6: What causes ControlNet communication errors?
A: Common causes include incorrect network configuration, damaged cables, improper termination, duplicate node addresses, and hardware faults.
Q7: Can the 1794-ACNR work with standard FLEX I/O modules?
A: Yes, it is designed to provide ControlNet communication for FLEX I/O distributed I/O systems.
Q8: What should be checked before replacing the adapter module?
A: Verify module compatibility, ControlNet configuration, I/O addressing, and network parameters.
Q9: How does the 1794-ACNR improve automation system flexibility?
A: It allows remote placement of I/O modules, making system expansion and machine integration easier.
Q10: Why is remote I/O communication important in industrial automation?
A: Remote I/O reduces wiring requirements and enables efficient communication between field devices and control systems.
