Brand:Schneider PLC Item No.:ATV340U07N4E Product Origin:France Product Dimensions:85 x 270 x 232.5 Product Weight:1.7 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Product Introduction and Industrial Motor Control Solution

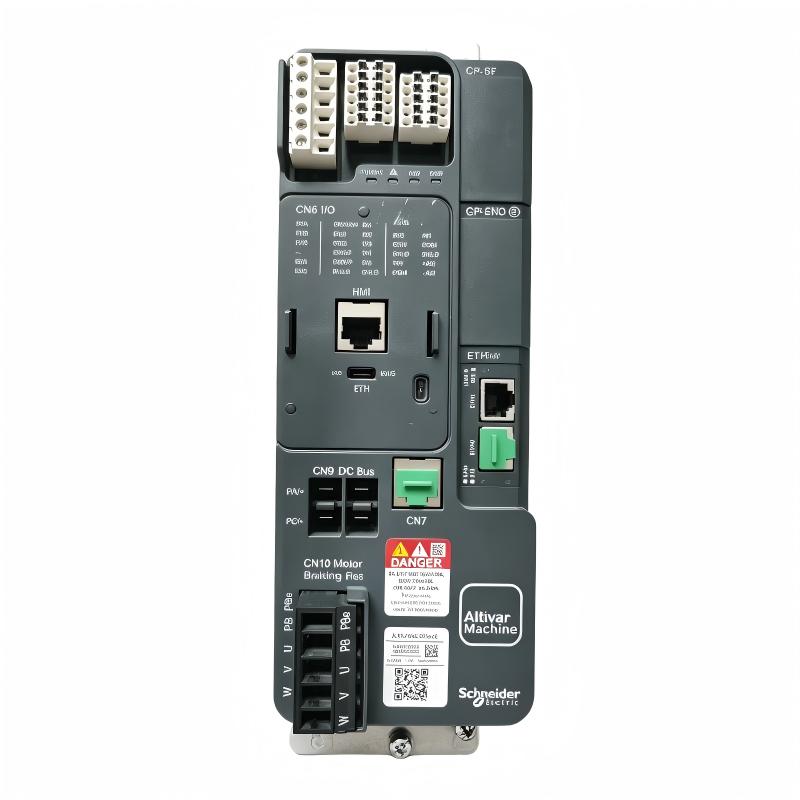

The Schneider ATV340U07N4E Variable Speed Drive is a professional automation drive designed for demanding industrial machine applications. It provides reliable variable speed control technology for systems requiring accurate motor operation, flexible configuration, and efficient performance.
Modern industrial equipment increasingly depends on intelligent motor control to achieve higher productivity and consistent quality. Motors used in conveyors, processing machines, pumps, and automated systems often require different operating speeds depending on production conditions. A variable speed drive allows equipment to adapt dynamically while maintaining smooth and efficient operation.
The ATV340U07N4E combines compact installation design with advanced motor control capabilities, making it suitable for machine builders and industrial users looking to improve automation performance. It supports efficient equipment operation while helping reduce mechanical stress and improve system reliability.
For industrial automation upgrades, equipment modernization, and new machine installations, the Schneider ATV340U07N4E provides a practical motor control solution. Its reliable performance, flexible application capability, and compact structure make it a valuable component for modern industrial systems.

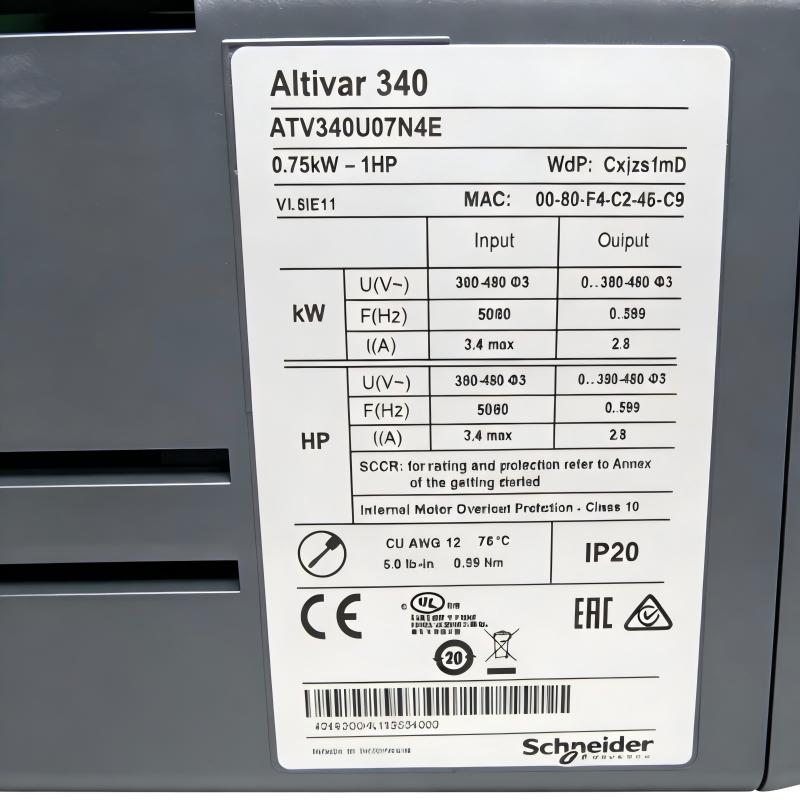

Technical Specifications
Parameter
Description
Manufacturer
Schneider Electric
Model Number
ATV340U07N4E
Product Type
Variable Speed Drive
Product Series
Altivar Machine ATV340
Motor Power
0.75 kW
Voltage Class
380–480 VAC
Phase Type
Three Phase
Motor Type Support
Asynchronous and Synchronous Motors
Application
Industrial Machine Motor Control
Communication Function
Industrial Network Integration
Mounting Method
Cabinet Mount Installation
Protection Rating
IP20
Cooling Method
Forced Cooling
Dimensions
85 × 270 × 232.5 mm
Weight
1.70 kg (3.75 lb)
Application Environment
Industrial Automation and Machine Control Systems
Recommended Related Models
Model
Product Type
Schneider ATV340U07N4E
Altivar Machine ATV340 Variable Speed Drive
Schneider ATV340U15N4E
Altivar Machine ATV340 Variable Speed Drive
Schneider ATV340U22N4E
Altivar Machine ATV340 Variable Speed Drive
Schneider ATV340D11N4E
Altivar Machine ATV340 Variable Speed Drive
Schneider ATV320U07N4C
Altivar Machine ATV320 Variable Speed Drive
Popular Related Models
Model
Product Type
Schneider ATV610D11N4
Altivar Process Variable Speed Drive
Schneider ATV630U15N4
Altivar Process Variable Speed Drive
Schneider ATV930U22N4
Altivar Process High Performance Drive
Schneider ATS480D38Y
Altivar Soft Starter
Schneider ATV312HU15N4
Altivar Variable Speed Drive
Schneider BMXP342020
Modicon M340 PLC CPU Module
Schneider BMXNOC0401
Ethernet Communication Module
Schneider BMXAMI0410
Analog Input Module
The Schneider ATV340U07N4E Variable Speed Drive is a dependable industrial motor control solution designed for high-performance automation applications. With accurate speed regulation, flexible system integration, compact installation design, and reliable operation, it helps improve machine efficiency and supports stable performance across manufacturing, process control, and industrial automation systems.
Applications
The Schneider ATV340U07N4E Variable Speed Drive is an advanced motor control device designed for industrial automation equipment requiring accurate speed adjustment, fast response, and reliable operation. As part of the Altivar Machine ATV340 series, it provides efficient control of AC motors and supports high-performance applications in modern manufacturing environments.
The ATV340U07N4E is suitable for controlling asynchronous and synchronous motors in applications where machine productivity, motion accuracy, and energy efficiency are important. Its compact design makes it easy to integrate into control cabinets, while its flexible control functions support a wide range of industrial automation requirements.
Typical application areas include:
Industry
Application
Machine Manufacturing
CNC equipment, packaging machines, and automated production lines
Material Handling
Conveyors, feeders, and transportation systems
Food & Beverage
Processing equipment and production machinery
Textile Industry
Speed regulation of textile production equipment
Water Treatment
Pump control and flow adjustment systems
The Schneider ATV340U07N4E Variable Speed Drive provides a reliable solution for industrial users who require precise motor management, improved machine efficiency, and stable automation performance.
Advanced Drive Control Advantages and Industrial Benefits
Precise Motor Speed Control
The Schneider ATV340U07N4E provides accurate speed and torque regulation, allowing industrial equipment to maintain stable operation under changing load conditions.
Optimized Machine Performance
Designed for machine automation applications, the ATV340 series delivers fast response and smooth motor operation, helping improve production efficiency and equipment reliability.
Energy-Saving Operation
By adjusting motor speed according to actual process requirements, the drive helps reduce unnecessary energy consumption and supports more efficient industrial operation.
Flexible Automation Integration
The ATV340U07N4E can be integrated into modern automation systems, providing flexible communication and control options for different industrial applications.
Compact Industrial Design
With a space-saving structure, the drive can be installed efficiently inside control cabinets where installation space is limited.
Reliable Protection Functions
Built-in monitoring and protection features help identify abnormal operating conditions and support safer, more reliable motor operation.
Technical FAQs
Q1: What is the main function of the Schneider ATV340U07N4E? A: The ATV340U07N4E is a variable speed drive used to control AC motor speed, torque, and operating performance in industrial applications.
Q2: Which motor types can be controlled by this drive? A: It supports industrial AC motor applications including asynchronous and synchronous motor control.
Q3: Why are variable speed drives important for industrial machines? A: They provide precise speed control, smoother motor operation, improved process stability, and better energy efficiency.
Q4: What problems may occur if the ATV340U07N4E fails? A: Possible issues include motor shutdown, incorrect speed control, drive fault alarms, communication failures, or unstable operation.
Q5: How can technicians troubleshoot ATV340 drive faults? A: Check power supply conditions, motor wiring, parameter settings, fault records, cooling conditions, and communication configuration.
Q6: What causes overcurrent faults in variable speed drives? A: Common causes include motor overload, short circuits, incorrect acceleration settings, mechanical problems, or incorrect motor parameters.
Q7: Why is parameter configuration important for drive operation? A: Correct parameter settings ensure accurate motor control, safe operation, and optimized performance.
Q8: Can the ATV340U07N4E be connected to PLC systems? A: Yes, it can be integrated into industrial automation systems through compatible control and communication configurations.
Q9: What should be checked before replacing the drive? A: Confirm motor specifications, voltage requirements, wiring connections, application parameters, and system compatibility.
Q10: How does the ATV340U07N4E improve industrial automation efficiency? A: It improves motor control accuracy, reduces energy waste, enhances machine response, and supports stable production processes.
