Brand:Schneider PLC Item No.:ATV340U15N4 Product Origin:France Product Dimensions:85 x 270 x 232.5 Product Weight:1.7 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Product Introduction and Advanced Machine Drive Solution

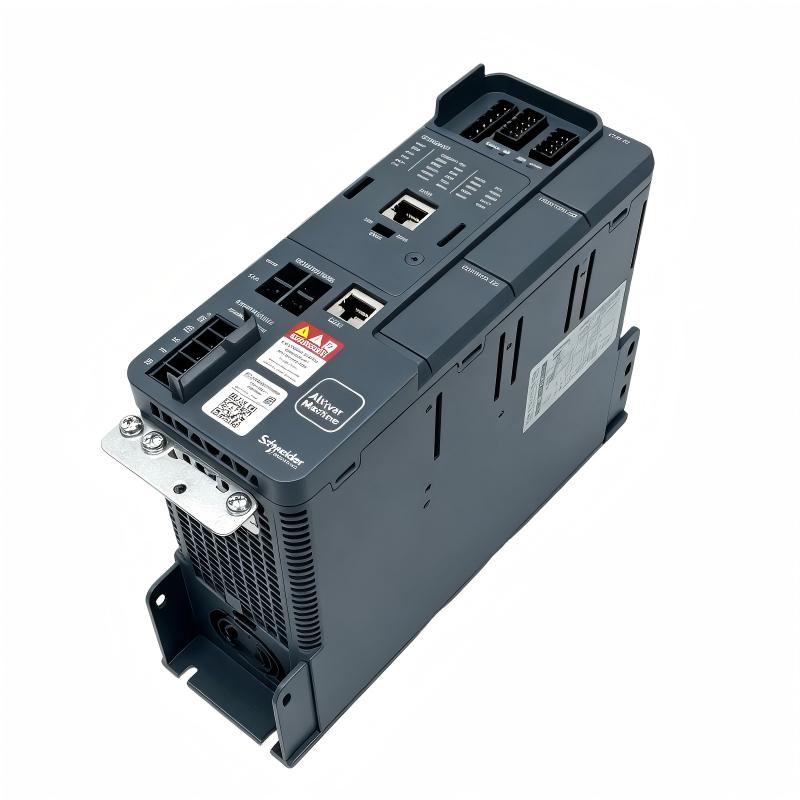

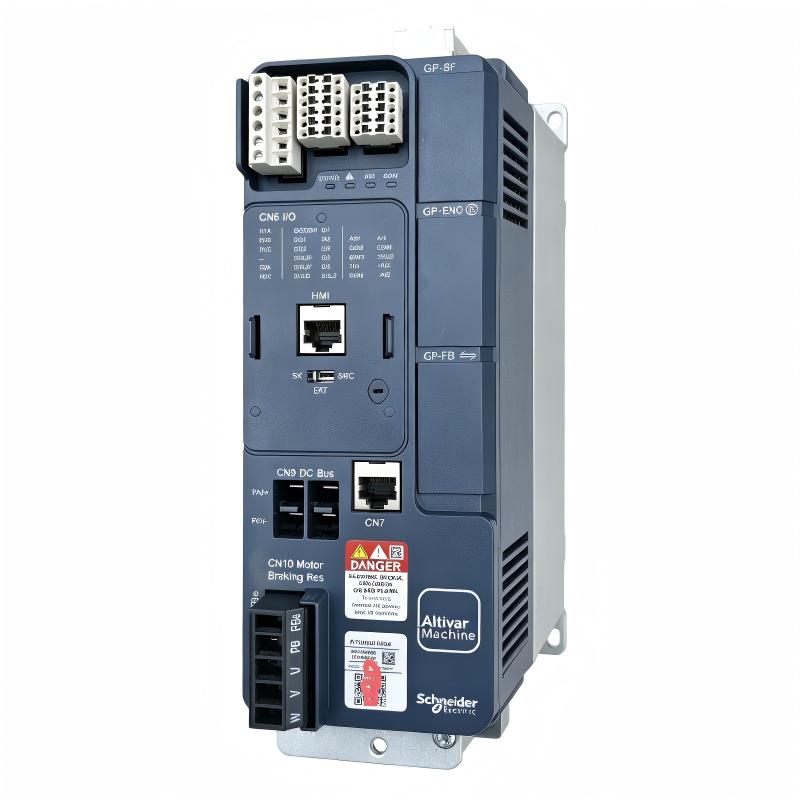

The Schneider ATV340U15N4 Variable Speed Drive is a professional industrial drive designed for modern machine automation applications. It provides reliable variable speed control technology for systems that require precise motor operation, flexible configuration, and efficient performance.
Industrial machines increasingly require intelligent motor management to maintain production efficiency and product quality. Equipment such as conveyors, packaging systems, pumps, and processing machinery often operate under changing loads and production conditions. A variable speed drive allows motors to adjust automatically, providing smoother operation and better control.
The ATV340U15N4 combines compact installation design with advanced motor control capabilities, making it an effective choice for machine builders and industrial users. It helps improve equipment performance by providing accurate speed regulation, reducing mechanical stress, and supporting efficient operation.
For industrial automation upgrades, new machine projects, and replacement applications, the Schneider ATV340U15N4 delivers dependable performance and flexible control capability. Its robust design and efficient operation make it suitable for a wide range of industrial environments.
Technical Specifications
Parameter
Description
Manufacturer
Schneider Electric
Model Number
ATV340U15N4
Product Type
Variable Speed Drive
Product Series
Altivar Machine ATV340
Motor Power
1.5 kW
Voltage Class
380–480 VAC
Phase Type
Three Phase
Motor Compatibility
Asynchronous and Synchronous Motors
Application
Industrial Machine Motor Control
Control Method
Variable Frequency Speed Control
Mounting Method
Cabinet Mount Installation
Protection Rating
IP20
Cooling Method
Forced Cooling
Dimensions
85 × 270 × 232.5 mm
Weight
1.70 kg (3.75 lb)
Application Environment
Industrial Automation and Machine Control Systems
Recommended Related Models
Model
Product Type
Schneider ATV340U07N4
Altivar Machine ATV340 Variable Speed Drive
Schneider ATV340U15N4
Altivar Machine ATV340 Variable Speed Drive
Schneider ATV340U22N4
Altivar Machine ATV340 Variable Speed Drive
Schneider ATV340D11N4
Altivar Machine ATV340 Variable Speed Drive
Schneider ATV320U15N4C
Altivar Machine ATV320 Variable Speed Drive
Popular Related Models
Model
Product Type
Schneider ATV610D11N4
Altivar Process Variable Speed Drive
Schneider ATV630U15N4
Altivar Process Variable Speed Drive
Schneider ATV930U22N4
Altivar Process High Performance Drive
Schneider ATS480D38Y
Altivar Soft Starter
Schneider ATV312HU15N4
Altivar Variable Speed Drive
Schneider BMXP342020
Modicon M340 PLC CPU Module
Schneider BMXNOC0401
Ethernet Communication Module
Schneider BMXAMI0410
Analog Input Module
The Schneider ATV340U15N4 Variable Speed Drive is a dependable industrial motor control solution designed for demanding automation applications. With accurate speed regulation, compact installation design, flexible system integration, and reliable performance, it helps improve machine efficiency and supports stable operation in manufacturing, process control, and industrial automation systems.
Applications
The Schneider ATV340U15N4 Variable Speed Drive is a high-performance industrial motor control device designed for machine automation applications requiring accurate speed adjustment, fast response, and reliable operation. As part of the Altivar Machine ATV340 family, it provides efficient control for AC motors used in modern industrial equipment.
The ATV340U15N4 is suitable for controlling asynchronous and synchronous motors in applications where productivity, precision, and operational stability are essential. Its compact structure allows efficient installation in control cabinets while providing flexible motor control functions for demanding industrial environments.
Typical application areas include:
Industry
Application
Machine Manufacturing
Packaging machines, CNC equipment, and automated production lines
Material Handling
Conveyors, feeders, and industrial transport systems
Food & Beverage
Processing equipment and production machinery
Textile Industry
Motor speed regulation and automated production systems
Water Treatment
Pumps, fans, and flow control applications
The Schneider ATV340U15N4 Variable Speed Drive provides a reliable solution for industrial users who need precise motor control, improved energy efficiency, and stable automation performance.
Intelligent Motor Control Advantages and Industrial Benefits
Accurate Speed and Torque Regulation
The Schneider ATV340U15N4 provides precise control of motor speed and torque, helping machines maintain stable performance under different operating conditions.
Optimized Machine Productivity
Designed for industrial machine applications, the drive delivers fast response and smooth motor operation, improving production efficiency and reducing process fluctuations.
Energy-Efficient Operation
By adjusting motor speed according to actual workload requirements, the drive helps minimize unnecessary energy consumption and improves system efficiency.
Flexible Automation Compatibility
The ATV340U15N4 supports integration into modern automation systems, allowing engineers to create flexible and scalable machine control solutions.
Space-Saving Industrial Design
Its compact dimensions make it suitable for control cabinets with limited installation space while maintaining reliable drive performance.
Enhanced Operational Reliability
Monitoring and protection functions help identify abnormal conditions, simplify maintenance procedures, and improve equipment availability.
Technical FAQs
Q1: What is the main function of the Schneider ATV340U15N4?
A: The ATV340U15N4 is a variable speed drive used to control AC motor speed, torque, and operation in industrial automation systems.
Q2: Which motor types are supported by this drive?
A: The drive supports industrial asynchronous motors and synchronous motors for various automation applications.
Q3: Why are variable speed drives widely used in industrial equipment?
A: They provide accurate motor control, smoother starting, improved process stability, and optimized energy consumption.
Q4: What symptoms indicate an ATV340U15N4 drive problem?
A: Common symptoms include motor stopping, unstable speed, fault alarms, communication problems, or abnormal operation.
Q5: How should technicians troubleshoot drive communication faults?
A: Check communication settings, network configuration, control parameters, wiring connections, and controller status.
Q6: What causes motor overload faults in variable speed drives?
A: Possible causes include excessive mechanical load, incorrect motor parameters, insufficient acceleration time, or motor problems.
Q7: Why must drive parameters be configured correctly?
A: Proper configuration ensures accurate motor performance, safe operation, and reliable system response.
Q8: Can the ATV340U15N4 operate in PLC-controlled systems?
A: Yes, it can be integrated into industrial automation systems through compatible control and communication methods.
Q9: What inspections should be completed before replacing the drive?
A: Verify motor specifications, voltage level, wiring connections, application settings, and system compatibility.
Q10: How does the ATV340U15N4 improve machine operation?
A: It improves motor control accuracy, reduces mechanical stress, enhances energy efficiency, and supports stable production.
