Brand:Schneider PLC Item No.:TM3AI4G Product Origin:France Product Dimensions:125 x 105 x 75 mm Product Weight:0.1 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Product Introduction and Intelligent Analog Monitoring Expansion Solution

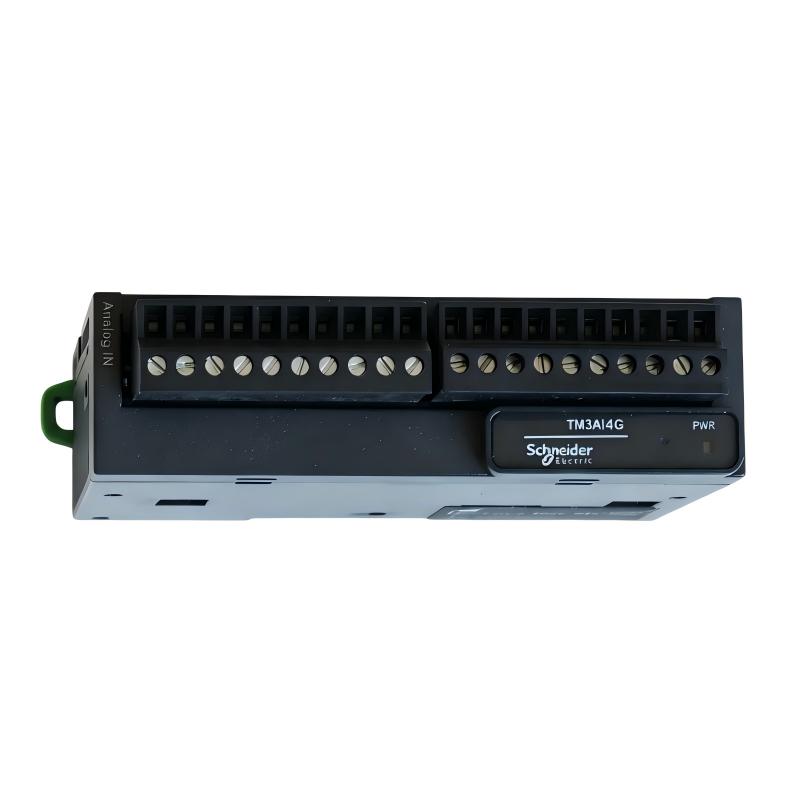

The Schneider TM3AI4G Analog Input Module is a professional automation component designed to enhance PLC-based control systems with reliable analog signal processing capability. It creates an efficient connection between field measurement devices and industrial controllers, allowing automation systems to monitor real-time operating conditions.
Modern industrial equipment relies on accurate process information to maintain efficiency, product quality, and operational safety. Signals from temperature sensors, pressure transmitters, flow meters, and other measurement devices provide essential data for automated decision-making. The TM3AI4G helps transform these signals into useful information for PLC control applications.
The module is designed with flexibility and practicality in mind. Its compact structure allows easy integration into control cabinets, while its analog input capability supports various industrial measurement requirements.
For automation projects, equipment upgrades, and system expansions, the Schneider TM3AI4G Analog Input Module provides a dependable solution for improving monitoring accuracy, increasing PLC functionality, and supporting efficient industrial operations.
Technical Specifications
Parameter
Description
Manufacturer
Schneider Electric
Model Number
TM3AI4G
Product Type
Analog Input Module
Product Series
Modicon TM3
Module Function
Analog Signal Acquisition
Number of Analog Inputs
4 Channels
Input Signal Type
Voltage and Current Analog Signals
Resolution
12-bit
Rated Supply Voltage
24 VDC
Connection Type
Terminal Block
Compatible Controllers
Modicon TM3 Compatible PLC Systems
Mounting Method
DIN Rail Installation
Protection Rating
IP20
Dimensions
125 × 105 × 75 mm
Weight
0.10 kg (0.22 lb)
Application Environment
Industrial Automation and PLC Control Systems
Recommended Related Models
Model
Product Type
Schneider TM3AI4G
Analog Input Module
Schneider TM3AI4
Analog Input Module
Schneider TM3AI2H
High Resolution Analog Input Module
Schneider TM3AQ4G
Analog Output Module
Schneider TM3AM6
Analog I/O Expansion Module
Popular Related Models
Model
Product Type
Schneider TM3DI16K
Digital Input Module
Schneider TM3DQ16T
Digital Output Module
Schneider TM3DQ16R
Relay Output Module
Schneider BMXAMI0410
Modicon X80 Analog Input Module
Schneider BMXAMO0210
Modicon X80 Analog Output Module
Schneider BMXP342020
Modicon M340 CPU Module
Schneider BMXNOC0401
Ethernet Communication Module
Schneider BMXDDI1602
Modicon X80 Digital Input Module
The Schneider TM3AI4G Analog Input Module is a reliable PLC expansion solution designed for industrial automation systems requiring accurate analog measurement and flexible signal processing. With compact installation dimensions, dependable data acquisition, and strong system compatibility, it helps improve process monitoring and supports efficient automation control applications.
Applications
The Schneider TM3AI4G Analog Input Module is a compact and reliable industrial automation expansion module designed for accurate analog signal acquisition and PLC system enhancement. As part of the Modicon TM3 series, it provides additional analog input capability for automation systems that require precise measurement and monitoring of real-world process signals.
The TM3AI4G is widely used for collecting analog signals from industrial sensors, transmitters, and measuring devices. It enables PLC controllers to process important operating parameters such as temperature, pressure, flow, level, and other continuously changing signals.
With its compact structure and flexible installation design, the module is suitable for machine builders, system integrators, and industrial users who need to expand analog monitoring capability without replacing the main controller.
Typical application areas include:
Industry
Application
Machine Manufacturing
Position monitoring, process control, and equipment feedback systems
Packaging Industry
Temperature, pressure, and sensor signal acquisition
Water Treatment
Flow measurement, pump monitoring, and process control
Food & Beverage
Production parameter monitoring and automated regulation
Energy Systems
Equipment measurement and operational status monitoring
The Schneider TM3AI4G Analog Input Module provides an efficient solution for industrial applications requiring accurate data collection, reliable PLC integration, and flexible automation system expansion.
Precision Signal Acquisition Advantages and Industrial Benefits
Accurate Analog Data Collection
The TM3AI4G provides reliable analog signal conversion, allowing PLC systems to receive accurate measurement data from field sensors and industrial instruments.
Flexible Signal Processing
The module supports common industrial analog input signals, making it suitable for different types of transmitters and measurement devices used in automation systems.
Improved Process Monitoring
By collecting real-time field information, the module helps automation systems improve control accuracy and optimize production processes.
Easy PLC System Expansion
The TM3AI4G allows engineers to increase analog input capacity without changing the existing controller, making it ideal for system upgrades and machine improvements.
Compact Cabinet Installation
The space-saving design helps reduce control cabinet requirements while providing additional analog monitoring capability.
Reliable Industrial Operation
Designed for automation environments, the module provides stable signal acquisition and dependable long-term performance.
Technical FAQs
Q1: What is the main function of the Schneider TM3AI4G?
A: The TM3AI4G is an analog input expansion module used to collect and convert industrial analog signals for PLC processing.
Q2: How many analog input channels does the TM3AI4G provide?
A: The module provides four analog input channels for industrial measurement and monitoring applications.
Q3: What types of devices can be connected to the TM3AI4G?
A: It can connect with compatible industrial sensors, transmitters, and measurement devices that provide supported analog signals.
Q4: What causes inaccurate analog signal readings?
A: Common causes include incorrect wiring, sensor problems, signal interference, grounding issues, or incorrect PLC configuration.
Q5: How can technicians troubleshoot unstable analog input values?
A: Check sensor output, cable connections, shielding, module configuration, and PLC monitoring values.
Q6: Why is analog signal scaling important in PLC systems?
A: Proper scaling converts raw input values into meaningful engineering units for accurate process monitoring and control.
Q7: Can the TM3AI4G be used in machine automation systems?
A: Yes, it is suitable for machine control applications requiring analog measurement and feedback signals.
Q8: What happens if the input signal type is configured incorrectly?
A: Incorrect configuration may result in inaccurate readings, abnormal values, or unstable control performance.
Q9: What maintenance checks should be performed on an analog input module?
A: Regular inspections should include terminal connections, signal stability, wiring condition, and PLC diagnostic information.
Q10: How does the TM3AI4G improve automation system performance?
A: It improves process visibility by providing accurate analog data for better monitoring and automated control decisions.
