Brand:Schneider PLC Item No.:TM3AQ2 Product Origin:France Product Dimensions:126.98 x 106.29 x 75.66 mm Product Weight:0.115 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Product Introduction and Advanced Analog Control Expansion Solution

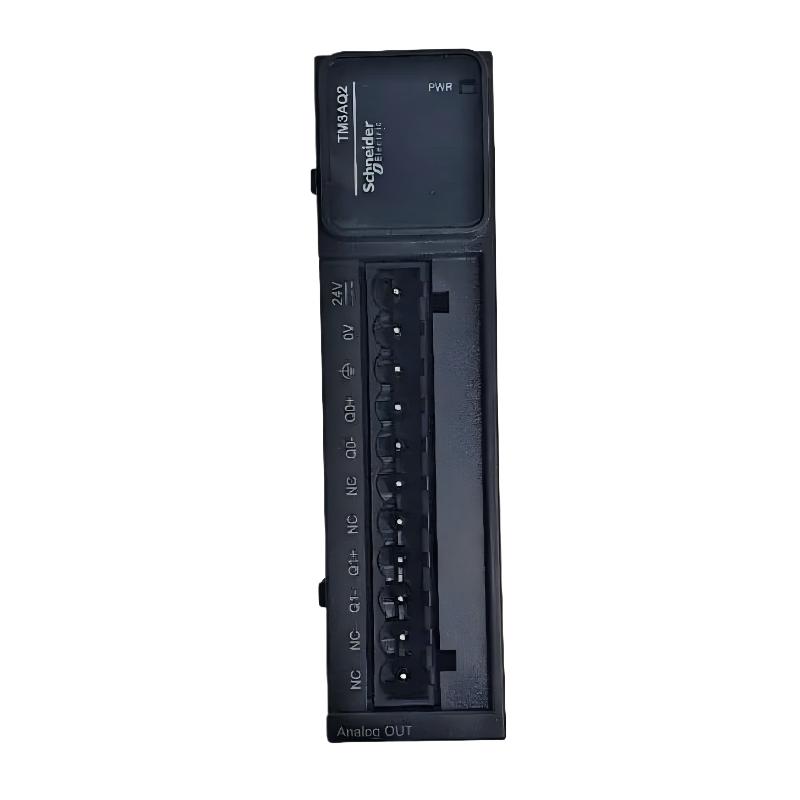

The Schneider TM3AQ2 Analog Output Module is a professional automation component designed to improve PLC system flexibility by providing reliable analog signal output capability. It creates an effective connection between digital control logic and industrial equipment that requires continuous adjustment.
Modern automation systems often require precise control of motors, valves, actuators, and process equipment. Unlike traditional digital signals, analog outputs allow equipment to operate with variable levels, improving control accuracy and production efficiency.
The TM3AQ2 provides a practical solution for machine upgrades, process control improvements, and new automation projects. Its compact design allows convenient installation inside control cabinets, while its reliable output performance supports stable operation in demanding industrial environments.
For engineers and system integrators, the Schneider TM3AQ2 Analog Output Module offers dependable analog control expansion, improved automation flexibility, and enhanced equipment performance.
Technical Specifications
Parameter
Description
Manufacturer
Schneider Electric
Model Number
TM3AQ2
Product Type
Analog Output Module
Product Series
Modicon TM3
Module Function
Analog Signal Output Expansion
Number of Analog Outputs
2 Channels
Output Signal Type
Voltage and Current Analog Signals
Resolution
12-bit
Rated Supply Voltage
24 VDC
Connection Type
Terminal Block
Compatible Controllers
Modicon TM3 Compatible PLC Systems
Mounting Method
DIN Rail Installation
Protection Rating
IP20
Dimensions
126.98 × 106.29 × 75.66 mm
Weight
0.115 kg (0.25 lb)
Application Environment
Industrial Automation and PLC Control Systems
Recommended Related Models
Model
Product Type
Schneider TM3AQ2
Analog Output Module
Schneider TM3AQ4G
Analog Output Module
Schneider TM3AI2H
Analog Input Module
Schneider TM3AI4G
Analog Input Module
Schneider TM3AM6
Analog I/O Expansion Module
Popular Related Models
Model
Product Type
Schneider TM3DI16K
Digital Input Module
Schneider TM3DQ16T
Digital Output Module
Schneider TM3DQ16R
Relay Output Module
Schneider BMXAMO0210
Modicon X80 Analog Output Module
Schneider BMXAMI0410
Modicon X80 Analog Input Module
Schneider BMXP342020
Modicon M340 CPU Module
Schneider BMXNOC0401
Ethernet Communication Module
Schneider BMXDDO1602
Modicon X80 Digital Output Module
The Schneider TM3AQ2 Analog Output Module is a dependable automation expansion solution designed for precise analog control applications. With compact installation dimensions, reliable signal output, and flexible PLC integration capability, it helps improve industrial process control and supports efficient machine automation systems.
Applications
The Schneider TM3AQ2 Analog Output Module is a compact and reliable industrial automation expansion module designed to provide precise analog signal output for PLC-based control systems. As part of the Modicon TM3 series, this module extends controller capability by converting digital control commands into accurate analog signals for external devices and industrial equipment.
The TM3AQ2 is widely used in automation systems where continuous signal adjustment is required, including speed control, valve regulation, actuator positioning, and process parameter adjustment. Its compact design makes it suitable for machine builders and system integrators who need additional analog output channels without replacing the existing PLC system.
Typical application areas include:
Industry
Application
Machine Manufacturing
Motor reference control, actuator positioning, and process adjustment
Packaging Industry
Speed regulation, tension control, and automated machine adjustment
Water Treatment
Pump control, valve positioning, and flow regulation
Chemical & Process Industry
Analog control of industrial equipment and process variables
Energy Systems
Equipment adjustment and operational control applications
The Schneider TM3AQ2 Analog Output Module provides an efficient solution for automation systems requiring stable analog control signals, flexible PLC expansion, and improved process accuracy.
Precision Analog Control Advantages and Industrial Benefits
Accurate Analog Signal Output
The TM3AQ2 provides stable analog output signals, allowing PLC systems to control external devices with improved precision and response performance.
Flexible Equipment Control
The module supports industrial applications requiring continuous adjustment, such as motor speed references, valve opening control, and actuator positioning.
Enhanced Automation Performance
By providing accurate analog control signals, the module helps improve process stability and machine operating consistency.
Easy PLC Expansion
The TM3AQ2 allows engineers to increase analog output capability without changing the main controller, making it suitable for automation upgrades.
Compact Installation Design
Its compact structure helps save control cabinet space while providing additional analog output functionality.
Reliable Industrial Operation
Designed for industrial automation environments, the module delivers stable performance for long-term operation and continuous production processes.
Technical FAQs
Q1: What is the main function of the Schneider TM3AQ2?
A: The TM3AQ2 is an analog output expansion module used to send continuous control signals from a PLC to external industrial devices.
Q2: How many analog output channels does the TM3AQ2 provide?
A: The module provides two analog output channels for industrial control applications.
Q3: What devices can be controlled using the TM3AQ2?
A: It can control compatible devices such as variable speed drives, proportional valves, actuators, and analog control equipment.
Q4: What causes incorrect analog output values?
A: Possible causes include incorrect configuration, wiring problems, parameter errors, grounding issues, or connected device faults.
Q5: How can technicians troubleshoot unstable analog output signals?
A: Check PLC configuration, output settings, wiring connections, power supply conditions, and the status of connected devices.
Q6: Why is analog output important in industrial automation?
A: Analog output allows PLC systems to control equipment that requires continuously adjustable signals instead of simple ON/OFF commands.
Q7: Can the TM3AQ2 directly control motors?
A: It provides control signals for devices such as drives or controllers. Motor power control is normally handled by dedicated motor control equipment.
Q8: What happens if output signal configuration is incorrect?
A: Incorrect configuration may cause inaccurate equipment response, abnormal operation, or reduced control performance.
Q9: What maintenance checks are recommended for analog output modules?
A: Regular checks should include terminal connections, signal stability, wiring condition, and PLC diagnostic information.
Q10: How does the TM3AQ2 improve automation systems?
A: It expands PLC analog control capability and enables more precise adjustment of industrial processes and equipment.
