Brand:Schneider PLC Item No.:TM3DQ16RG Product Origin:France Product Dimensions:90 × 84.6 × 27.4 mm Product Weight:0.145 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Product Introduction and Industrial Relay Output Expansion Solution

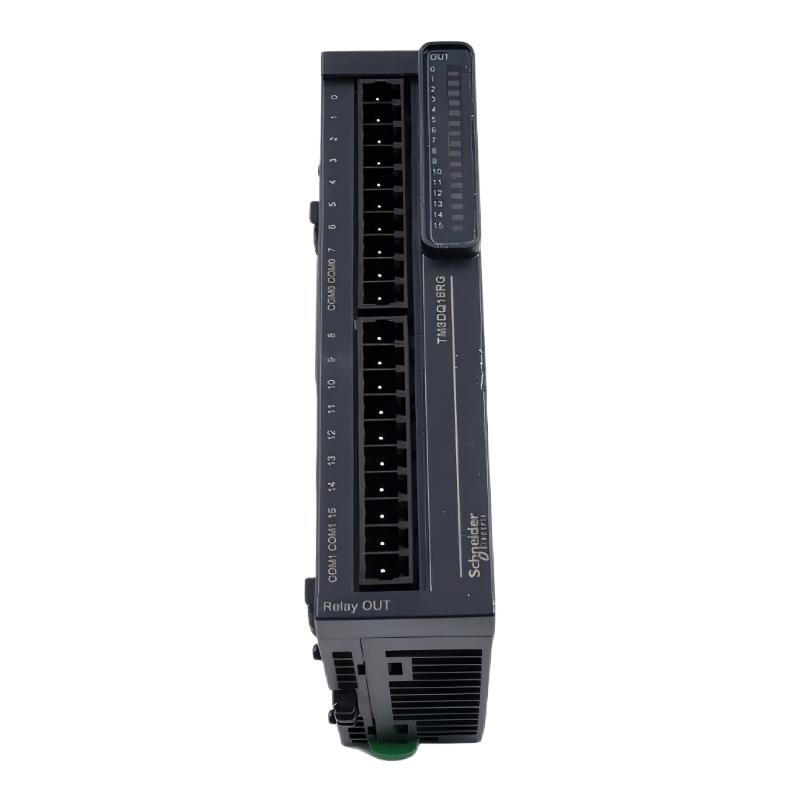

The Schneider TM3DQ16RG Discrete Output Module is a professional automation component designed to enhance PLC systems by providing additional relay output capability. It enables industrial controllers to manage more field devices while maintaining a compact and organized control architecture.
In modern automation applications, machines often require multiple output signals to coordinate actuators, indicators, valves, and auxiliary equipment. Expanding PLC output capacity allows engineers to build more flexible and scalable control systems without replacing existing controllers.
The TM3DQ16RG combines reliable relay switching technology with a compact industrial design, making it suitable for machine upgrades, production equipment development, and automation system expansion. Its practical structure supports efficient installation and long-term operation in industrial environments.
For machine builders and automation professionals, the Schneider TM3DQ16RG Discrete Output Module provides a dependable solution for improving PLC functionality, simplifying system design, and enhancing industrial equipment control capability.
Technical Specifications
Parameter
Description
Manufacturer
Schneider Electric
Model Number
TM3DQ16RG
Product Type
Discrete Output Module
Product Series
Modicon TM3
Module Function
Digital Relay Output Expansion
Number of Outputs
16 Channels
Output Type
Relay Output
Rated Supply Voltage
24 VDC
Switching Type
Electromechanical Relay
Application
PLC Output Control
Connection Type
Terminal Block
Compatible Controllers
Modicon TM3 Compatible PLC Systems
Mounting Method
DIN Rail Installation
Protection Rating
IP20
Dimensions
90 × 84.6 × 27.4 mm
Weight
0.145 kg (0.32 lb)
Application Environment
Industrial Automation and Machine Control Systems
Recommended Related Models
Model
Product Type
Schneider TM3DQ16RG
Discrete Relay Output Module
Schneider TM3DQ16T
Discrete Transistor Output Module
Schneider TM3DQ8R
Relay Output Module
Schneider TM3DI16K
Digital Input Module
Schneider TM3DM32R
Hybrid I/O Module
Popular Related Models
Model
Product Type
Schneider TM3AI4G
Analog Input Module
Schneider TM3AQ2
Analog Output Module
Schneider TM3BCEIP
I/O Distributed Module
Schneider BMXDDO1602
Modicon X80 Digital Output Module
Schneider BMXDDI1602
Modicon X80 Digital Input Module
Schneider BMXP342020
Modicon M340 CPU Module
Schneider BMXNOC0401
Ethernet Communication Module
Schneider BMXAMI0410
Analog Input Module
The Schneider TM3DQ16RG Discrete Output Module is a dependable PLC expansion component designed for industrial automation applications requiring reliable relay-based output control. With 16 output channels, compact installation dimensions, and flexible switching capability, it helps improve system scalability and supports efficient machine automation solutions.
Applications
The Schneider TM3DQ16RG Discrete Output Module is a reliable digital output expansion solution designed for industrial automation systems that require flexible actuator control and increased PLC output capacity. As part of the Modicon TM3 series, this module provides 16 relay output channels, allowing automation controllers to manage various field devices with stable switching performance.
The TM3DQ16RG is widely used in machine automation applications where multiple output signals are required for controlling valves, contactors, indicators, motors through control circuits, and other industrial devices. Its compact design allows efficient installation in control cabinets while expanding the functionality of compatible PLC systems.
Typical application areas include:
Industry
Application
Machine Manufacturing
Automated assembly equipment, production machines, and control panels
Packaging Industry
Packaging lines, labeling machines, and actuator control systems
Material Handling
Conveyor equipment, sorting systems, and logistics automation
Water Treatment
Pump control, valve switching, and monitoring systems
Building Automation
Lighting control, equipment switching, and facility management
The Schneider TM3DQ16RG Discrete Output Module provides a practical solution for engineers requiring dependable relay outputs, flexible PLC expansion, and stable industrial control performance.
Reliable Output Control Advantages and Industrial Benefits
Flexible Relay Output Control
The TM3DQ16RG provides 16 relay output channels, allowing PLC systems to control a wide range of industrial loads and external devices.
Wide Application Compatibility
Relay output technology offers strong flexibility because it can handle different types of control circuits used in industrial automation environments.
Efficient PLC Expansion
The module enables additional output points to be added to existing automation systems without replacing the main controller.
Space-Saving Industrial Design
The compact module structure helps optimize control cabinet layouts while providing expanded digital output capability.
Stable Switching Performance
Reliable relay switching helps maintain consistent operation for industrial equipment requiring frequent control commands.
Simplified Maintenance
Clear I/O organization and practical installation design help technicians perform troubleshooting and maintenance more efficiently.
Technical FAQs
Q1: What is the main function of the Schneider TM3DQ16RG?
A: The TM3DQ16RG is a digital relay output expansion module used to control external devices through PLC commands.
Q2: How many output channels does the TM3DQ16RG provide?
A: The module provides 16 relay output channels for industrial automation applications.
Q3: What devices can be controlled by relay outputs?
A: Relay outputs can control devices such as contactors, valves, indicators, alarms, and other compatible industrial equipment.
Q4: What causes relay output failures?
A: Common causes include excessive load current, incorrect wiring, relay contact wear, configuration errors, or external device problems.
Q5: How can technicians troubleshoot an output channel that does not operate?
A: Check PLC logic, output status, wiring connections, load conditions, and the condition of connected devices.
Q6: Why are relay outputs useful in industrial systems?
A: Relay outputs provide electrical isolation and allow control of different types of loads compared with standard transistor outputs.
Q7: Can the TM3DQ16RG directly control high-power motors?
A: It is normally used for control circuits. High-power motor applications require appropriate motor starters or contactors.
Q8: What should be checked before installing the module?
A: Verify PLC compatibility, output assignment, wiring requirements, load specifications, and system configuration.
Q9: How does incorrect PLC programming affect the module?
A: Incorrect logic or addressing may result in unexpected output operation or failure to activate connected devices.
Q10: What maintenance practices improve module reliability?
A: Regular inspection of wiring, terminal connections, load conditions, and PLC diagnostics helps maintain stable operation.
