Brand:Schneider PLC Item No.:TSXCTZ2A Product Origin:France Product Dimensions:260 x 180 x 55 mm Product Weight:0.21 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Product Introduction and Industrial High-Speed Measurement Solution

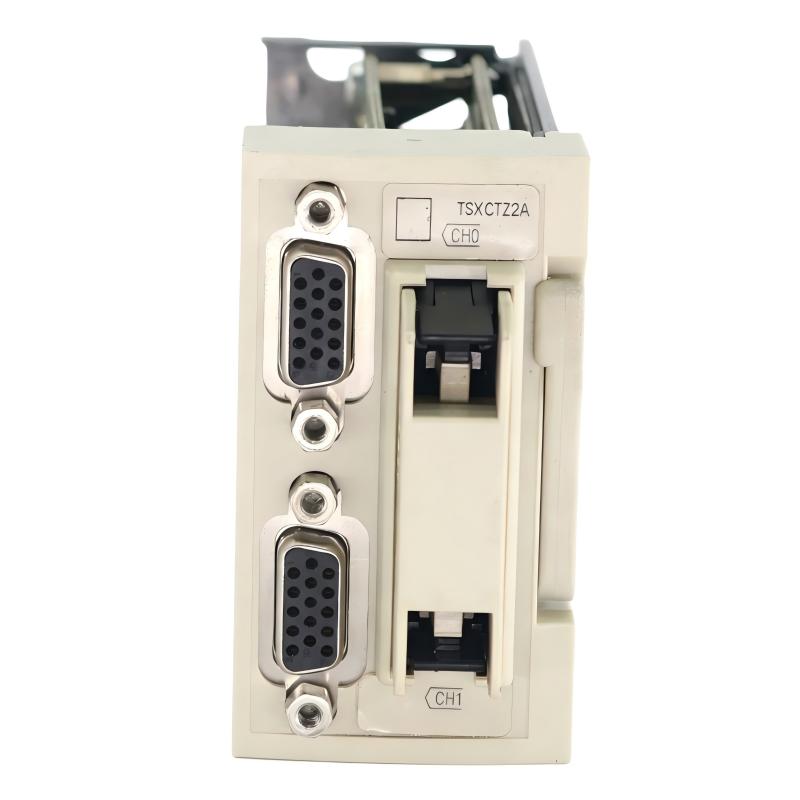

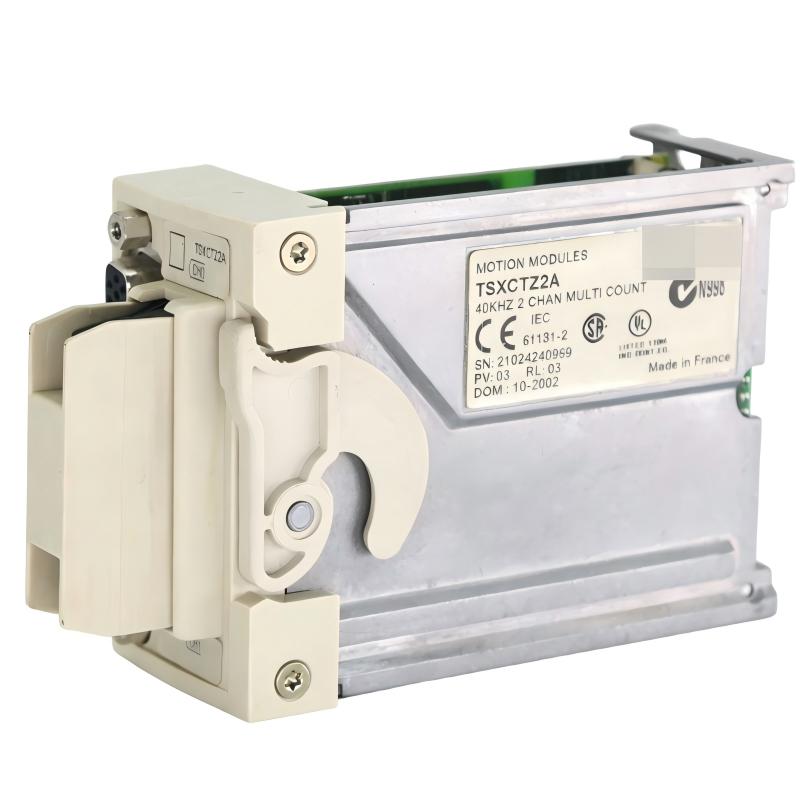

The Schneider TSXCTZ2A Counter Module is a professional automation component designed to extend the counting capability of Modicon Premium PLC systems. It provides dedicated hardware processing for high-speed pulse signals, allowing industrial equipment to achieve accurate measurement and faster control response.
Many modern machines require precise counting and positioning functions that exceed the capability of standard digital inputs. Applications such as rotary measurement, conveyor counting, encoder feedback, and production quantity tracking require specialized modules to ensure reliable operation.
The TSXCTZ2A helps bridge the gap between field measurement devices and PLC control systems by providing accurate pulse processing and real-time counting functions. It allows engineers to design more efficient automation solutions while maintaining reliable machine performance.
For industrial equipment upgrades, production line automation, and motion-related applications, the Schneider TSXCTZ2A Counter Module provides a practical solution for improving measurement accuracy, system flexibility, and operational efficiency.
Technical Specifications
Parameter
Description
Manufacturer
Schneider Electric
Model Number
TSXCTZ2A
Product Type
Counter Module
Product Series
Modicon Premium
Module Function
High-Speed Counting Expansion
Counting Channels
2 Channels
Signal Type
Pulse Input Signals
Application
Encoder Feedback and Industrial Counting
Processing Method
Dedicated High-Speed Counting
Compatible System
Modicon Premium PLC Platform
Mounting Method
PLC Rack Installation
Connection Type
Terminal Connector
Dimensions
260 × 180 × 55 mm
Weight
0.21 kg (0.46 lb)
Application Environment
Industrial Automation and Motion Control Systems
Recommended Related Models
Model
Product Type
Schneider TSXCTZ2A
High-Speed Counter Module
Schneider TSXCTZ1A
Counter Module
Schneider TSXCFY21
Motion Control Module
Schneider TSXAEY1600R
Analog Input Module
Schneider TSXASY410
Analog Output Module
Popular Related Models
Model
Product Type
Schneider BMXEHC0200
High-Speed Counter Module
Schneider BMXAMI0810
Analog Input Module
Schneider BMXAMO0210
Analog Output Module
Schneider BMXP342020
Modicon M340 CPU Module
Schneider BMXNOC0401
Ethernet Communication Module
Schneider TM3AI4G
Analog Input Module
Schneider TM3AQ2
Analog Output Module
Schneider TM3BCEIP
Distributed I/O Module
The Schneider TSXCTZ2A Counter Module is a reliable industrial automation component designed for high-speed pulse counting and precise machine monitoring applications. With dedicated counting capability, stable signal processing, and Modicon Premium system compatibility, it helps improve automation accuracy and supports efficient industrial production systems.
Applications
The Schneider TSXCTZ2A Counter Module is a specialized high-speed counting expansion module designed for industrial automation systems requiring accurate pulse measurement and fast signal processing. As part of the Modicon Premium PLC platform, this module provides reliable counting functions for applications where standard PLC scan cycles cannot meet high-frequency measurement requirements.
The TSXCTZ2A is widely used for monitoring rotational speed, position feedback, production quantities, encoder signals, and machine movement. It enables PLC systems to process high-speed pulse inputs from sensors and measurement devices, improving the accuracy and performance of automated equipment.
With its dedicated counting capability, the module is suitable for machine builders, system integrators, and industrial users who require precise motion monitoring and production control.
Typical application areas include:
Industry
Application
Machine Manufacturing
Position detection, motion control, and machine synchronization
Packaging Industry
Product counting, conveyor monitoring, and high-speed detection
Textile Industry
Rotation measurement and production monitoring
Material Handling
Encoder feedback and positioning systems
Automotive Manufacturing
Assembly line control and component counting
The Schneider TSXCTZ2A Counter Module provides an effective solution for industrial applications requiring high-speed counting, accurate measurement, and reliable PLC integration.
High-Speed Counting Advantages and Industrial Benefits
Accurate Pulse Measurement
The TSXCTZ2A is designed to process high-frequency pulse signals from industrial sensors and encoders, improving measurement accuracy in automated systems.
Improved Machine Performance
Dedicated counting hardware reduces dependence on PLC scan cycles, allowing faster response to changing machine conditions.
Reliable Position Monitoring
The module helps automation systems monitor position, speed, and movement accurately in motion-related applications.
Flexible Industrial Integration
It can be integrated into different automation systems requiring precise counting functions, making it suitable for various machine control projects.
Reduced PLC Processing Load
By handling counting tasks independently, the module allows the main PLC CPU to focus on other control operations.
Stable Long-Term Operation
Designed for industrial environments, the module provides dependable performance for continuous production applications.
Technical FAQs
Q1: What is the main function of the Schneider TSXCTZ2A?
A: The TSXCTZ2A is a high-speed counter module used to process pulse signals and perform accurate counting operations in PLC systems.
Q2: Why are dedicated counter modules used instead of standard PLC inputs?
A: Dedicated counter modules can process high-frequency signals faster than normal PLC scan cycles, improving measurement accuracy.
Q3: What devices can be connected to the TSXCTZ2A?
A: It can be connected with compatible pulse sensors, incremental encoders, and industrial measurement devices.
Q4: What causes incorrect counting values?
A: Common causes include incorrect wiring, sensor problems, signal interference, wrong parameter settings, or encoder faults.
Q5: How can technicians troubleshoot counting errors?
A: Check input signal quality, sensor operation, wiring connections, module settings, and PLC program configuration.
Q6: Can the TSXCTZ2A be used for speed measurement?
A: Yes, high-speed counter modules are commonly used for monitoring rotational speed and movement frequency.
Q7: Why is pulse signal quality important?
A: Poor signal quality may cause missed counts, incorrect measurements, or unstable machine operation.
Q8: What should be checked before replacing the module?
A: Verify PLC compatibility, hardware configuration, wiring assignment, and application requirements.
Q9: How does the counter module improve automation efficiency?
A: It provides faster and more accurate counting functions, improving machine control and production monitoring.
Q10: What maintenance is recommended for the TSXCTZ2A system?
A: Regular checks should include encoder condition, signal cables, module status, and PLC diagnostics.
