Brand:Schneider PLC Item No.: TM3AQ2G Product Origin:France Product Dimensions:110 × 66.8 × 50 mm Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

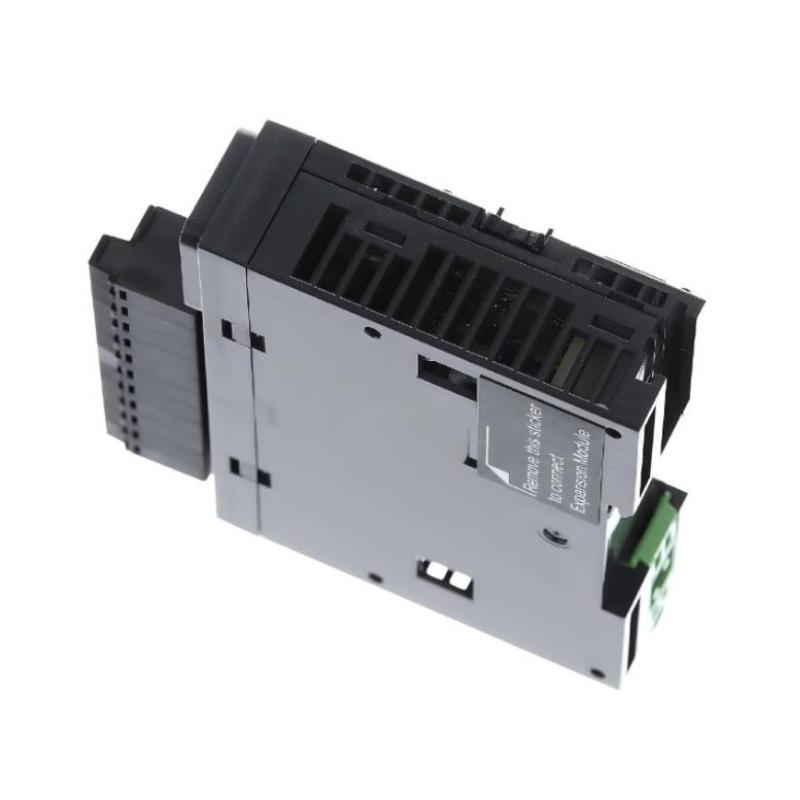

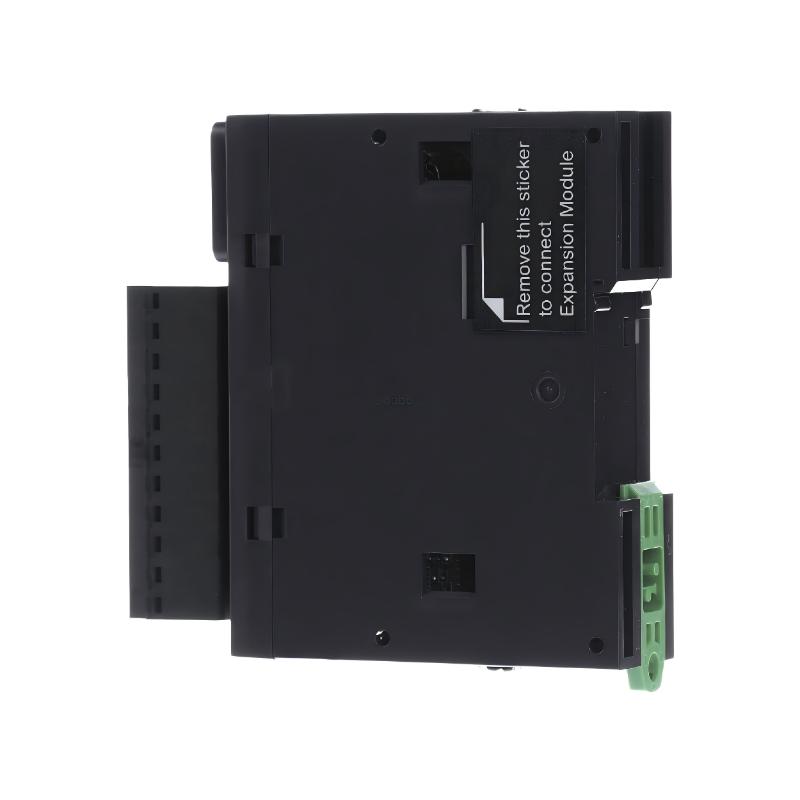

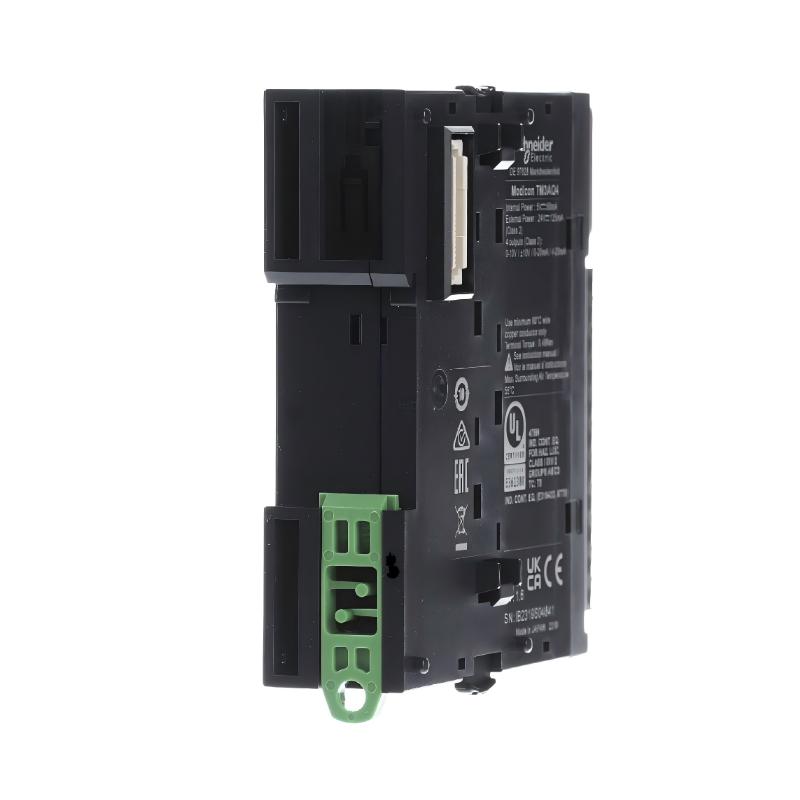

The Schneider TM3AQ2G Analog Output Module is a compact analogue expansion solution from the Modicon TM3 family, designed to enhance the control capability of modern automation systems. Featuring two configurable analogue output channels, it enables precise control of industrial equipment through standard voltage and current signals.
Built for machine builders, system integrators, and industrial automation engineers, the TM3AQ2G combines flexible signal configuration with a space-saving modular design. Its support for common industrial analogue standards makes it an effective choice for applications requiring accurate actuator control, process adjustment, and reliable machine performance.
Technical Specifications
Parameter
Specification
Brand
Schneider Electric
Model Number
TM3AQ2G
Product Type
Analog Output Module
Product Range
Modicon TM3
Module Type
Analog Output Expansion Module
Compatible Controllers
Modicon M221 / M241 / M251 / M262
Number of Outputs
2
Output Type
Voltage / Current Analog Output
Voltage Output Range
0...10 V DC, -10...+10 V DC
Current Output Range
0...20 mA, 4...20 mA
Resolution
12 bits or 11 bits + sign
Rated Supply Voltage
24 V DC
Connection Type
Removable Spring Terminal Block
Terminal Pitch
5.08 mm
Cable Type
Shielded Twisted Pair
Maximum Cable Length
30 m
Status Indicator
Green PWR LED
Mounting Type
DIN Rail Mounting
Protection Rating
IP20
Operating Temperature
-10...55°C
Storage Temperature
-25...70°C
Dimensions (W × H × D)
Approx. 23.6 × 90 × 70 mm
Weight
Approx. 100 g
Recommended Companion Models
Model
Product Name
TM3AM6G
Schneider Modicon TM3 Analog Mixed I/O Module
TM3AI8G
Schneider Modicon TM3 Analog Input Module
TM3DQ16R
Schneider Modicon TM3 Relay Output Module
TM241CE40T
Schneider Modicon M241 Logic Controller
Frequently Selected Alternatives
Model
Product Name
TM3AQ4G
Schneider Modicon TM3 4-Channel Analog Output Module
TM3AQ2
Schneider Modicon TM3 Analog Output Module with Screw Terminal
TM3AM6
Schneider Modicon TM3 Analog Mixed I/O Module
TM2AMM6HT
Schneider Modicon TM2 Analog Mixed I/O Expansion Module
Where It Excels in Industrial Use
• Precision Analog Actuator Control
The TM3AQ2G provides reliable analogue output signals for controlling variable frequency drives, proportional valves, motor controllers, and other industrial devices requiring accurate voltage or current references.
• Machine Automation Expansion
Designed for Modicon TM3 architectures, the module adds flexible analogue output capability to compact automation systems used in OEM machinery, production equipment, and industrial control panels.
• Process Regulation Applications
The module is suitable for applications requiring continuous signal adjustment, including flow regulation, pressure control, speed adjustment, and industrial positioning systems.
• Compact Control Cabinet Integration
With its narrow modular structure and spring terminal connection design, the TM3AQ2G helps engineers achieve efficient installation while maintaining easy maintenance access.
Key Strengths at a Glance
• Dual Analog Output Channels
The TM3AQ2G provides two analogue output channels with 12-bit resolution, supporting accurate control of external analogue devices.
• Multiple Signal Output Modes
The module supports 0...10 V, -10...+10 V, 0...20 mA, and 4...20 mA output ranges, allowing flexible connection with different industrial actuators and controllers.
• Spring Terminal Wiring Design
The removable spring terminal block simplifies field wiring, improves installation efficiency, and provides reliable connection performance in industrial environments.
• Wide Controller Compatibility
The TM3AQ2G is designed for Schneider Electric Modicon M221, M241, M251, and M262 controller platforms, providing scalable analogue expansion options.
Technical FAQs
1. What type of product is the Schneider TM3AQ2G?
The Schneider TM3AQ2G is a Modicon TM3 analogue output expansion module designed to provide additional analogue output channels for compatible controllers.
2. How many analogue output channels does the TM3AQ2G provide?
The TM3AQ2G provides two independent analogue output channels.
3. What output signal types are supported by the TM3AQ2G?
The module supports voltage outputs of 0...10 V DC and -10...+10 V DC, as well as current outputs of 0...20 mA and 4...20 mA.
4. What is the resolution of the TM3AQ2G output channels?
The module provides 12-bit resolution or 11-bit resolution plus sign depending on the configured output mode.
5. Which Schneider controllers are compatible with the TM3AQ2G?
The TM3AQ2G is compatible with Modicon M221, M241, M251, and M262 controller families.
6. What type of terminal connection does the TM3AQ2G use?
The TM3AQ2G uses a removable spring terminal block with a 5.08 mm pitch for field wiring connections.
7. Can the TM3AQ2G output both voltage and current signals?
Yes, each output channel can be configured for voltage or current signal operation according to application requirements.
8. What software is used to configure the TM3AQ2G?
The module is configured through Schneider Electric EcoStruxure Machine Expert software when connected to compatible Modicon controllers.
9. Does the TM3AQ2G require an external power supply?
Yes, the module operates with a 24 V DC supply through the TM3 expansion system.
10. What cable type is recommended for the TM3AQ2G analogue outputs?
Shielded twisted-pair cable is recommended for analogue output wiring, with a maximum cable length of approximately 30 m.
