Brand:Schneider PLC Item No.:TSXCTZ2AA Product Origin:France Product Dimensions:260 x 180 x 55 mm Product Weight:0.22 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Product Introduction and Industrial Pulse Measurement Solution

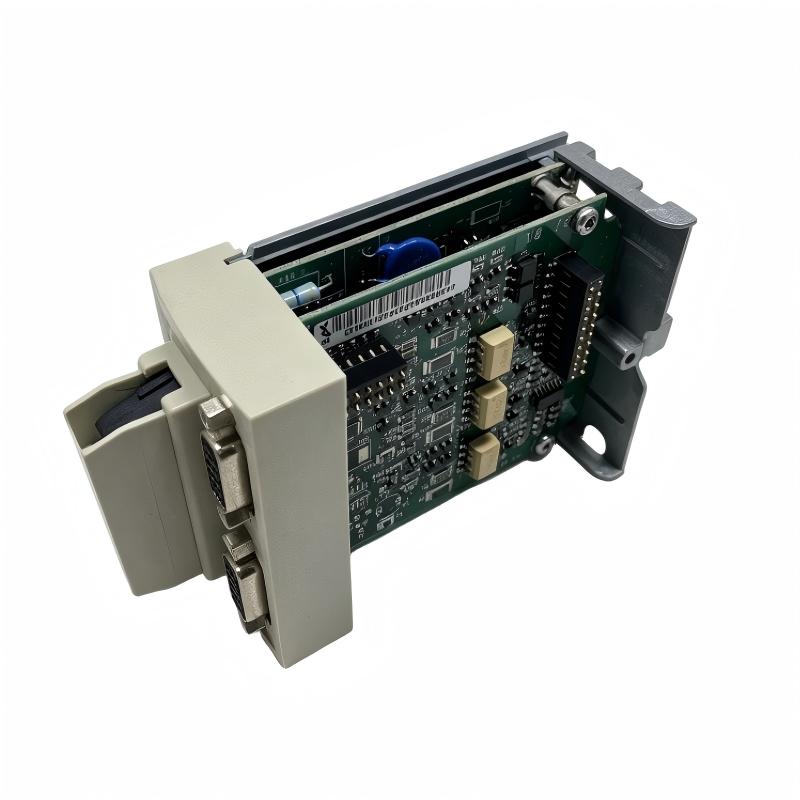

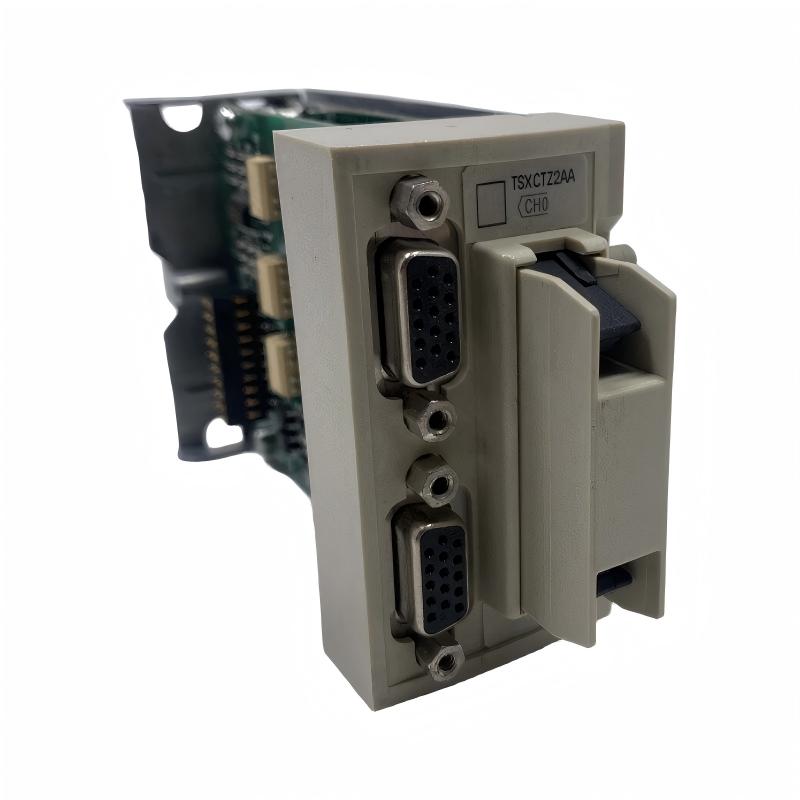

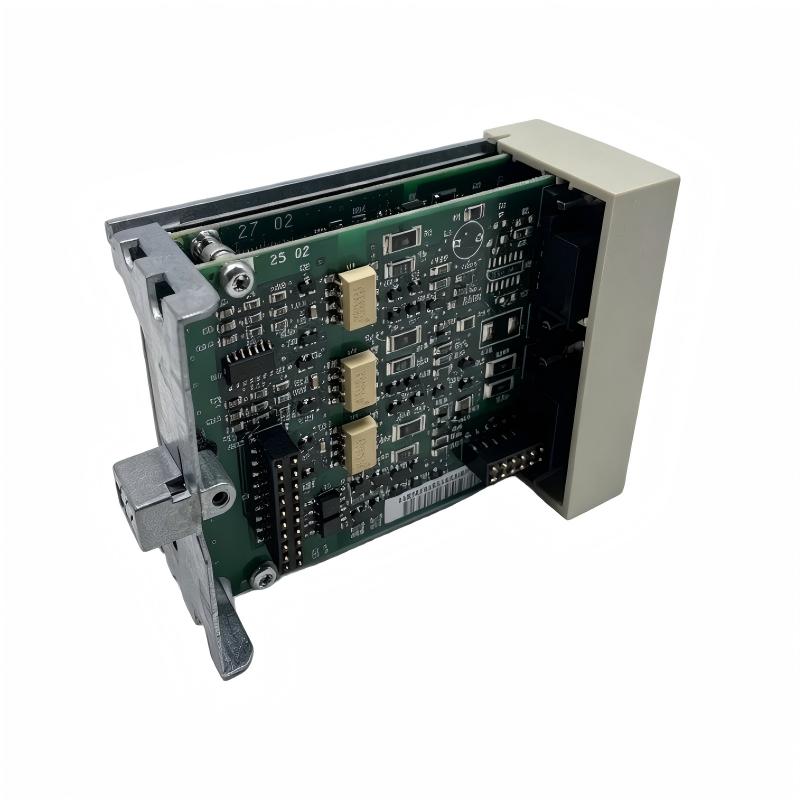

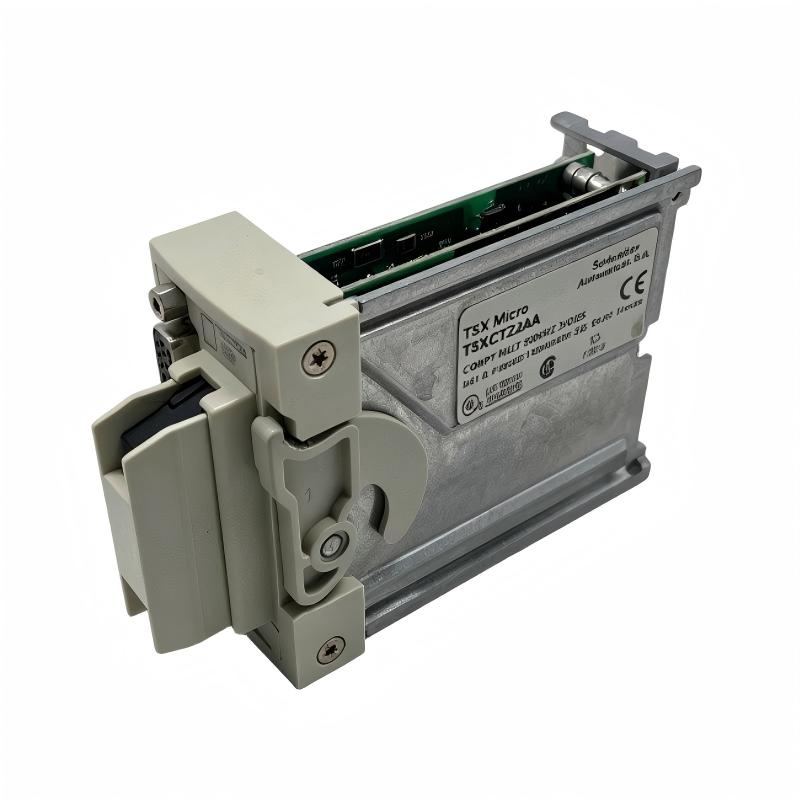

The Schneider TSXCTZ2AA Counter Module is a professional automation component designed to expand the counting capability of Modicon Premium PLC systems. It provides specialized high-speed signal processing for applications where accurate counting and real-time measurement are critical.
In modern industrial automation, many machines depend on precise pulse information from encoders and sensors. Standard PLC inputs may not provide sufficient response speed for high-frequency signals, especially in applications involving fast mechanical movement. Dedicated counter modules solve this challenge by providing faster signal processing and more accurate measurement.
The TSXCTZ2AA helps automation engineers develop efficient control solutions for production lines, motion applications, and machine monitoring systems. It improves system performance by providing reliable counting functions while reducing processing requirements on the main PLC controller.
For industrial equipment upgrades and automation projects, the Schneider TSXCTZ2AA Counter Module offers dependable counting performance, flexible integration, and long-term operational reliability.
Technical Specifications
Parameter
Description
Manufacturer
Schneider Electric
Model Number
TSXCTZ2AA
Product Type
Counter Module
Product Series
Modicon Premium
Module Function
High-Speed Counter Expansion
Counting Channels
2 Channels
Input Signal Type
Pulse Signal Input
Application
Encoder Feedback, Position Detection, Production Counting
Processing Type
High-Speed Dedicated Counting
Compatible System
Modicon Premium PLC Platform
Mounting Method
PLC Rack Installation
Connection Type
Terminal Connector
Dimensions
260 × 180 × 55 mm
Weight
0.22 kg (0.49 lb)
Application Environment
Industrial Automation and Motion Control Systems
Recommended Related Models
Model
Product Type
Schneider TSXCTZ2AA
High-Speed Counter Module
Schneider TSXCTZ2A
Counter Module
Schneider TSXCFY21
Motion Control Module
Schneider TSXAEY1600R
Analog Input Module
Schneider TSXASY410
Analog Output Module
Popular Related Models
Model
Product Type
Schneider BMXEHC0200
High-Speed Counter Module
Schneider BMXAMI0810
Analog Input Module
Schneider BMXAMO0210
Analog Output Module
Schneider BMXP342020
Modicon M340 CPU Module
Schneider BMXNOC0401
Ethernet Communication Module
Schneider TM3AI4G
Analog Input Module
Schneider TM3AQ2
Analog Output Module
Schneider TM3BCEIP
Distributed I/O Module
The Schneider TSXCTZ2AA Counter Module is a dependable industrial automation component designed for high-speed counting, pulse measurement, and machine monitoring applications. With accurate signal processing, reliable PLC integration, and stable industrial performance, it helps improve production efficiency and supports advanced automation control systems.
Applications
The Schneider TSXCTZ2AA Counter Module is a high-speed counting expansion module designed for industrial automation systems that require accurate pulse processing, precise measurement, and reliable machine monitoring. As part of the Modicon Premium PLC platform, this module provides dedicated counting functions to handle high-frequency input signals that cannot be efficiently processed by standard PLC digital inputs.
The TSXCTZ2AA is commonly used in applications involving encoder feedback, production counting, speed monitoring, length measurement, and position detection. By providing fast and accurate pulse acquisition, it helps PLC systems improve machine synchronization, production efficiency, and control accuracy.
This module is suitable for machine manufacturers, automation engineers, and industrial users who need reliable counting performance in demanding manufacturing environments.
Typical application areas include:
Industry
Application
Machine Manufacturing
Position control, mechanical movement monitoring, and machine synchronization
Packaging Industry
Product counting, conveyor tracking, and packaging process control
Automotive Industry
Component counting, assembly line monitoring, and production measurement
Material Handling
Encoder feedback, speed detection, and transport system control
Textile Industry
Rotation counting and production speed monitoring
The Schneider TSXCTZ2AA Counter Module provides a reliable solution for industrial applications requiring fast counting response, accurate pulse measurement, and flexible PLC system expansion.
High-Speed Counting Performance Advantages and Industrial Benefits
Fast Pulse Signal Processing
The TSXCTZ2AA is designed to process high-frequency pulse signals from sensors and encoders, improving counting accuracy in fast-moving industrial equipment.
Enhanced Machine Synchronization
Accurate counting and timing functions help automation systems coordinate mechanical movements and improve production consistency.
Reliable Position and Speed Monitoring
The module supports applications requiring precise monitoring of machine position, rotation speed, and production quantity.
Reduced PLC CPU Load
Dedicated counting functions allow the module to handle pulse calculations independently, improving overall PLC system efficiency.
Flexible Automation Integration
The module can be integrated into industrial control architectures where high-speed measurement and monitoring are required.
Stable Industrial Operation
Designed for continuous automation environments, the module provides dependable performance for long-term production applications.
Technical FAQs
Q1: What is the main function of the Schneider TSXCTZ2AA?
A: The TSXCTZ2AA is a high-speed counter module used to process pulse signals and perform accurate counting operations within PLC systems.
Q2: Why use a high-speed counter module instead of normal PLC inputs?
A: High-speed counter modules process fast pulse signals independently from PLC scan cycles, providing better accuracy and faster response.
Q3: What devices can be connected to the TSXCTZ2AA?
A: Compatible pulse sensors, incremental encoders, and industrial counting devices can be connected depending on system requirements.
Q4: What causes incorrect counting results?
A: Possible causes include sensor failure, incorrect wiring, signal interference, improper configuration, or encoder problems.
Q5: How can technicians troubleshoot counting errors?
A: Check input signals, sensor operation, wiring connections, module parameters, and PLC program logic.
Q6: Can the TSXCTZ2AA measure machine speed?
A: Yes, high-speed counter modules are commonly used for speed calculation based on pulse frequency.
Q7: What applications require high-speed counting?
A: Common applications include packaging machines, conveyor systems, motion equipment, and production quantity monitoring.
Q8: What happens if the pulse signal quality is poor?
A: Poor signal quality may result in missed counts, unstable readings, or incorrect machine operation.
Q9: What maintenance should be performed on the counter module?
A: Regular inspection of wiring, sensor connections, module status, and system configuration helps maintain reliable operation.
Q10: How does the TSXCTZ2AA improve automation systems?
A: It improves measurement accuracy, machine response speed, and production control reliability.
