Brand:Schneider PLC Item No.:TM3DQ16UK Product Origin:France Product Dimensions:202 × 21 × 261 mm Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

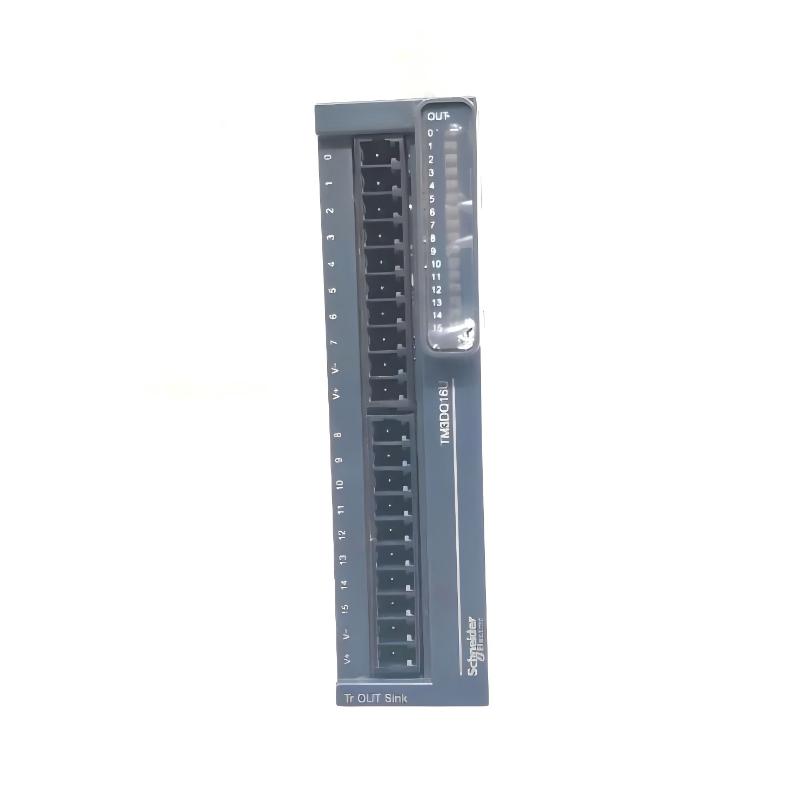

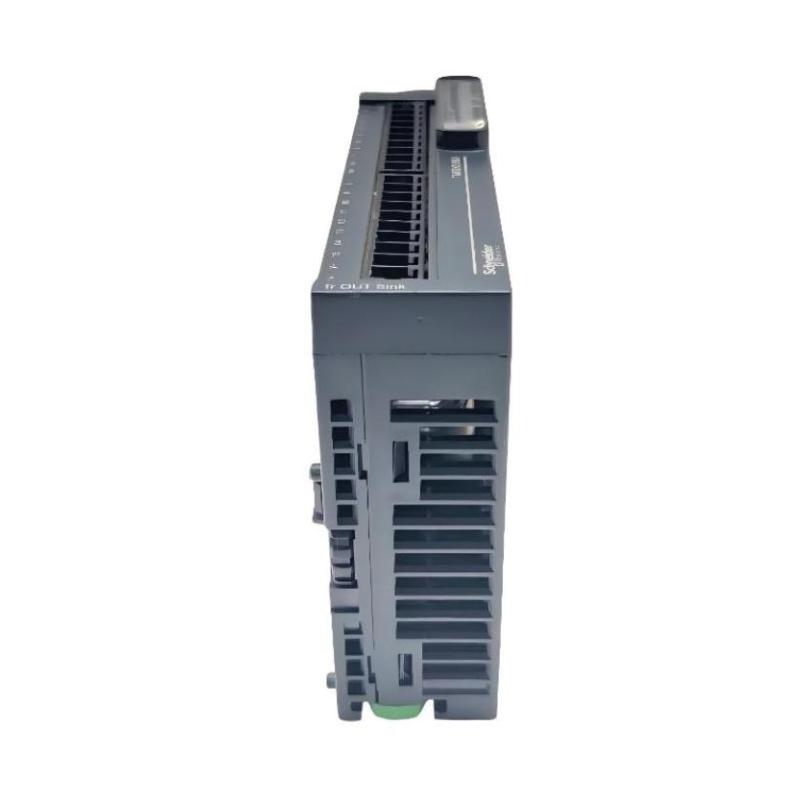

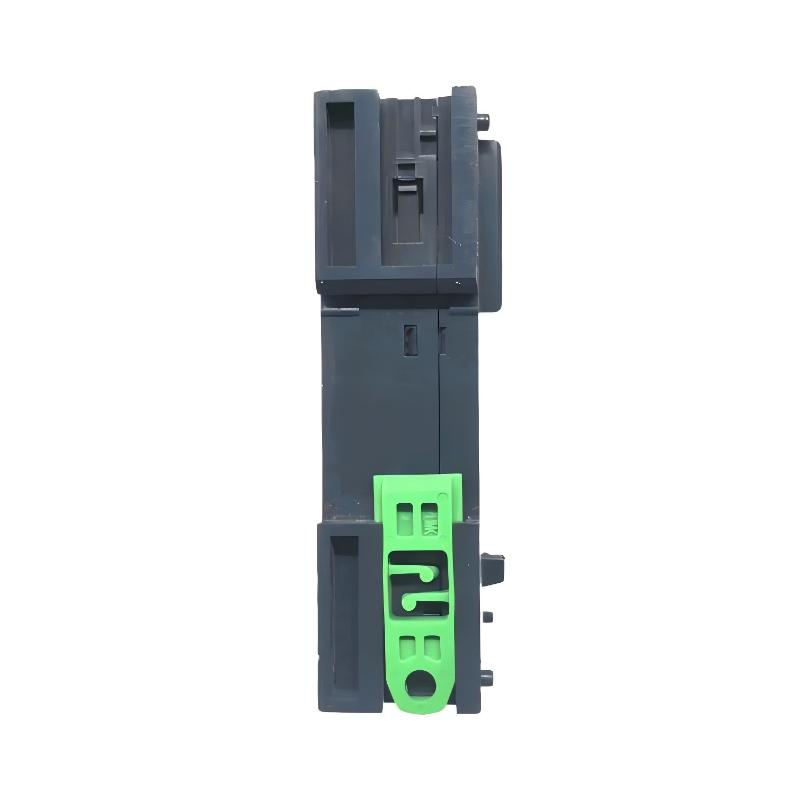

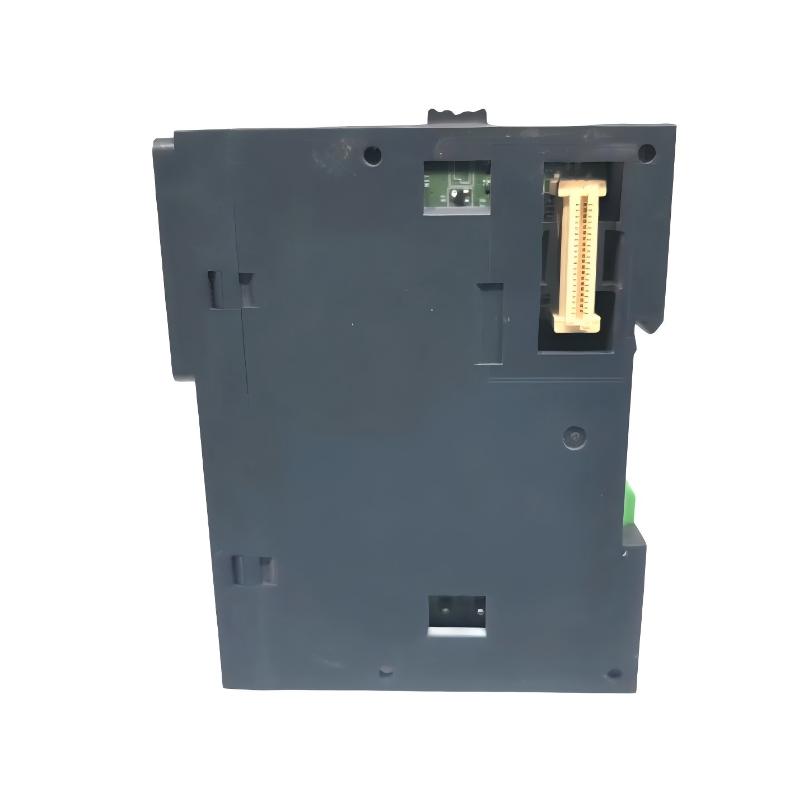

The Schneider TM3DQ16UK Digital Output Module is a compact transistor output expansion solution from the Modicon TM3 family, designed to increase digital control capability in industrial automation systems. Featuring 16 sink transistor outputs, it provides efficient 24 VDC switching for industrial actuators, indicators, and control devices.
Engineered for OEM manufacturers, machine builders, and automation system integrators, the TM3DQ16UK combines fast switching performance, compact installation, and flexible controller compatibility. Its NPN transistor output architecture makes it a practical choice for applications requiring dependable discrete signal control and scalable machine automation expansion.
Technical Specifications
Parameter
Specification
Brand
Schneider Electric
Model Number
TM3DQ16UK
Product Type
Digital Output Module
Product Range
Modicon TM3
Module Type
Transistor Output Expansion Module
Compatible Controllers
Modicon M221 / M241 / M251 / M262
Number of Outputs
16
Output Type
Transistor
Logic Type
Sink (NPN)
Rated Output Voltage
24 VDC
Output Voltage Range
19.2...28.8 VDC
Rated Output Current
0.1 A per channel
Total Output Current per Group
2 A
Number of Channel Groups
1 common line for 16 channels
Voltage Drop
Maximum 0.4 VDC
Leakage Current
Maximum 0.1 mA
Turn-On Time
Approx. 450 μs
Turn-Off Time
Approx. 450 μs
Switching Frequency
Maximum 100 Hz
Short-Circuit Protection
Not integrated
Reverse Polarity Protection
Not integrated
Isolation Voltage
500 VAC between output and internal logic
Connection Type
HE10 (MIL 20) Connector
Status Indication
Green LED per output channel
Mounting Type
DIN Rail Mounting
Protection Rating
IP20
Operating Temperature
-10...55°C
Dimensions (W × H × D)
Approx. 21.4 × 90 × 81.3 mm
Weight
Approx. 111 g
Recommended Companion Models
Model
Product Name
TM241CE40T
Schneider Modicon M241 Logic Controller
TM3DI16K
Schneider Modicon TM3 16-Channel Digital Input Module
• Industrial Equipment Discrete Control
The TM3DQ16UK provides 16 transistor sink outputs for controlling 24 VDC industrial devices such as relays, signal lamps, solenoid valves, and small automation actuators, making it suitable for machine control applications requiring reliable digital switching.
• OEM Machine Expansion Systems
Designed for Modicon TM3 architectures, the module allows machine builders to expand digital output capacity on Modicon M221, M241, M251, and M262 controllers while maintaining a compact control cabinet layout.
• High-Speed Automation Tasks
The transistor output technology provides fast switching performance, supporting applications such as packaging machinery, assembly equipment, material handling systems, and automated production lines.
• Space-Saving Control Panel Integration
With a narrow modular housing and HE10 connector interface, the TM3DQ16UK simplifies wiring and installation in industrial automation cabinets where efficient space utilization is required.
Key Strengths at a Glance
• 16-Channel Sink Transistor Outputs
The TM3DQ16UK features 16 digital transistor outputs with sink (NPN) logic, operating at 24 VDC for direct connection with compatible industrial loads.
• Fast Response Switching
The module provides approximately 450 μs turn-on and turn-off response times, enabling efficient control in applications requiring rapid output changes.
• Compact HE10 Connection Design
The HE10 (MIL 20) connector system enables simplified wiring solutions and supports faster installation compared with traditional terminal-based connections.
• Reliable Modicon TM3 Platform Integration
The module works seamlessly with Modicon M221, M241, M251, and M262 controller families, providing a scalable solution for expanding automation systems.
Technical FAQs
1. What type of product is the Schneider TM3DQ16UK?
The Schneider TM3DQ16UK is a Modicon TM3 digital output expansion module featuring 16 transistor sink outputs for industrial automation applications.
2. How many output channels does the TM3DQ16UK provide?
The TM3DQ16UK provides 16 independent digital output channels.
3. What output technology does the TM3DQ16UK use?
The module uses transistor output technology with sink (NPN) logic for switching connected field devices.
4. What is the rated output voltage of the TM3DQ16UK?
The module operates with a rated output voltage of 24 VDC and supports an operating voltage range of 19.2 to 28.8 VDC.
5. What is the maximum output current per channel?
Each output channel supports a rated current of 0.1 A.
6. Which Schneider controller platforms are compatible with the TM3DQ16UK?
The TM3DQ16UK is compatible with Modicon M221, M241, M251, and M262 controller platforms.
7. What type of connector is used by the TM3DQ16UK?
The module uses an HE10 (MIL 20) connector for output wiring connections.
8. What is the switching response time of the TM3DQ16UK?
The module provides approximately 450 μs response time for both output activation and deactivation.
9. Does the TM3DQ16UK include short-circuit protection?
No, the module does not provide integrated short-circuit protection, and appropriate external protection devices are required.
10. What software is used to configure the TM3DQ16UK?
The TM3DQ16UK is configured through Schneider Electric EcoStruxure Machine Expert when used with compatible Modicon controllers.
