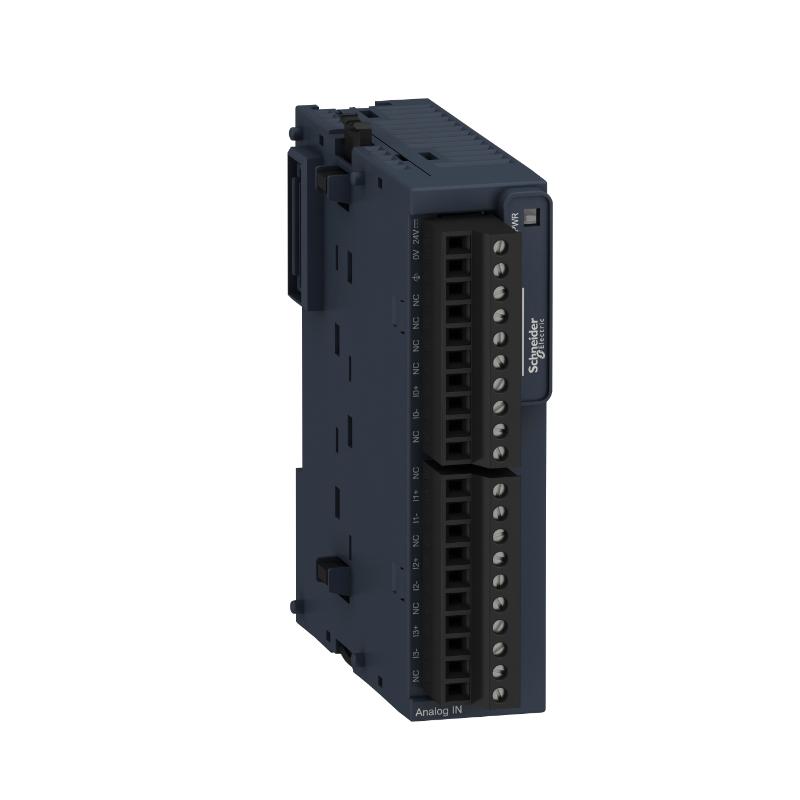

Brand:Schneider PLC Item No.:TM5ACBM05R Product Origin:France Product Dimensions:110 × 66.8 × 50 mm Product Weight:0.36 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Schneider TM5ACBM05R Bus Base Module is a key component of the Modicon TM5 modular automation platform, designed to provide reliable infrastructure for distributed I/O system construction. Featuring 24 VDC operation and address-setting capability, it supports organized and scalable configurations using compatible TM5 receiver and power distribution modules.
Engineered for OEM manufacturers, machine builders, and automation system integrators, the TM5ACBM05R delivers a flexible approach to modular control system design. Its compact structure, addressing flexibility, and compatibility with Modicon automation platforms make it a practical choice for applications requiring precise I/O organization and efficient system expansion.
Technical Specifications
Parameter
Specification
Brand
Schneider Electric
Model Number
TM5ACBM05R
Product Type
Bus Base Module
Product Range
Modicon TM5
Module Type
Address-Setting Bus Base
Compatible Controllers
Modicon M258 / LMC058
Compatible Modules
Receiver Modules / Power Distribution Modules
Housing Color
Gray
Rated Supply Voltage
24 VDC
Address Setting Function
Supported
I/O Power Segment
24 VDC Left Isolated
Power Bus Current Consumption
26 mA
Maximum Power Dissipation
0.13 W
Protection Rating
IP20
Mounting Type
TM5 Modular Slice Installation
Operating Temperature
-10...55°C
Storage Temperature
-25...70°C
Dimensions (W × H × D)
Approx. 12.5 × 90 × 70 mm
Weight
Approx. 20 g
Recommended Companion Models
Model
Product Name
TM5SPS1
Schneider Modicon TM5 24 VDC Power Distribution Module
Schneider Modicon TM5 12-Channel Digital Output Module
TM5SAI4PH
Schneider Modicon TM5 Analog Input Module
Frequently Selected Alternatives
Model
Product Name
TM5ACBM01R
Schneider Modicon TM5 Standard Bus Base Module
TM5ACBM15
Schneider Modicon TM5 Address-Setting Bus Base Module
TM5ACBM11
Schneider Modicon TM5 24 VDC Bus Base Module
TM5ACBM12
Schneider Modicon TM5 AC Module Bus Base Module
Where It Excels in Industrial Use
• Distributed I/O System Architecture
The TM5ACBM05R provides a reliable bus base foundation for Modicon TM5 modular I/O systems, enabling the installation of receiver modules and power distribution modules in distributed automation architectures.
• Advanced Machine Automation Platforms
Designed for Modicon M258 and LMC058 controller environments, the module supports scalable machine designs where flexible I/O expansion and organized power segmentation are required.
• Industrial Control Cabinet Organization
The address-setting bus base helps engineers create structured TM5 I/O slices, improving module identification and simplifying maintenance in complex automation systems.
• OEM Equipment and Remote I/O Applications
The TM5ACBM05R is suitable for packaging machines, production equipment, robotic systems, and other industrial applications requiring modular and expandable I/O configurations.
Key Strengths at a Glance
• Address-Setting Bus Base Design
The TM5ACBM05R is a gray 24 VDC bus base with address-setting capability, allowing specific TM5 slices to be assigned fixed addresses within a modular I/O configuration.
• Dedicated TM5 Power Distribution Support
The module is designed for Power Distribution Modules (PDM) and receiver modules, providing an isolated 24 VDC I/O power segment structure for improved system organization.
• Flexible Modular Expansion
The TM5ACBM05R enables machine builders to create customized I/O islands by combining compatible TM5 electronic modules, terminal blocks, and communication interfaces.
• Compact Industrial Construction
With a lightweight modular design and IP20 protection, the bus base supports efficient DIN rail cabinet layouts while maintaining reliable electrical connections.
Technical FAQs
1. What type of product is the Schneider TM5ACBM05R?
The Schneider TM5ACBM05R is a Modicon TM5 bus base module with address-setting capability, used for building modular I/O configurations.
2. What is the primary function of the TM5ACBM05R?
The module provides the mechanical mounting and electrical bus connection interface for compatible TM5 receiver modules and power distribution modules.
3. Which Schneider controller platforms are compatible with the TM5ACBM05R?
The TM5ACBM05R is designed for Modicon M258 and LMC058 controller-based automation systems.
4. What voltage rating does the TM5ACBM05R support?
The TM5ACBM05R operates in a 24 VDC modular I/O power environment.
5. What is the difference between TM5ACBM05R and TM5ACBM01R?
The TM5ACBM05R includes address-setting capability, while the TM5ACBM01R is a standard bus base without address setting functionality.
6. Is the TM5ACBM05R an input or output module?
No, the TM5ACBM05R is not a signal input or output module; it is a bus base component used within the TM5 modular system.
7. Which modules can be installed with the TM5ACBM05R?
The TM5ACBM05R is intended for compatible Power Distribution Modules and receiver modules within the Modicon TM5 family.
8. Does the TM5ACBM05R require software configuration?
No, the bus base itself does not require software configuration, but connected TM5 modules are configured through the controller programming environment.
9. What color identification does the TM5ACBM05R use?
The TM5ACBM05R uses a gray housing, indicating compatibility with gray TM5 slice components.
10. What mounting method is used for the TM5ACBM05R?
The TM5ACBM05R is installed as part of a TM5 modular slice system mounted inside industrial control cabinets.
