Brand:Schneider PLC Item No.:TSXDMZ28DR Product Origin:France Product Dimensions:260 x 180 x 55 mm Product Weight:0.5 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Product Introduction and Industrial Relay Control Expansion Solution

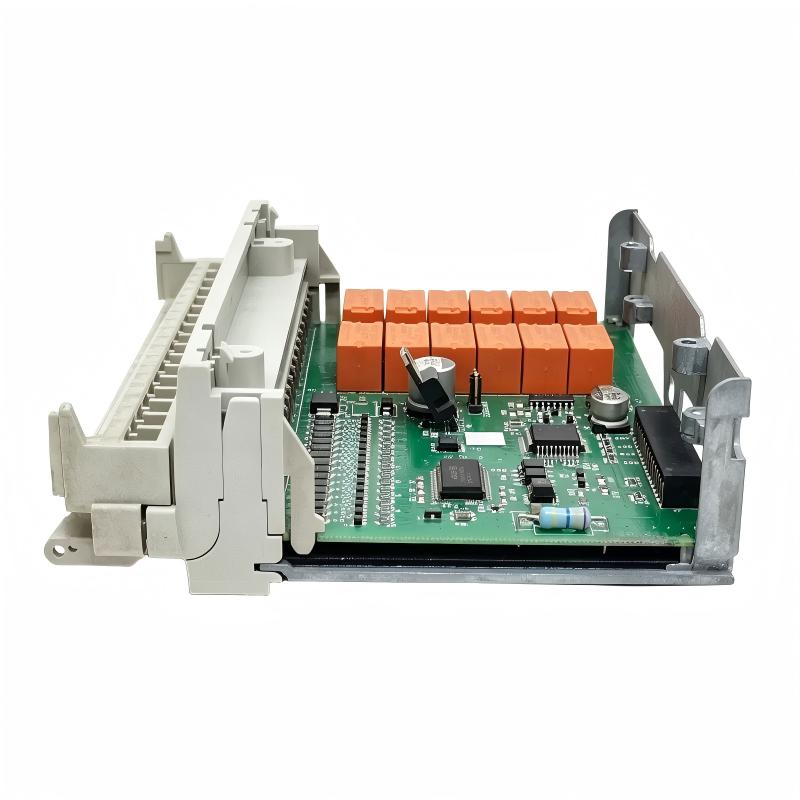

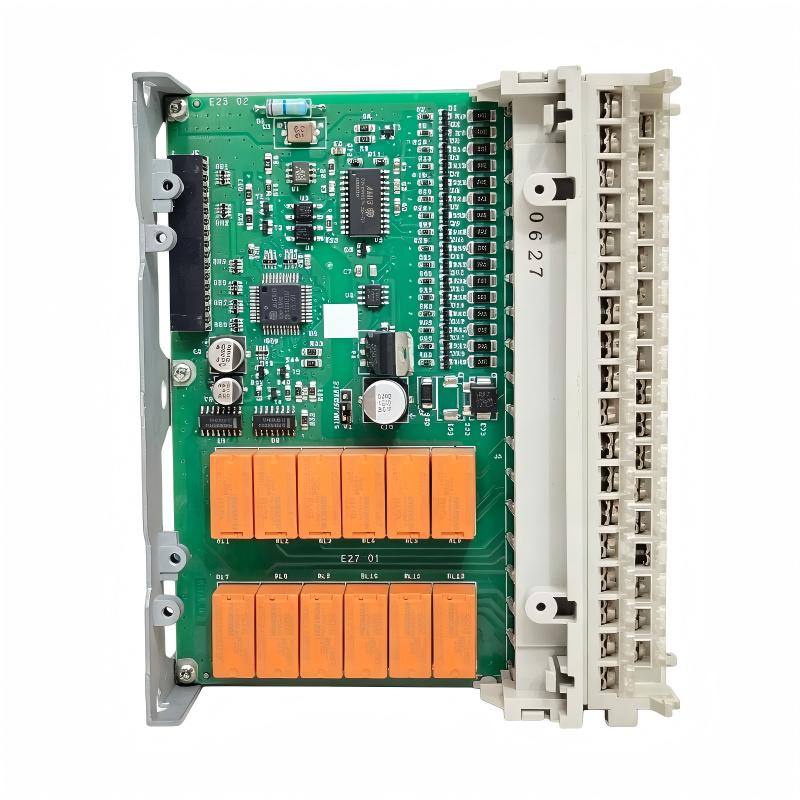

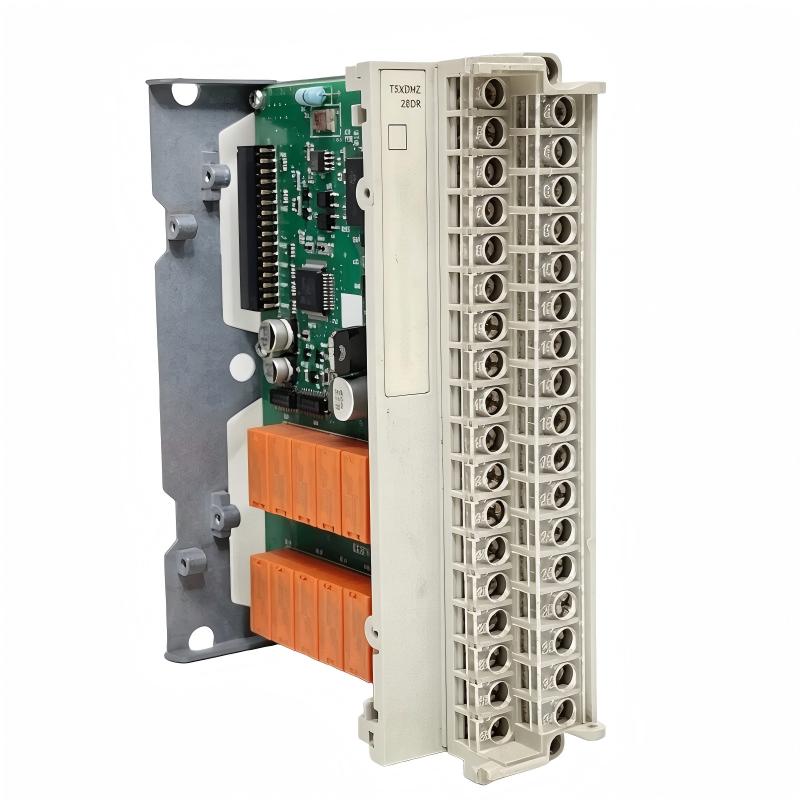

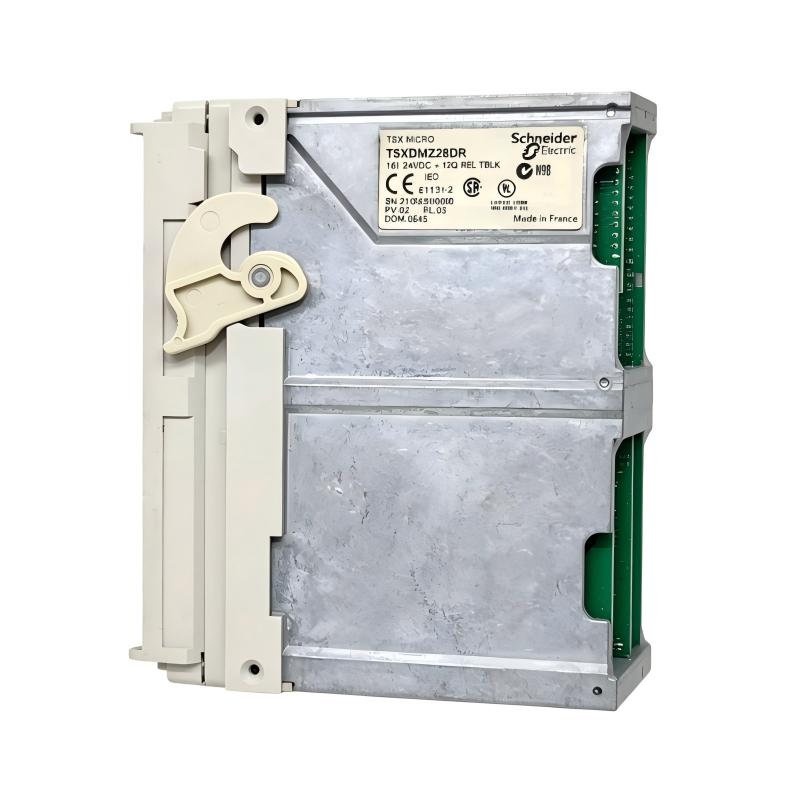

The Schneider TSXDMZ28DR Logic Relay I/O Base is a professional automation component designed to extend digital control capability in Modicon TSX Micro PLC systems. It provides a reliable connection between PLC controllers and field equipment, enabling efficient monitoring and control of industrial processes.
In modern automation systems, machines often require numerous digital signals from sensors and switches while also needing outputs to control motors, valves, indicators, and other devices. A flexible I/O structure is essential for maintaining efficient operation and simplifying system maintenance.
The TSXDMZ28DR combines digital input and relay output functions into a single module, reducing hardware complexity while improving system organization. It helps engineers create compact and reliable automation solutions for manufacturing equipment, production lines, and industrial control applications.
For PLC replacement projects, equipment upgrades, and maintenance of existing automation systems, the Schneider TSXDMZ28DR Logic Relay I/O Base provides dependable performance and practical control expansion capability.
Technical Specifications
Parameter
Description
Manufacturer
Schneider Electric
Model Number
TSXDMZ28DR
Product Type
Logic Relay I/O Base
Product Series
Modicon TSX Micro
Module Function
Digital Input and Relay Output Control
Total I/O Points
28 Channels
Digital Input Channels
16 Inputs
Digital Output Channels
12 Relay Outputs
Input Type
Digital Input
Input Voltage
24 VDC
Output Type
Relay Contact Output
Output Function
ON/OFF Load Switching
Application
Industrial PLC Control and Equipment Automation
Compatible System
Modicon TSX Micro PLC Platform
Mounting Method
PLC Rack Installation
Connection Type
Terminal Connector
Dimensions
260 × 180 × 55 mm
Weight
0.5 kg
Application Environment
Industrial Automation Systems
Recommended Related Models
Model
Product Type
Schneider TSXDMZ28DR
Logic Relay I/O Base
Schneider TSXDMZ28AR
Logic Relay I/O Base
Schneider TSXDMY28RFK
Discrete I/O Module
Schneider TSXDEY16A5
Discrete Input Module
Schneider TSXDSY16T2
Discrete Output Module
Popular Related Models
Model
Product Type
Schneider BMXDDM16022
Mixed Digital I/O Module
Schneider BMXDDI1602
Digital Input Module
Schneider BMXDDO1602
Digital Output Module
Schneider BMXAMI0810
Analog Input Module
Schneider BMXAMO0210
Analog Output Module
Schneider BMXP342020
Modicon M340 CPU Module
Schneider TM3DM32R
Hybrid I/O Module
Schneider TM3DQ16RG
Digital Output Module
The Schneider TSXDMZ28DR Logic Relay I/O Base is a dependable industrial automation component designed for digital signal monitoring and relay-based equipment control. With integrated I/O functionality, reliable switching performance, and compatibility with Modicon TSX Micro PLC systems, it provides an effective solution for improving automation flexibility and maintaining stable industrial control operations.
Applications
The Schneider TSXDMZ28DR Logic Relay I/O Base is a digital relay I/O expansion module designed for industrial automation systems requiring reliable signal acquisition and flexible equipment control. As part of the Modicon TSX Micro automation family, this module combines digital input monitoring and relay output switching functions, providing an efficient interface between PLC controllers and industrial field devices.
The TSXDMZ28DR is widely used for collecting ON/OFF signals from sensors, switches, and detection devices while controlling external electrical equipment through relay outputs. Its integrated I/O design helps simplify automation architectures, reduce wiring complexity, and improve system reliability.
The module is suitable for industrial applications where stable digital signal processing, dependable relay operation, and long service life are required.
Typical application areas include:
Industry
Application
Machine Manufacturing
Machine status monitoring, sequence control, and actuator management
Packaging Industry
Product detection, conveyor control, and automated process control
Factory Automation
Digital signal collection and electrical equipment switching
Material Handling
Position monitoring, transport system control, and equipment feedback
Process Automation
Industrial device monitoring and ON/OFF control applications
The Schneider TSXDMZ28DR Logic Relay I/O Base provides a practical solution for PLC systems requiring reliable digital expansion and flexible relay-based control.
Integrated Relay I/O Control Advantages and Industrial Benefits
Combined Digital Input and Relay Output Functions
The TSXDMZ28DR combines digital input acquisition and relay output control in one module, allowing PLC systems to monitor field signals and control external devices efficiently.
Flexible Field Device Integration
The module can connect with a wide range of industrial devices, including sensors, switches, push buttons, contactors, indicators, and other digital control equipment.
Reliable Relay Switching Performance
Relay outputs provide electrical isolation and flexible switching capability, making the module suitable for controlling various industrial loads.
Simplified Control Cabinet Design
The integrated I/O structure reduces the requirement for multiple separate modules, helping optimize cabinet space and simplify wiring layouts.
Improved Troubleshooting Efficiency
A centralized I/O structure makes signal checking, maintenance, and fault diagnosis easier for automation technicians.
Stable Industrial Operation
Designed for industrial PLC applications, the TSXDMZ28DR supports continuous operation in manufacturing and automation environments.
Technical FAQs
Q1: What is the main function of the Schneider TSXDMZ28DR?
A: The TSXDMZ28DR is a relay I/O base module used for collecting digital input signals and controlling external devices through relay outputs.
Q2: What type of signals can the TSXDMZ28DR process?
A: It processes digital ON/OFF signals from industrial sensors, switches, and control devices.
Q3: Why choose a relay output module for industrial control?
A: Relay outputs provide flexible switching capability and electrical isolation, allowing PLC systems to control different types of external equipment.
Q4: What causes digital input signal problems?
A: Common causes include incorrect wiring, damaged sensors, unstable power supply, cable problems, or PLC configuration errors.
Q5: How can technicians troubleshoot relay output failures?
