Brand:Schneider PLC Item No.:ATV610C13N4 Product Origin:France Product Dimensions:300 x 850 x 375 mm Product Weight:85.5 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

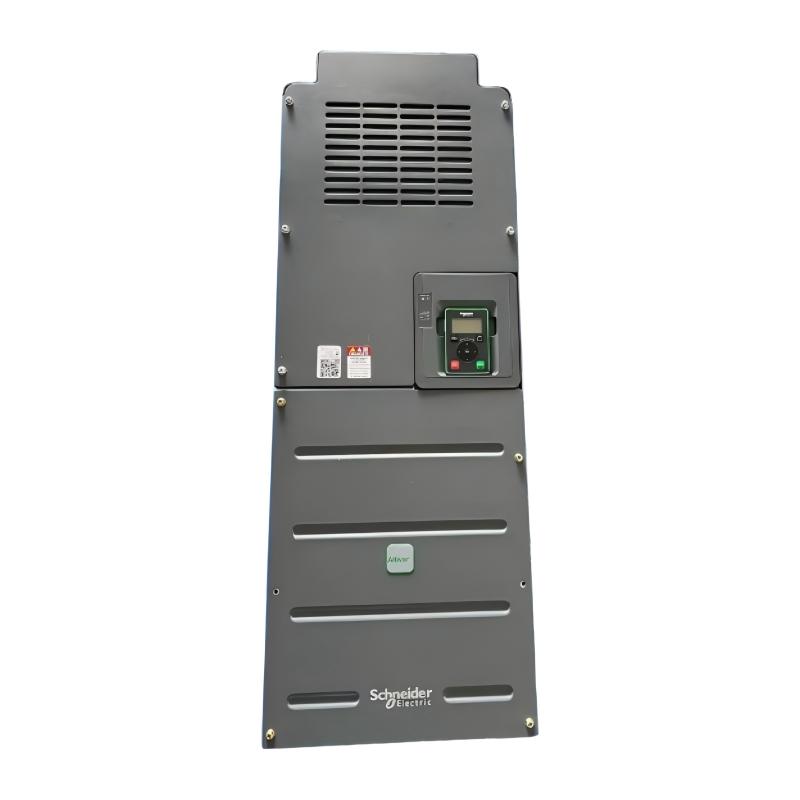

The Schneider ATV610C13N4 Variable Speed Drive is designed for industrial process environments where motor efficiency and operational reliability are critical. It provides advanced speed control technology for large motor-driven systems, helping companies improve productivity and reduce operating costs.
In many industrial facilities, motors represent a significant part of energy consumption. Traditional fixed-speed operation can lead to unnecessary power usage when equipment does not require full capacity. A variable speed drive allows motors to operate according to real process demand, improving energy utilization and reducing equipment wear.
The ATV610C13N4 is designed for applications that require stable operation under changing load conditions. Its industrial structure and reliable control functions make it suitable for large-scale pumping systems, ventilation equipment, manufacturing processes, and infrastructure applications.
For industrial engineers and automation professionals, the Schneider ATV610C13N4 provides a dependable solution for improving motor control performance, optimizing energy usage, and enhancing system reliability.
Technical Specifications
Specification
Details
Product Type
Variable Speed Drive
Manufacturer
Schneider Electric
Model Number
ATV610C13N4
Series
Easy Altivar 610
Rated Power
132 kW
Rated Voltage
380...460 V AC
Input Phase
Three-Phase
Motor Control Type
Asynchronous Motor Control
Application
Pump, Fan, Compressor, Process Control
Installation Method
Cabinet Mounting
Cooling Method
Forced Convection Cooling
Protection Rating
IP20
Communication Capability
Industrial Communication Support
Dimensions
300 × 850 × 375 mm
Weight
85.50 kg (188.50 lb)
Recommended Related Models
Model
Product Type
Schneider ATV610C11N4
Variable Speed Drive
Schneider ATV610C16N4
Variable Speed Drive
Schneider ATV610C18N4
Variable Speed Drive
Schneider ATV610D30N4
Variable Speed Drive
Schneider VW3A1101
Graphic Display Terminal
Popular Related Models
Model
Product Type
Schneider ATV630C13N4
Process Variable Speed Drive
Schneider ATV930C13N4
High Performance Variable Speed Drive
Schneider ATV340D15N4
Machine Variable Speed Drive
Schneider ATV320D15N4C
Compact Variable Speed Drive
Schneider ATV71HC13N4
Industrial Variable Speed Drive
Industrial Applications and Usage Areas
The Schneider ATV610C13N4 Variable Speed Drive is a high-power industrial motor control solution designed for applications requiring efficient speed regulation, reliable operation, and optimized energy management. As part of the Easy Altivar 610 series, this drive is engineered for process industries where large motor-driven equipment requires stable and precise control.
With a powerful design for large three-phase asynchronous motors, the ATV610C13N4 provides dependable performance for continuous industrial operations. It is widely used by engineers, system integrators, and industrial users who need a reliable variable speed drive for pumps, fans, compressors, and other variable torque applications.
The drive helps improve system efficiency by adjusting motor speed according to actual process requirements, reducing unnecessary energy consumption and minimizing mechanical stress on connected equipment.
Typical application areas include:
Water and wastewater treatment systems
Industrial pumping stations
HVAC and ventilation systems
Cooling and circulation equipment
Air compressor systems
Conveyor and material handling equipment
Process manufacturing facilities
Utility and infrastructure projects
The Schneider ATV610C13N4 provides a practical solution for industries seeking improved motor efficiency, stable process control, and long-term equipment reliability.
Engineering Advantages and Product Features
The Schneider ATV610C13N4 Variable Speed Drive combines high-power motor control capability with industrial reliability. It is designed to meet the requirements of demanding process applications where efficiency, durability, and simplified operation are important.
Advantage
Description
High Power Motor Control
Supports large motor applications requiring stable and efficient operation.
Energy Optimization
Adjusts motor speed according to process demand to reduce energy waste.
Process Application Design
Ideal for pumps, fans, compressors, and similar variable torque equipment.
Reliable Industrial Performance
Designed for continuous operation in demanding environments.
Strong Protection Functions
Helps protect motors and drive systems during abnormal operating conditions.
Easy System Integration
Supports integration into industrial automation and control environments.
Technical FAQs
Q1: What is the main purpose of the Schneider ATV610C13N4 Variable Speed Drive? A: The ATV610C13N4 controls motor speed and torque by adjusting output frequency and voltage, allowing industrial motors to operate efficiently according to process requirements.
Q2: What applications are most suitable for the ATV610C13N4? A: The drive is mainly designed for variable torque applications such as pumps, fans, compressors, and industrial process equipment.
Q3: What type of motors can be controlled by the ATV610C13N4? A: The drive is designed for three-phase asynchronous motors commonly used in industrial applications.
Q4: What motor parameters should be configured before operation? A: Engineers should configure motor voltage, rated current, frequency, speed, acceleration time, deceleration time, and control mode based on the motor nameplate information.
Q5: What causes an overcurrent fault during drive operation? A: Common causes include excessive mechanical load, incorrect motor parameters, motor cable problems, short circuits, or unsuitable acceleration settings.
Q6: How can the ATV610C13N4 improve energy efficiency? A: The drive improves efficiency by adjusting motor speed based on actual system demand instead of running motors continuously at full speed.
Q7: Can the ATV610C13N4 be connected to industrial automation systems? A: Yes. The drive can be integrated into industrial control systems for monitoring, control, and process management.
Q8: What should be checked if the motor does not start after installation? A: Check incoming power supply, motor wiring, control signals, drive parameters, and fault records to identify the cause.
Q9: What maintenance is recommended for the ATV610C13N4? A: Regular inspection of cooling systems, electrical connections, operating conditions, and fault history is recommended to maintain reliable operation.
Q10: Why is the ATV610C13N4 suitable for industrial process applications? A: It provides reliable high-power motor control, efficient operation, and stable performance for industries requiring continuous equipment operation.
