Brand:Schneider PLC Item No.:ATV610C16N4 Product Origin:France Product Dimensions:300 x 850 x 375 mm Product Weight:85.5 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

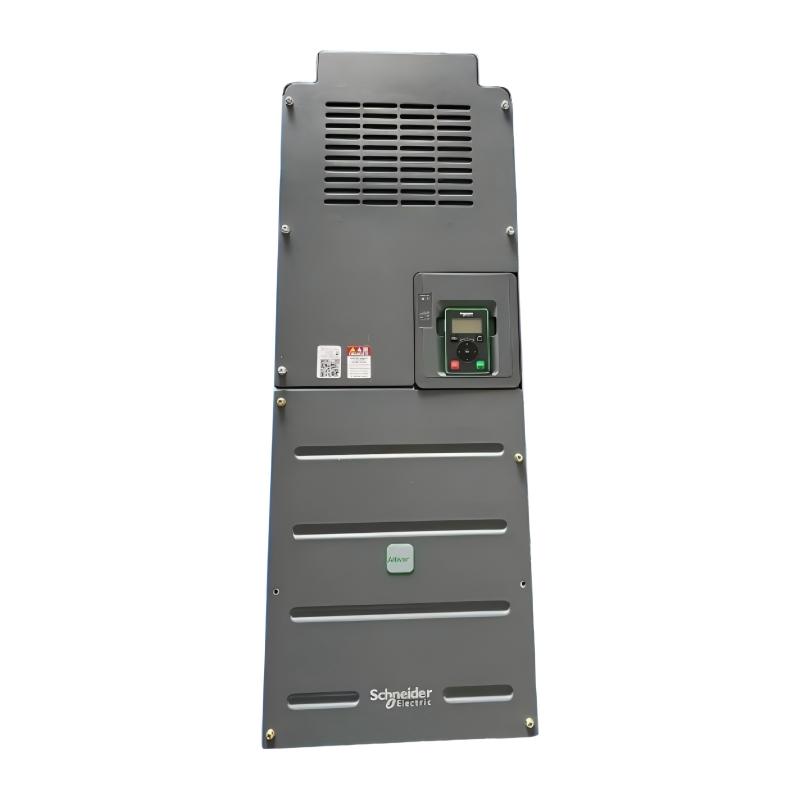

The Schneider ATV610C16N4 Variable Speed Drive is designed for modern industrial environments where efficient motor management and reliable process control are essential. It provides a practical solution for controlling high-power motors used in manufacturing, infrastructure, and process industries.
Large industrial motors often operate under changing load conditions, and traditional fixed-speed operation may result in unnecessary energy consumption and increased mechanical stress. Variable speed drive technology allows motors to adjust operating speed according to actual production requirements, improving efficiency and reducing operating costs.
The ATV610C16N4 provides stable motor control for large-scale applications while maintaining reliable performance in demanding industrial environments. Its robust design, efficient operation, and flexible application capability make it suitable for industries requiring continuous and precise motor management.
For automation engineers and industrial users, the Schneider ATV610C16N4 offers a dependable solution to improve equipment performance, optimize energy usage, and enhance overall system reliability.
Technical Specifications
Specification
Details
Product Type
Variable Speed Drive
Manufacturer
Schneider Electric
Model Number
ATV610C16N4
Series
Easy Altivar 610
Rated Power
160 kW
Rated Voltage
380...460 V AC
Input Phase
Three-Phase
Motor Control Type
Asynchronous Motor Control
Application
Pump, Fan, Compressor, Conveyor Control
Installation Method
Cabinet Mounting
Cooling Method
Forced Convection Cooling
Protection Rating
IP20
Communication Capability
Industrial Communication Support
Dimensions
300 × 850 × 375 mm
Weight
85.50 kg (188.50 lb)
Recommended Related Models
Model
Product Type
Schneider ATV610C11N4
Variable Speed Drive
Schneider ATV610C13N4
Variable Speed Drive
Schneider ATV610C18N4
Variable Speed Drive
Schneider ATV610C22N4
Variable Speed Drive
Schneider VW3A1101
Graphic Display Terminal
Popular Related Models
Model
Product Type
Schneider ATV630C16N4
Process Variable Speed Drive
Schneider ATV930C16N4
High Performance Variable Speed Drive
Schneider ATV340D18N4
Machine Variable Speed Drive
Schneider ATV320D18N4C
Compact Variable Speed Drive
Schneider ATV71HC16N4
Industrial Variable Speed Drive
Industrial Applications and Usage Areas
The Schneider ATV610C16N4 Variable Speed Drive is a high-power motor control solution designed for industrial process applications requiring reliable operation, energy optimization, and precise motor speed management. As part of the Easy Altivar 610 series, this drive is developed for large three-phase asynchronous motor applications in industries where continuous operation and system stability are essential.
The ATV610C16N4 provides efficient control for high-power motor-driven equipment by adjusting motor speed according to actual process requirements. It helps reduce unnecessary energy consumption, minimize mechanical stress, and improve the overall performance of industrial systems.
Designed for industrial engineers, automation specialists, and system integrators, this variable speed drive offers a dependable solution for applications that require stable motor control and long-term operational reliability.
Typical application areas include:
Water and wastewater treatment systems
Industrial pumping stations
HVAC and ventilation equipment
Cooling and circulation systems
Compressor control applications
Conveyor and material handling equipment
Manufacturing process systems
Utility and infrastructure projects
The Schneider ATV610C16N4 helps industries achieve better process control, improved energy efficiency, and enhanced equipment reliability through advanced variable speed technology.
Engineering Advantages and Product Features
The Schneider ATV610C16N4 Variable Speed Drive combines powerful motor control capability with industrial-grade reliability. It is designed for demanding applications where performance, efficiency, and stable operation are critical.
Advantage
Description
High Power Motor Control
Provides reliable control for large industrial motors used in demanding applications.
Energy Efficiency Improvement
Optimizes motor speed according to load requirements to reduce energy consumption.
Process Industry Optimization
Designed for pumps, fans, compressors, and other variable torque applications.
Reliable Continuous Operation
Supports long-term operation in industrial environments.
Advanced Motor Protection
Helps protect motors and drive systems from abnormal operating conditions.
Flexible Automation Integration
Suitable for connection with industrial control and monitoring systems.
Technical FAQs
Q1: What is the main function of the Schneider ATV610C16N4 Variable Speed Drive? A: The Schneider ATV610C16N4 controls motor speed and torque by adjusting output frequency and voltage, allowing industrial motors to operate efficiently according to process requirements.
Q2: What motor power rating does the ATV610C16N4 support? A: The ATV610C16N4 is designed for 160 kW industrial motor applications and is suitable for three-phase power systems.
Q3: What types of motors are compatible with the ATV610C16N4? A: The drive is mainly designed for three-phase asynchronous motors commonly used in industrial process equipment.
Q4: Which applications are most suitable for the ATV610C16N4? A: It is suitable for variable torque applications including pumps, fans, compressors, and conveyor systems.
Q5: What parameters should be configured before commissioning the ATV610C16N4? A: Engineers should configure motor voltage, rated current, frequency, speed, acceleration time, deceleration time, and control mode according to the motor specifications.
Q6: What causes an overcurrent fault on the ATV610C16N4? A: Common causes include excessive mechanical load, incorrect motor parameters, damaged motor cables, short circuits, or unsuitable acceleration settings.
Q7: How does the ATV610C16N4 improve energy efficiency? A: The drive reduces energy waste by adjusting motor speed according to actual system demand instead of operating at constant full speed.
Q8: Can the ATV610C16N4 be integrated into industrial automation systems? A: Yes. The drive can be integrated into industrial control systems for monitoring, communication, and coordinated equipment operation.
Q9: What maintenance is recommended for the ATV610C16N4? A: Regular inspection of cooling conditions, electrical connections, operating parameters, and fault history is recommended to ensure reliable performance.
Q10: Why is the ATV610C16N4 suitable for industrial process applications? A: It provides powerful motor control, stable operation, and efficient performance for industries requiring reliable continuous-duty equipment.
