Brand:Emerson Module Item No.:VE4032S1T2B1 KJ3201X1-EA1 Product Origin:USA Product Dimensions:202 × 21 × 261 mm Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

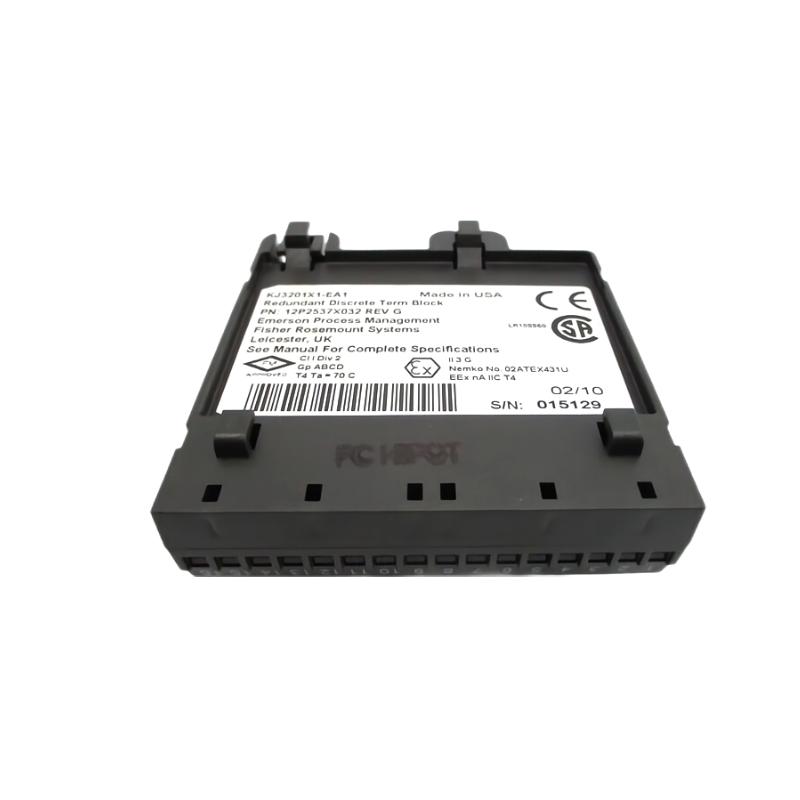

The Emerson VE4032S1T2B1 KJ3201X1-EA1 Discrete Output Module is a high-reliability I/O solution developed for Emerson DeltaV distributed control systems. It combines discrete output control functionality with redundant termination capability to support critical automation applications where system availability and signal reliability are important.
Built for industrial process environments, this module helps engineers achieve stable field device control, simplified system integration, and efficient lifecycle management. Its compatibility with DeltaV M-Series architectures makes it a practical choice for upgrading, expanding, or maintaining existing control installations.
Technical Specifications
Specification
Details
Manufacturer
Emerson
Model
VE4032S1T2B1
Alternate Model
KJ3201X1-EA1
Module Type
Discrete Output Module
System Platform
Emerson DeltaV M-Series
Output Type
Discrete Output, High Side
Number of Channels
8 Channels
Operating Voltage
24 V DC
Termination Type
Redundant Standard I/O Termination Block
Application
Industrial Process Control
Dimensions
Approx. 12.7 × 5.1 × 11.4 cm
Weight
Approx. 0.35 kg
Recommended Companion Models
Model
Product Name
KJ3202X1-BA1
DeltaV Discrete Output Card
KJ3208X1-BA1
DeltaV 8-Channel Discrete Output Module
KJ3001X1-BJ1
DeltaV I/O Carrier Assembly
VE4002S1T2B1
DeltaV Standard I/O Termination Block
Frequently Selected Alternatives
Model
Product Name
VE4031S2T2B1
DeltaV Redundant Discrete Input Module
VE4035S2B1
DeltaV Redundant Analog Output Module
VE4003S2B1
DeltaV 8-Channel Discrete Input Module
VE4002S2T2B1
DeltaV Discrete Output Termination Block
Where It Excels in Industrial Use
• Designed for DeltaV distributed control environments requiring reliable discrete output control and redundant termination solutions.
• Suitable for process industries including chemical processing, oil and gas, pharmaceutical manufacturing, and power generation applications where stable I/O performance is essential.
• Supports demanding automation systems that require dependable field device connection, efficient signal distribution, and simplified maintenance operations.
Key Strengths at a Glance
• Provides reliable 24 V DC discrete output control capability for industrial automation applications.
• Supports redundant I/O architecture to improve system availability and operational continuity.
• Designed for seamless integration with Emerson DeltaV M-Series control platforms.
• Delivers consistent signal management performance for critical process control environments.
Technical FAQs
1. What type of signal does the Emerson VE4032S1T2B1 module handle?
The VE4032S1T2B1 is designed for discrete output applications and supports 24 V DC high-side output control within DeltaV automation systems.
2. Which DeltaV systems are compatible with this module?
This module is designed for use with Emerson DeltaV M-Series I/O systems and compatible DeltaV control architectures.
3. What is the function of the KJ3201X1-EA1 component?
The KJ3201X1-EA1 functions as a redundant discrete termination block used with compatible DeltaV discrete output configurations.
4. How many output channels does this module support?
The module supports 8-channel discrete output operation for connecting and controlling field devices.
5. What type of field devices can be connected to this output module?
The module can be used with compatible discrete field devices such as actuators, solenoid valves, alarms, and other binary control equipment.
6. Does the VE4032S1T2B1 support redundant operation?
Yes, the module is designed for redundant I/O configurations when paired with the appropriate termination components.
7. How is this module configured in a DeltaV system?
The module is configured through DeltaV engineering tools by assigning hardware parameters, I/O characteristics, and control system settings.
8. What advantages does a high-side output design provide?
A high-side output design provides reliable power switching control for connected field devices and improves compatibility with industrial applications.
9. Can this module be integrated into existing DeltaV installations?
Yes, the module can be integrated into existing compatible DeltaV systems when the required hardware configuration and engineering parameters are supported.
10. What maintenance benefits does this module provide?
The module supports efficient troubleshooting and replacement procedures through DeltaV diagnostics and standardized I/O architecture.
